Description

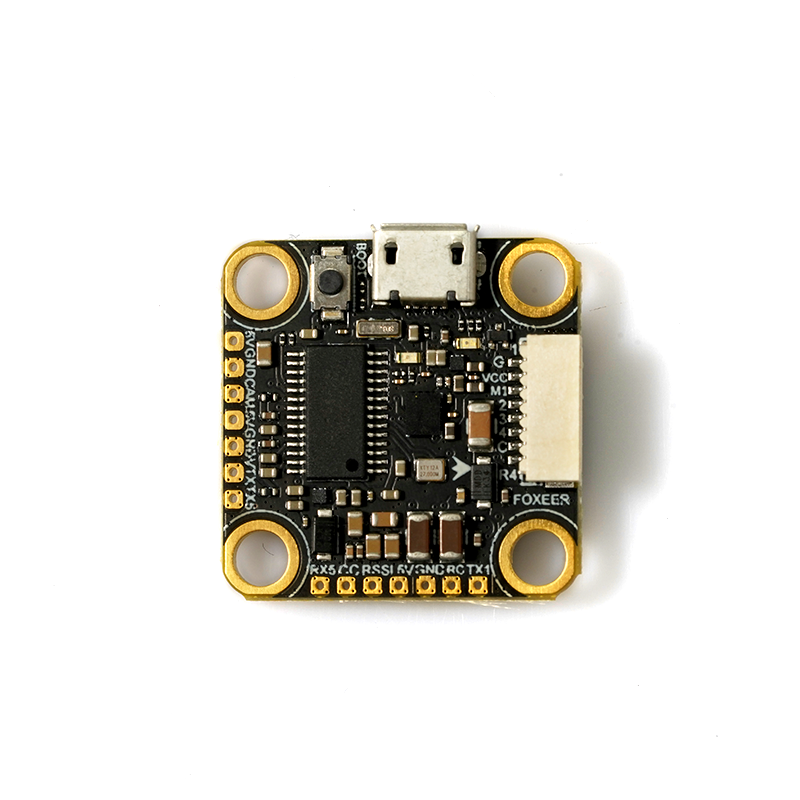

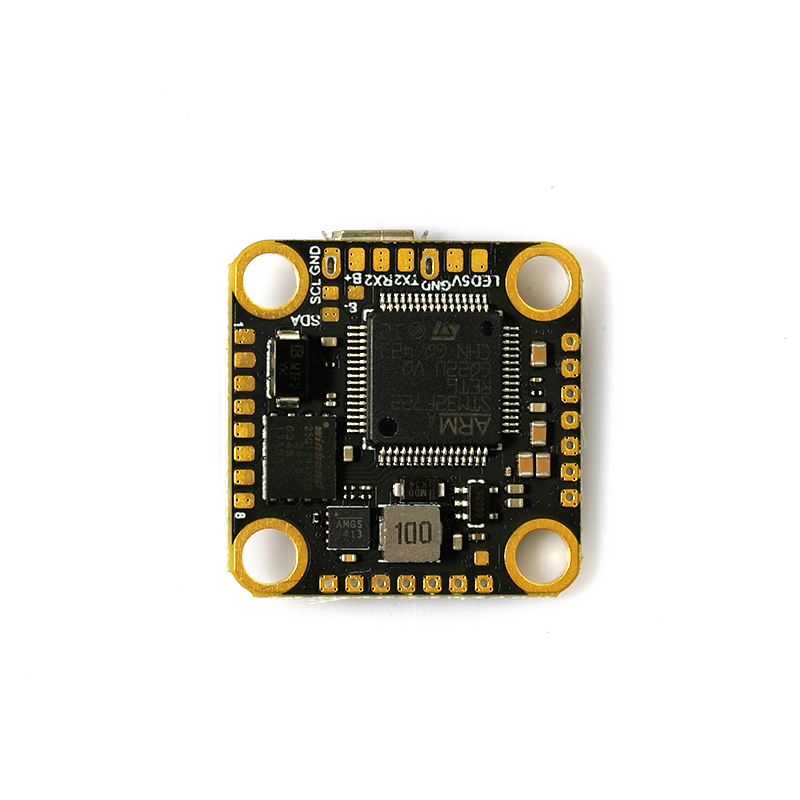

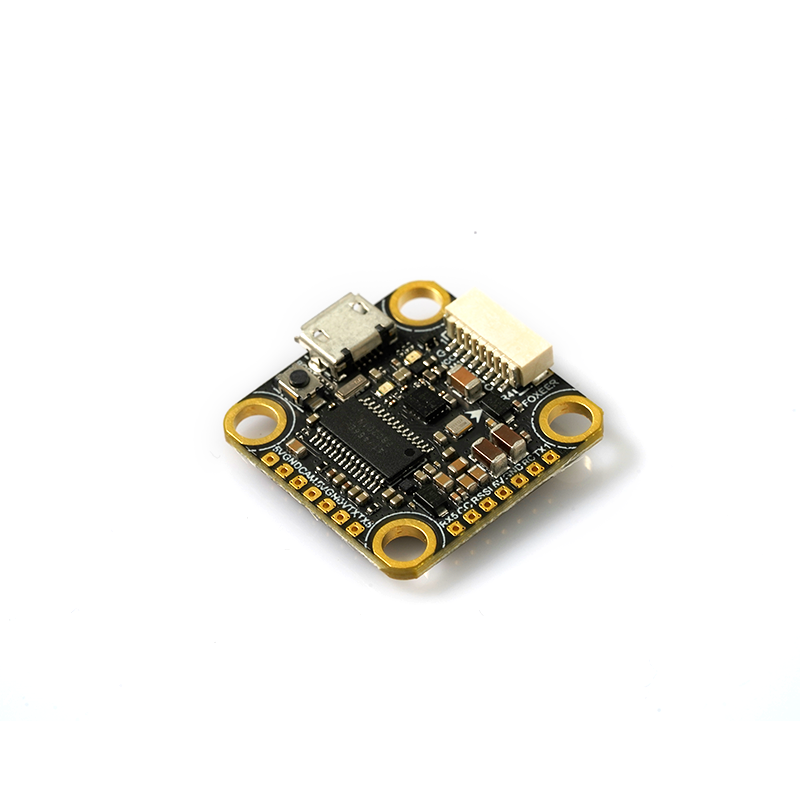

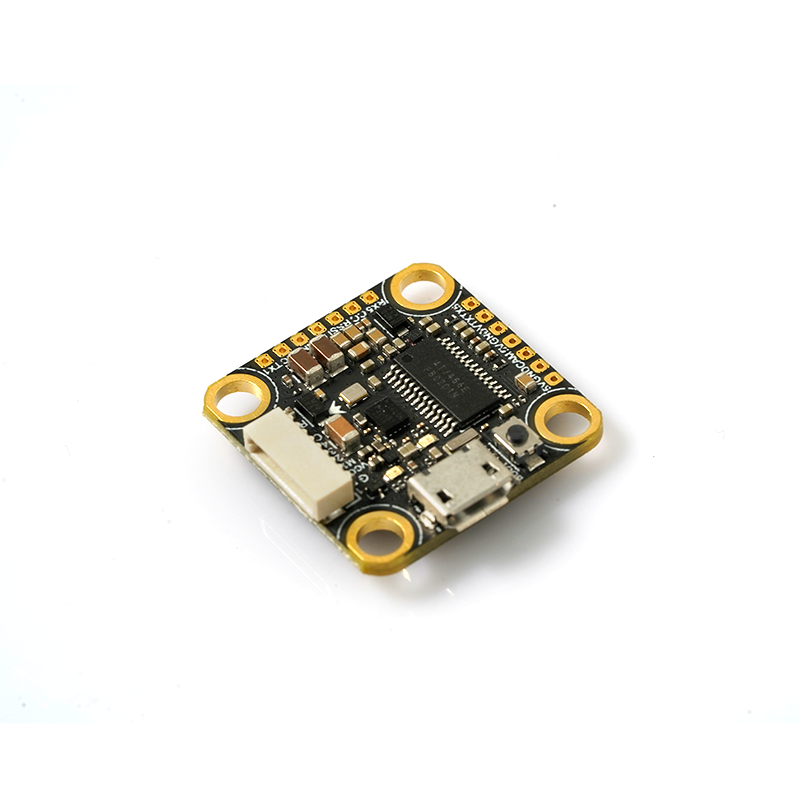

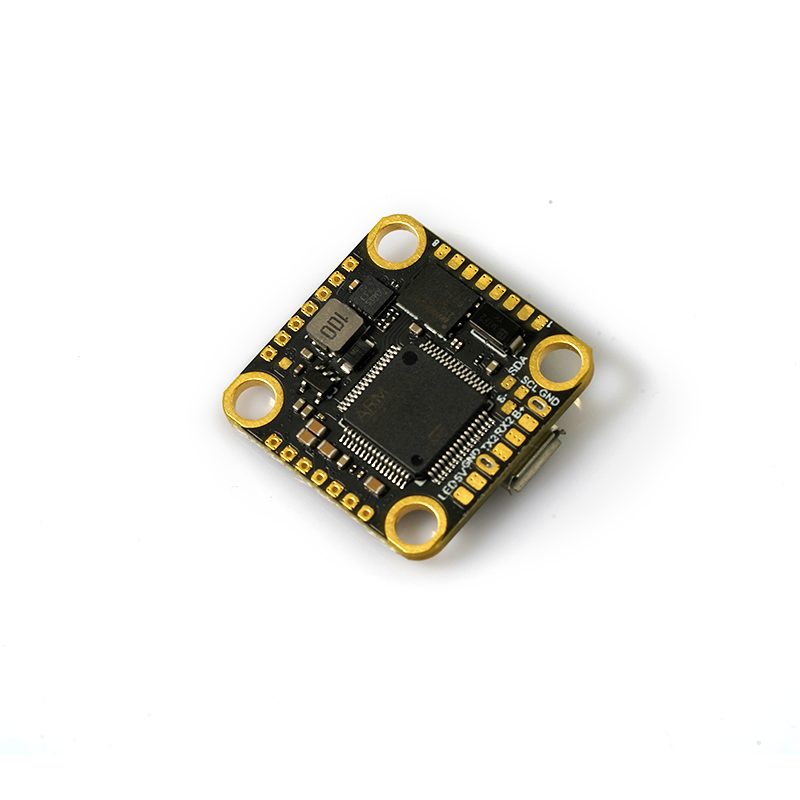

The Foxeer F722 Mini V4 FC ICM42688 delivers elite flight control performance in an ultra-compact design, powered by STM32F722RET6 and advanced ICM42688 gyro for precise, responsive handling across demanding freestyle and racing builds. With 16M black box, 4 UARTs, smart audio, ESC telemetry, and reliable 2–6S support, it ensures seamless tuning, data logging, and stable power for consistent, high-confidence flights every time for pilots seeking ultimate control and reliability always.

Specifications

• Model: Foxeer F722 Mini V4 ICM42688
• CPU: STM32F722RET6
• Gyro: ICM42688
• Power Supply: 2–6S LiPo
• BEC Output: DC 5V / 2.5A
• OSD: Betaflight OSD
• Black Box: 16MB Flash Memory
• UARTs: 4
• ESC Telemetry: RX4
• Buzzer: Supported
• Smart Audio: Supported
• LED: 1x 2812 LED pad
• USB: Micro USB
• Firmware: FOXEERF722V4 (Betaflight)
• Size: 26×26mm
• Mounting: 20×20mm, Φ4mm
• Weight: 4g
• Working Temperature: -20°C to +55°C
• Working Humidity: 20%–95%
• Storage Temperature: -20°C to +70°C

Package Includes

• 1 x Foxeer F722 Mini V4 FC ICM42688
