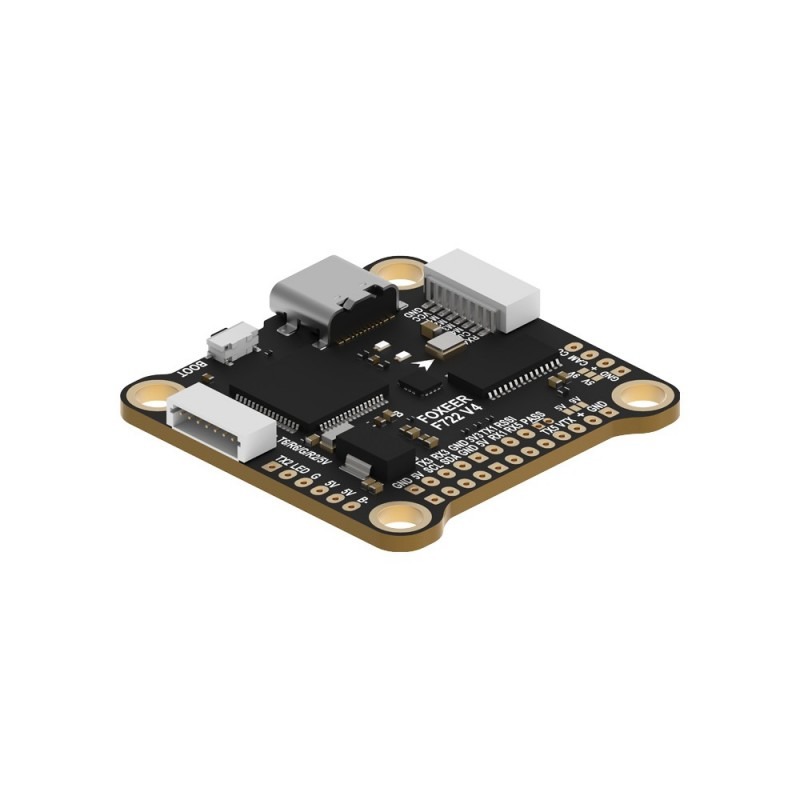

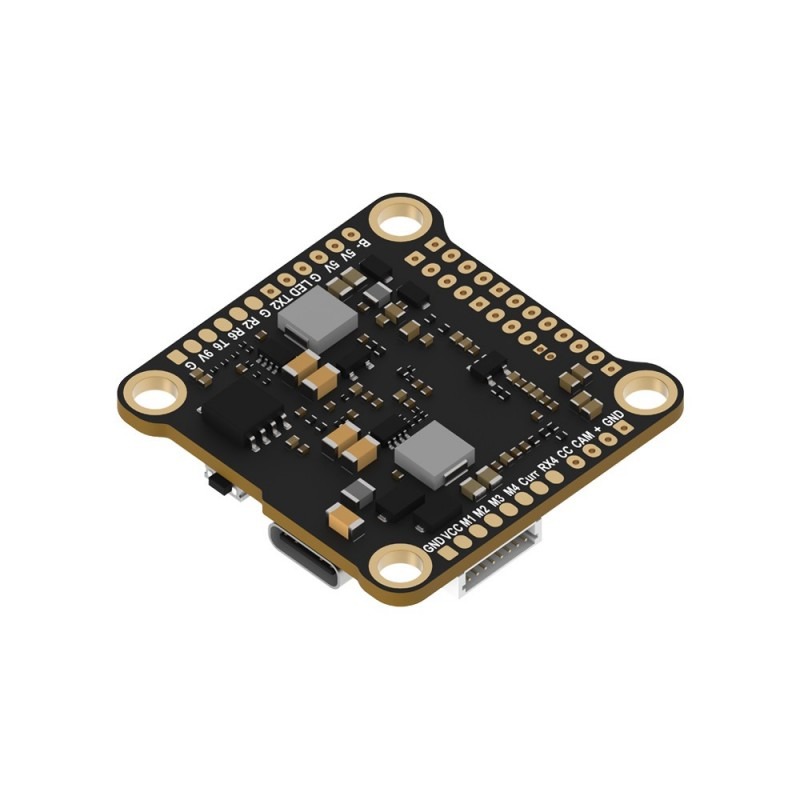

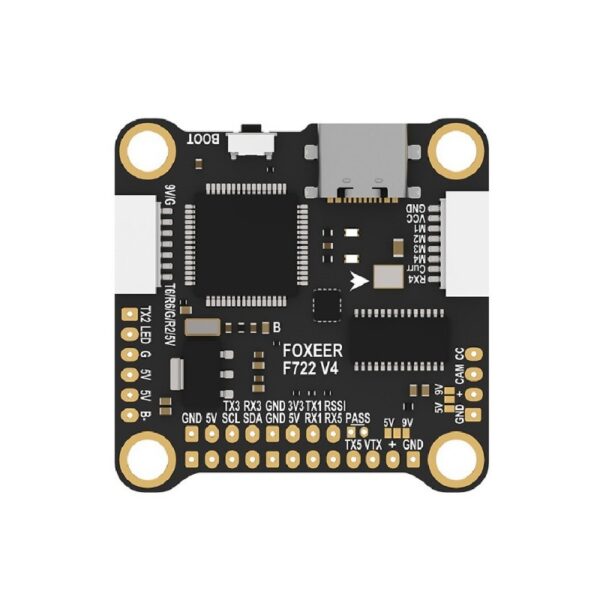

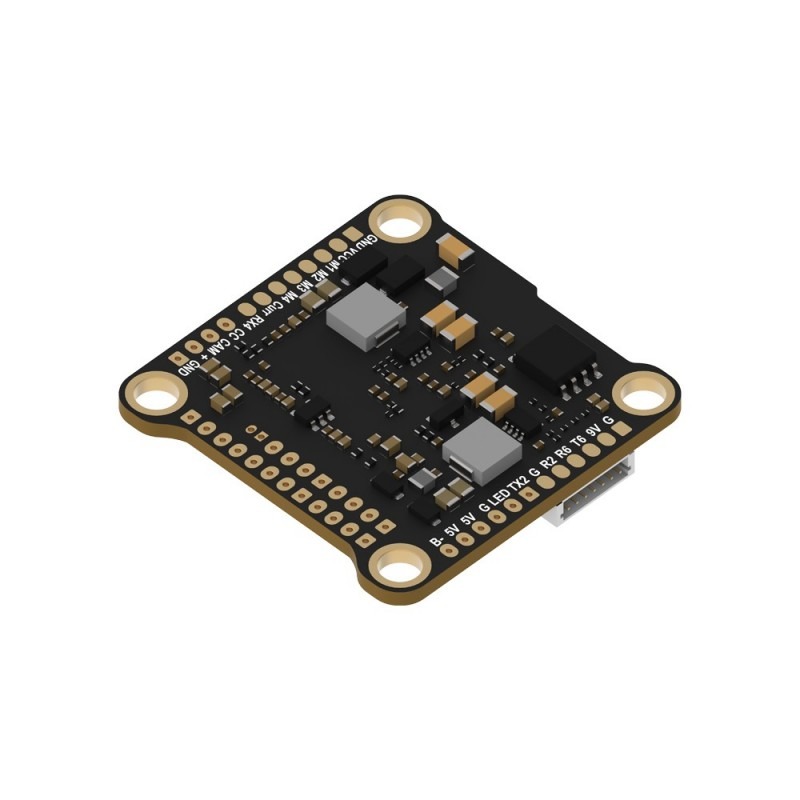

Foxeer F722 V4 Flight Controller X8 DJI Type-C

Description

Foxeer F722 V4 Flight Controller X8 DJI Type-C

The Foxeer F722 V4 is the prefect companion to a Foxeer Reaper ESC, providing Foxeers legendary reliability and performance

Specifications:

• Model F722 V4
• CPU STM32F722RET6
• Gyro ICM-42688-P
• Power Supply 3~6S Lipo (11V~30V)
• BEC Output DC5V/3A; DC9V/3A
• OSD BF OSD
• Black Box 16M Flash Memory
• UART 6 Set
• ESC Telemetry RX4
• Buzzer YES
• Smart Audio YES
• LED 1 Set 2812 LED
• USB Type-C
• X8 Supported Need CLI
• BF:FOXEERF722V4; Inav: FOXEERF722V4 & FOXEERF722V4 X8
• Size 37X37mm
• Mounting Hole 30.5X30.5mm,Φ4mm
• Weight(g) 8g
• Working Temperature -20℃ ~ +55℃
• Working Humidity 20～95%
• Storage Temperature -20℃ ~ +70℃
• Package Includes 1*FC, 4*Rubbers Columns

Reaper ESCs availble here

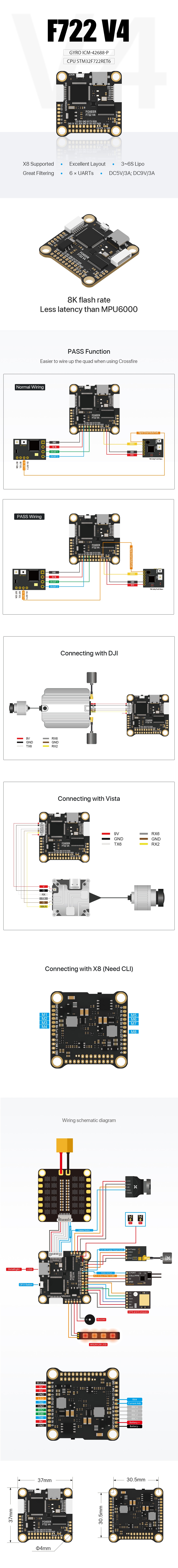

Foxeer F722 V4 Flight Controller in a stack with Reaper ESC
