Description

The Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna delivers exceptional signal clarity, ultra low SWR, and nearly perfect axial ratio, ensuring stable video transmission and reliable performance for demanding FPV pilots in any environment. Built with durable PC plus ABS housing and high efficiency radiation, it offers versatile connectors, lightweight design, and consistent long range coverage that enhances every flight experience with confidence and control.

Specifications

• Center Frequency: 5.75GHz
• Gain: 2.6dBi
• Axial Ratio: Close to 1
• Bandwidth: 5.5GHz – 6GHz
• Radiation Efficiency: 98%

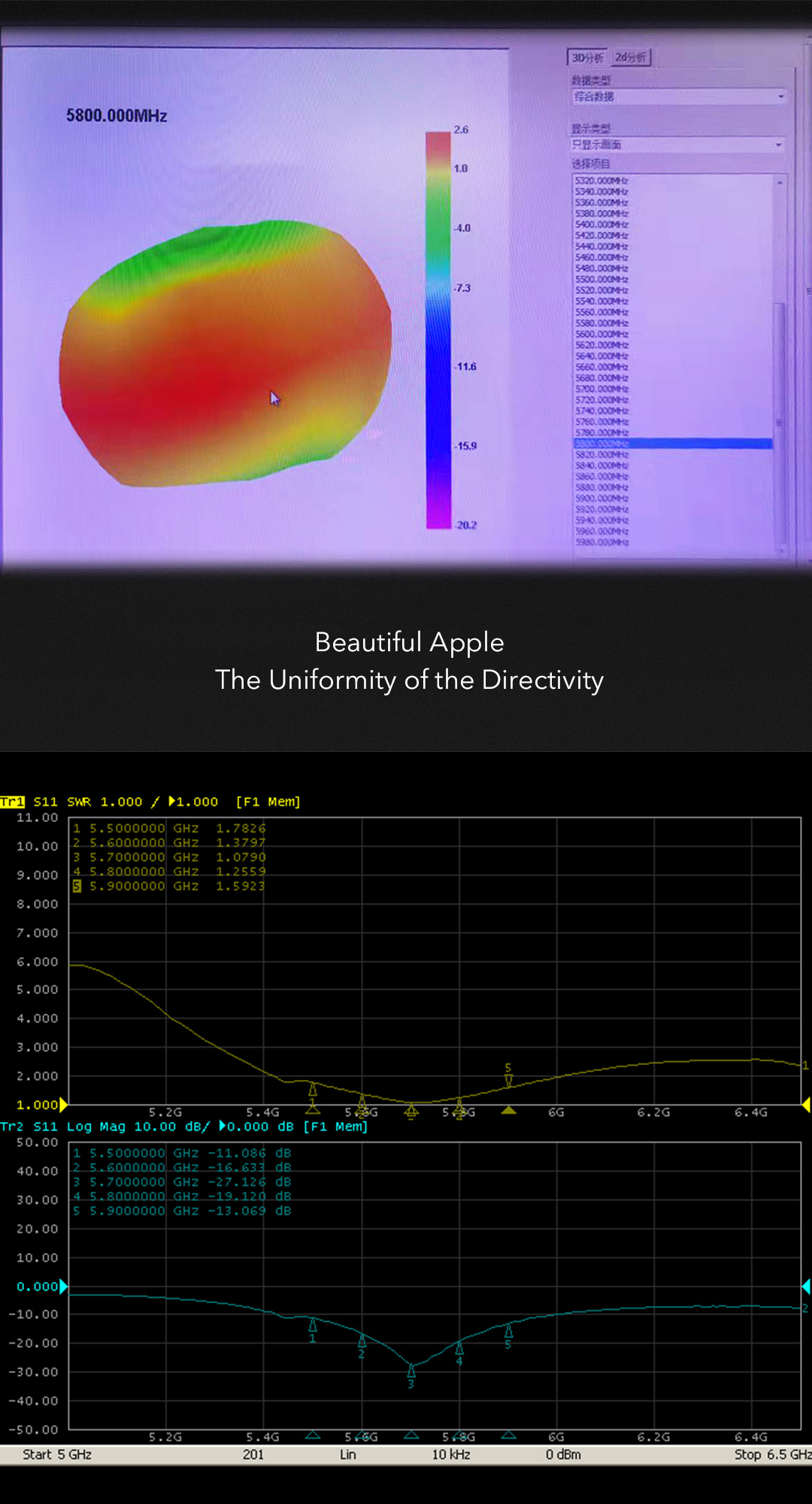

• SWR: 1.07 at center frequency
• Polarization: RHCP / LHCP
• Case Material: PC + ABS
• Weight:
  • SMA/RPSMA: 7.8g
  • Straight MMCX: 4.4g
  • Angle MMCX: 4.5g
  • SMA-10CM: 9.7g
  • Angle SMA-15CM: 13.9g
  • UFL: 2.8g
  • UFL Tube Short: 2.9g
  • UFL Tube Long: 3.8g
  • Angle MMCX Tube Short: 4.8g
  • Angle MMCX Tube Long: 6.8g

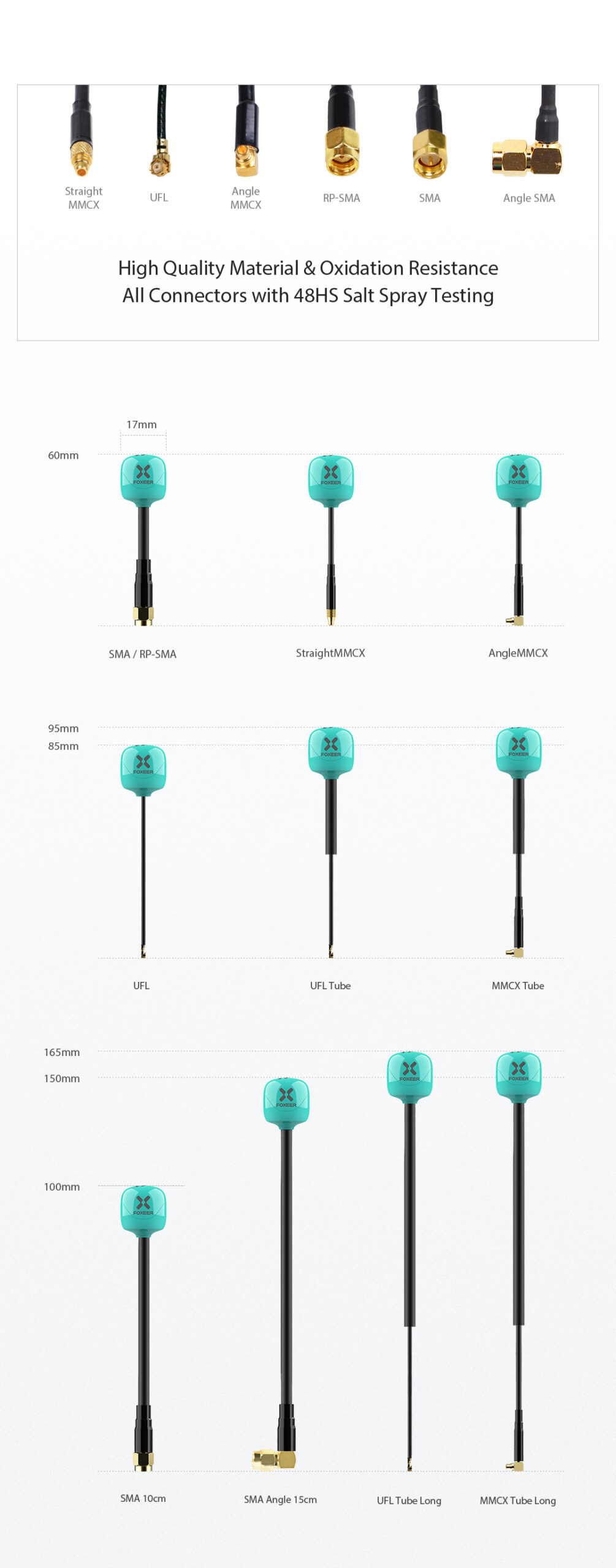

• Dimensions & Connector Length:
  • SMA/RPSMA/MMCX: Φ11×60mm
  • UFL: Φ11×85mm
  • Tube Short: Φ11×95mm
  • SMA-10CM: Φ11×100mm
  • SMA 15CM Angle: Φ11×150mm
  • Tube Long: Φ11×165mm

Package Includes

• 1 x Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna
