Description

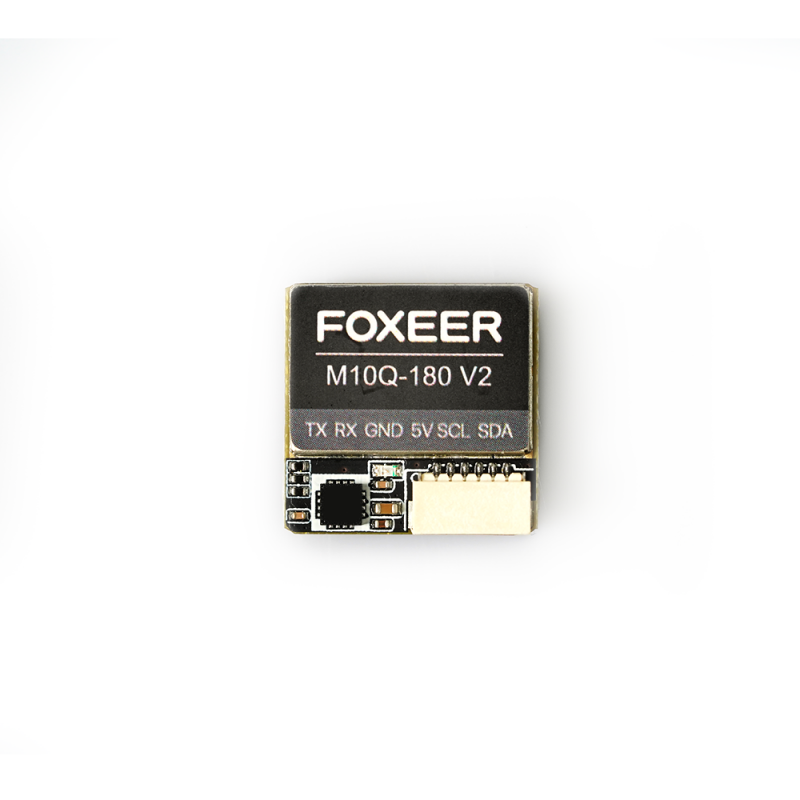

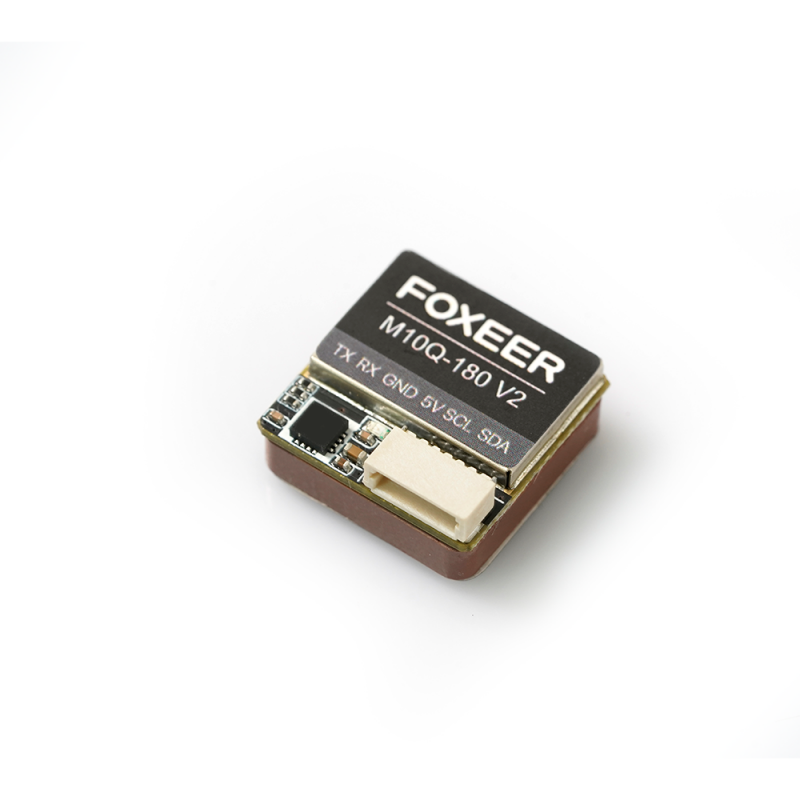

The Foxeer M10Q 180 V2 GPS delivers ultra precise positioning with its advanced 10th generation M10 chip, ensuring faster satellite lock, stable multi constellation reception, and reliable navigation performance for FPV pilots who demand accuracy in every flight. Designed with a built in compass and high sensitivity ceramic antenna, it provides consistent data output, low noise operation, and dependable performance even in challenging environments for demanding aerial applications and missions.

Specifications

• Chip: M10 (10th Generation)
• Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO, SBAS L1, QZSS L1
• Input Voltage: 5V

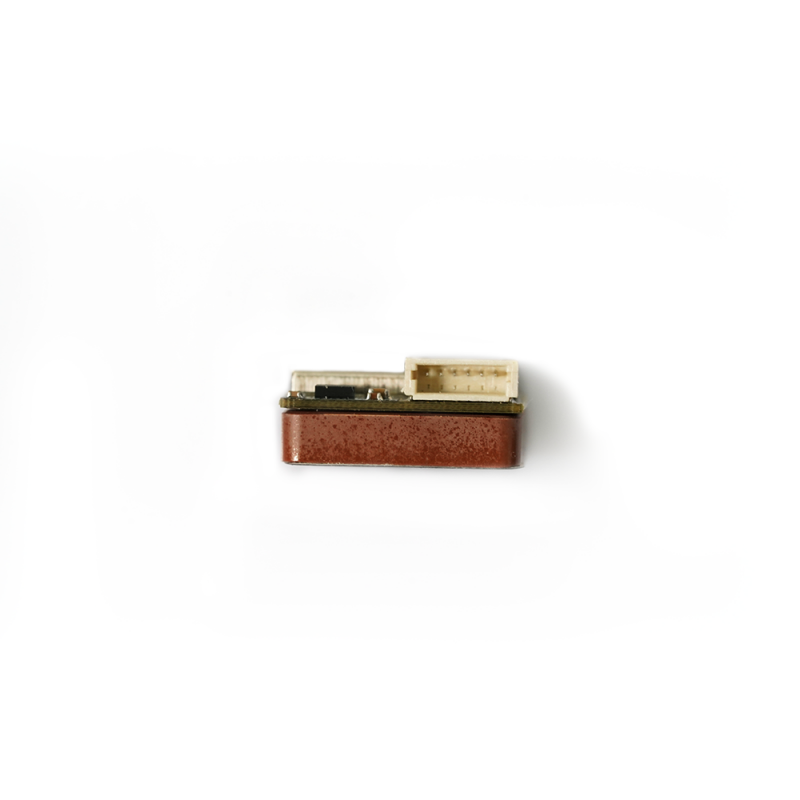

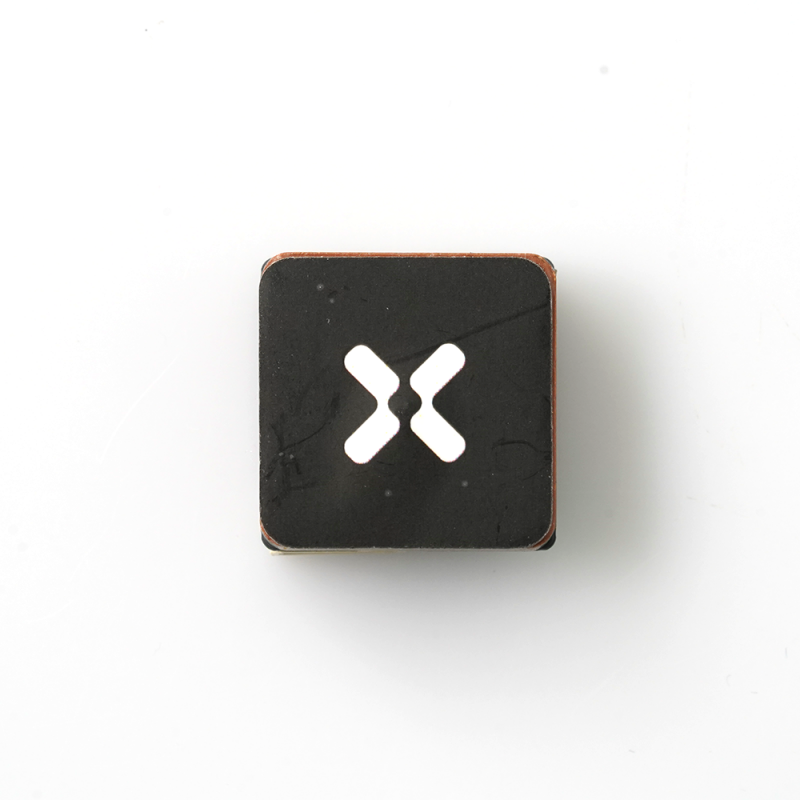

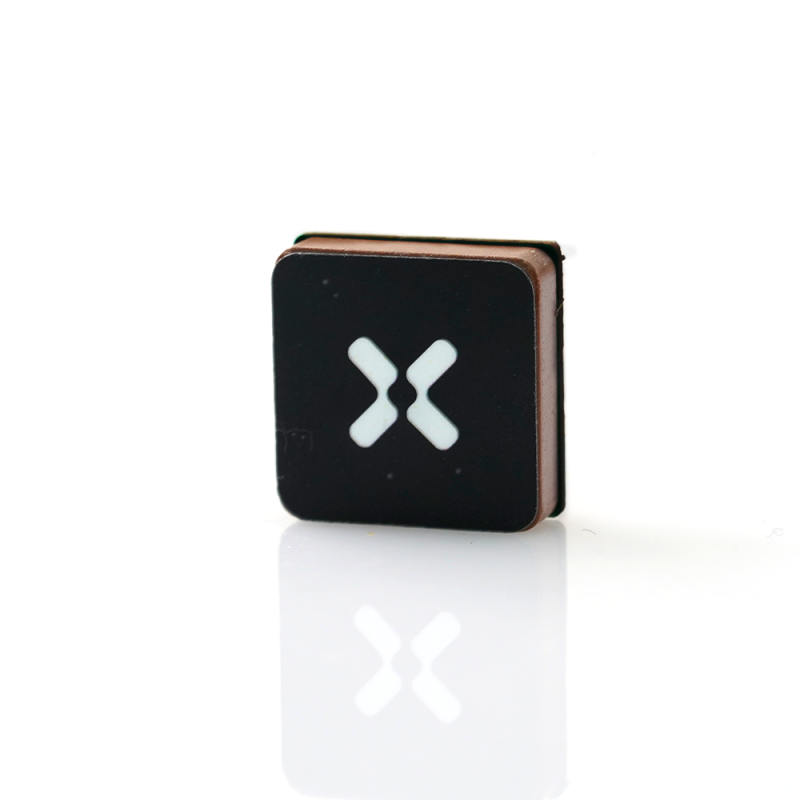

• Antenna: Ceramic Antenna
• Channels: 72
• Battery: Built-in
• Compass: IST8310
• Compass Orientation: Plug facing forward, antenna up (BF: CW 270° Flip)
• Baud Rate: 115200bps
• Protocol: Dual NMEA / UBLOX
• Output Frequency: 1Hz–10Hz (default 10Hz)
• Speed Accuracy: 0.05 m/s
• Position Accuracy: 2D ≤ 1.5m (outdoor)
• Sensitivity: Tracking -166dBm / Capture -160dBm
• Max Altitude: 50,000 m
• Max Speed: 500 m/s
• Max Acceleration: 4G
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +105°C
• Weight: 7.5g
• Dimensions: 18 × 18 × 8 mm

Package Includes

• 1 x Foxeer M10Q 180 V2 GPS
