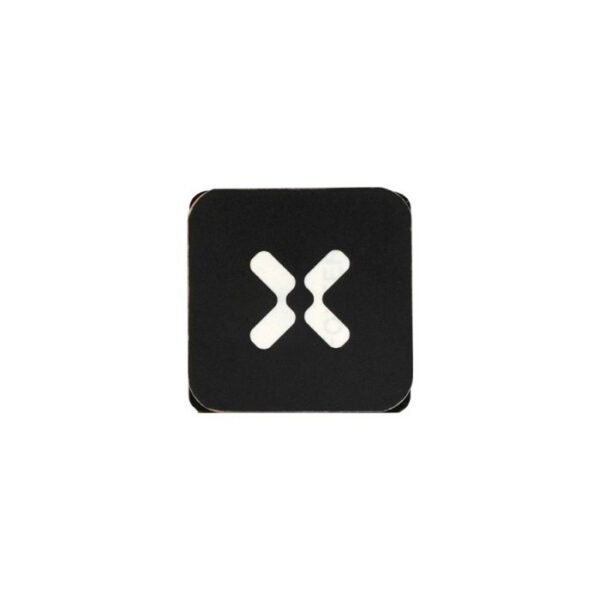

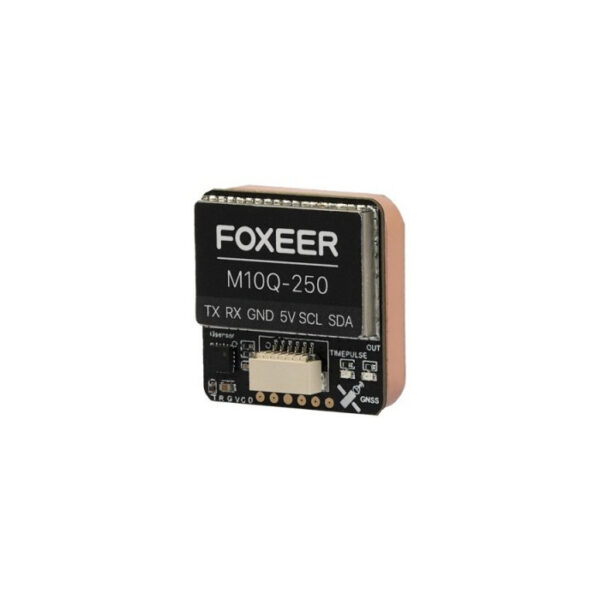

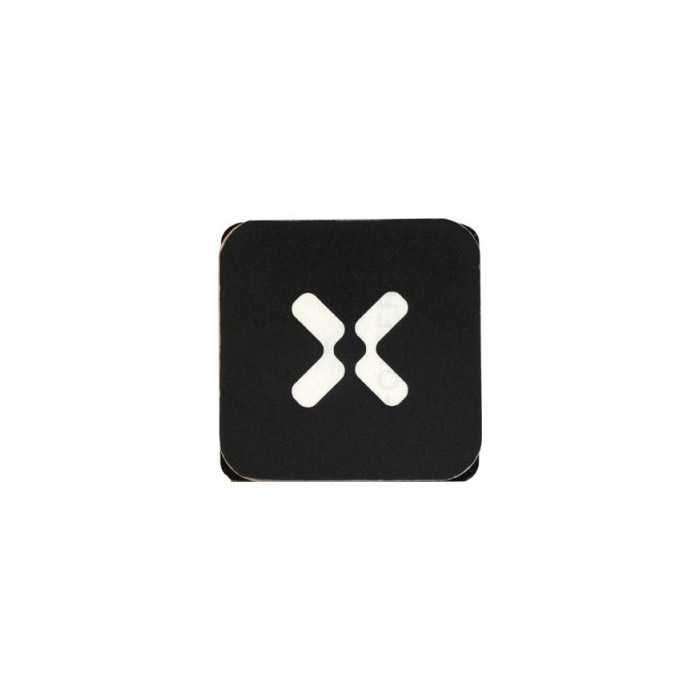

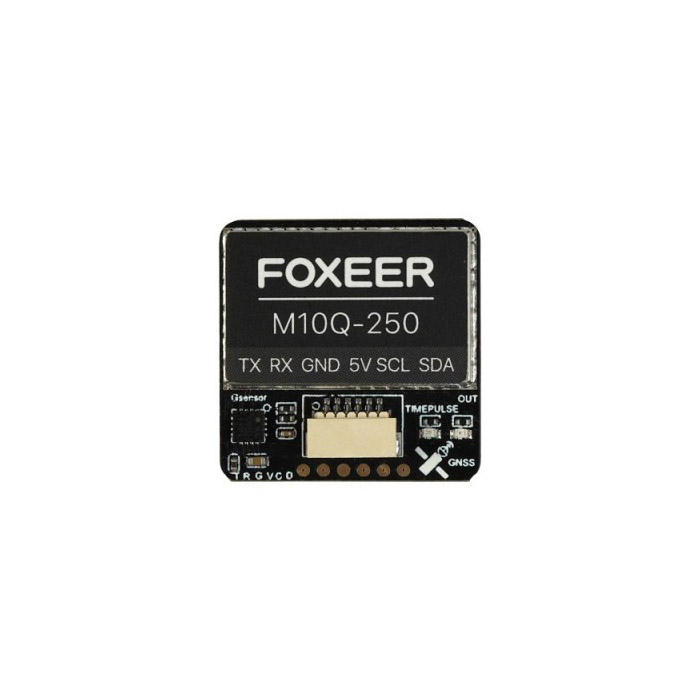

Foxeer M10Q GPS Product Photo
Foxeer M10Q GPS Product Photo
Foxeer M10Q GPS Product Photo

Foxeer M10Q 250 GPS with 5883 Compass

by Foxeer
3.67 out of 5
(3 customer reviews)

This new series of M10Q GPS & 5883 Compass from Foxeer provide the advantages of the latest chipsets at an affordable price!

$35.99

Hurry! Only 1 left in stock

Ships from our Tauranga warehouse
SKU: E1127 Categories: ,

Description



Specifications:

  • Chip M10(10th Generation Chip)
  • Frequency GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
  • Input Voltage 5V
  • Antenna Ceramic Antenna
  • Channel 72
  • Battery Bilid-in
  • Compass QMC5883
  • Compass Orientation Plug facing direction of flight and obviously antenna up, BF: CW 90° Flip
  • Baud Rate 115200bps
  • Protocol Dual NMEA/UBLOX
  • Output Frequency 1Hz-10Hz,10Hz default
  • Speed Accuracy 0.05m/s
  • Horizontal Positioning Accuracy 2D ACC1.5m(outdoor)
  • Receiver Sensitivity Trace -166dBm; Capture -160dBm
  • Dynamic Characteristics Height 50000m; Speed 500m/s; Acceleration 4G
  • Operating Temperature -40C-+85C
  • Storage temperature -40C-+105C
  • Weight 12g
  • Size 25*25*8mm

See the full range:









Additional information

Brand

3 reviews for Foxeer M10Q 250 GPS with 5883 Compass

  1. 5 out of 5

    Darrin Gower (verified owner) –

    Recommend these , aquires Sat’s under 30 secs and so far it’s getting 32 Sat’s

  2. 5 out of 5

    Shaun L. (verified owner) –

  3. 1 out of 5

    Jay (verified owner) –

    No success with Matek CRSF-PWM-V10 or ELRS-R24-V. Option which did work was Matek M10-5883.
