Description

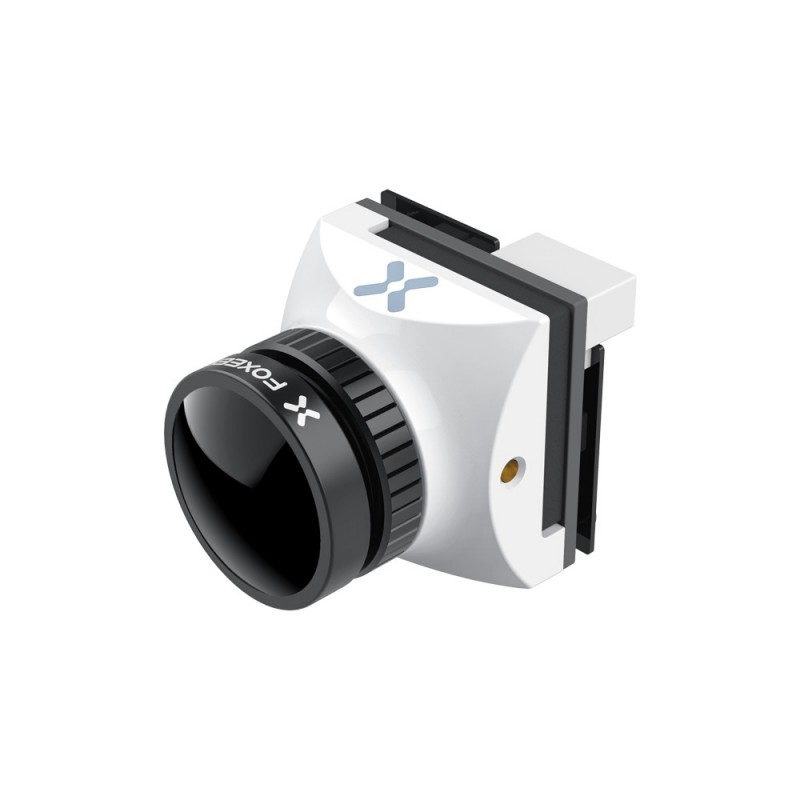

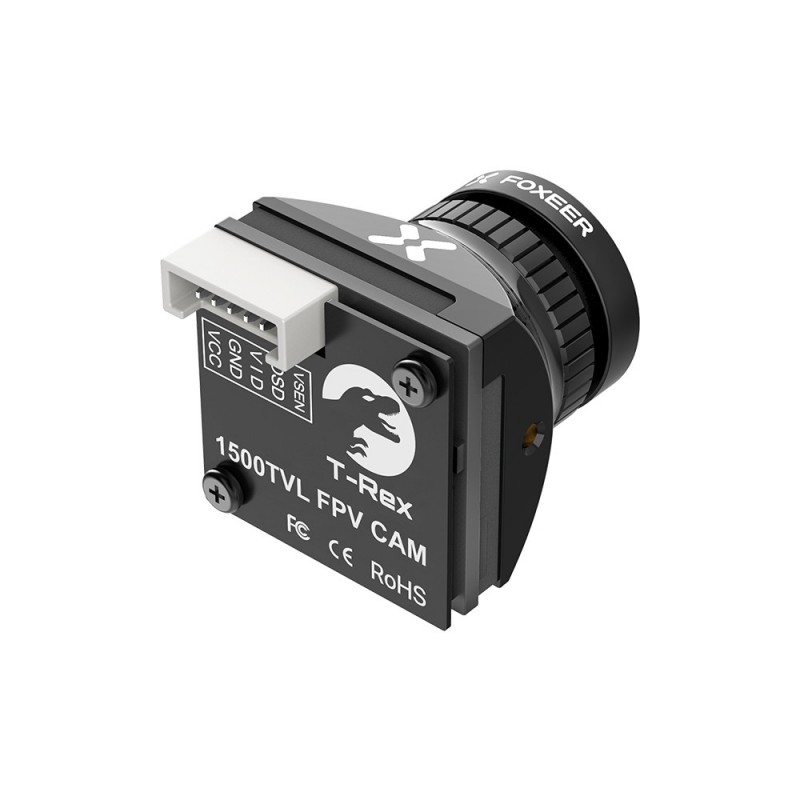

The Foxeer T Rex Micro 1500TVL Low Latency Super WDR FPV Camera delivers ultra-clear visuals with 1500TVL resolution, exceptional 110dB WDR, and lightning-fast 2ms latency for precision flying. Built with a compact 19x19mm form, flexible 4:3/16:9 switching, and superior low-light performance at 0.001Lux, it ensures reliable, immersive FPV experiences in any environment with consistent clarity and smooth real-time responsiveness.

Specifications

• Sensor Type: CMOS 2MP
• Resolution: 1500TVL
• Aspect Ratio: 4:3 / 16:9 switchable
• TV System: PAL / NTSC switchable
• Field of View:
  • 4:3 → H: 120°, D: 150°
  • 16:9 → H: 155°, D: 175°
• Shutter Speed: Auto
• Video Output: CVBS Analog
• Latency: ≤2ms
• Minimum Illumination: 0.001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 110dB
• Day/Night Mode: EXT / Auto / Color / B&W
• OSD: Voltage / Cam Title / Time
• Input Voltage: 5V–16V
• Power Consumption:
  • 115mA±15% @12V
  • 270mA±15% @5V
• Language: English / Chinese
• Working Temperature: -10°C to 50°C
• Working Humidity: 20%–80%
• Storage Temperature: -20°C to 70°C
• Dimensions: 19×19mm
• Weight: 8.6g (excluding cable)

Package Includes

• 1 x Foxeer T Rex Micro 1500TVL Low Latency Super WDR FPV Camera
