Description

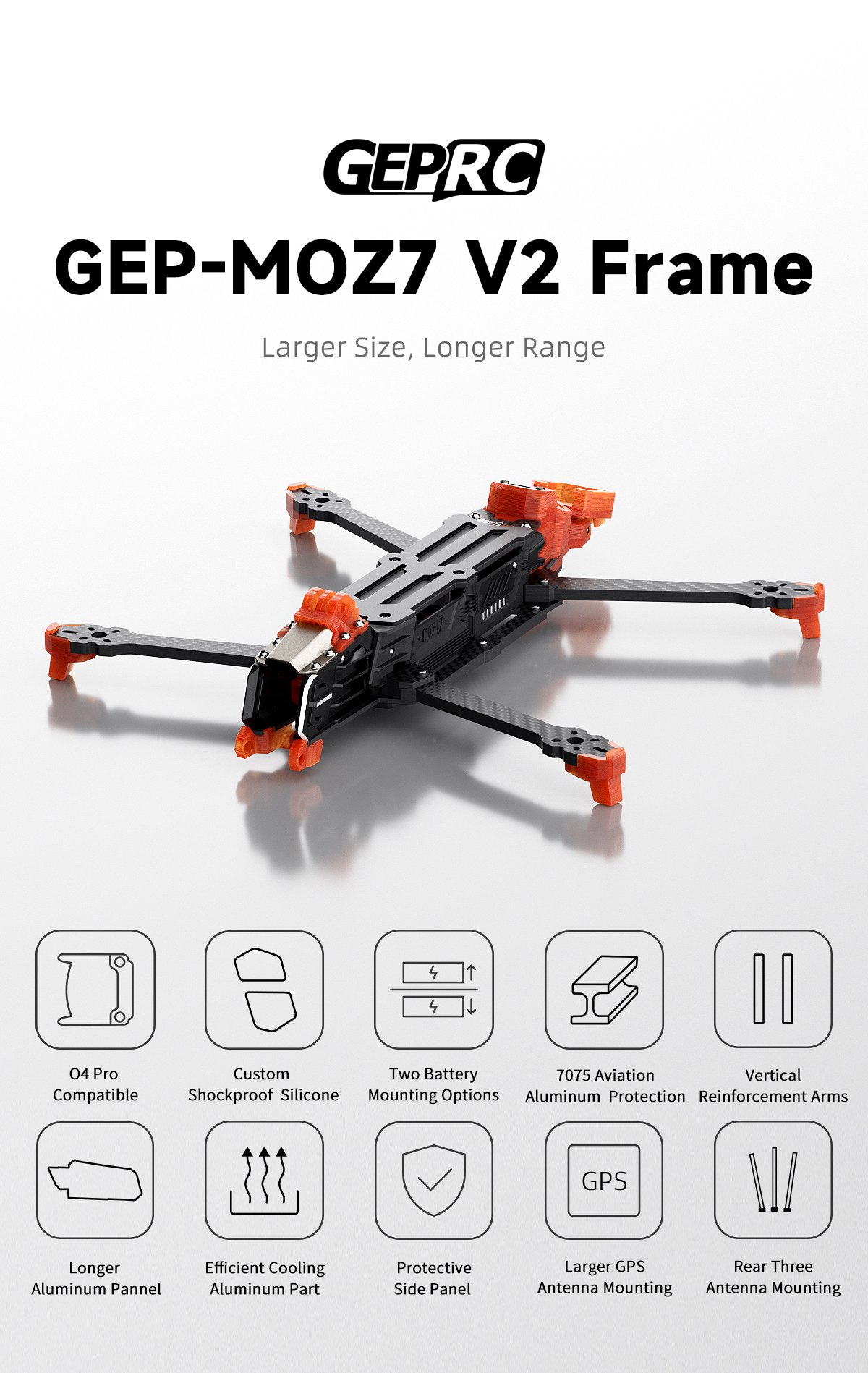

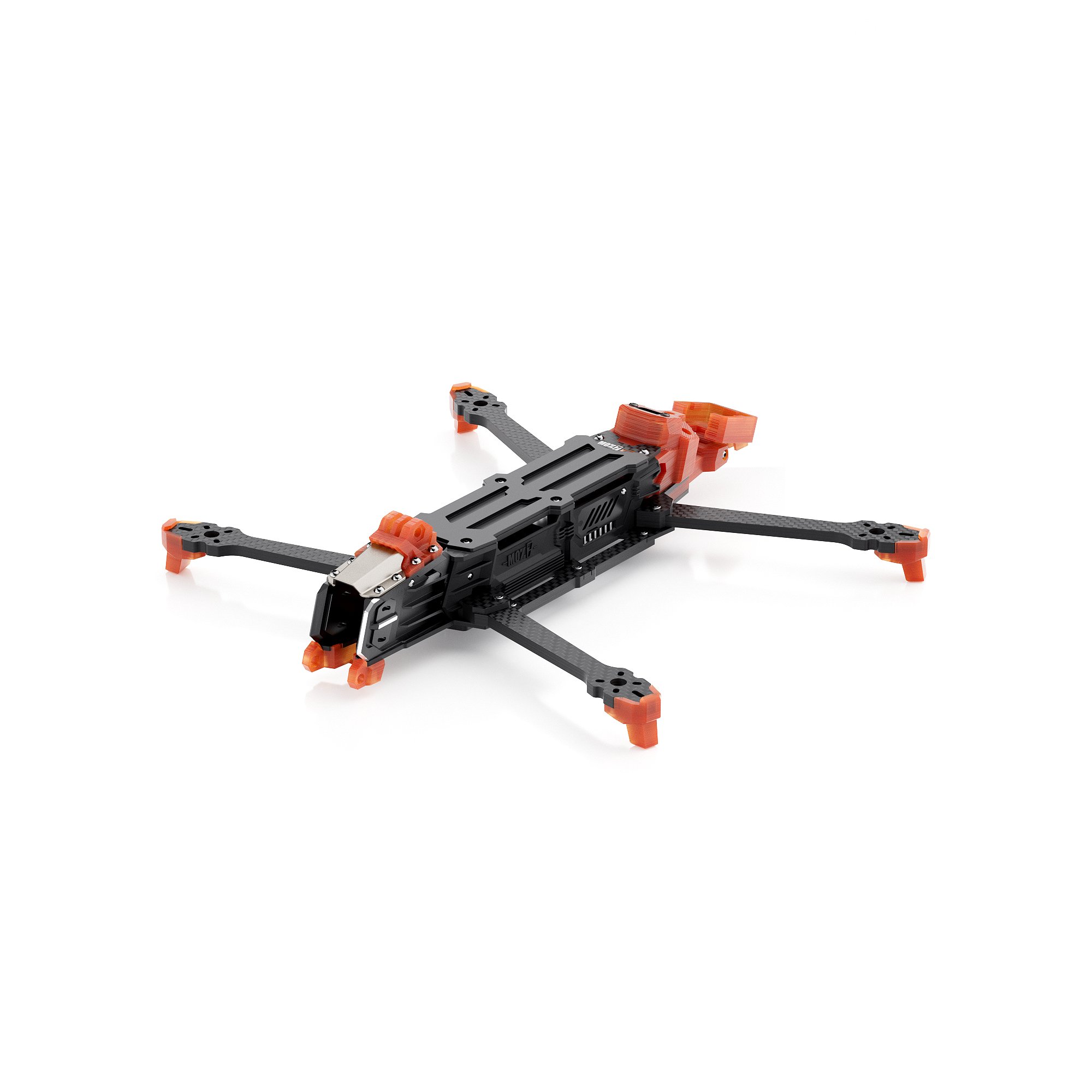

The GEP-MOZ7 V2 Frame is a purpose built 7.5 inch long range platform engineered for O4 Air Unit Pro clarity, strength, and cooling. Extended geometry eliminates prop intrusion, reinforced 6mm arms stabilize heavy builds, metal protection guards optics, advanced heat sink mounting improves VTX performance, and flexible GPS, antenna, battery, and camera mounting options deliver confident cinematic flights at extreme distances with reliability, efficiency, durability, balance, precision and control everywhere.

Features

• Optimized for O4 Air Unit Pro with unobstructed camera view
• Supports 7.5-inch and 8-inch propeller setups

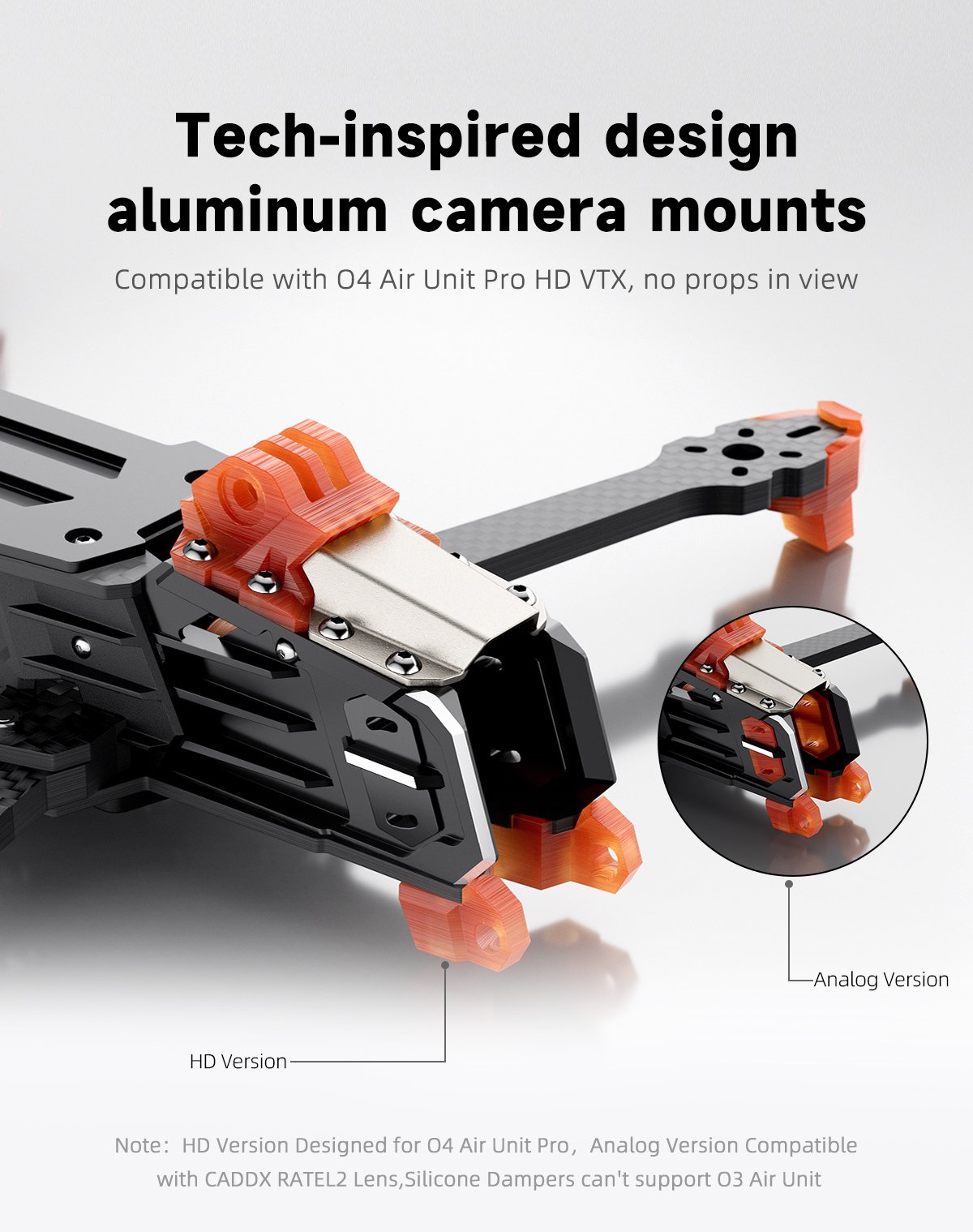

• Aerospace-grade aluminum camera mounts with metal top plate protection

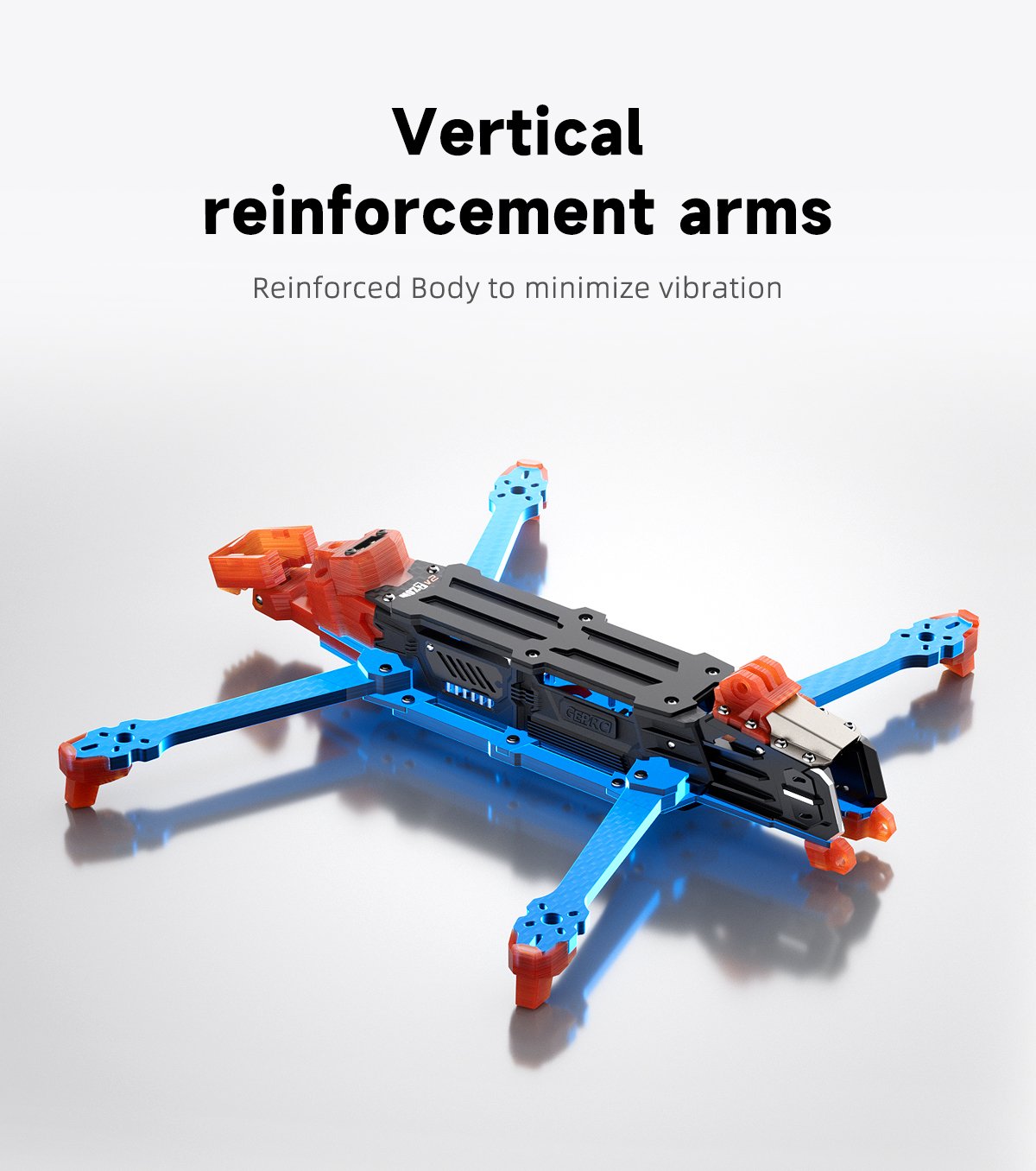

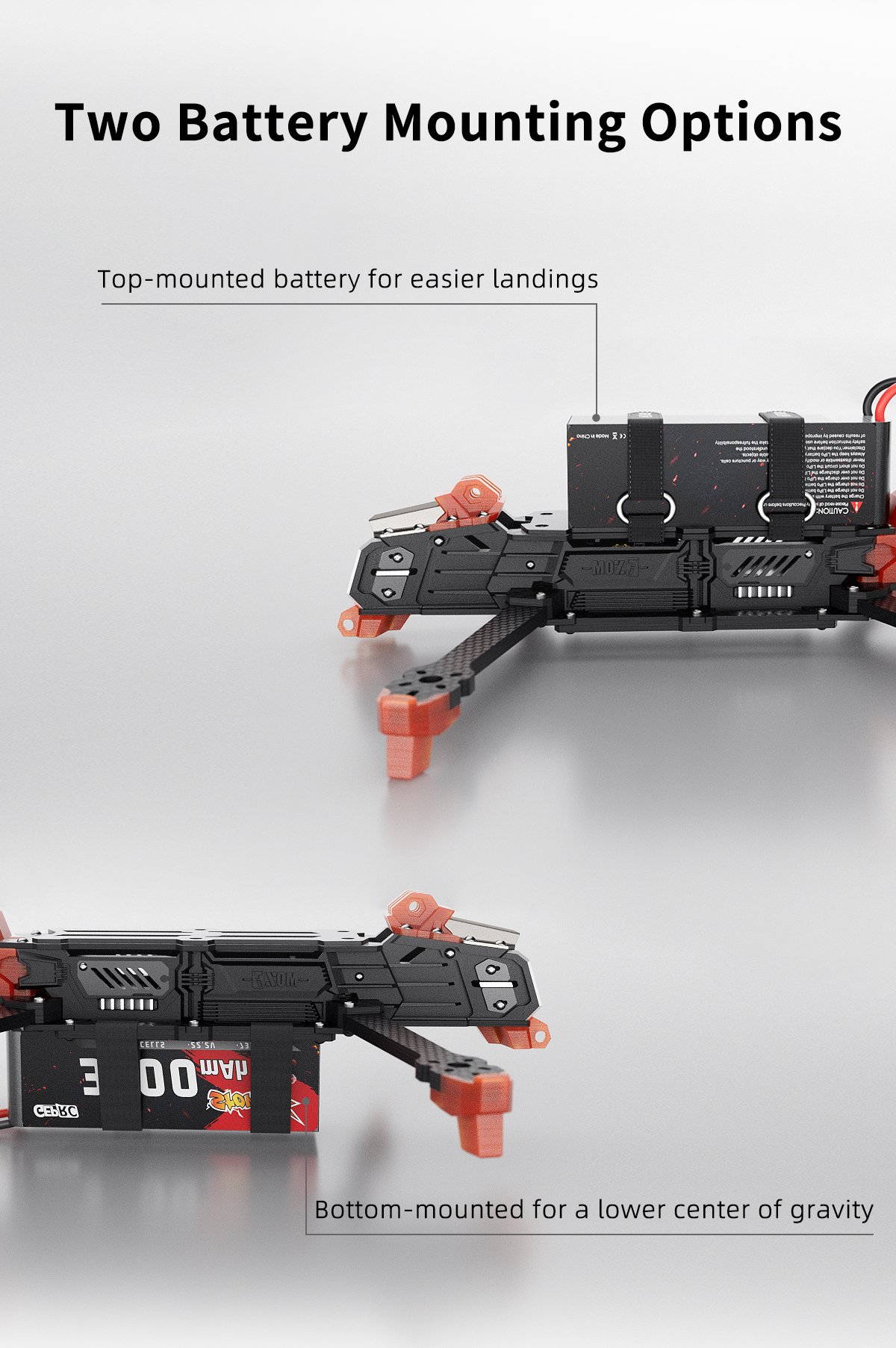

• 6mm reinforced arms for rigidity and bottom-mounted battery support

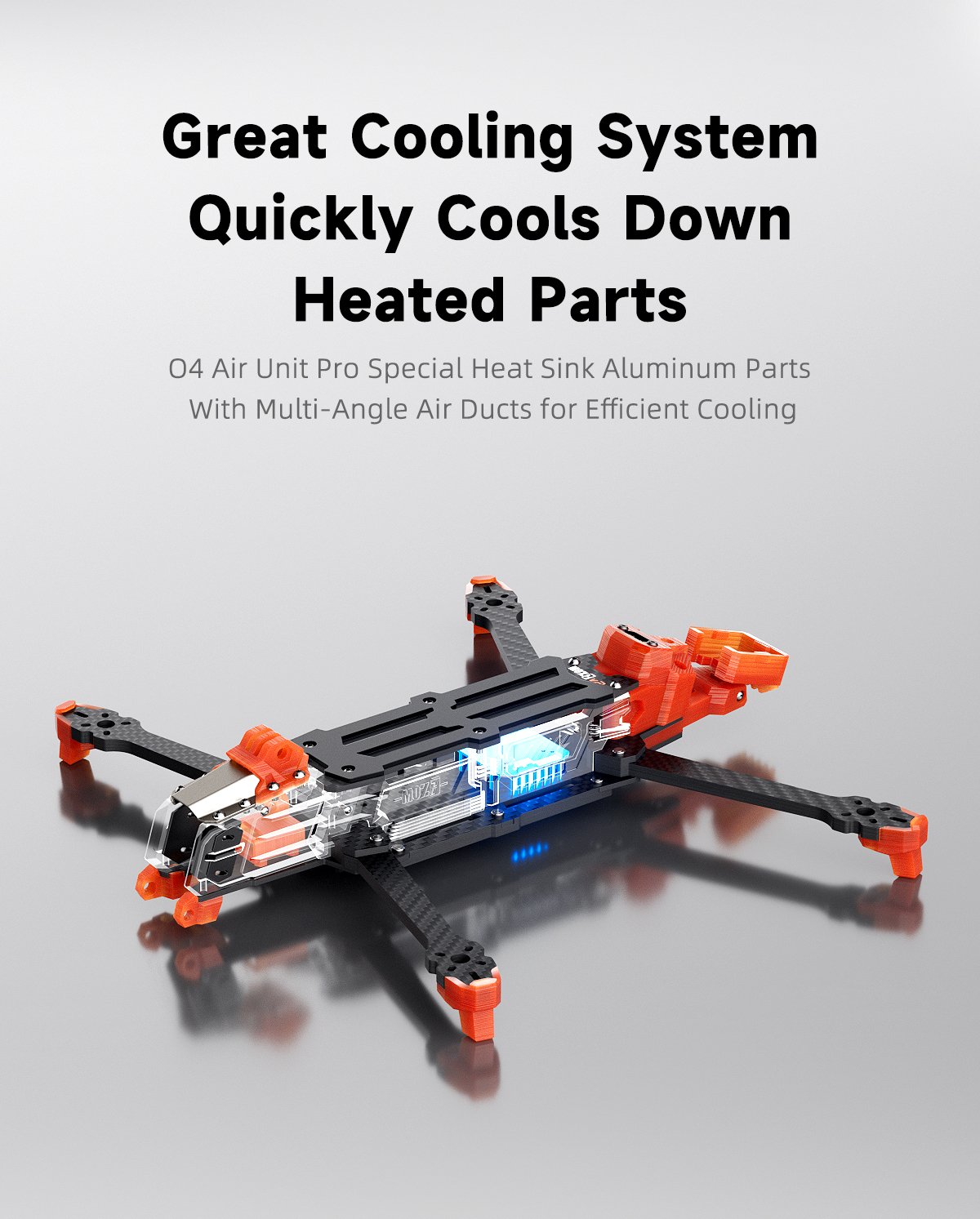

• Efficient O4 Pro heat sink design for improved cooling

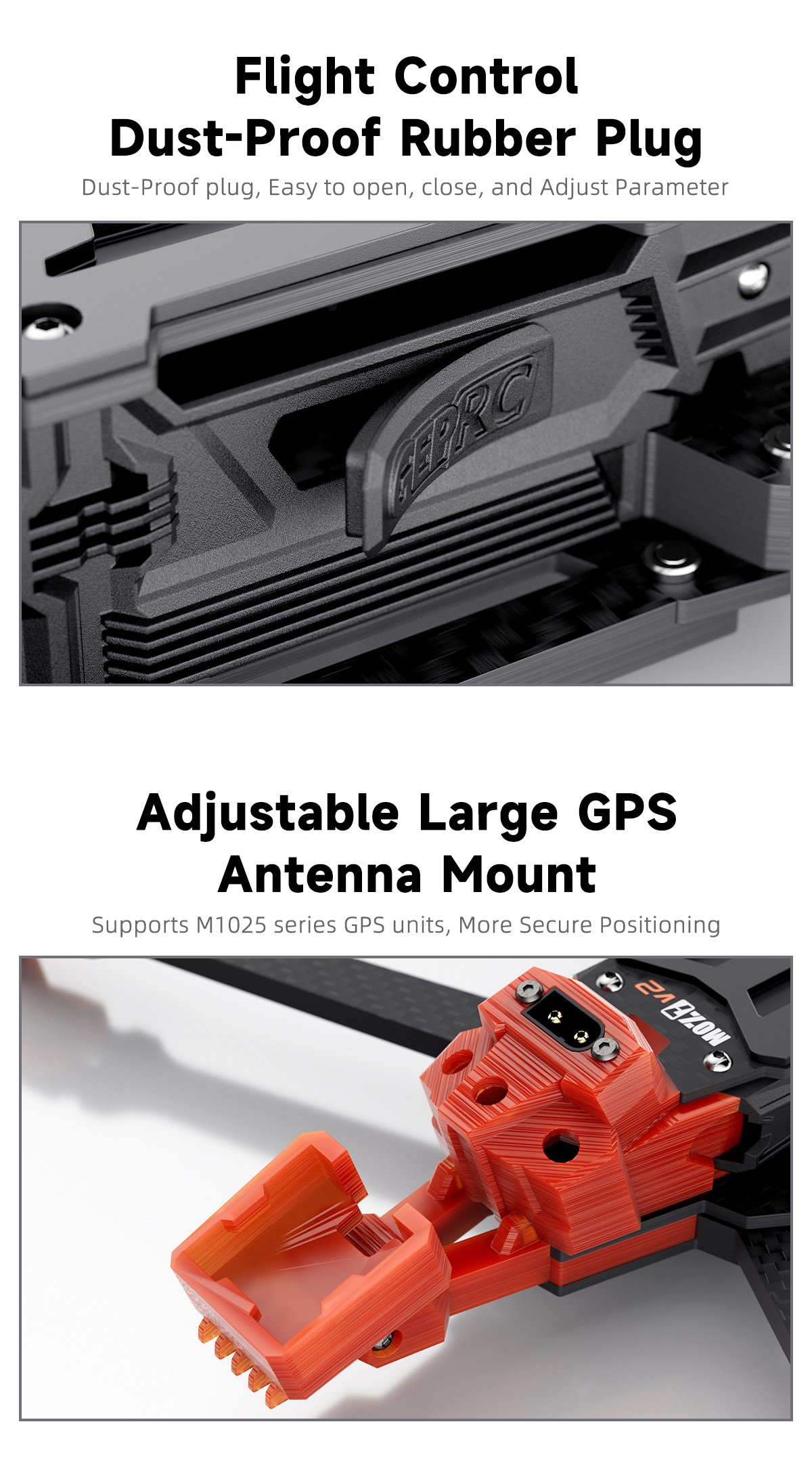

• Adjustable GPS mount supporting larger M1025-series units
• Dual antenna mounting for reliable dual-frequency reception

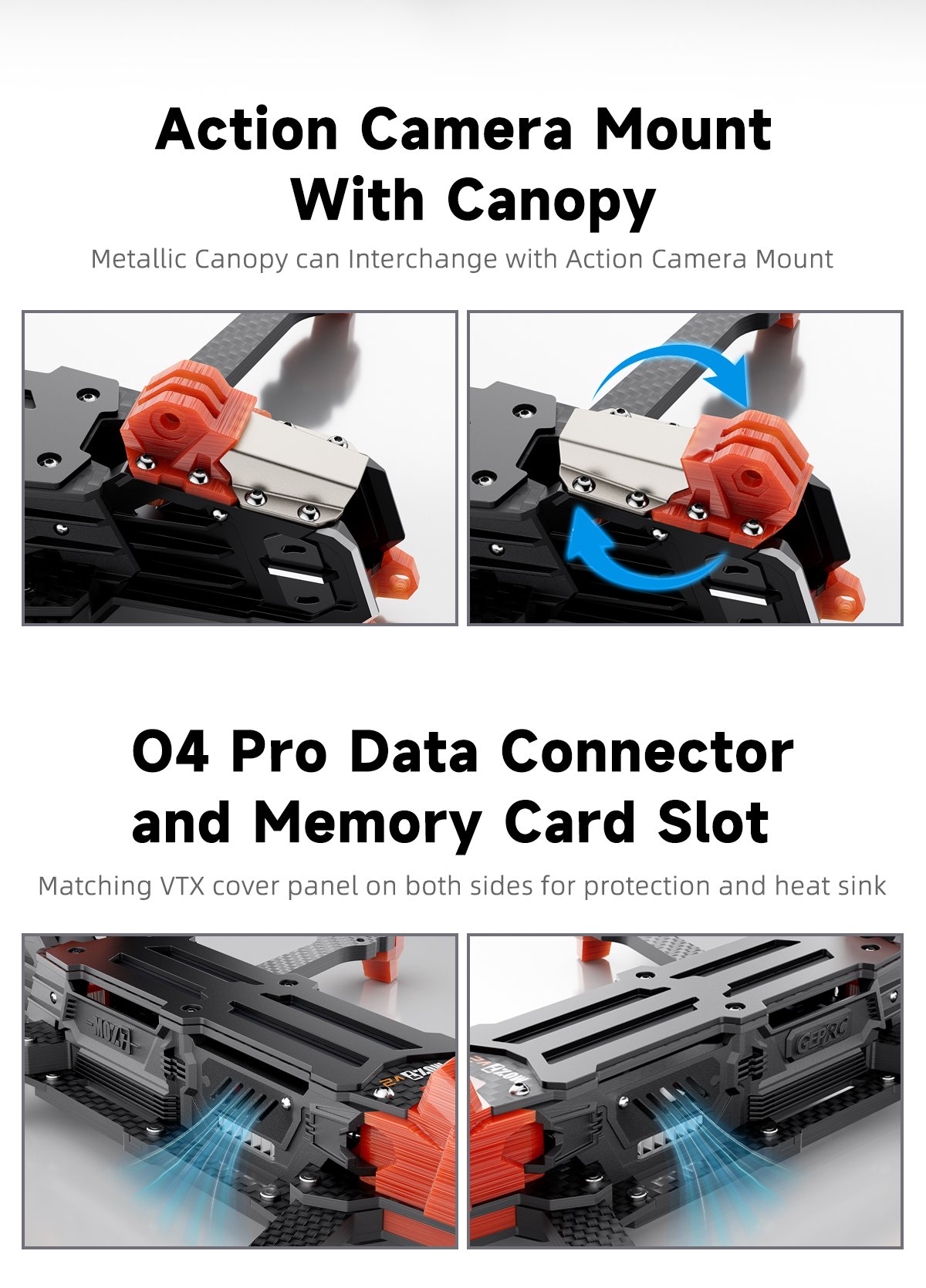

• Interchangeable action camera mount for CG tuning

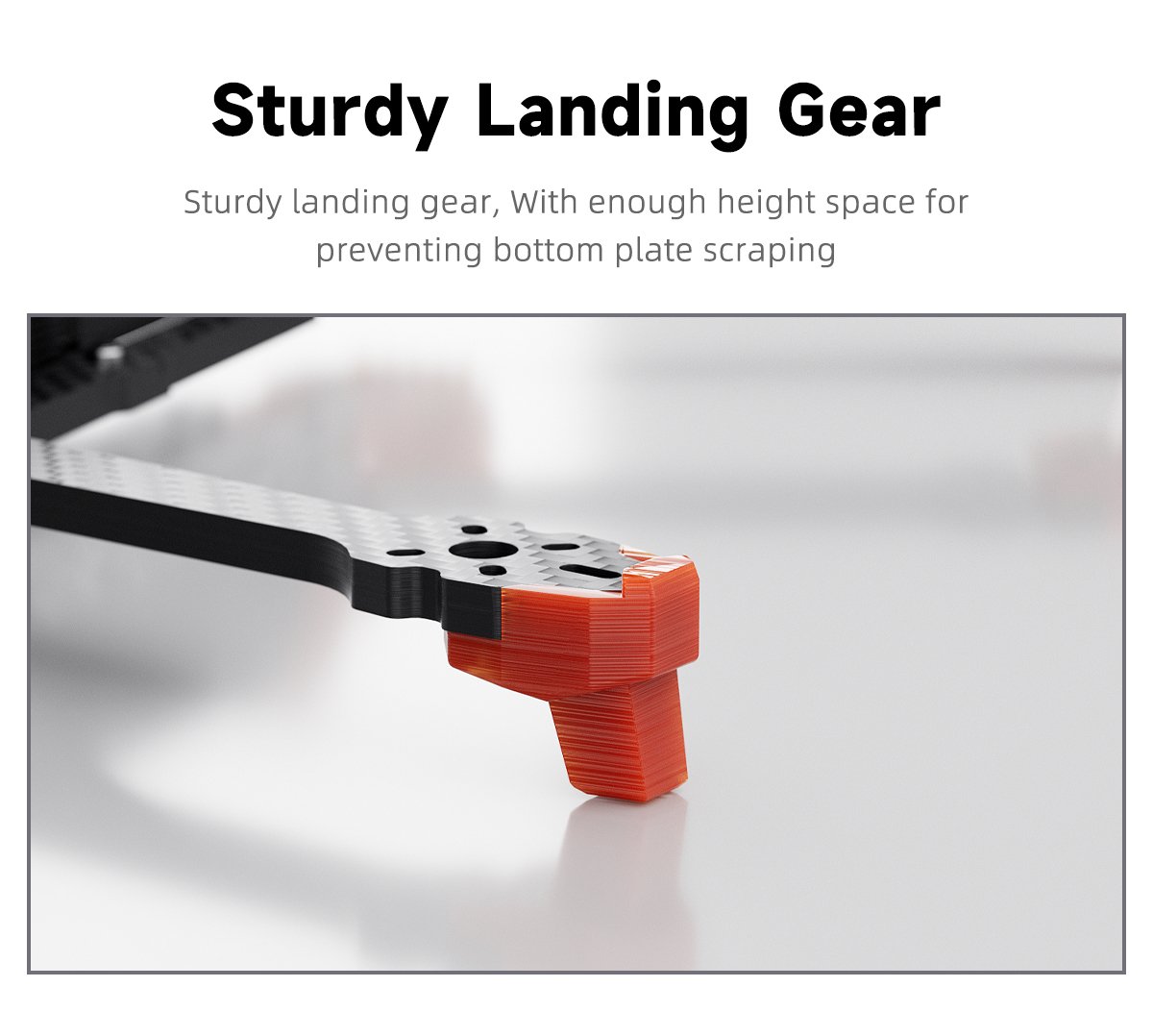

• Durable landing gear to protect bottom plate

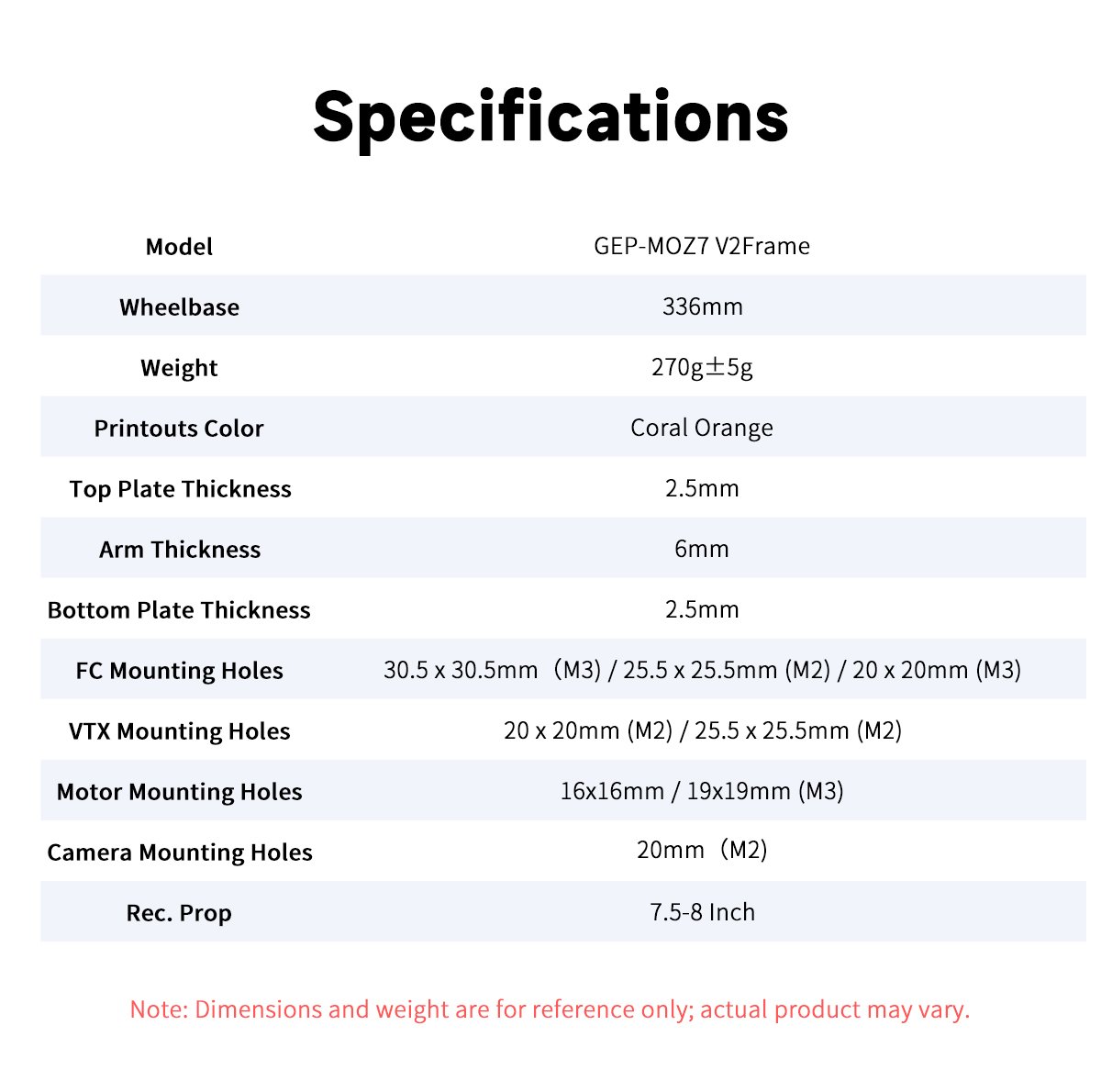

Specifications

• Model: GEP-MOZ7 V2 Frame

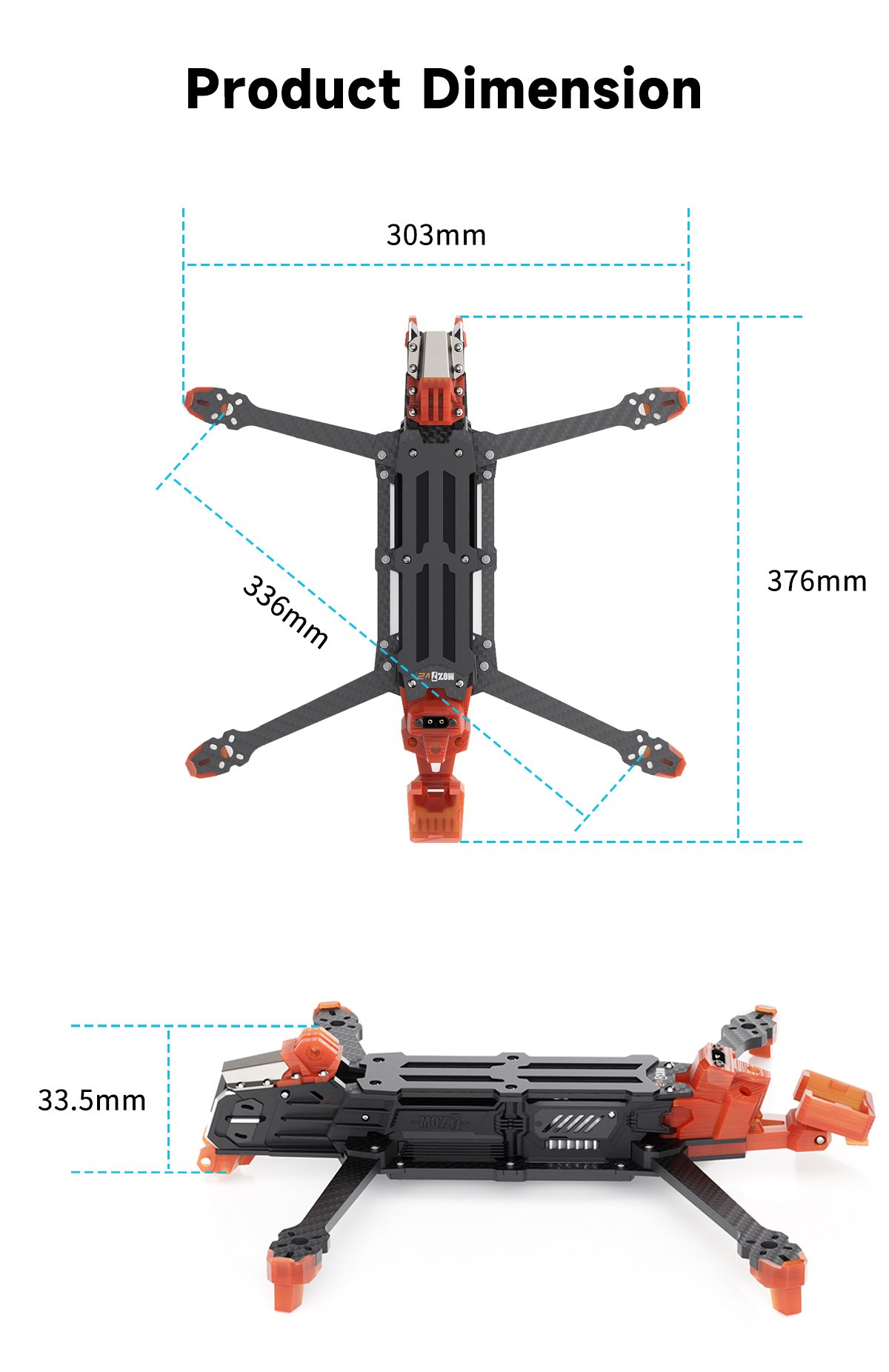

• Dimensions: 376 × 303 × 35.5 mm

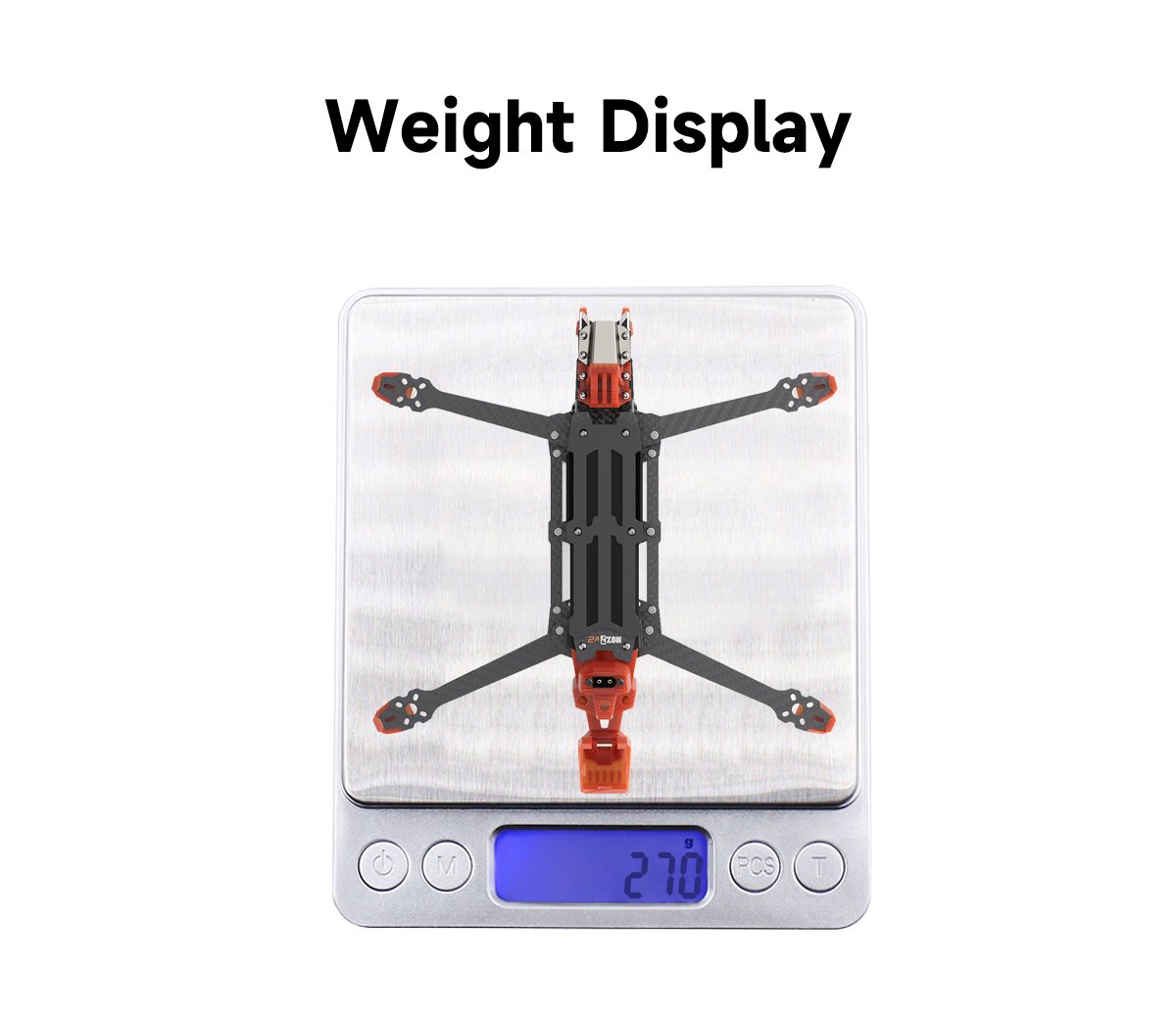

• Weight: 270 g ± 5 g
• Wheelbase: 336 mm
• Top Plate Thickness: 2.5 mm
• Bottom Plate Thickness: 2.5 mm
• Arm Thickness: 6 mm
• Clamp Plate Thickness: 3 mm
• FC Mounting: 30.5×30.5 mm (M3), 25.5×25.5 mm (M2), 20×20 mm (M3)
• VTX Mounting: 25.5×25.5 mm (M2), 20×20 mm (M2)
• Motor Mounting: 16×16 mm / 19×19 mm (M3)
• Lens Mounting: 20 mm (M2)

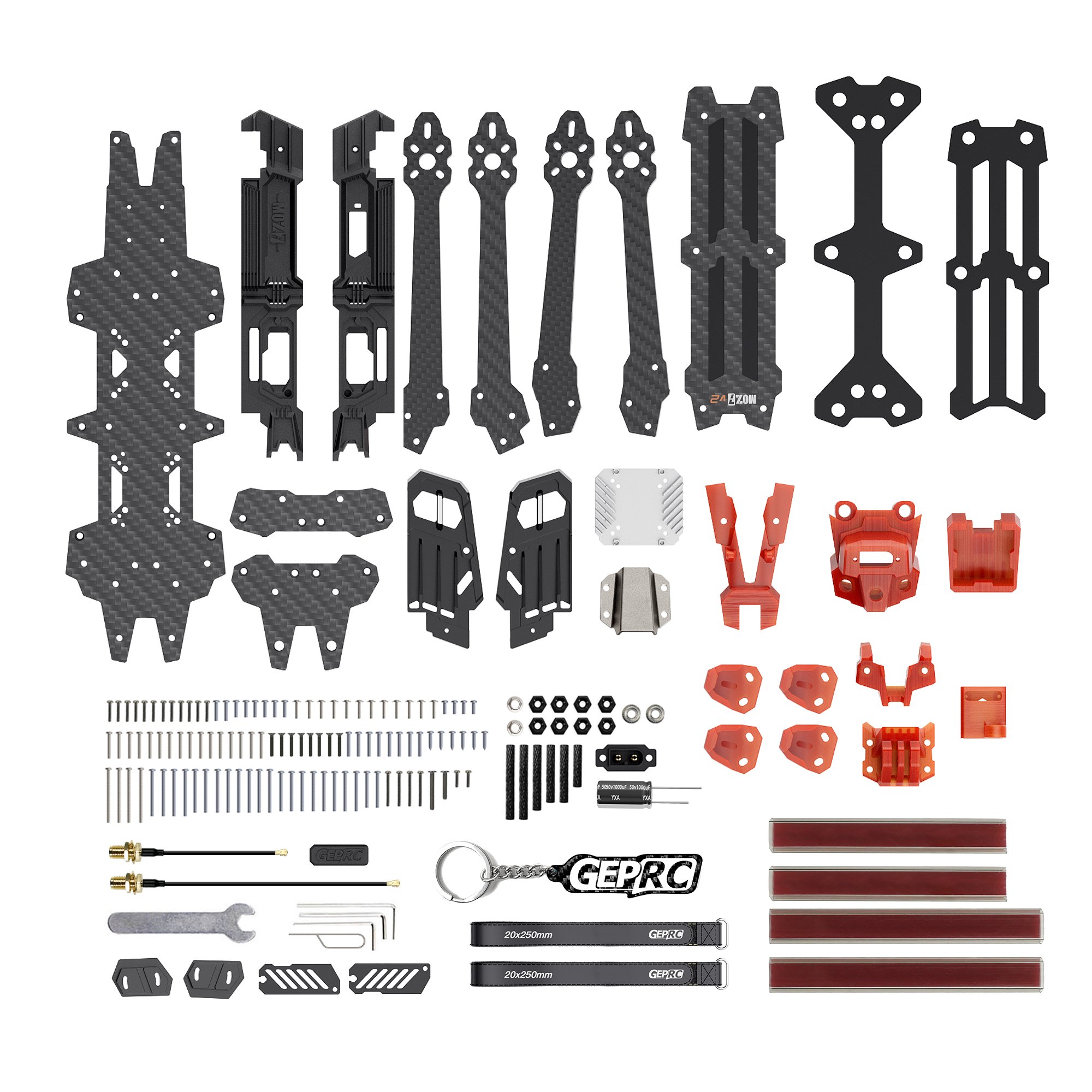

Package Includes

• 1 x GEP-MOZ7 V2 Frame Kit
• 2 x M20*300mm battery straps
• 1 x Upper battery anti-slip pad
• 1 x Lower battery anti-slip pad
• 1 x Printed parts pack
• 1 x 1.5mm L-shaped screwdriver
• 2 x 2mm L-shaped screwdrivers
• 1 x 3mm L-shaped screwdriver
• 1 x M8 wrench
• 1 x Screw pack
