Description

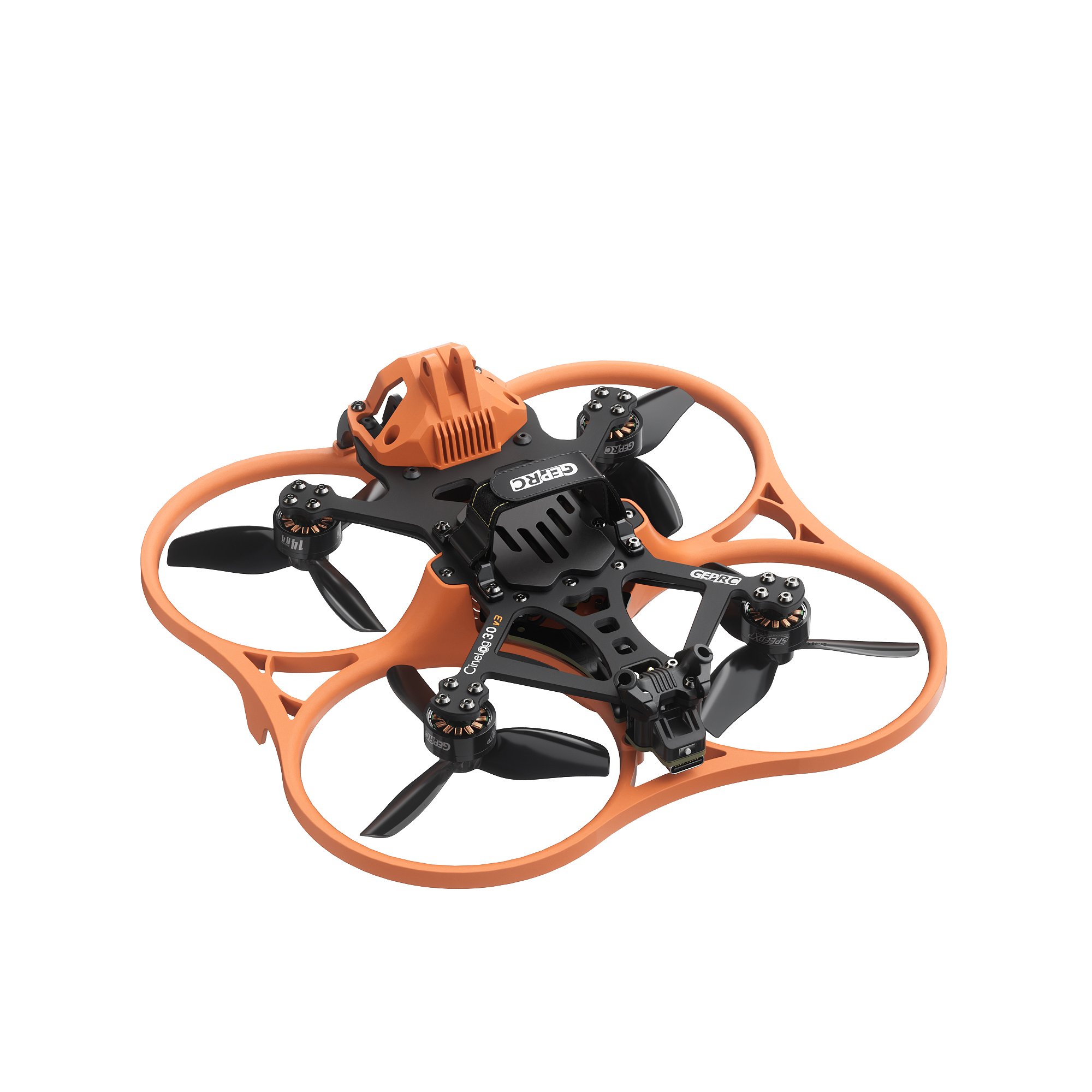

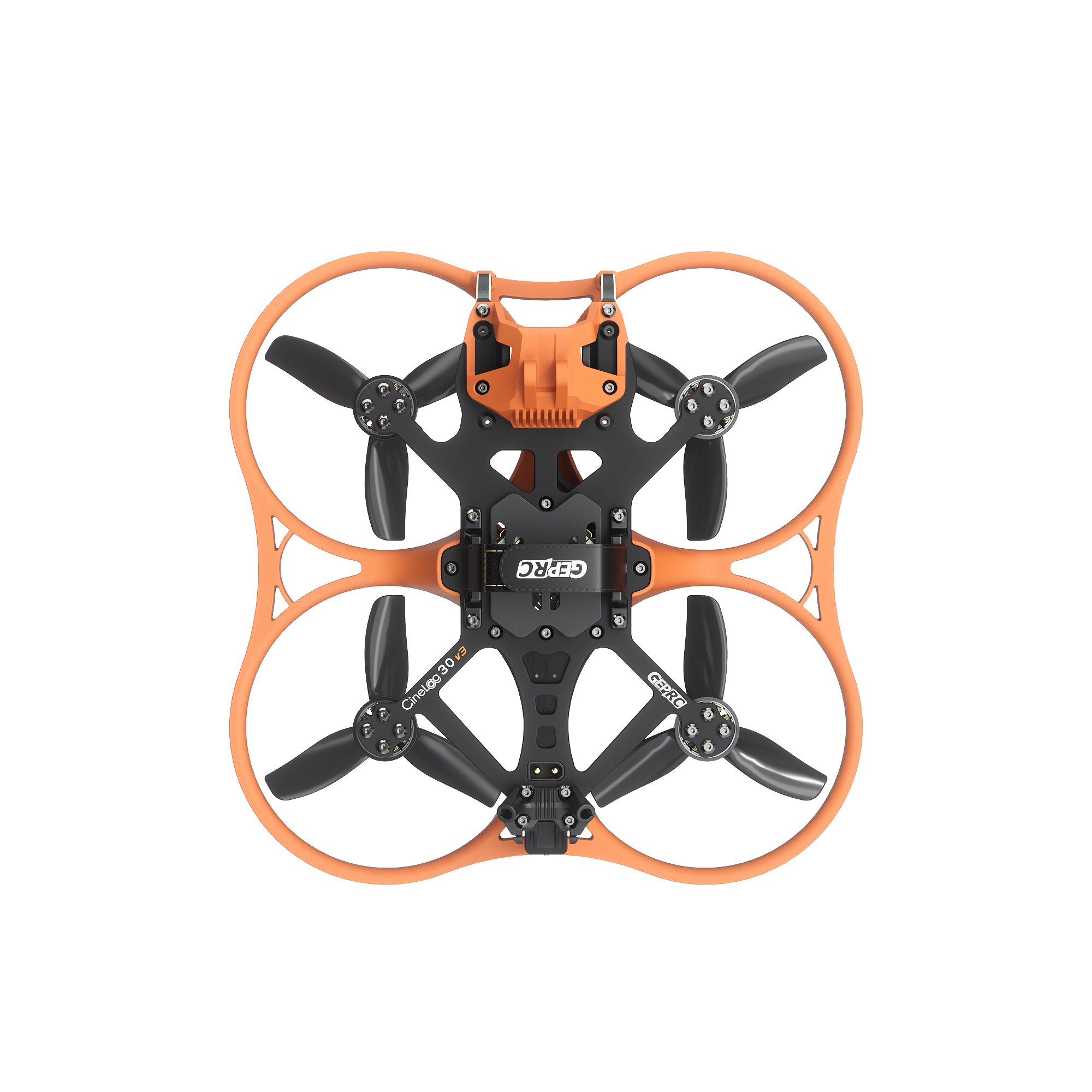

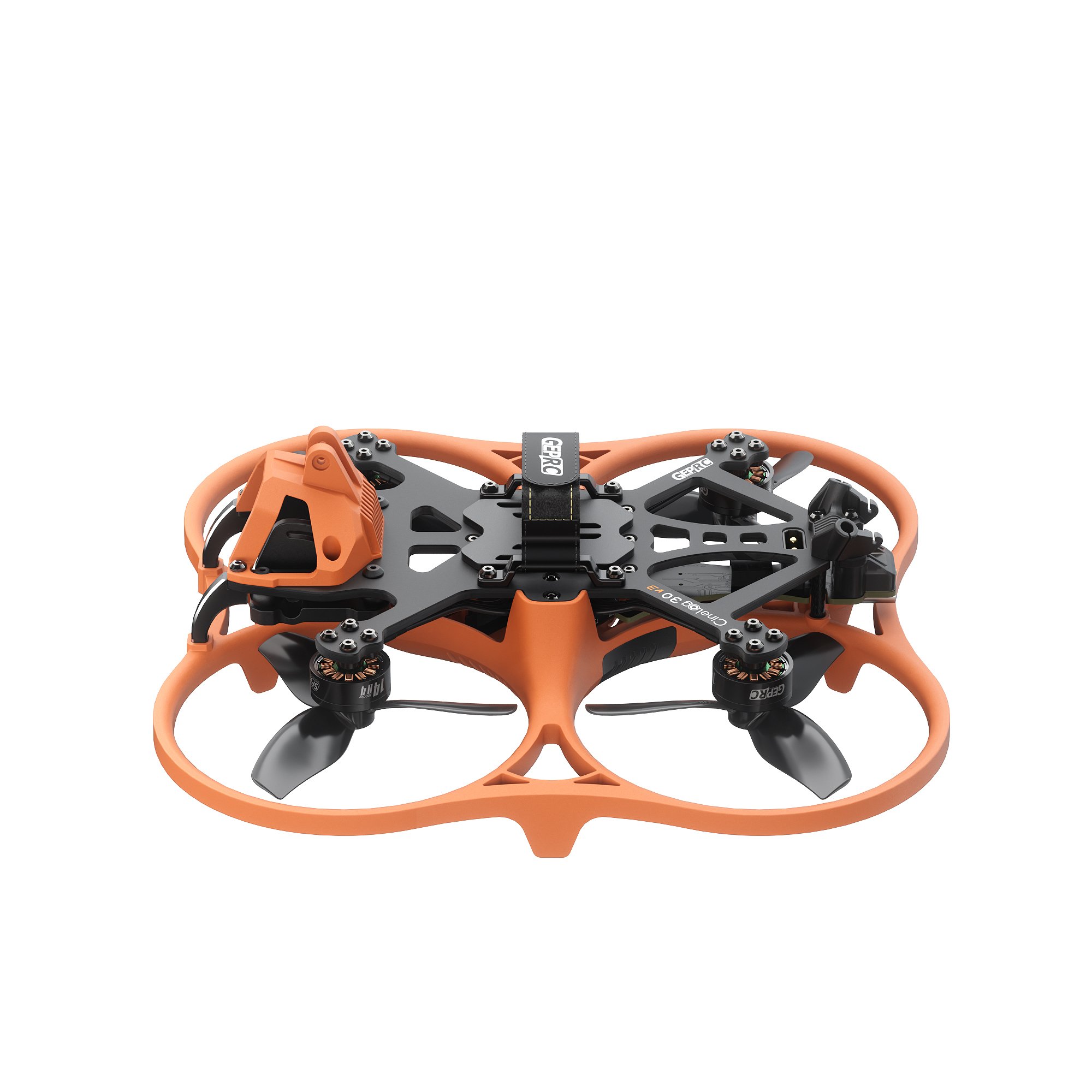

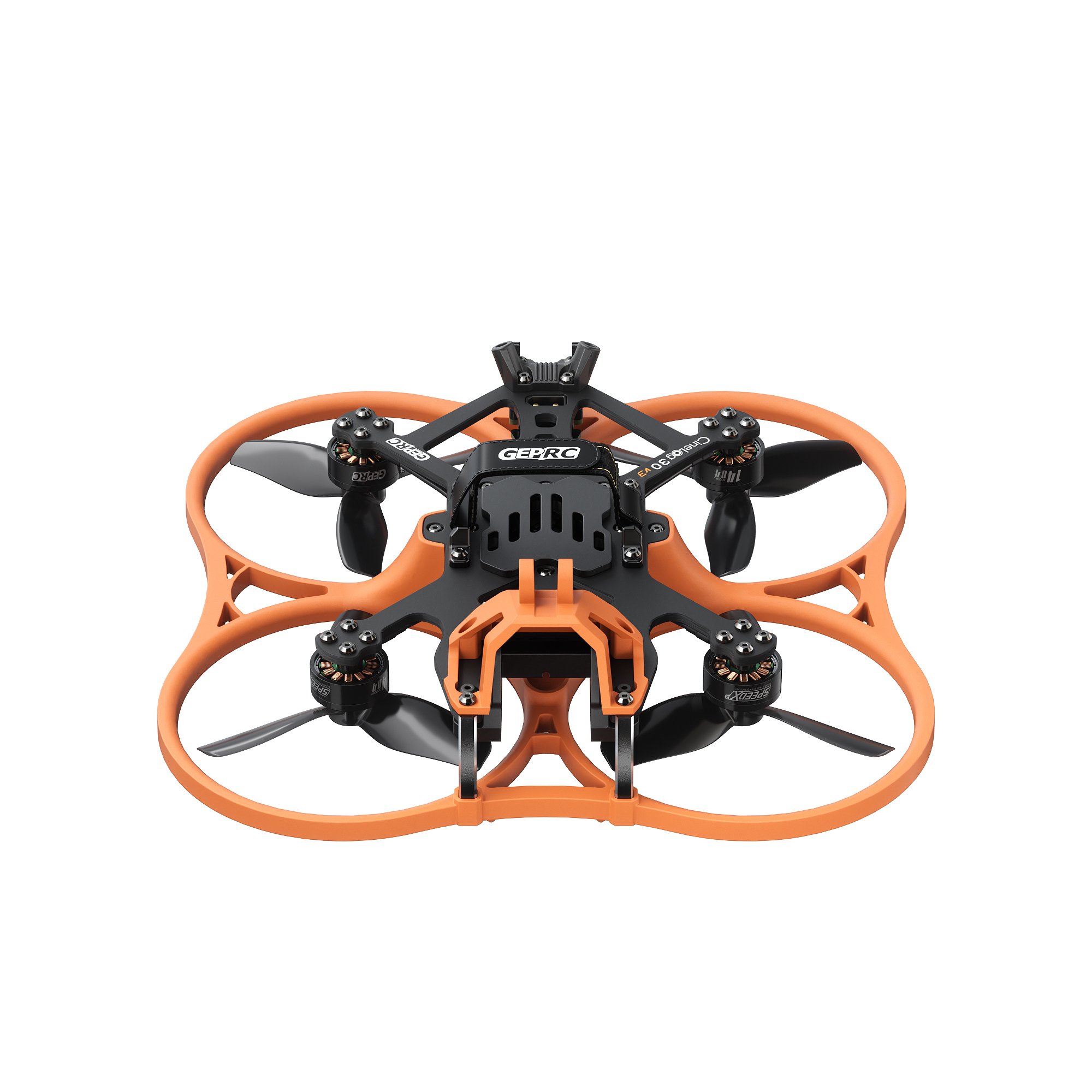

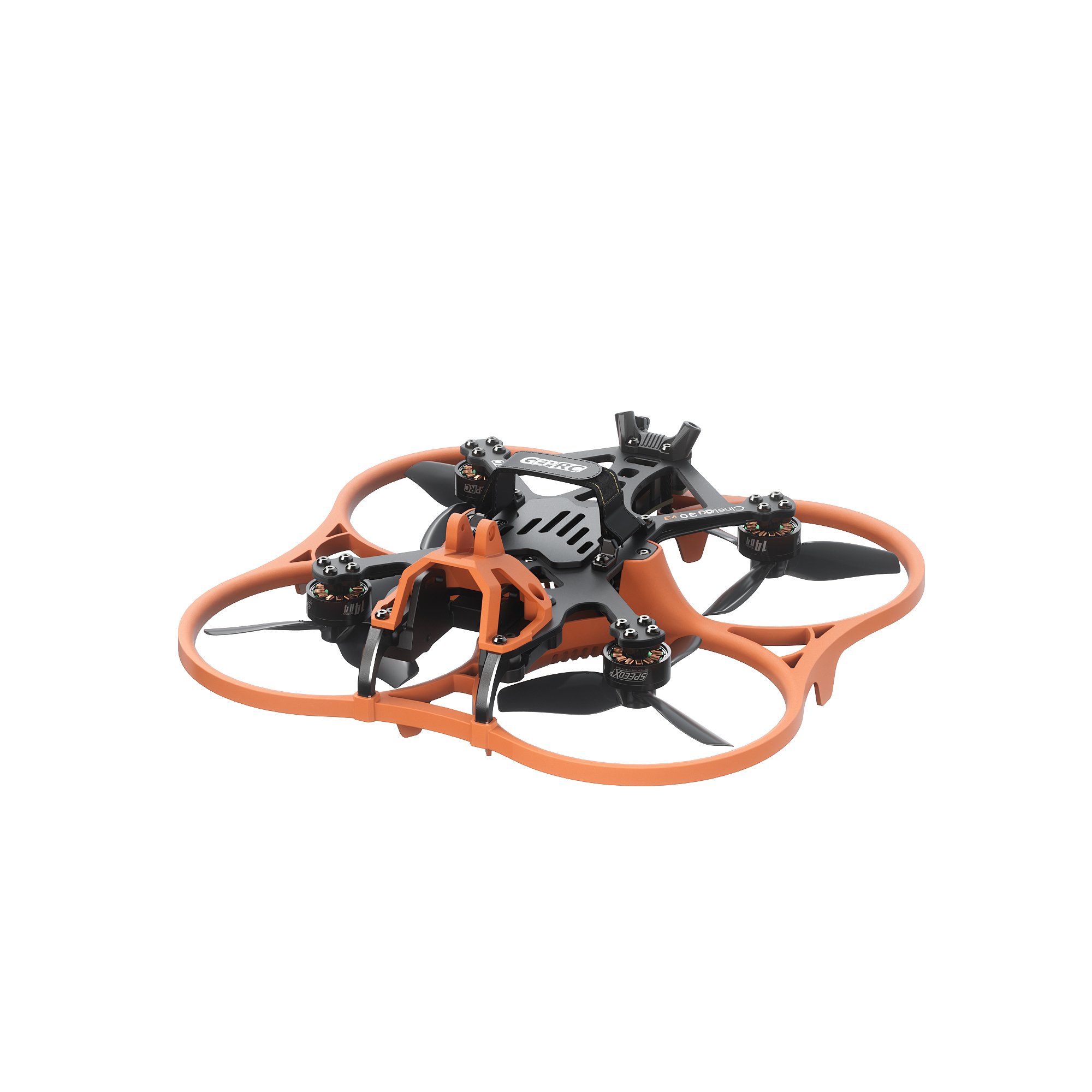

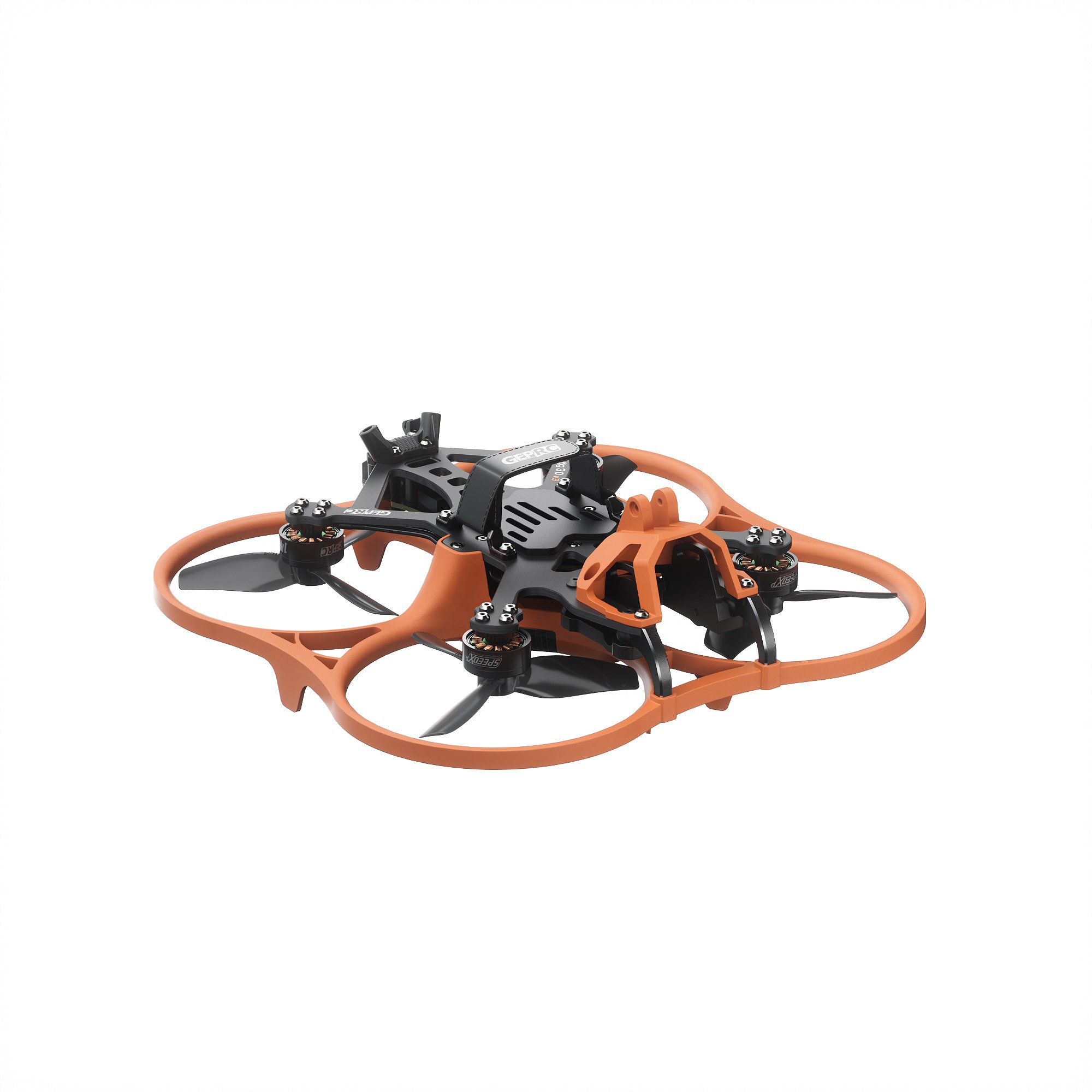

The GEPRC Cinelog30 V3 WTFPV Quadcopter elevates cinematic FPV. Reinforced aluminum framing, a protected wrap around electronics bay, precision tuned GEPRC PIDs, and efficient 4S power combine to produce smooth flights, clean wiring, confident durability, and up to eight minute cinematic cruising with exceptional stability control and responsive handling.

Note this version is the WTFPV version aka Bring-Your-Own VTx, suitable (ie VTx, Camera and FPV accessories is NOT included).

Features

• Suitable for latest O4 Air Unit PRO, offering sharp detail, high resolution, and excellent low-light performance.
• Refined frame with a wrap-around design for enhanced protection of electronic components.
• Aluminum-reinforced front and protective frame for added strength.
• Sleek front cover to shield the O4 Air Unit PRO lens from impact.
•  Dust-proof plugs for data ports to prevent debris during takeoff and landing.
• Custom PDB with receiver, buzzer, LED BEC, TVS, and anti-spark features.
•  Cinelog series underslung gimbal mount for stable, smooth footage with the O4 Air Unit PRO.
•  Precision-tuned PID settings by the GEPRC team for ultra-smooth, responsive flight control.

Specifications

• Model: Cinelog30 V3 O4 Pro Quadcopter
• Frame Model: GEP-CL30 V3
• Carbon Fiber Plate Thickness: 2.5mm
• Wheelbase: 128mm
• Flight System: TAKER F722 45A 32Bit AIO
• MCU: STM32F722RET6
• Gyro: ICM 42688-P
• FC Firmware: GEPRC_F722_AIO
• Flash: 16MB
• ESC: 32Bit 45A
• Motor: SPEEDX2 1404 3850KV
• Prop: HQprop DT76mmx3 V2
• Battery Connector: XT30
• VTX: BYO
• Camera: BYO
• Antenna: BYO
• Receiver: ELRS2.4G
• TBS NanoRX Version Weight: 187±2g
• Recommended Battery: LiHV 4S 660mAh-720mAh
• Flight Time: 8’10″（Tested at slow cruising speeds; actual times may vary with flying method.)

Package Includes

• 1 x Cinelog30 V3 O4 (excludes VTX, Camera Etc)
• 1 x Protective Frame (transparent black)
• 2 x HQprop DT76mmx3 V2 (pair)
• 1 x 15*150mm Battery Strap
• 1 x L-shaped Screwdriver 1.5mm
• 1 x Grey Canopy
• 1 x Black Canopy
• 1 x Spare Screw Pack
• 1 x Battery Anti-slip Pad
• 1 x Damping Ball Puncher
• 1 x Frequency Pairing Ejector pin

Spare screws pack includes

• 1 x M2 rivet nut
• 4 x M2*4.5 button-head hex socket screw
• 4 x M2*6 button-head hex socket screw
• 4 x M2*4 button-head hex socket screw
• 1 x M2*12 button-head screw
• 2 x Damping Ball
