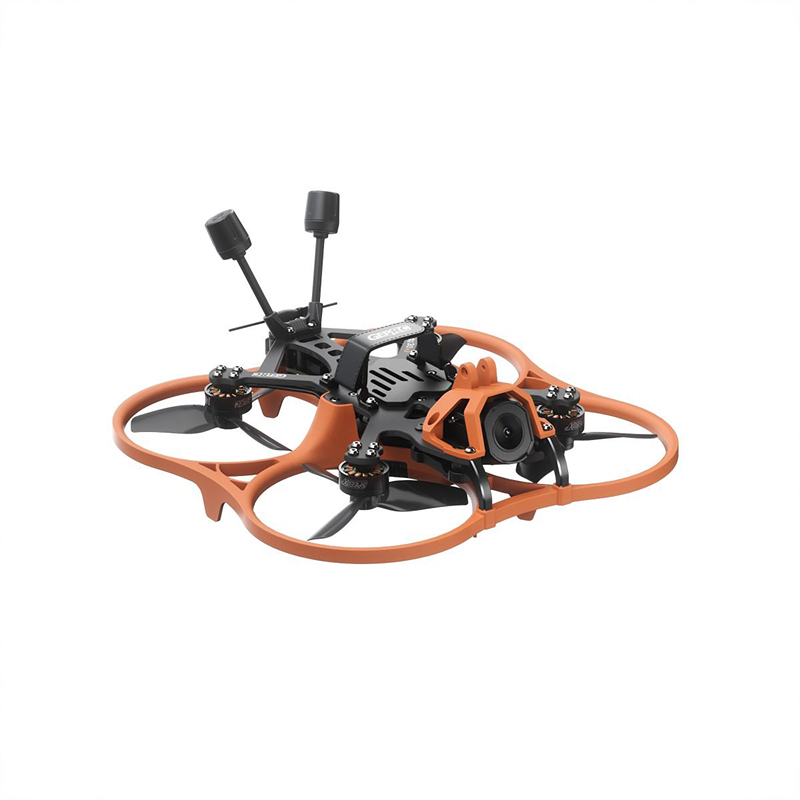

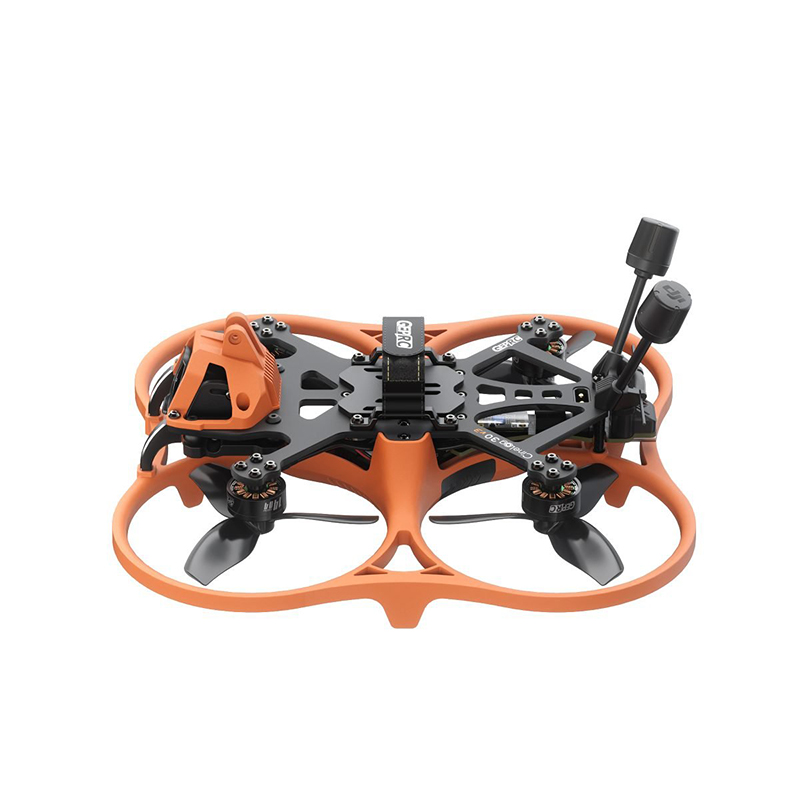

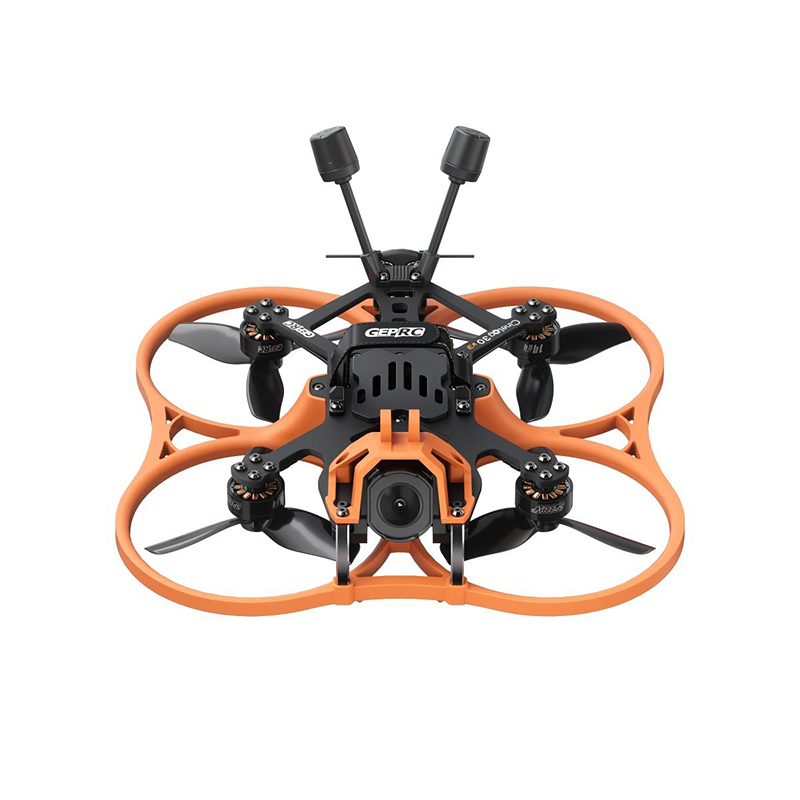

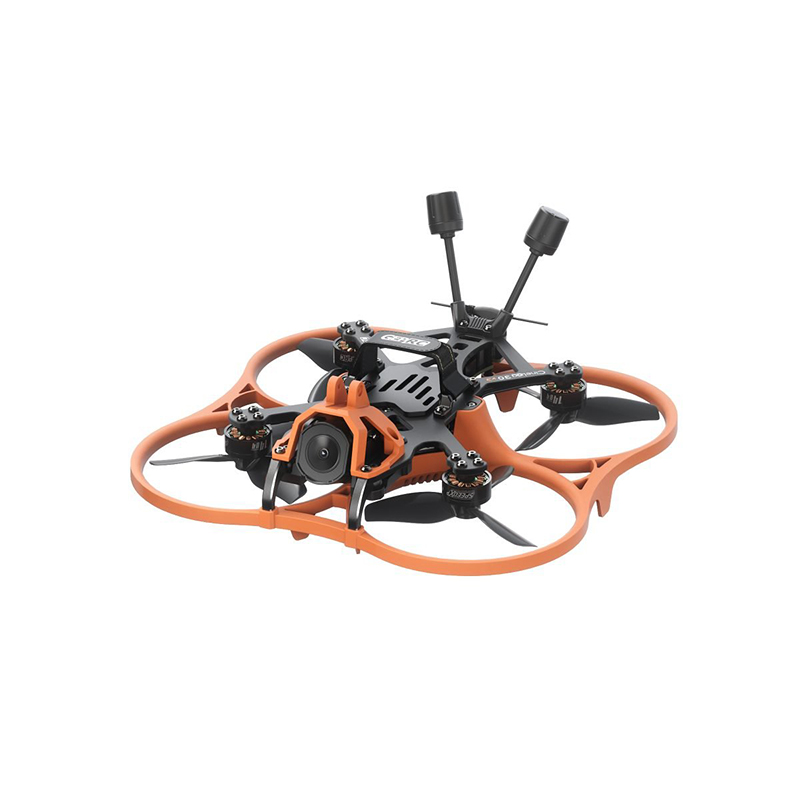

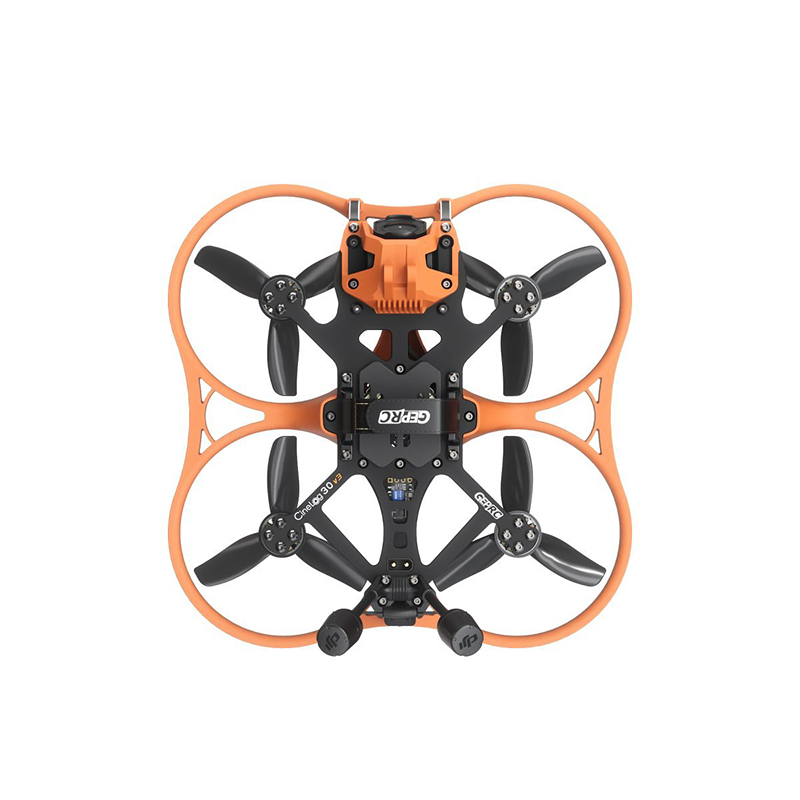

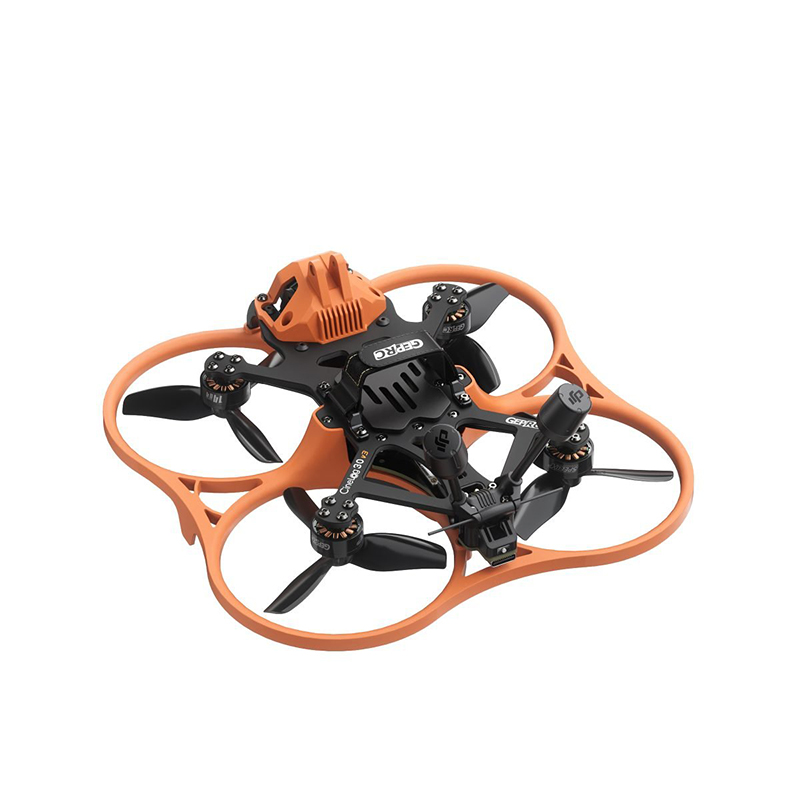

GEPRC Cinelog30 V3 O4 Pro Quadcopter BNF DJI

Description

The GEPRC Cinelog30 V3 O4 Pro Quadcopter BNF DJI redefines cinematic FPV with the O4 Air Unit PRO, delivering stunning clarity, precise color accuracy, and exceptional low-light performance. Its aluminum-reinforced frame, wrap-around electronic protection, dust-proof plugs, and a custom PDB ensure durability, reliability, and seamless flight control. Powered by a TAKER F722 45A AIO and 1404 3850KV motors, it achieves ultra-smooth, extended flight for breathtaking aerial footage.

Features:

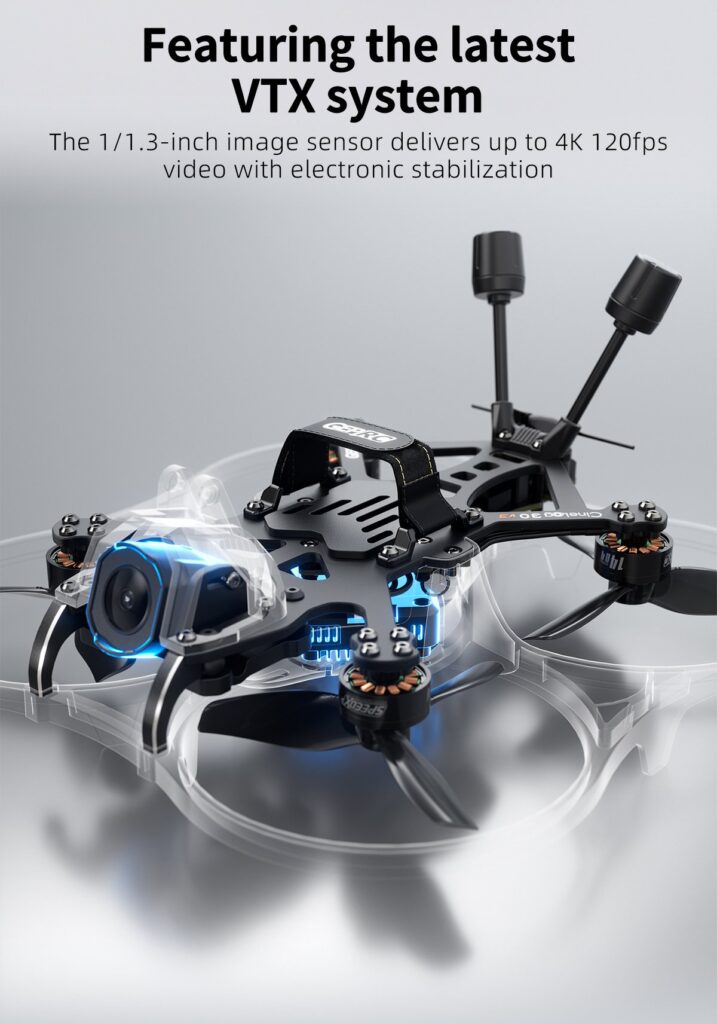

• Equipped with the latest O4 Air Unit PRO, offering sharp detail, high resolution, and excellent low-light performance.

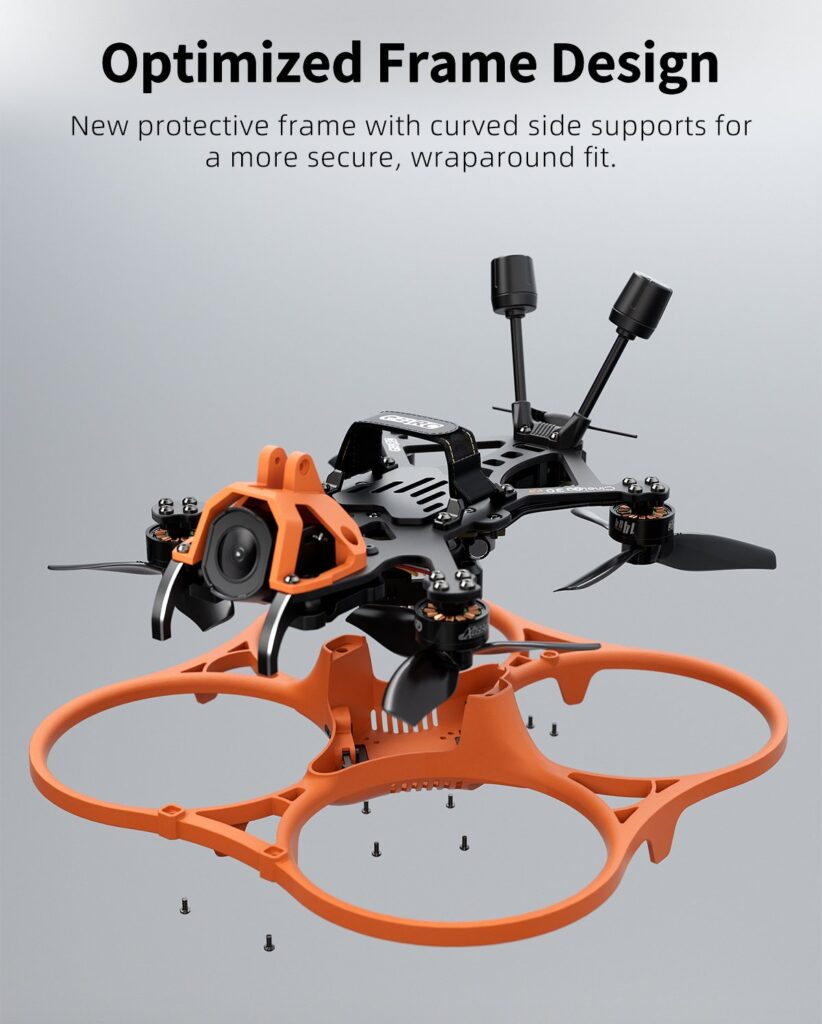

• Refined frame with a wrap-around design for enhanced protection of electronic components.
• Aluminum-reinforced front and protective frame for added strength.

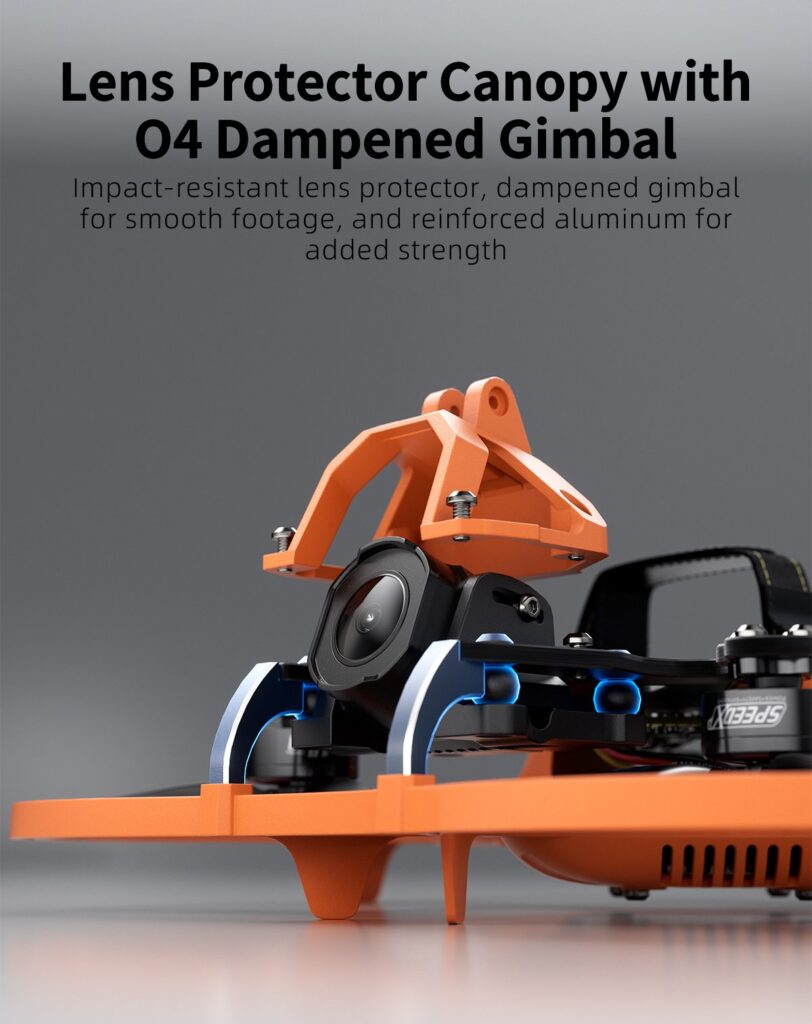

• Sleek front cover to shield the O4 Air Unit PRO lens from impact.
•  Dust-proof plugs for data ports to prevent debris during takeoff and landing.

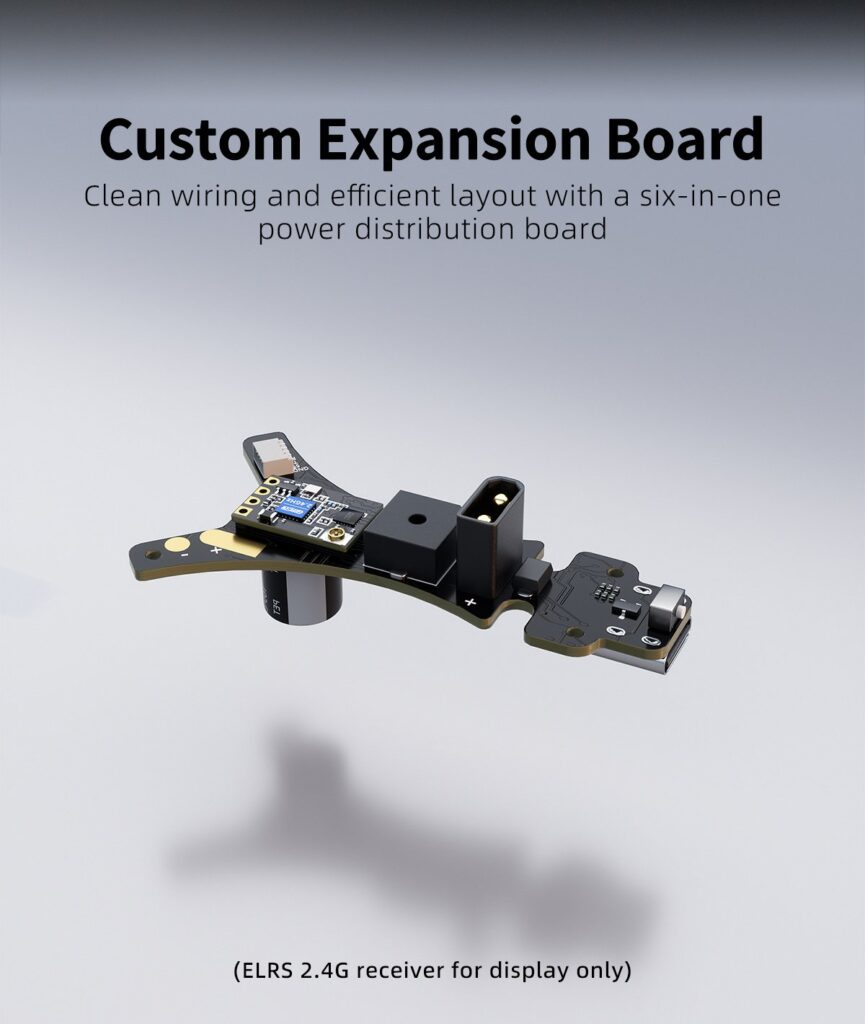

• Custom PDB with receiver, buzzer, LED BEC, TVS, and anti-spark features.
•  Cinelog series underslung gimbal mount for stable, smooth footage with the O4 Air Unit PRO.
•  Precision-tuned PID settings by the GEPRC team for ultra-smooth, responsive flight control.

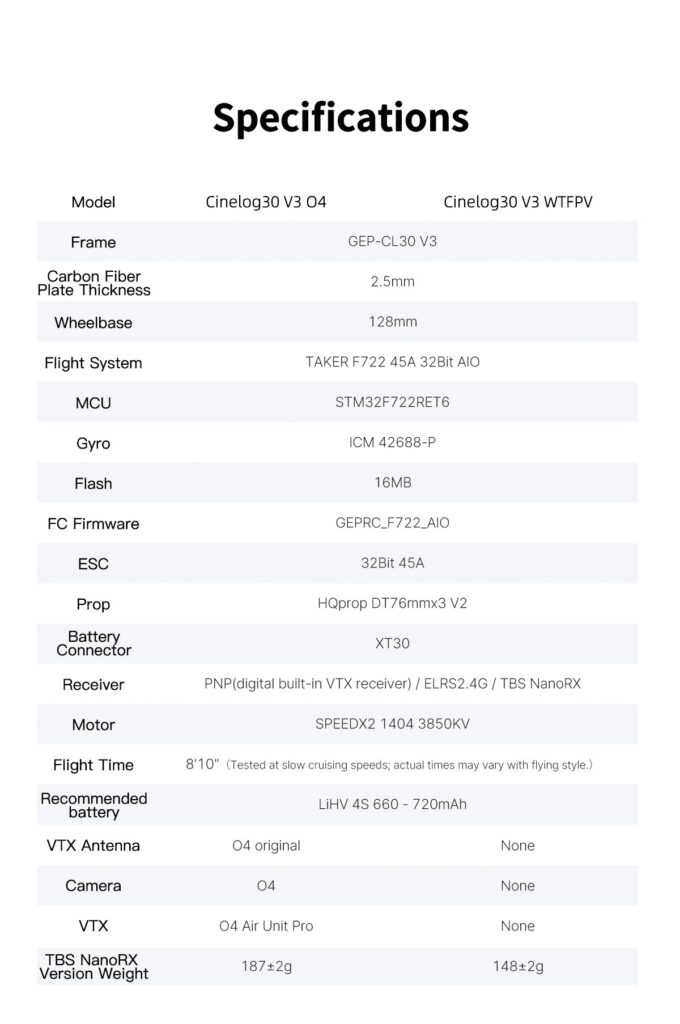

Specifications:

• Model: Cinelog30 V3 O4 Pro Quadcopter
• Frame Model: GEP-CL30 V3
• Carbon Fiber Plate Thickness: 2.5mm
• Wheelbase: 128mm
• Flight System: TAKER F722 45A 32Bit AIO
• MCU: STM32F722RET6
• Gyro: ICM 42688-P
• FC Firmware: GEPRC_F722_AIO
• Flash: 16MB
• ESC: 32Bit 45A
• Motor: SPEEDX2 1404 3850KV
• Prop: HQprop DT76mmx3 V2
• Battery Connector: XT30
• VTX: O4 AIR Unit Pro
• Camera: O4
• Antenna: O4 original
• Receiver: PNP(digital built-in VTS receiver) / ELRS2.4G / TBS NanoRX
• TBS NanoRX Version Weight: 187±2g
• Recommended Battery: LiHV 4S 660mAh-720mAh
• Flight Time: 8’10″（Tested at slow cruising speeds; actual times may vary with flying method.)

Package Includes:

• 1 x Cinelog30 V3 O4
• 1 x Protective Frame (transparent black)
• 2 x HQprop DT76mmx3 V2 (pair)
• 1 x 15*150mm Battery Strap
• 1 x L-shaped Screwdriver 1.5mm

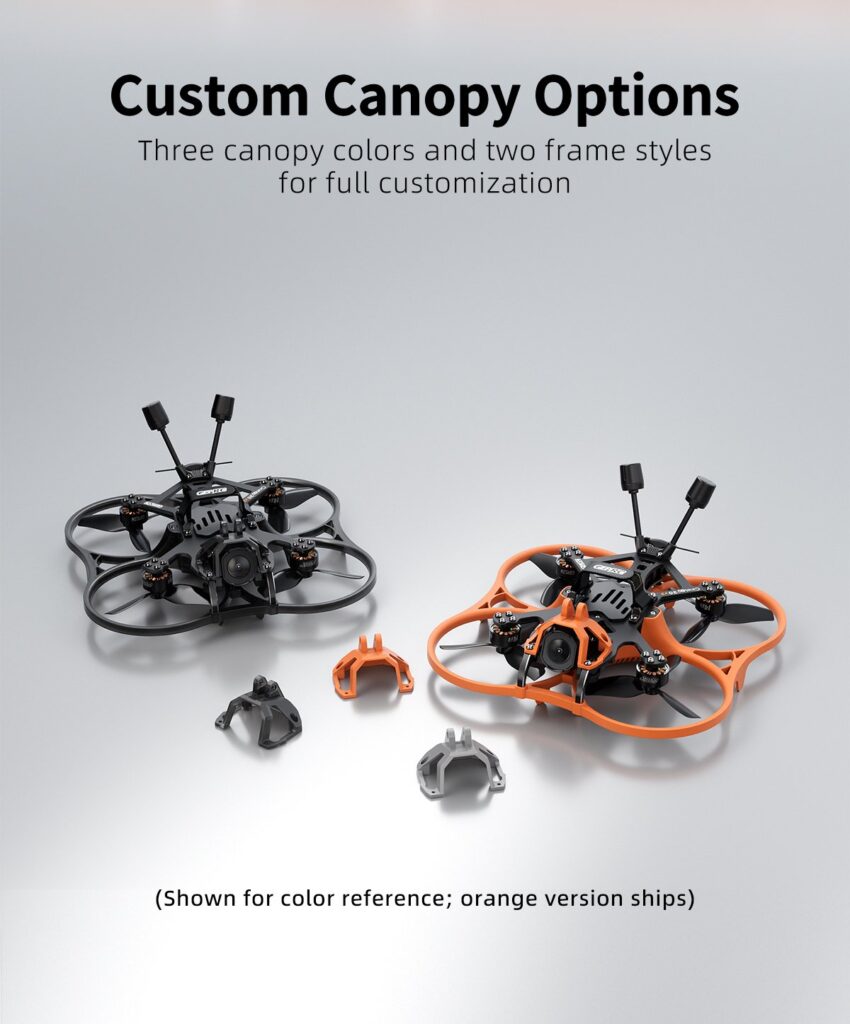

• 1 x Grey Canopy
• 1 x Black Canopy
• 1 x Spare Screw Pack
• 1 x Battery Anti-slip Pad
• 1 x Damping Ball Puncher
• 1 x Frequency Pairing Ejector pin

Recommended Spares (not included):

• Props OEM: Coming soon
• Alternate Props: HQProp T76MMX3V2 Cinewhoop Propellers (2 Colours)
• 5 Blade: Gemfan D76 5-Blade Ducted 76mm (3″) Propellers (Set of 4)
• Battery options:
  • GNB Battery 15.2V 120C 650mAh 4S HV
  • GNB Battery 15.2V 120C 850mAh 4S HV
  • Performance: GNB Battery 15.2V 160C 880mAh 4S HV XT30
  • Maximum flight time: GNB Battery 14.8V 120C 930mAh 4S
