GepRC ExpressLRS 915M/2.4G Gemini Xrossband Receiver
by GEPRC
5.00 out of 5
(1 customer review)
Unleash precision and stability with cutting-edge dual-band control, seamless updates, and reliable performance in any environment.
$59.99
Hurry! Only 3 left in stock
Ships from our Tauranga warehouse
SKU: 1803
Categories: ExpressLRS, RC Radios, Receivers
Description

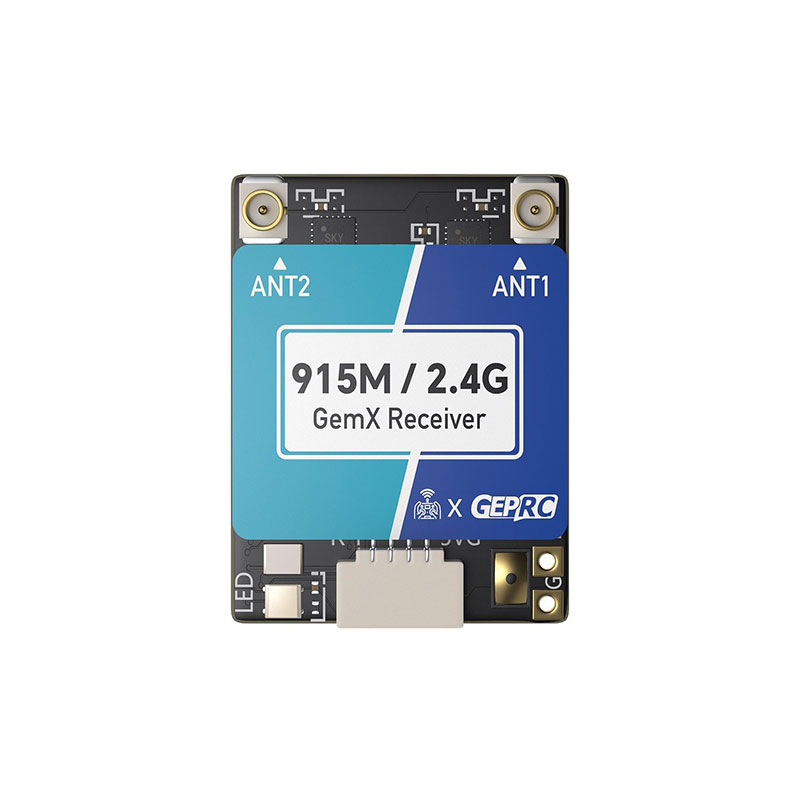

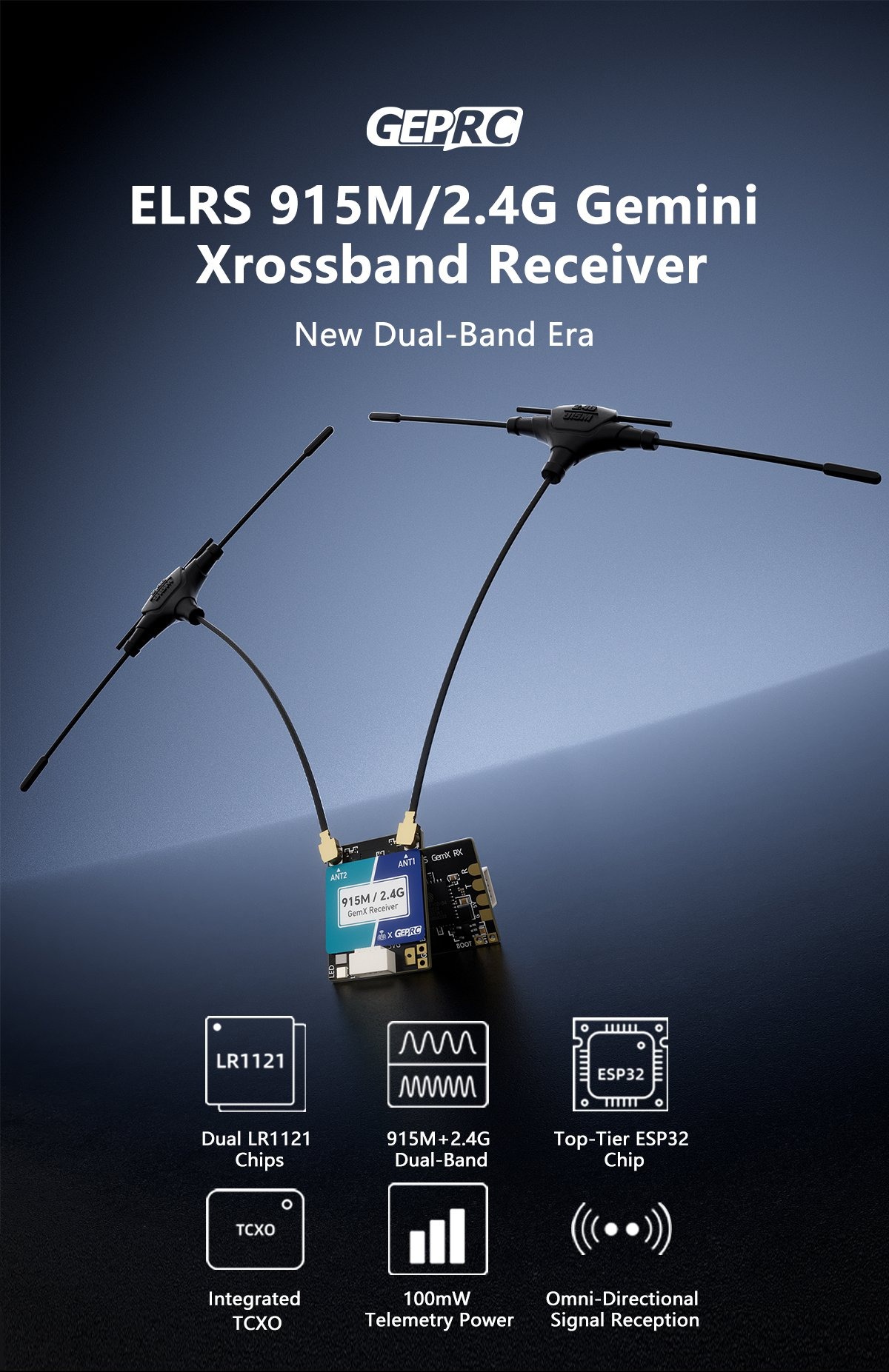

The GepRC ExpressLRS 915M/2.4G Gemini Xrossband Receiver revolutionizes control with advanced dual-band ExpressLRS technology. Featuring Semtech LR1121 chips, it supports 915M, 2.4G, and dual-band modes for unparalleled stability and anti-interference. A TCXO crystal ensures consistent performance, while telemetry power reaches up to 100mW. Compact and ultra-light, it simplifies updates with built-in WiFi and an SH1.0 connector for effortless installation. Elevate your experience with unmatched precision and reliability across frequencies.
Features:
- Advanced ExpressLRS 915M/2.4G dual-frequency system

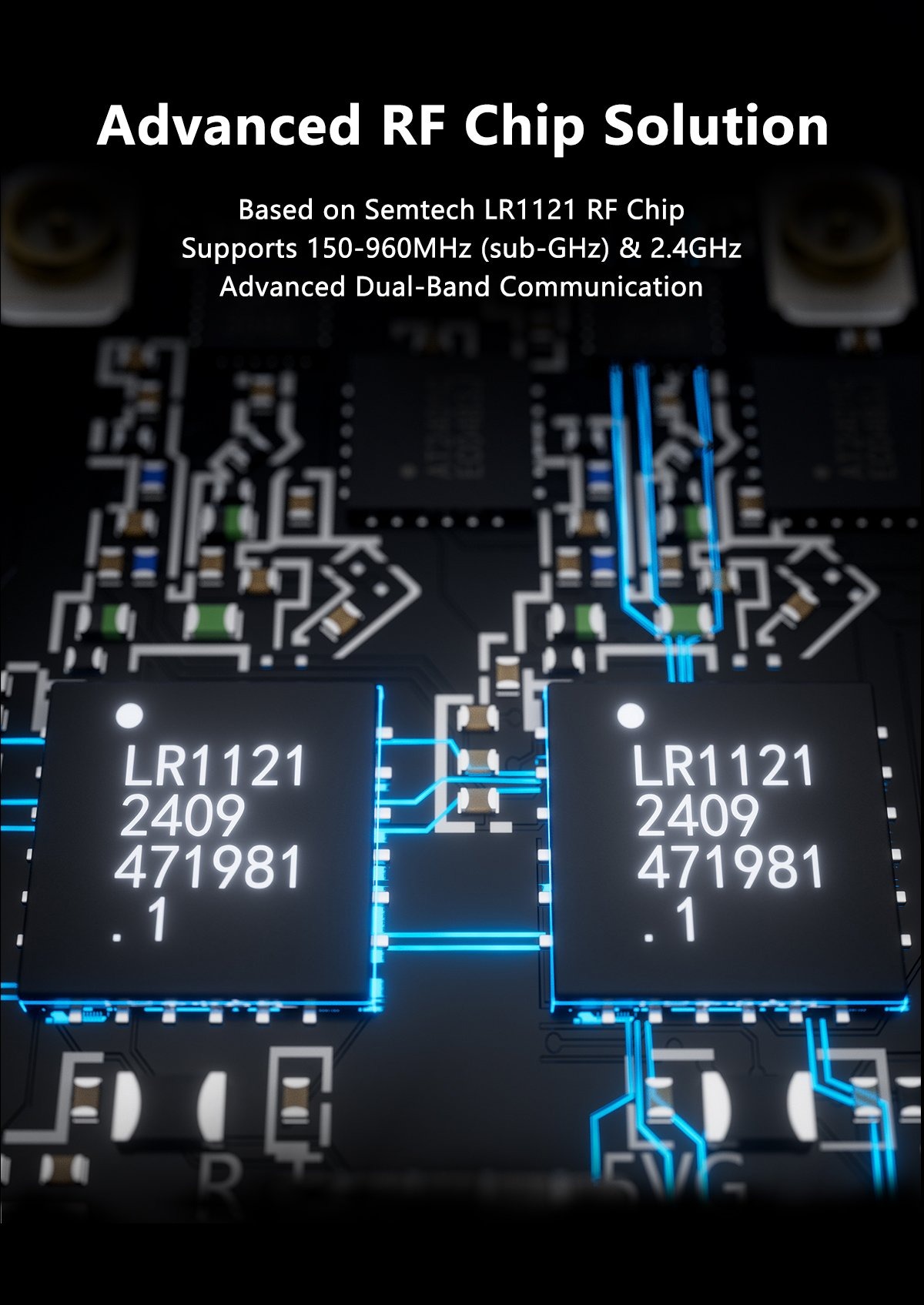

- Based on Semtech’s third-generation LR1121 RF chip
- Compact at 18×23.6×5.7mm and weighing just 1.7g

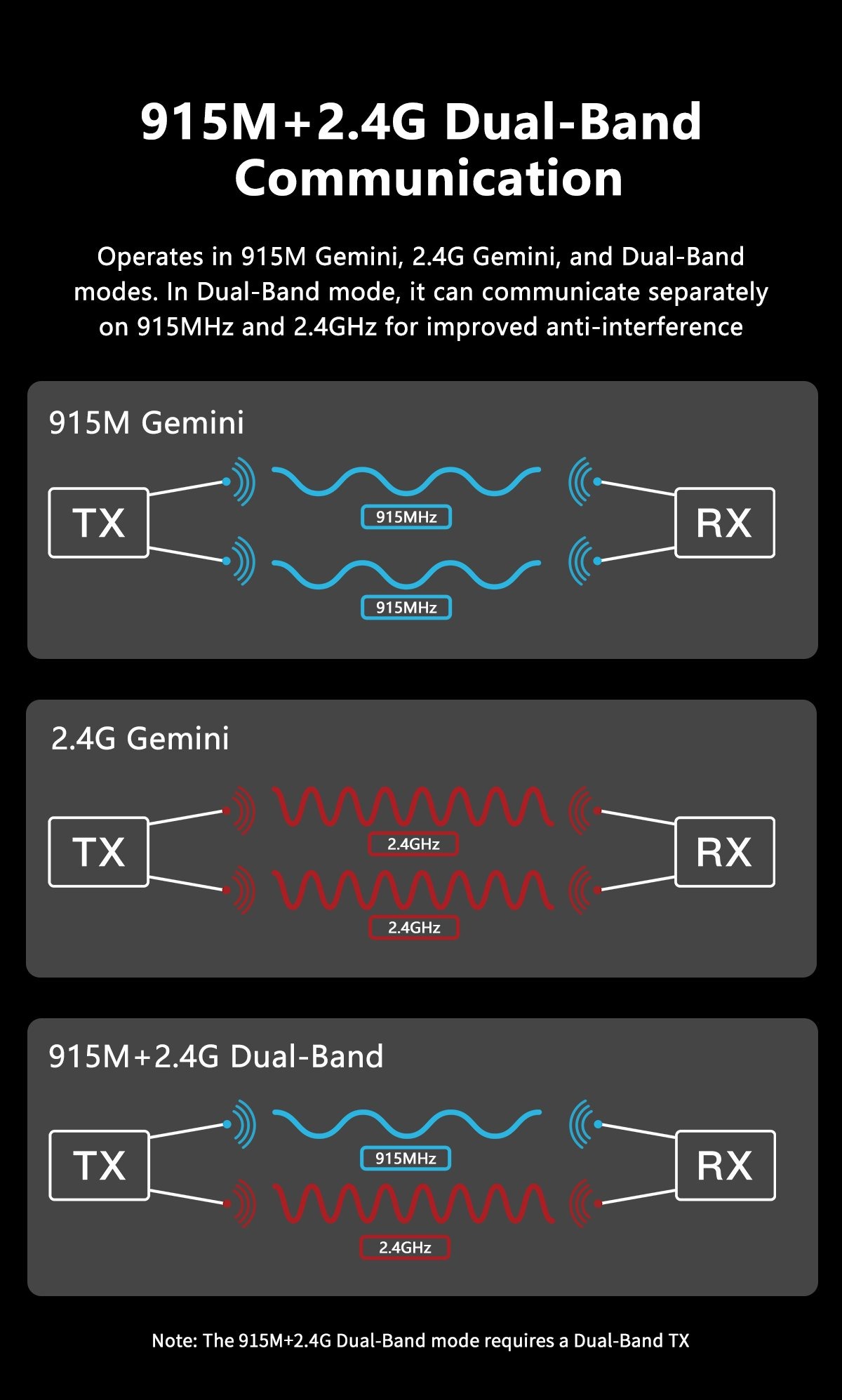

- Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF
- Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
- Telemetry power up to 100mW
- Refresh rate up to 1000Hz

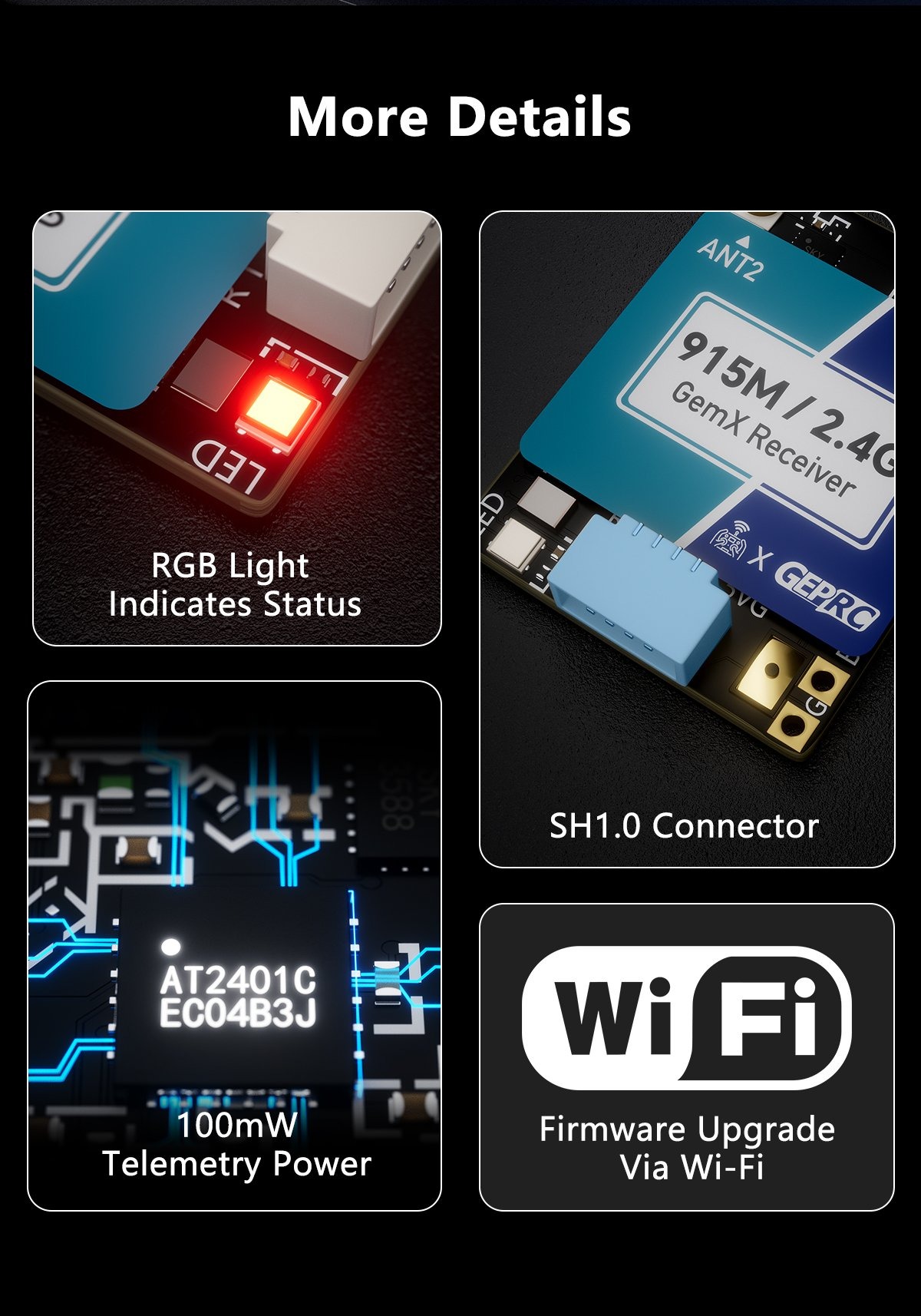

- Supports WiFi firmware updates

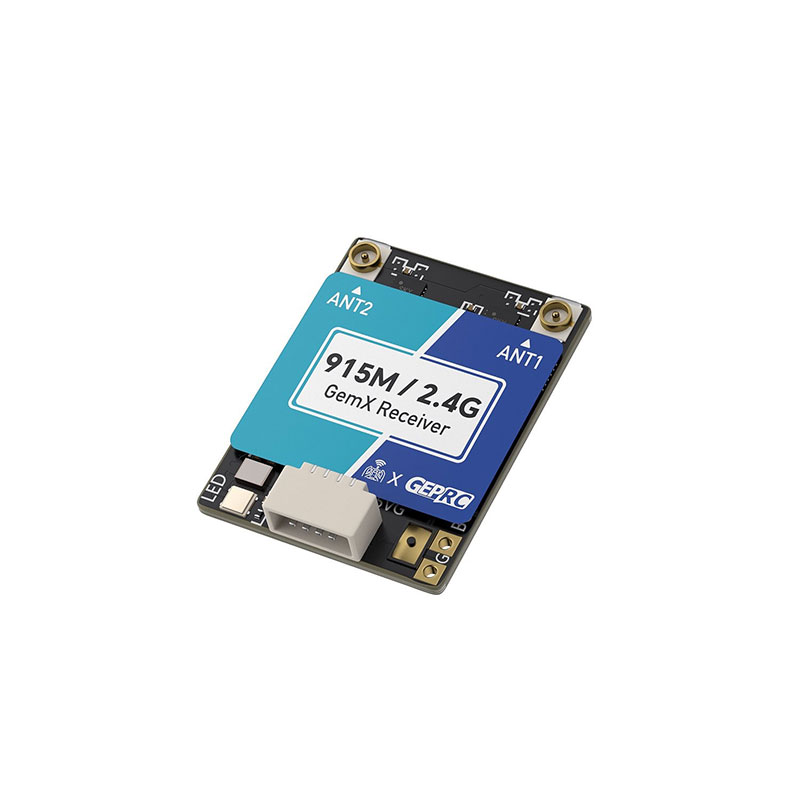

- Includes an SH1.0 connector for easy installation
Specifications:
- Model: GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver

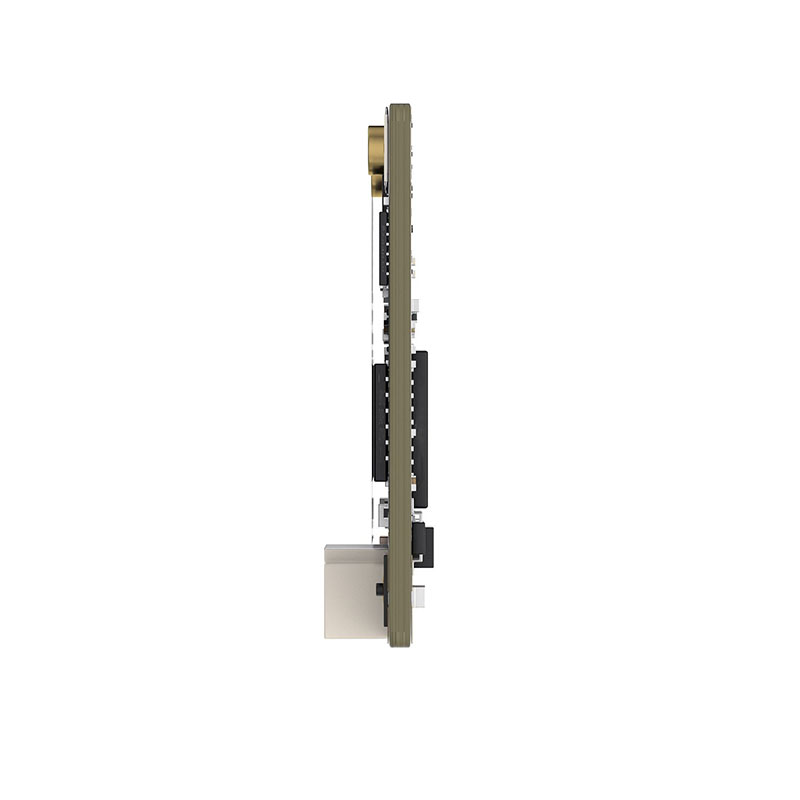

- Dimension: 18×23.6×5.7mm
- Weight: 1.7g (only receiver)

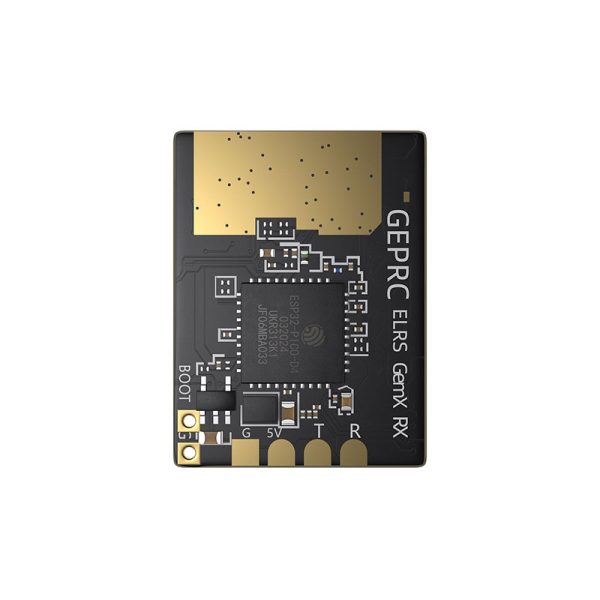

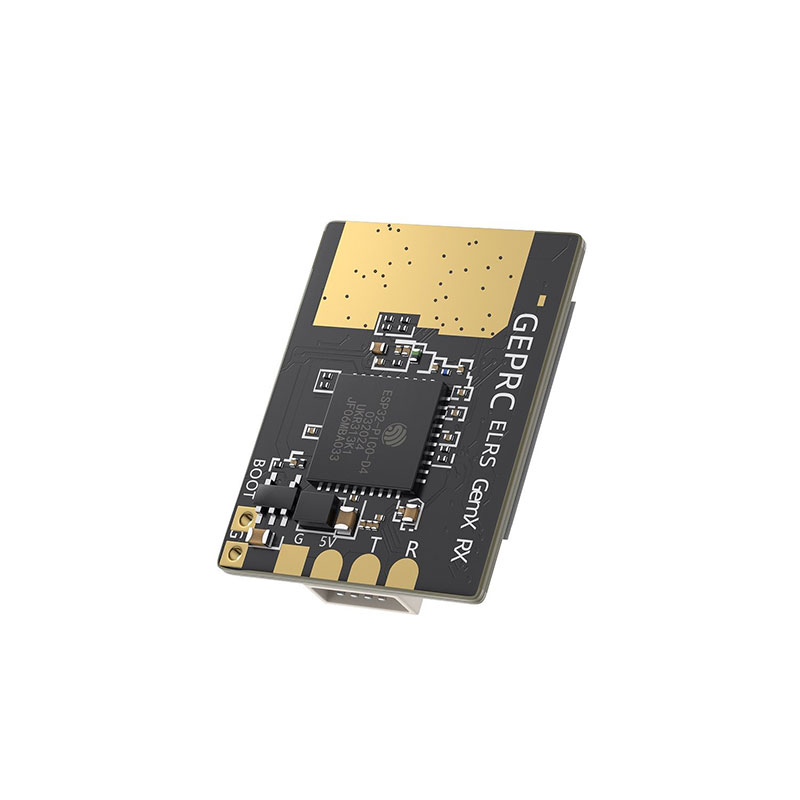

- Chips: ESP32-PICO-D4, LR1121x2
- Crystal Oscillator: TCXO
- Frequency Bands: 915MHz Gemini,2.4GHz Gemini,915M+2.4G Dual-Band
- Refresh Rate: 25Hz-1000Hz
- Operating Voltage: 5V
- Antenna Connector: ipex1
- TLM Power: 100mW
- Firmware: GEPRC 900/2400 Gemini Xrossband RX

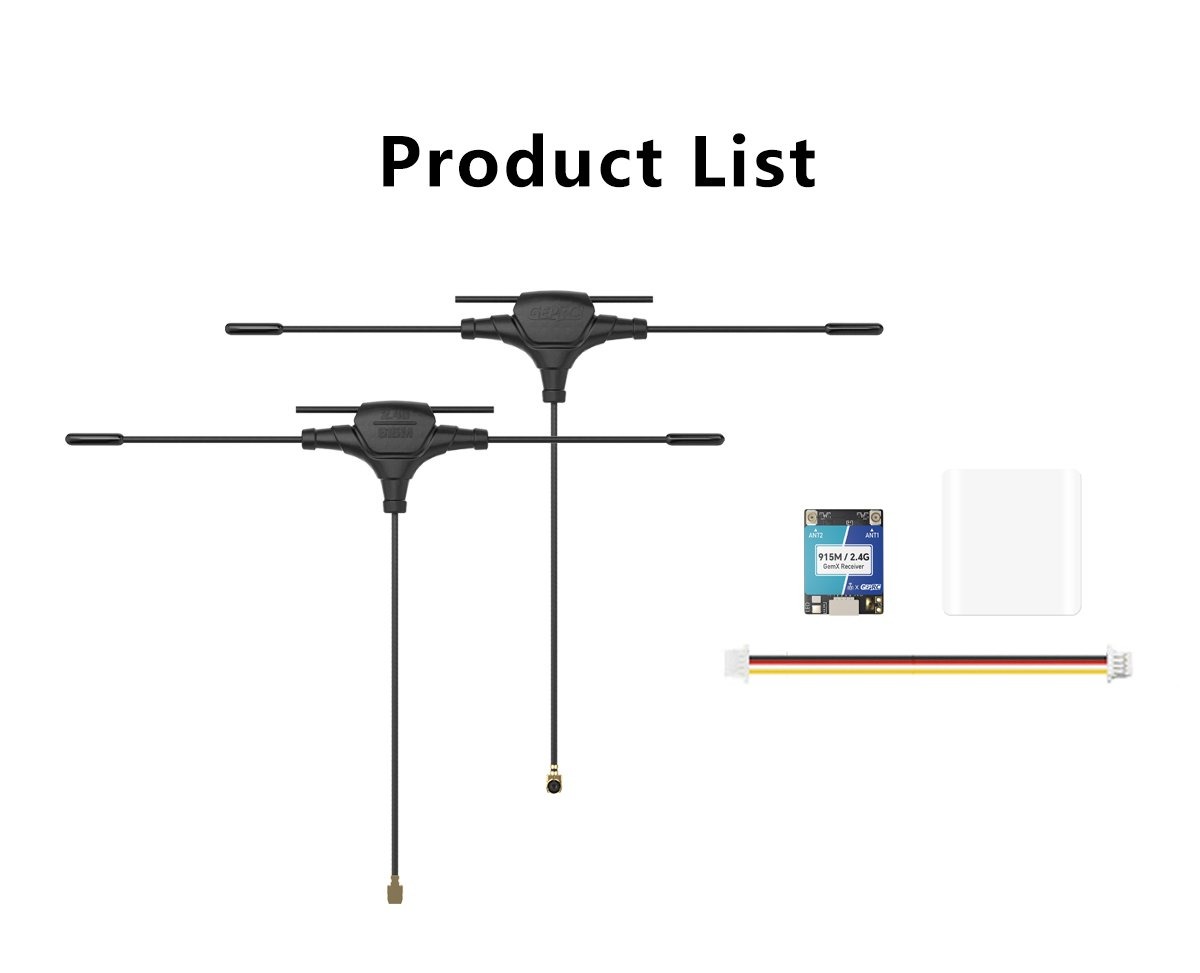

Package Includes:
- 1 x ELRS 915M/2.4G Gemini Xrossband Receiver

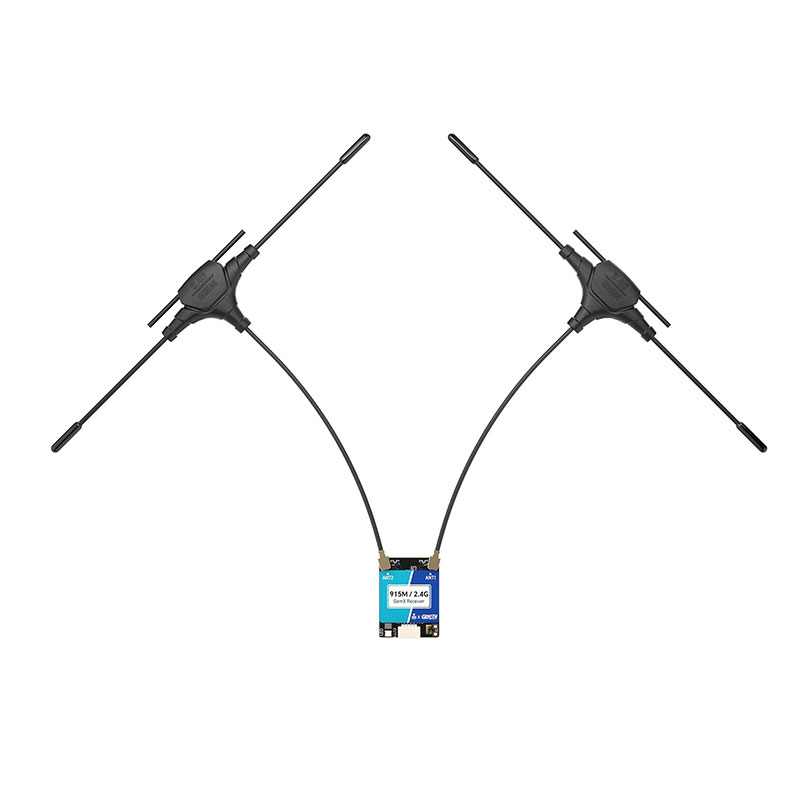

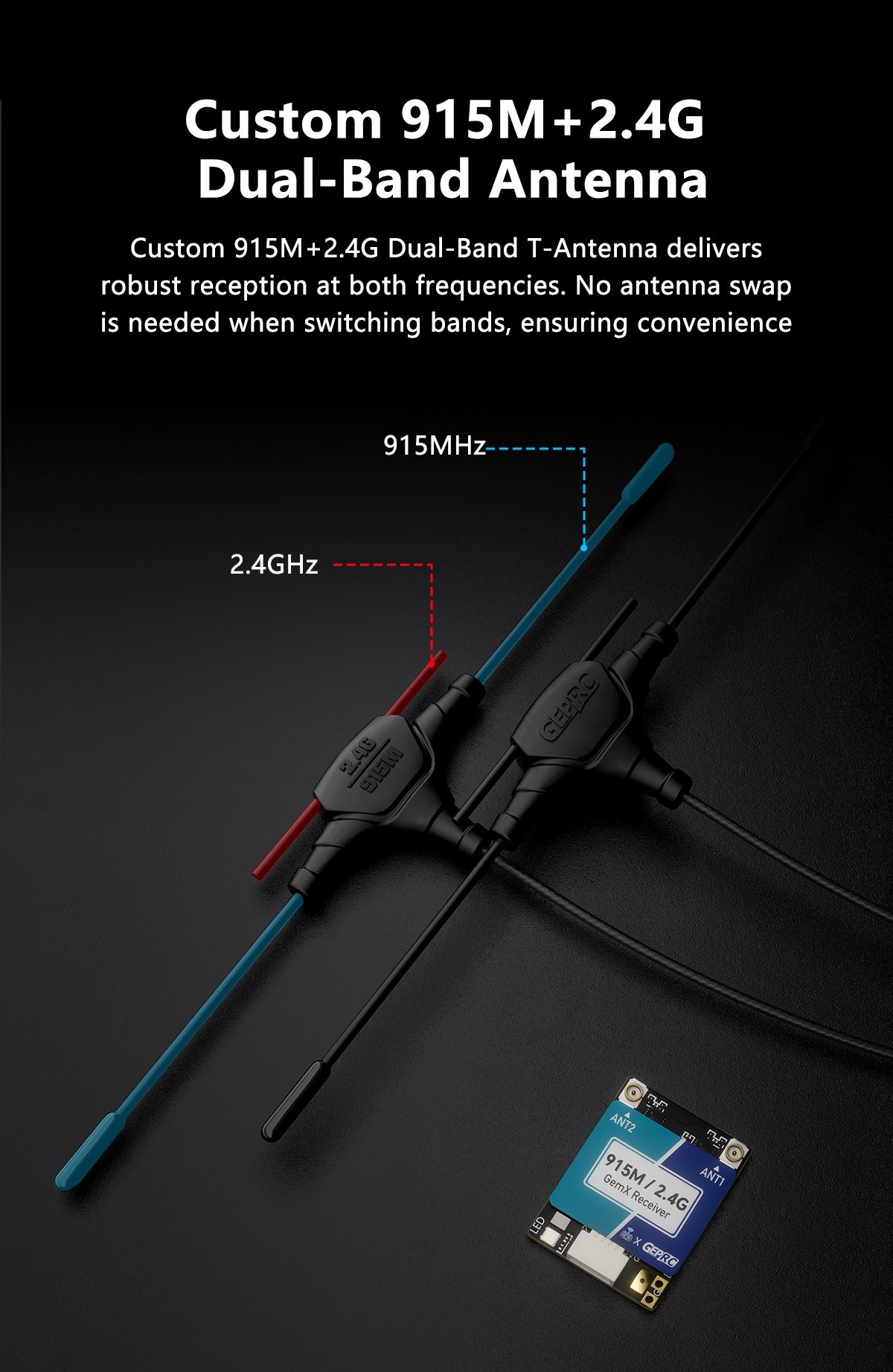

- 2 x 915M/2.4G Dual-band T-Antennas
- 1 x Heat shrink tube
- 1 x 4-pin silicone connect cable
- 1 x User manual
Additional information
Brand | |
---|---|
Protocol |
1 review for GepRC ExpressLRS 915M/2.4G Gemini Xrossband Receiver
Only logged in customers who have purchased this product may leave a review.
