Description

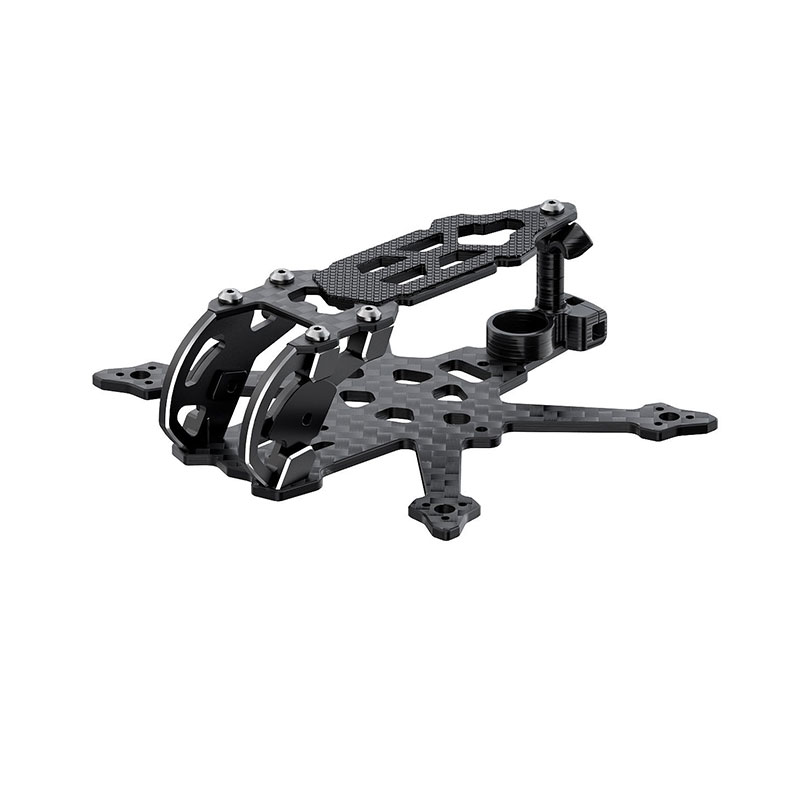

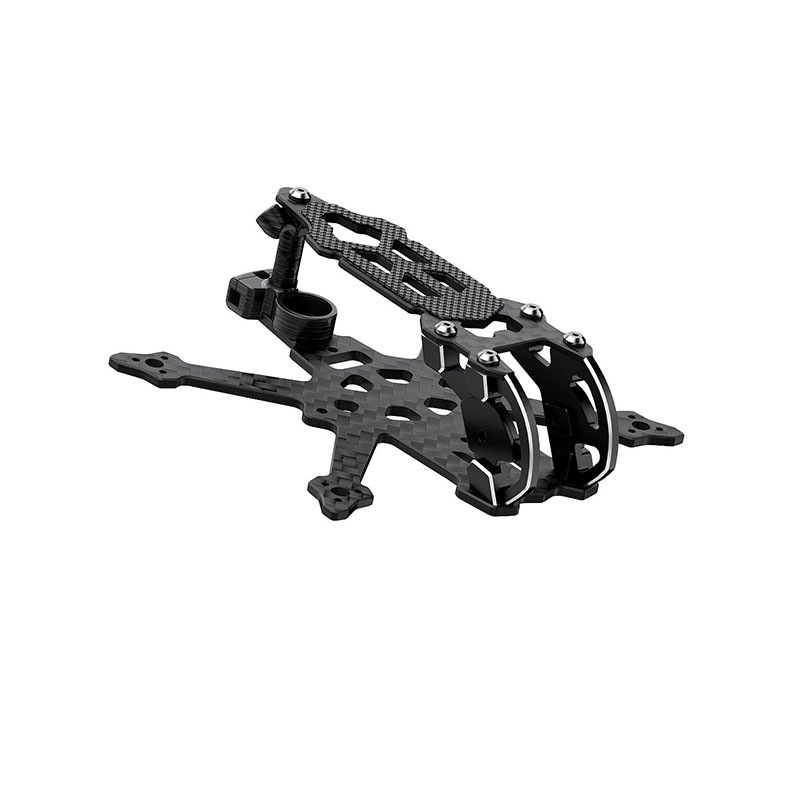

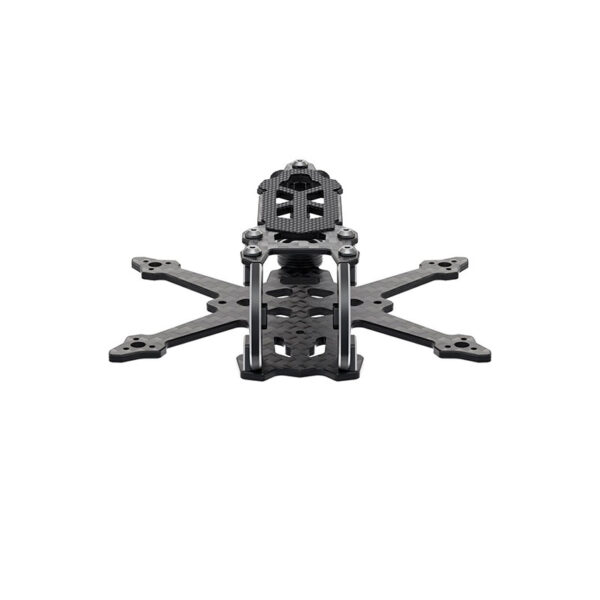

The GepRC GEP-TC18 O4 Frame is engineered for precision with a 7075 aluminum camera mount and silicone dampening to deliver ultra-stable, shake-free footage. The compact Wide X layout, integrated rear for dual antennas and buzzer, and rugged 2mm thick arms make it the perfect fusion of strength, agility, and pro-level performance—crafted for pilots who demand uncompromised durability and cinematic clarity in every flight.

Features:

• Dampening Silicone for steady, shake-free footage with O4.

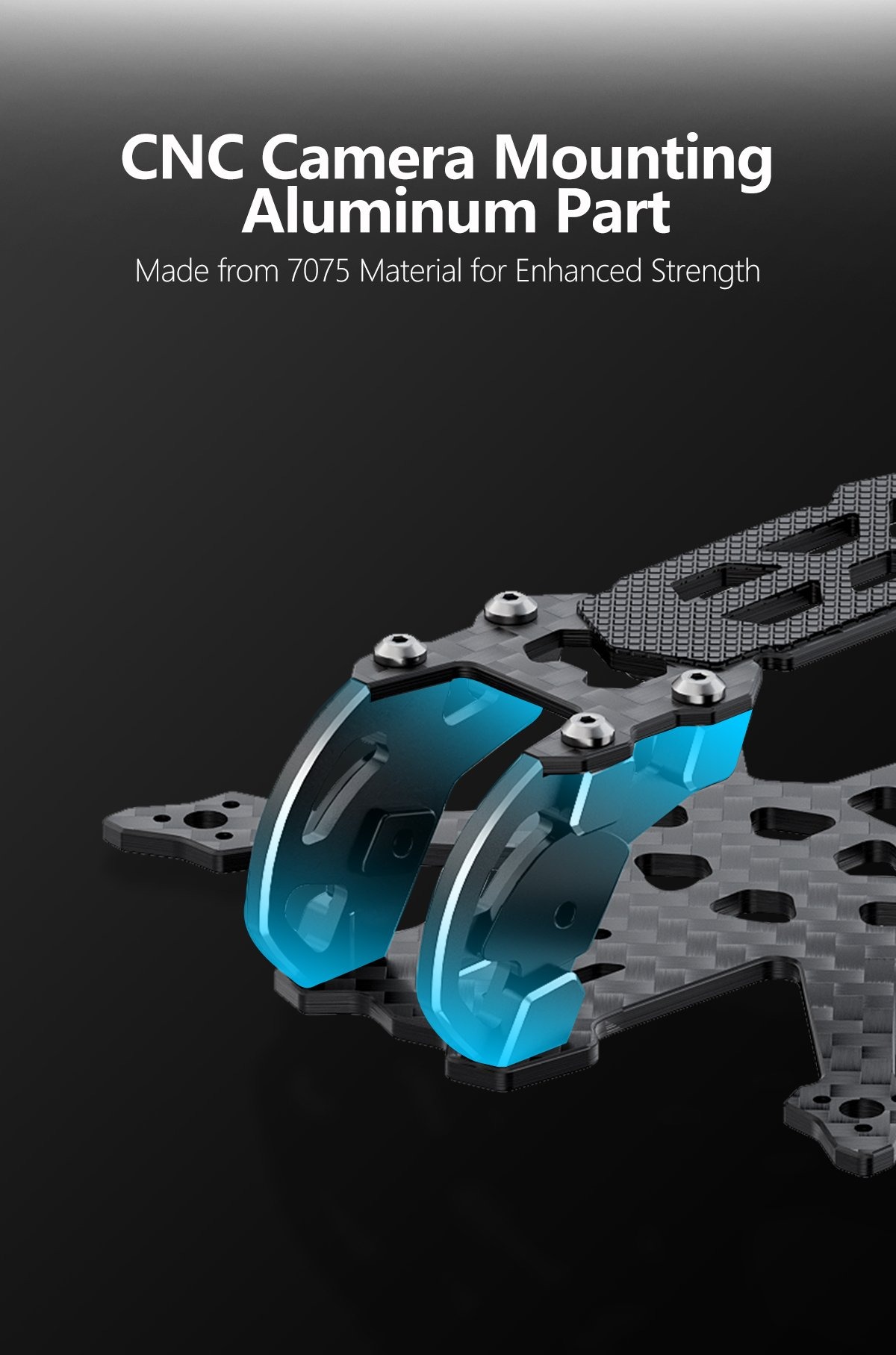

• 7075 aluminum camera mount for superior durability.

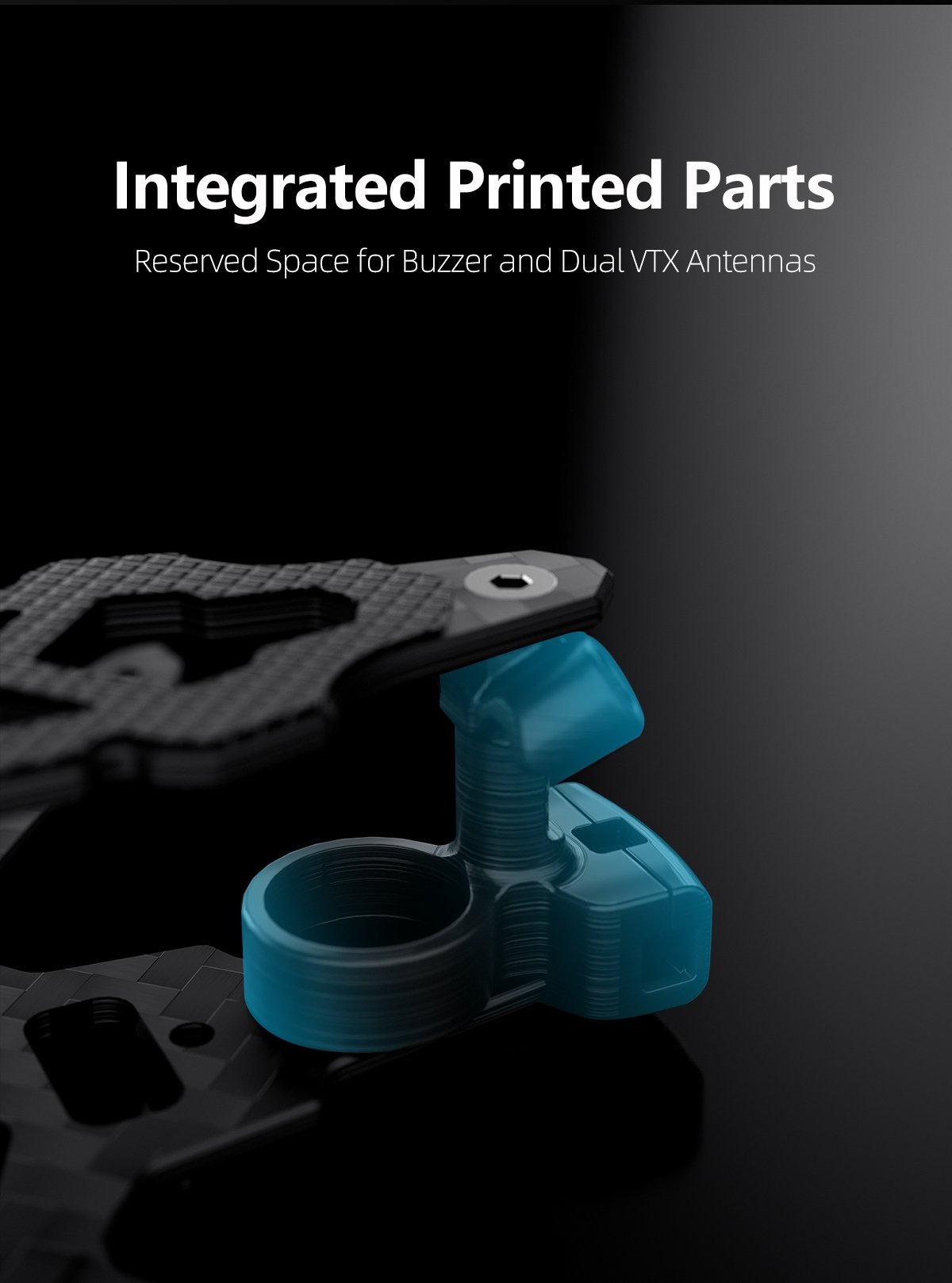

• Integrated rear design with reserved room for buzzer and dual antennas.
• 2mm thick arms for durability and sturdiness.

Specifications:

• Model: GEP-TC 18 O4 frame

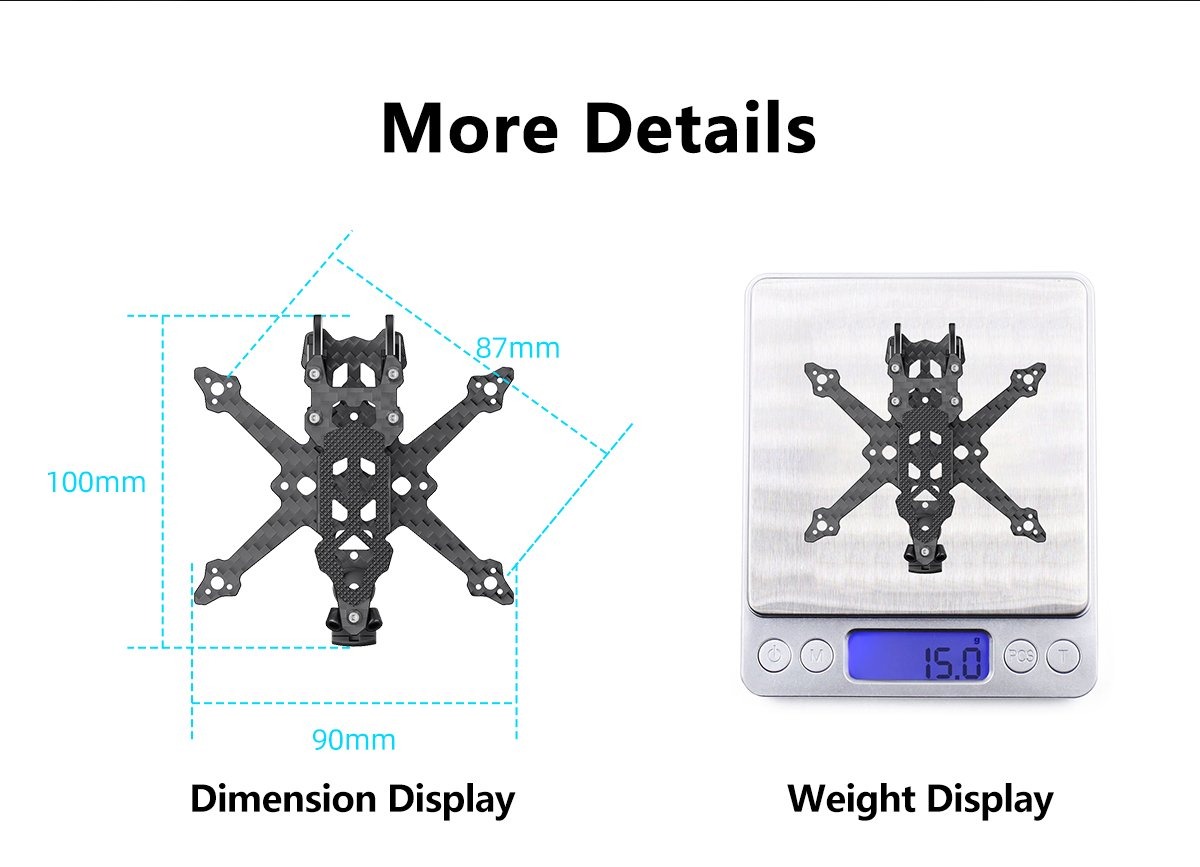

• Wheelbase: 87mm
• Dimension: 100*90mm
• Frame Type: Wide X
• Top Plate: 1.5mm
• Bottom Plate: 2mm
• FC Mounting Hole: 25.5*25.5/M2
• VTX Mounting Hole:  25.5*25.5/M2
• Motor Mounting Hole: 6.6*6.6/M1.4
• Camera Side Plate Gap: 14*14mm
• Stack Mounting Height: 12mm
• Weight: 15g

Package Includes:

• 1 x GepRC GEP-TC18 O4 Frame
