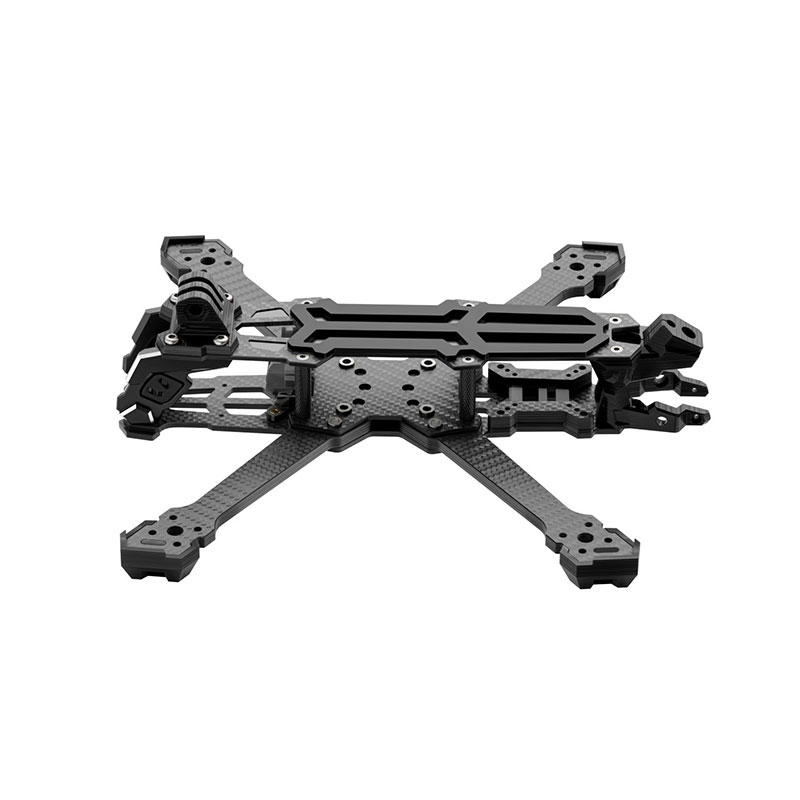

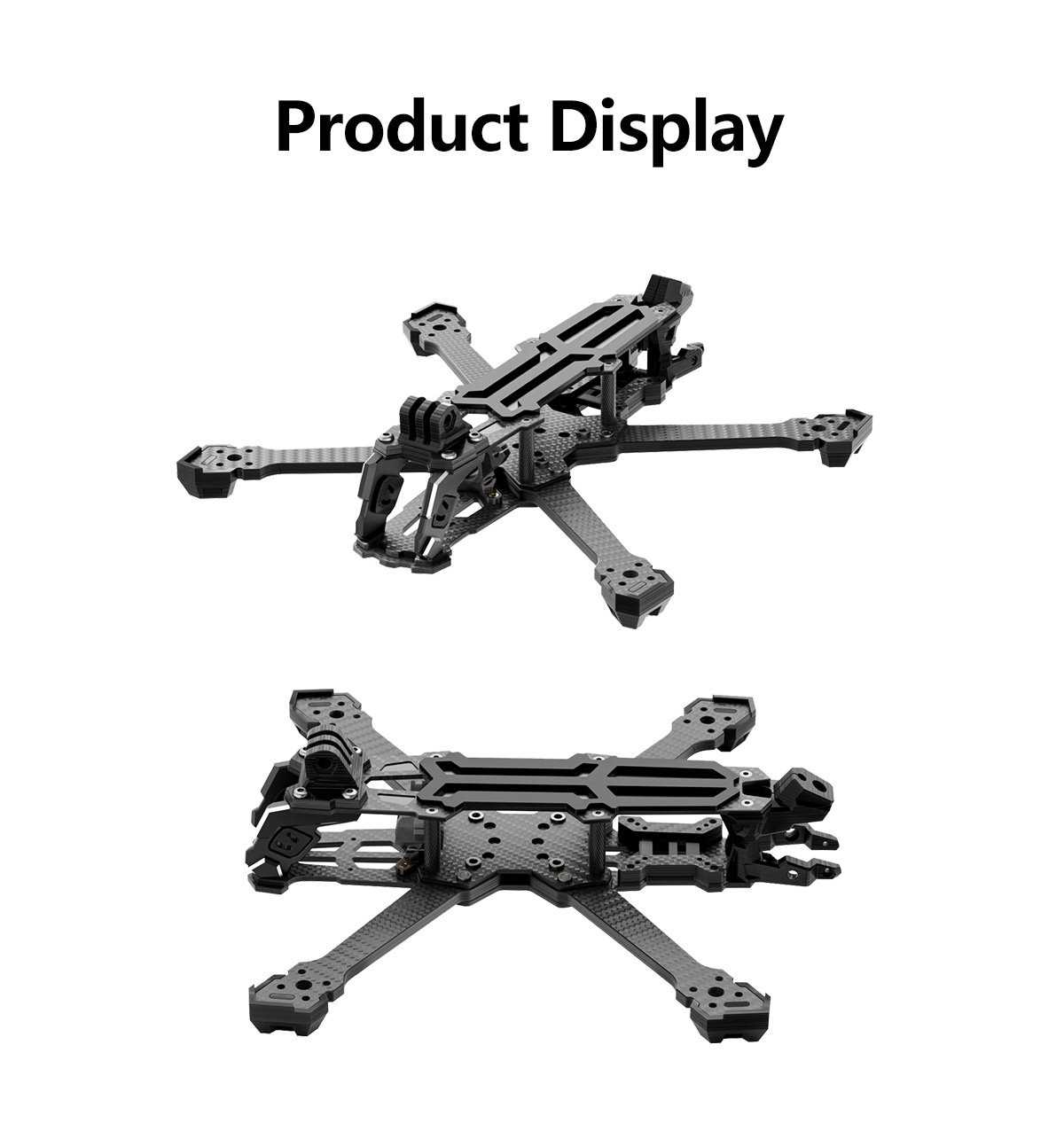

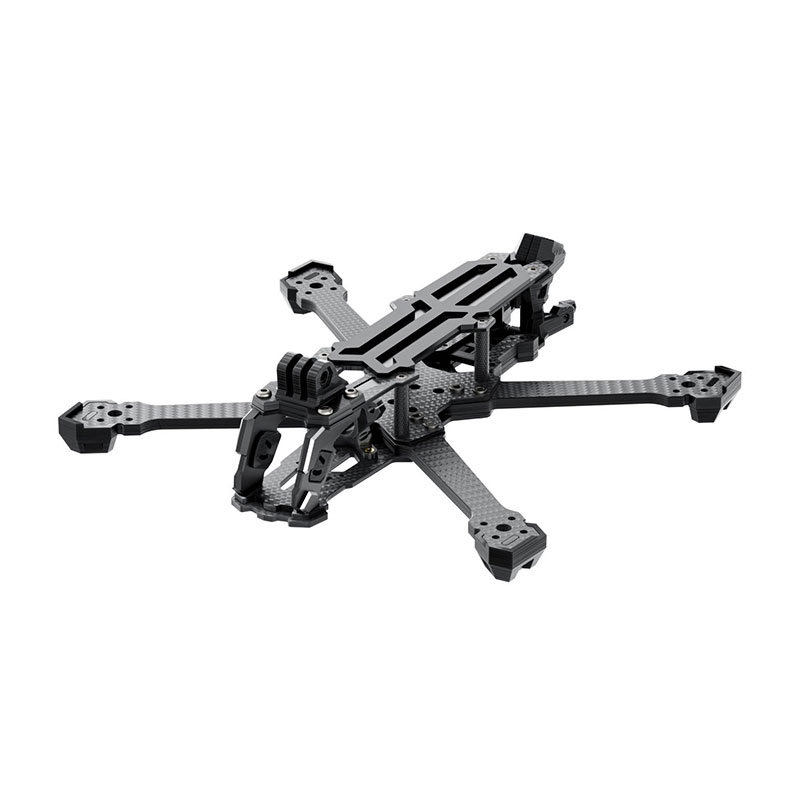

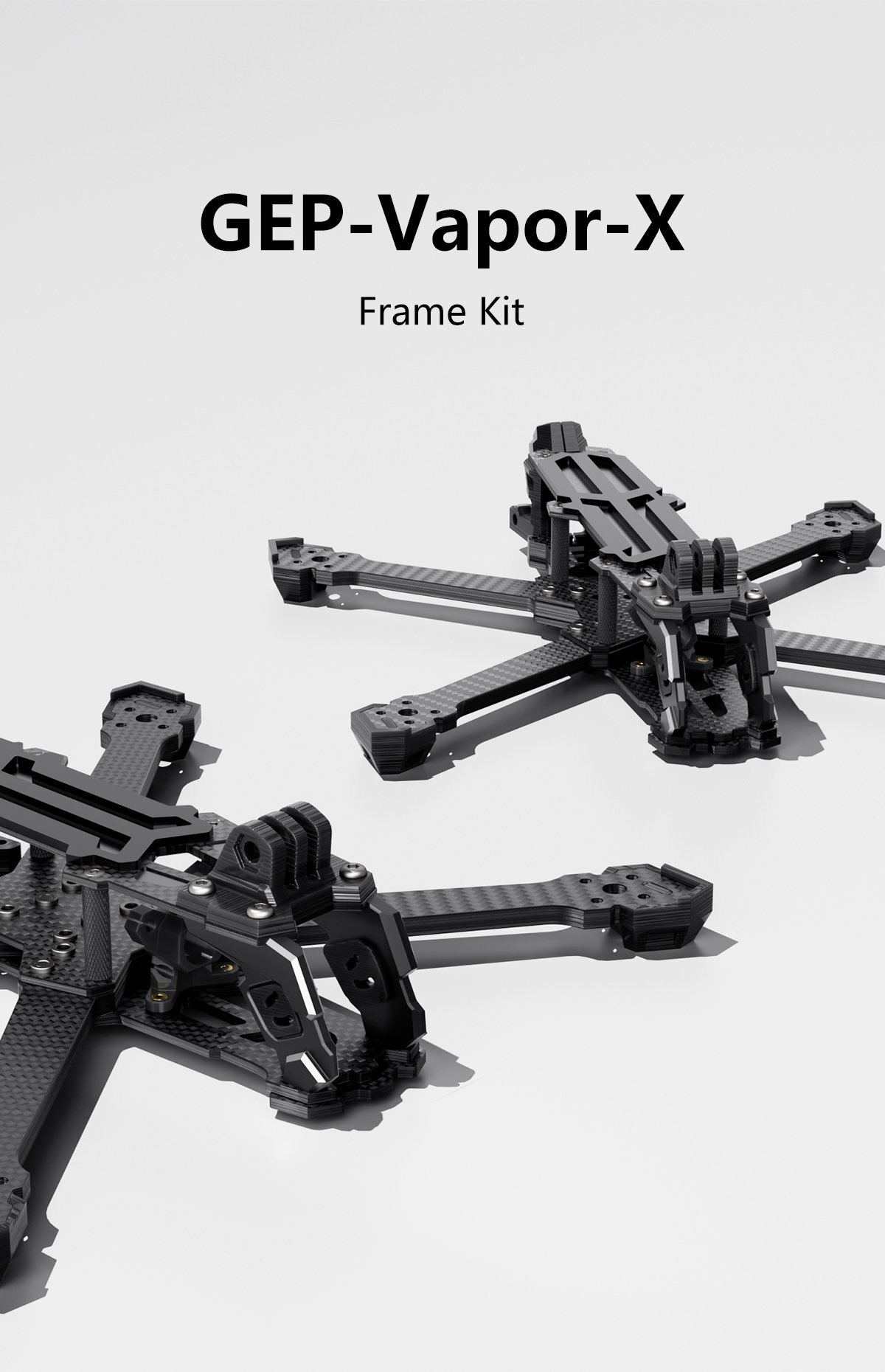

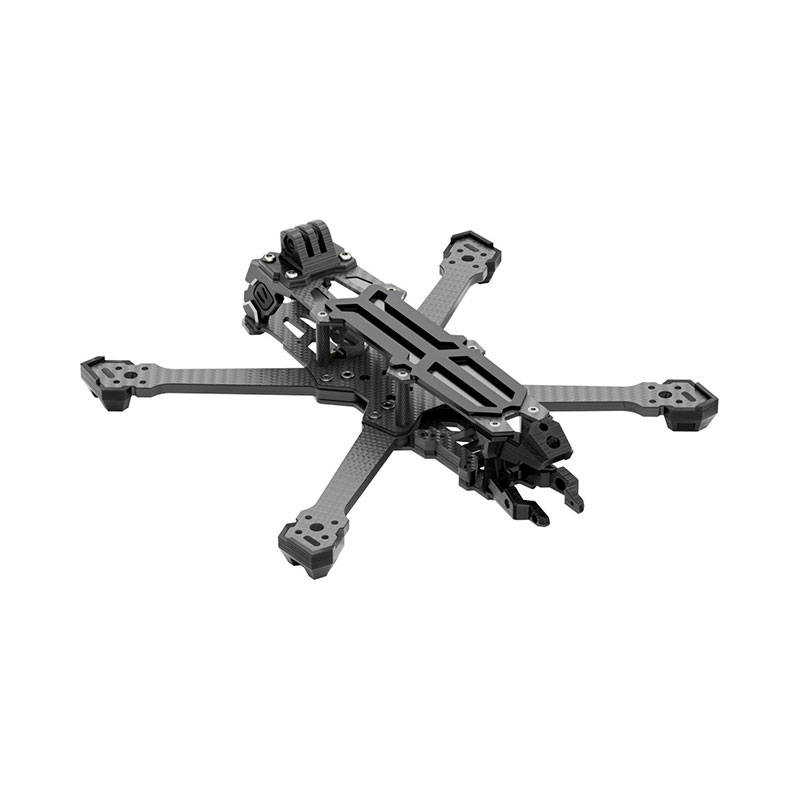

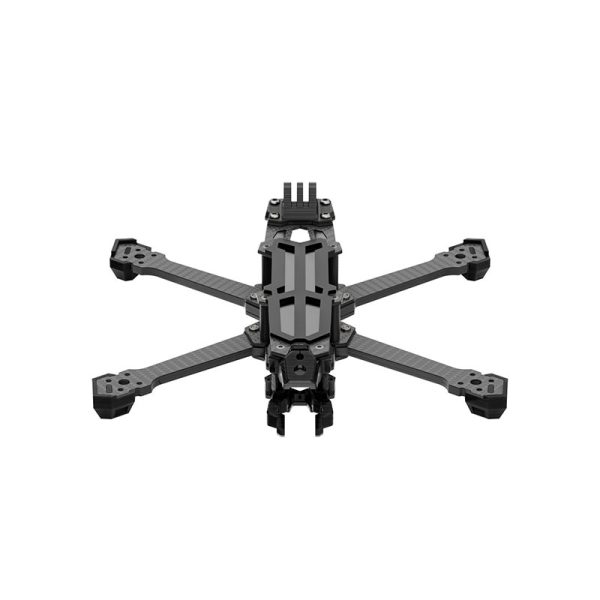

GepRC GEP Vapor X5 Frame
by GEPRC
Experience freestyle precision with robust carbon fiber, double-protected durability, wide X-frame stability, and effortless maintenance versatility.
$129.99
Hurry! Only 1 left in stock
Ships from our Tauranga warehouse
SKU: 7316
Categories: Carbon Frames, Drone Frames
Description
The GepRC GEP-Vapor-X5 Frame redefines freestyle flight with its wide X-frame design, delivering unmatched stability and agility. Built with 5mm carbon fiber arms for maximum rigidity, it ensures superior durability, enhanced by double-protected camera panels and a front guard. Quick-release features simplify maintenance, while versatile mounting options and compatibility with 5-inch and 6-inch props cater to every pilot’s needs, making it a perfect blend of style, functionality, and exceptional flight performance.
Features:

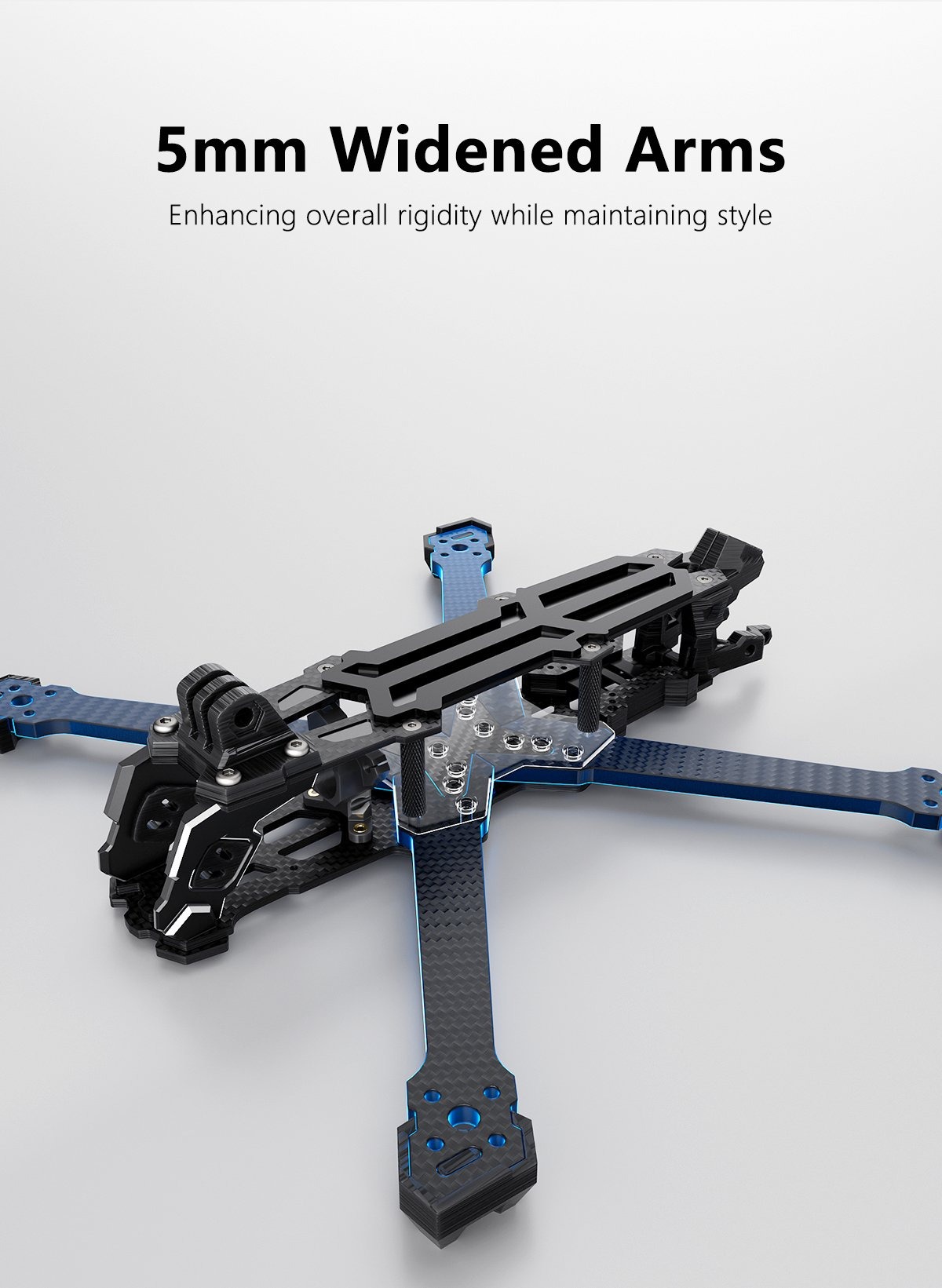

- Â The 5mm wide carbon fiber arms ensure overall rigidity.
- Â The camera side panels and front guard offer double protection for enhanced durability.

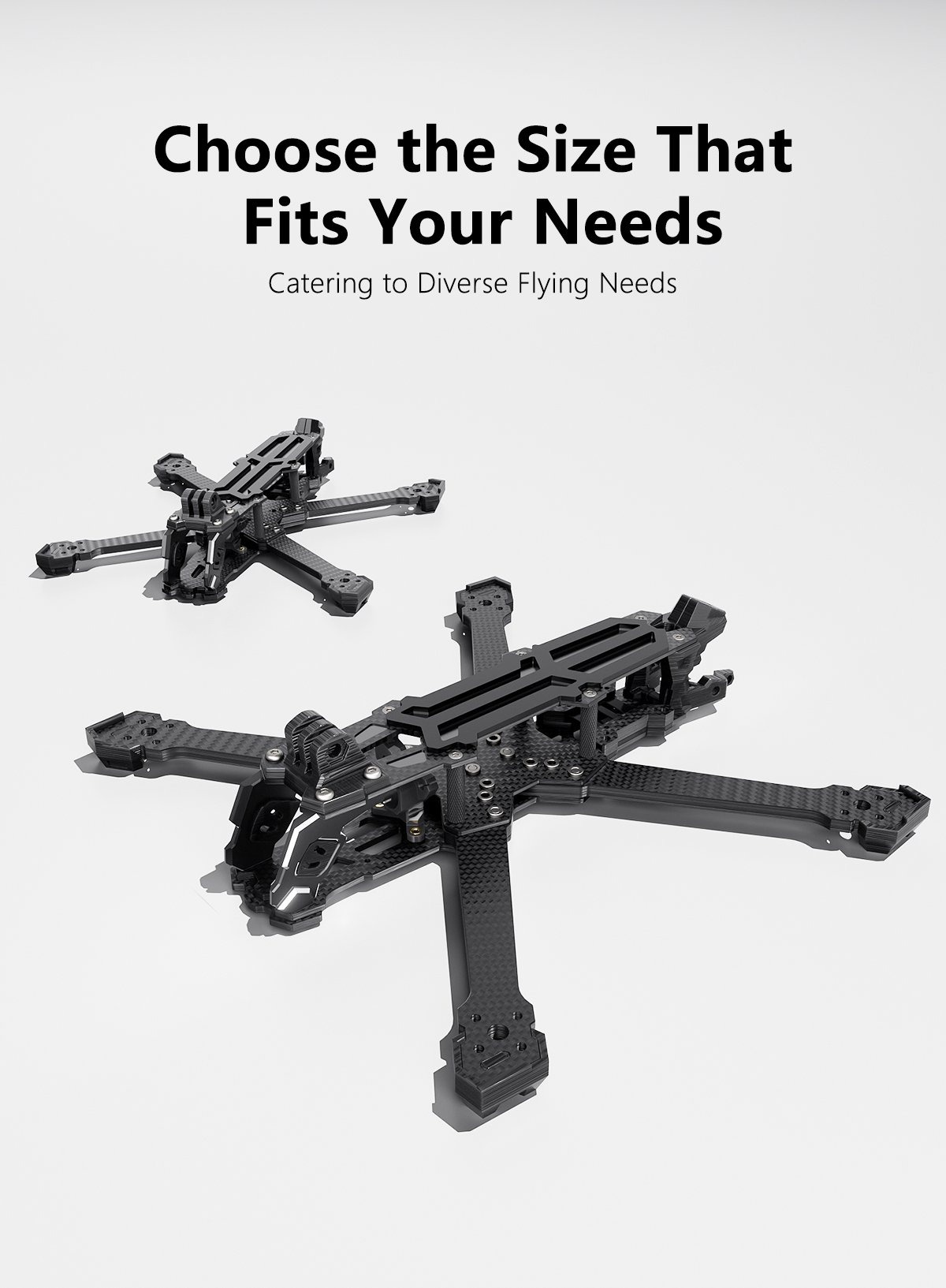

-  Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.

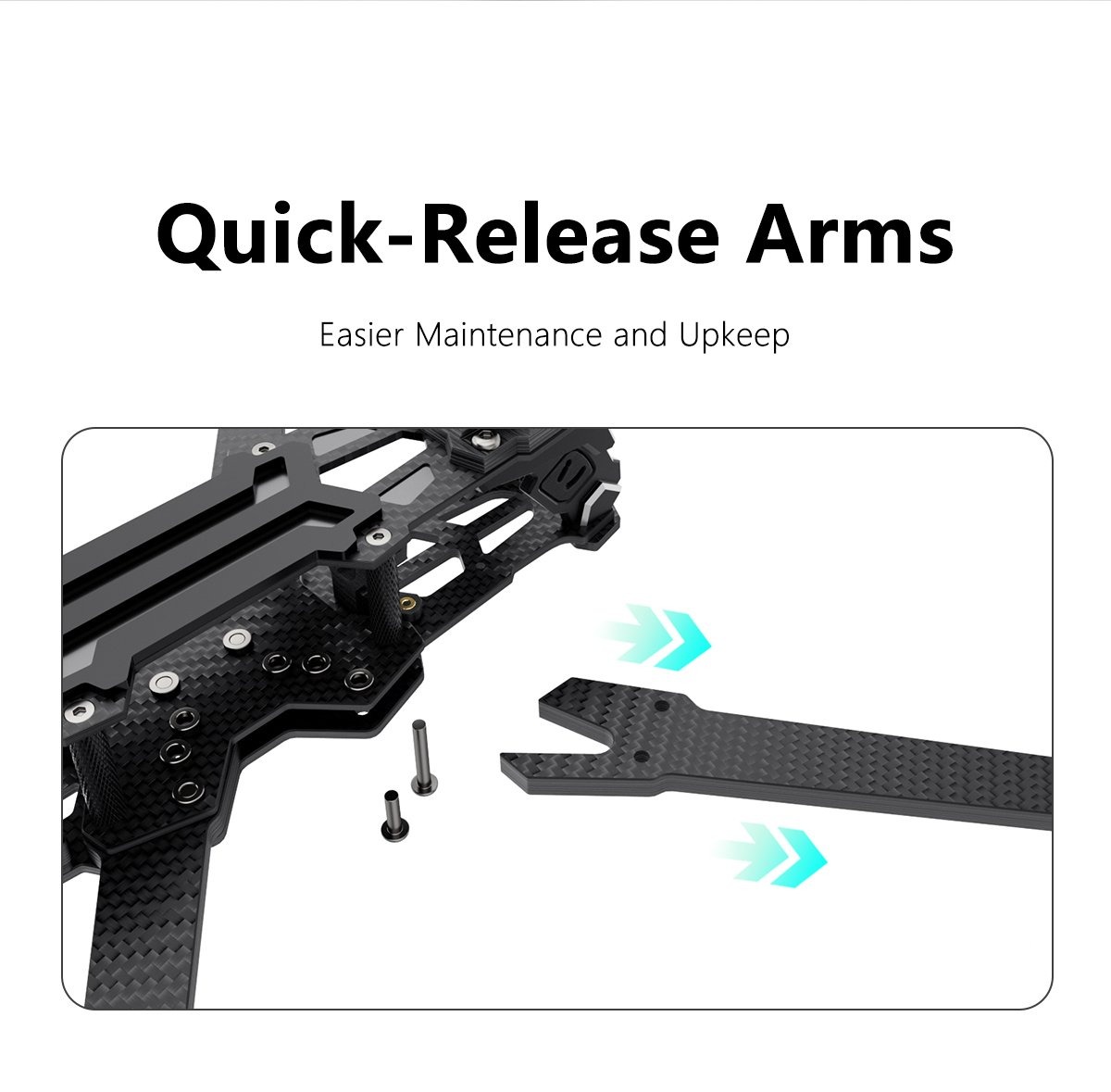

- The quick-release design makes maintenance and assembly a breeze.
Specifications:
- Model: GEP-Vapor-X5 Frame

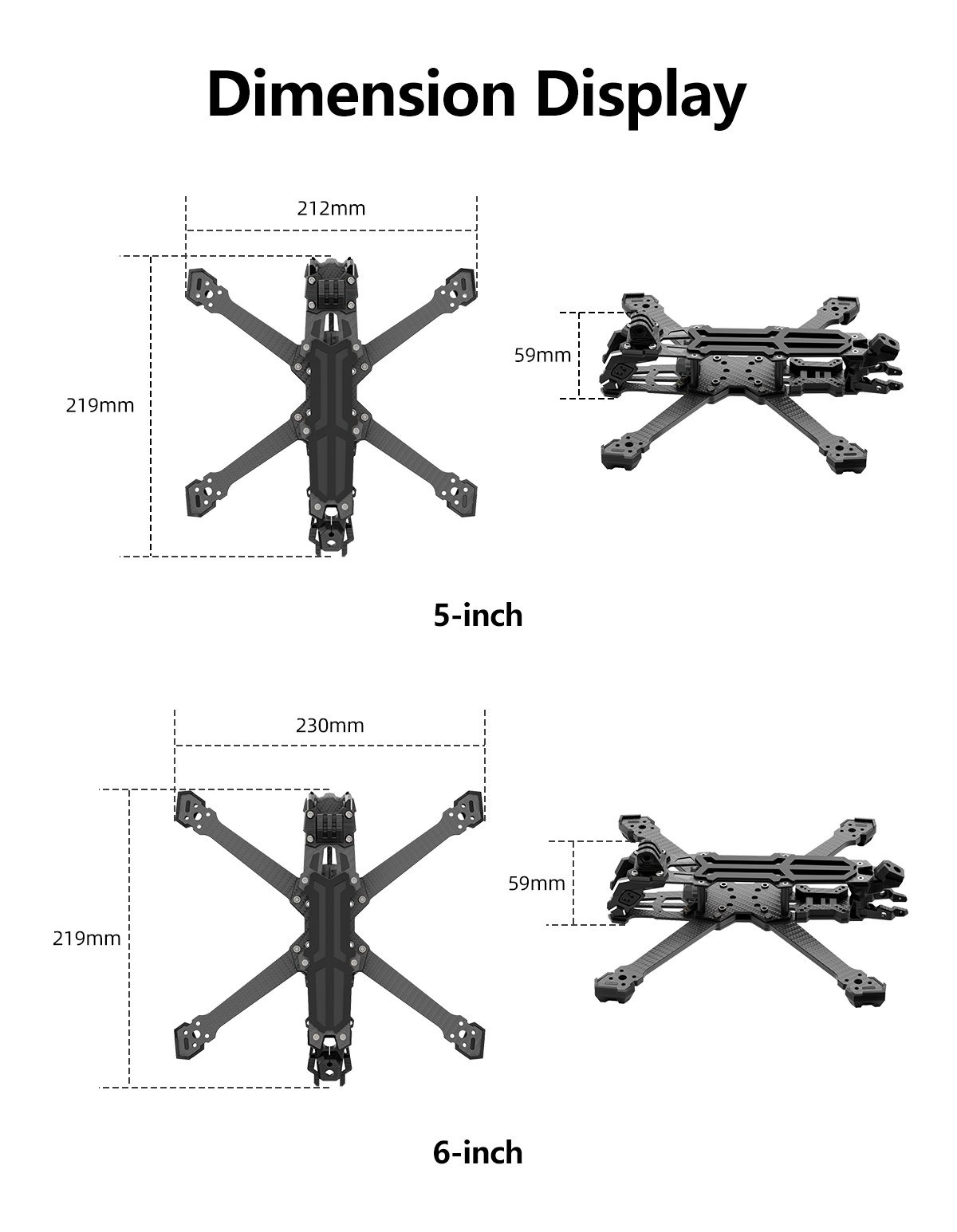

- Wheelbase: 230mm
- Top Plate Thickness: 2.0mm
- Middle Plate Thickness: 2.0mm
- Arm Thickness: 5.0mm
- Bottom Plate Thickness: 2.5mm
- FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
- VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
- Motor Mounting Hole Size: 16x16mm
- Camera Mounting Hole Size: 19mm / 20mm
- Recommended Propeller: 5-inch

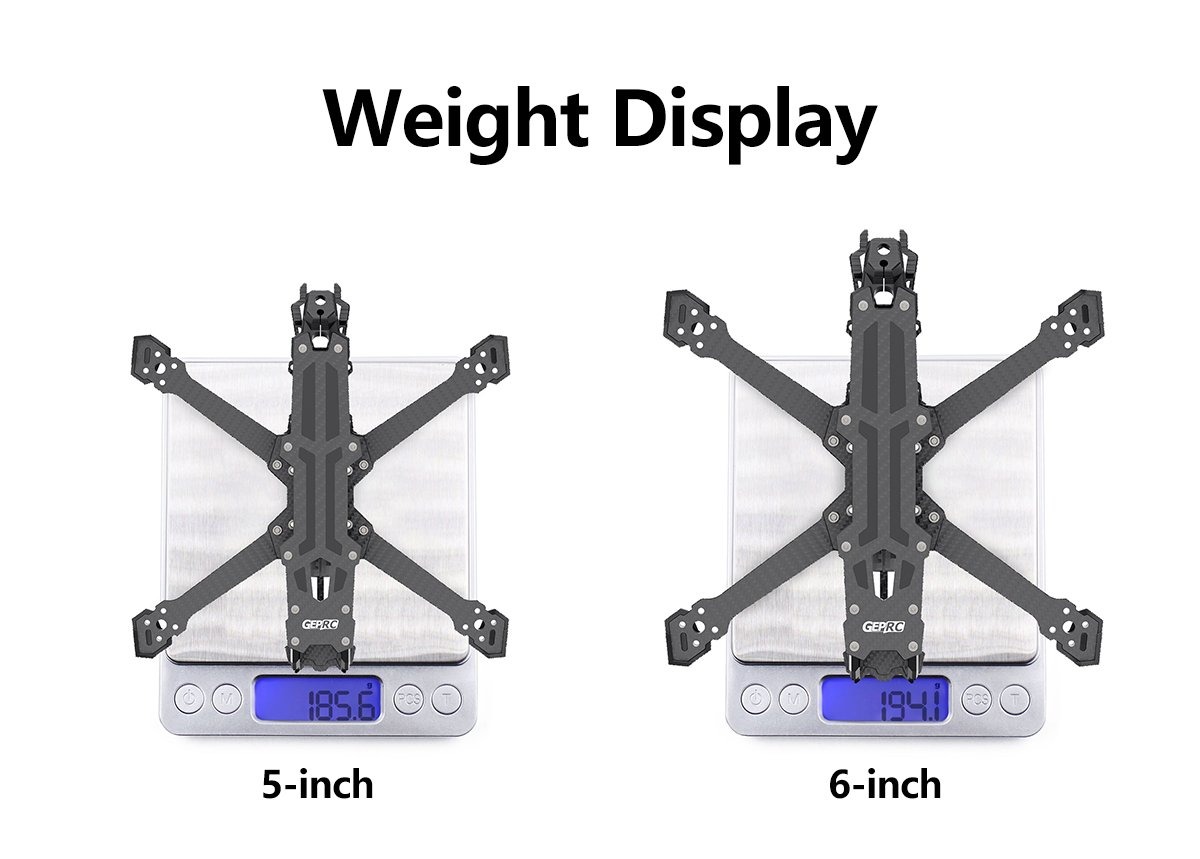

- Weight: 185.6g ±2g

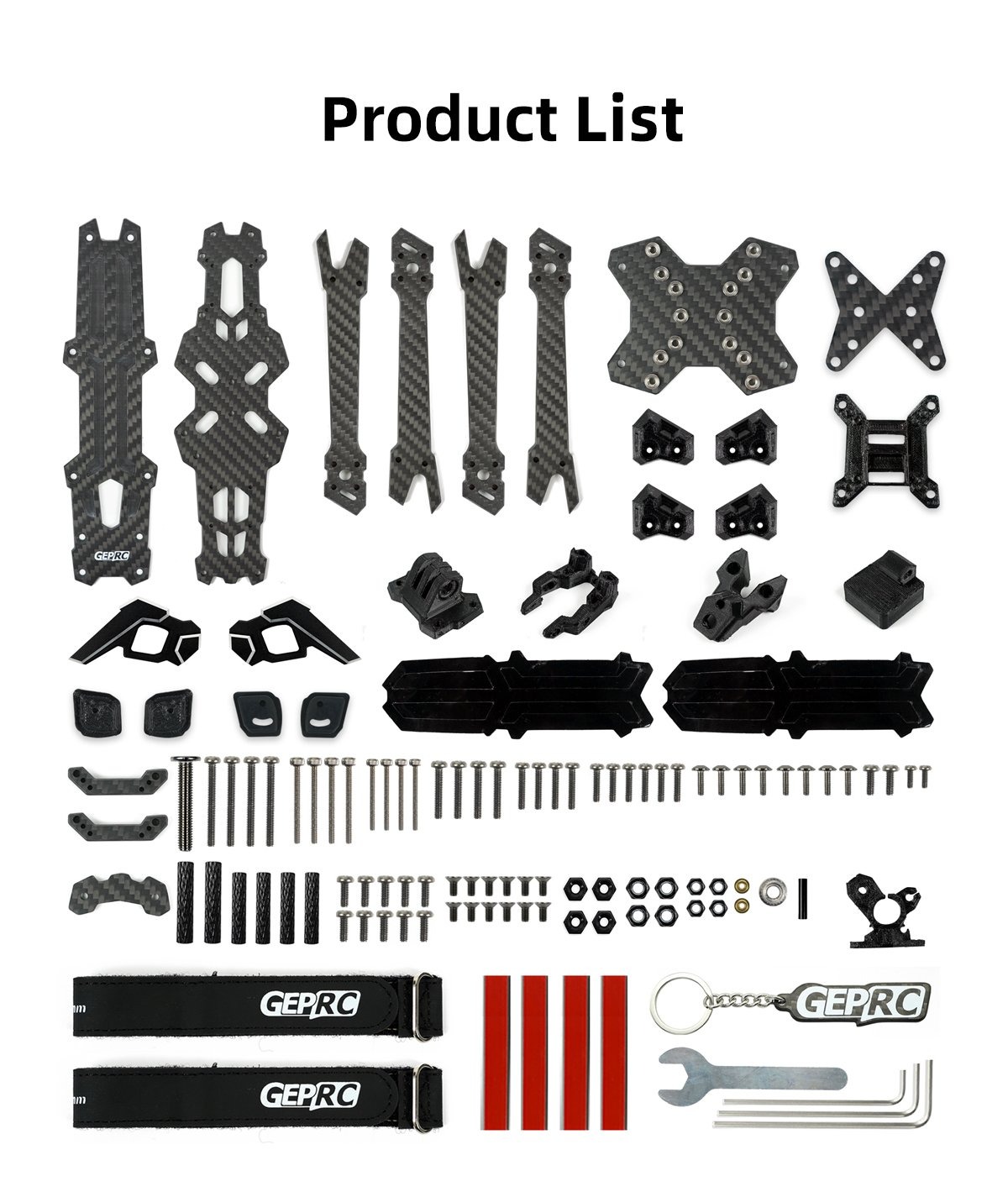

Package Includes:
- 1 x GEP-Vapor-X Frame
- 2 x M20*250mm battery straps
- 2 x Battery Silicone Pads
- 1 x Set of screws
- 1 x Printout package
- 1 x L-shaped screwdriver (1.5mm)
- 1 x L-shaped screwdriver (2mm)
- 1 x L-shaped screwdriver (3mm)
- 1 x M8 wrench
