Description

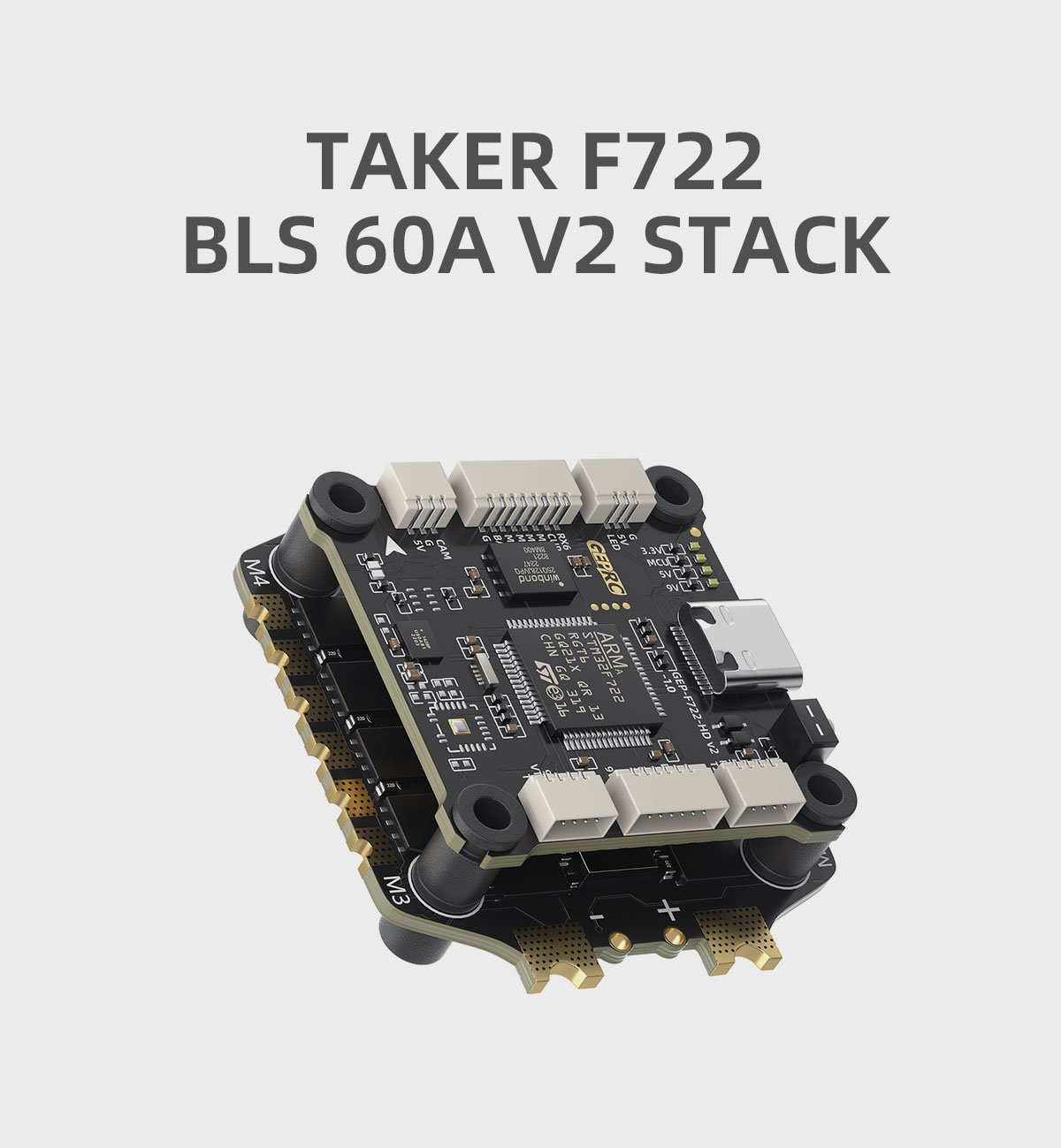

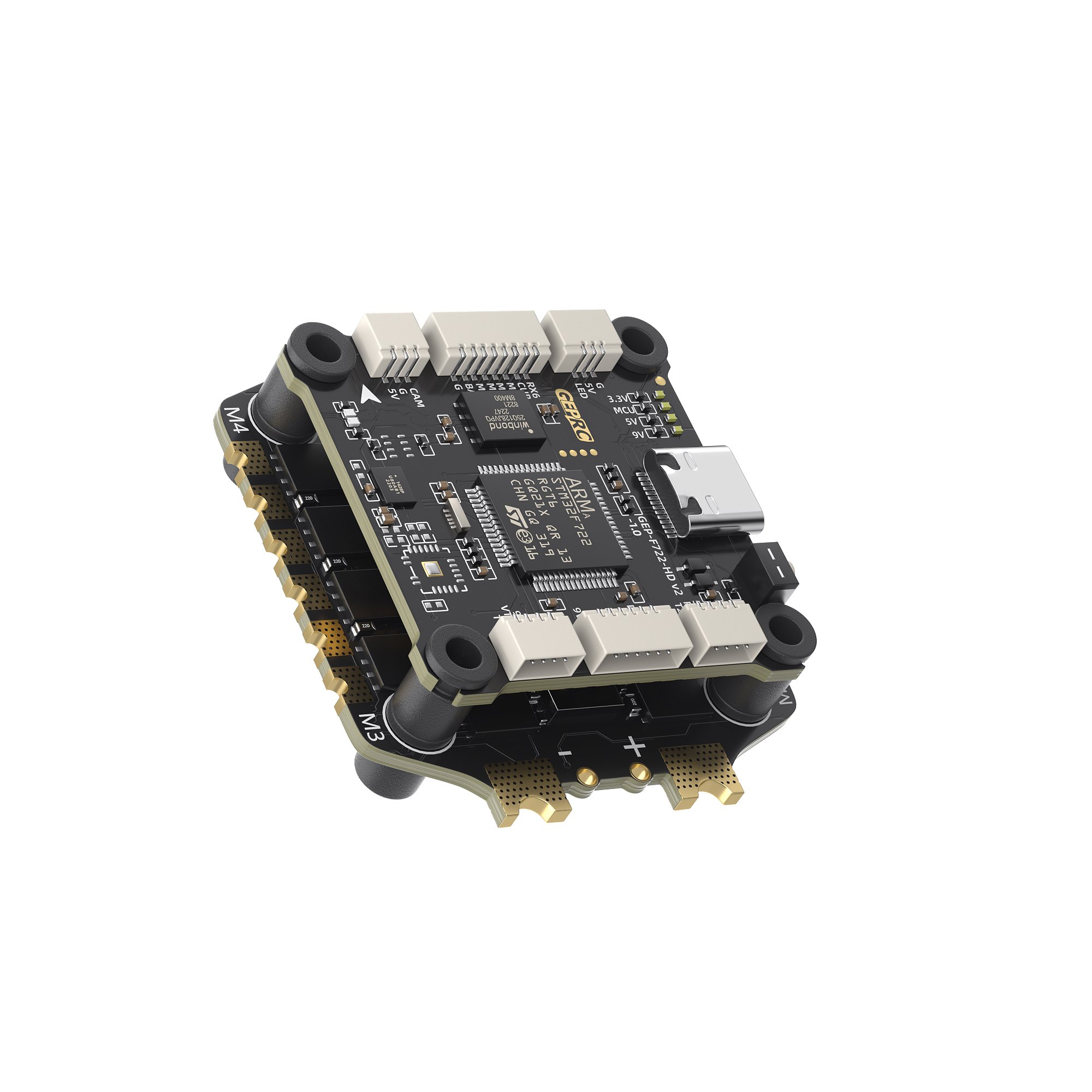

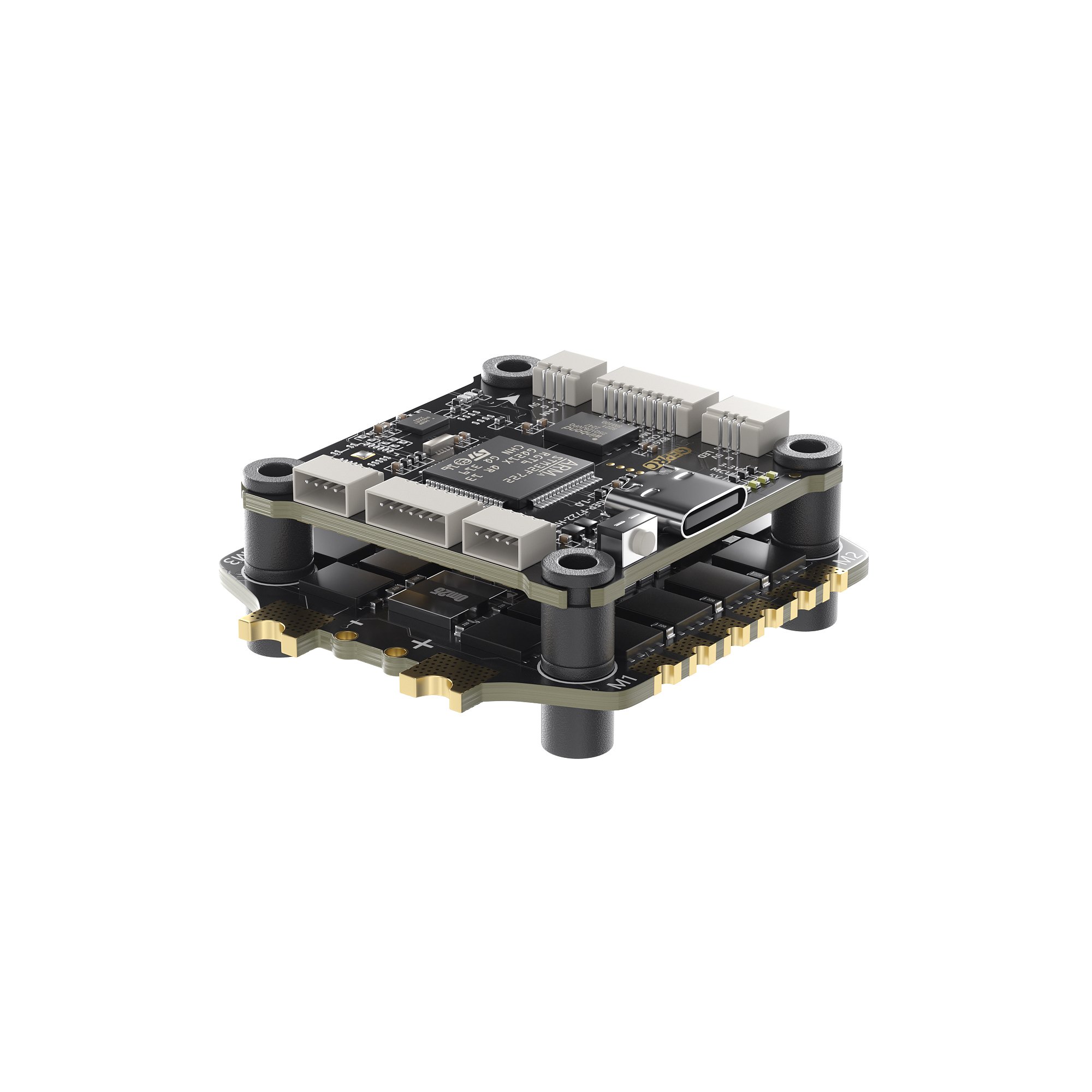

The GEPRC TAKER F722 BLS 60A V2 Stack delivers ultra smooth control using an STM32F722 processor, ICM42688-P gyro, integrated LC filtering, and stable shock absorption for demanding FPV builds. Paired with a powerful 60A BLS 4in1 ESC, dual BEC output, Type-C USB, DJI Air Unit support, and onboard blackbox, it ensures reliable power delivery, clean signals, and confident performance from 3S to 6S flights across freestyle, cinematic, and racing applications.

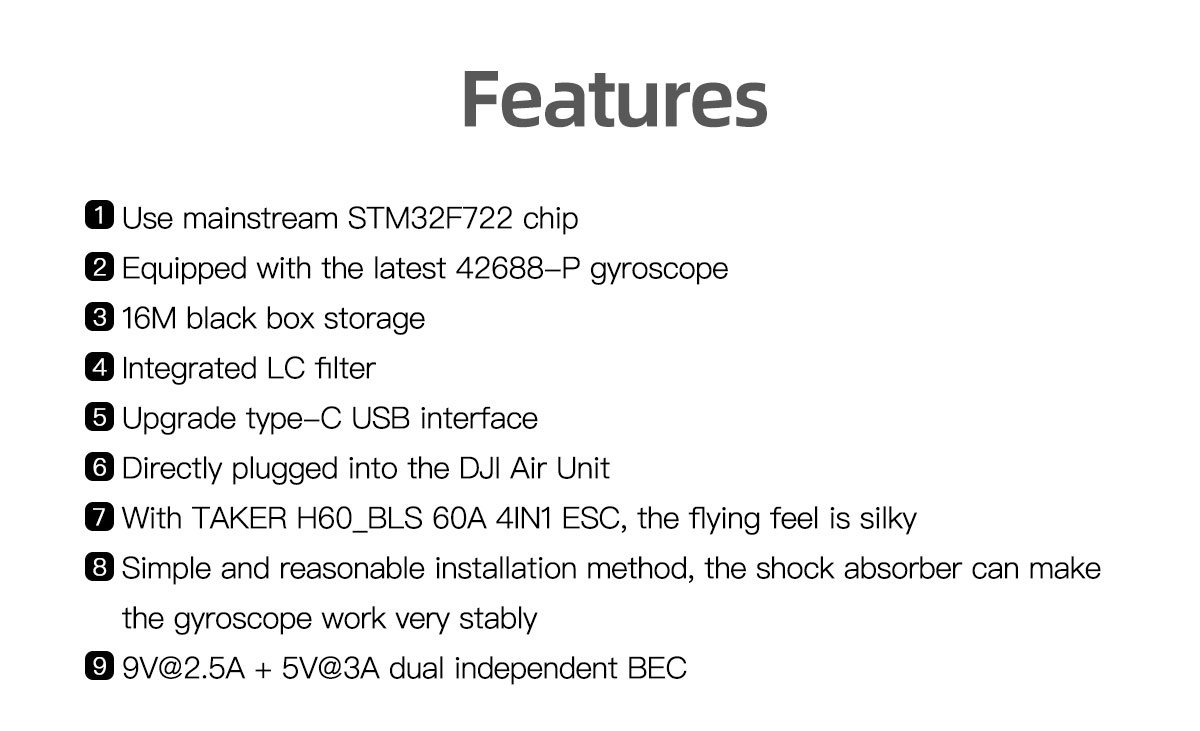

Features

• STM32F722 high-performance flight controller
• Latest ICM42688-P SPI gyroscope

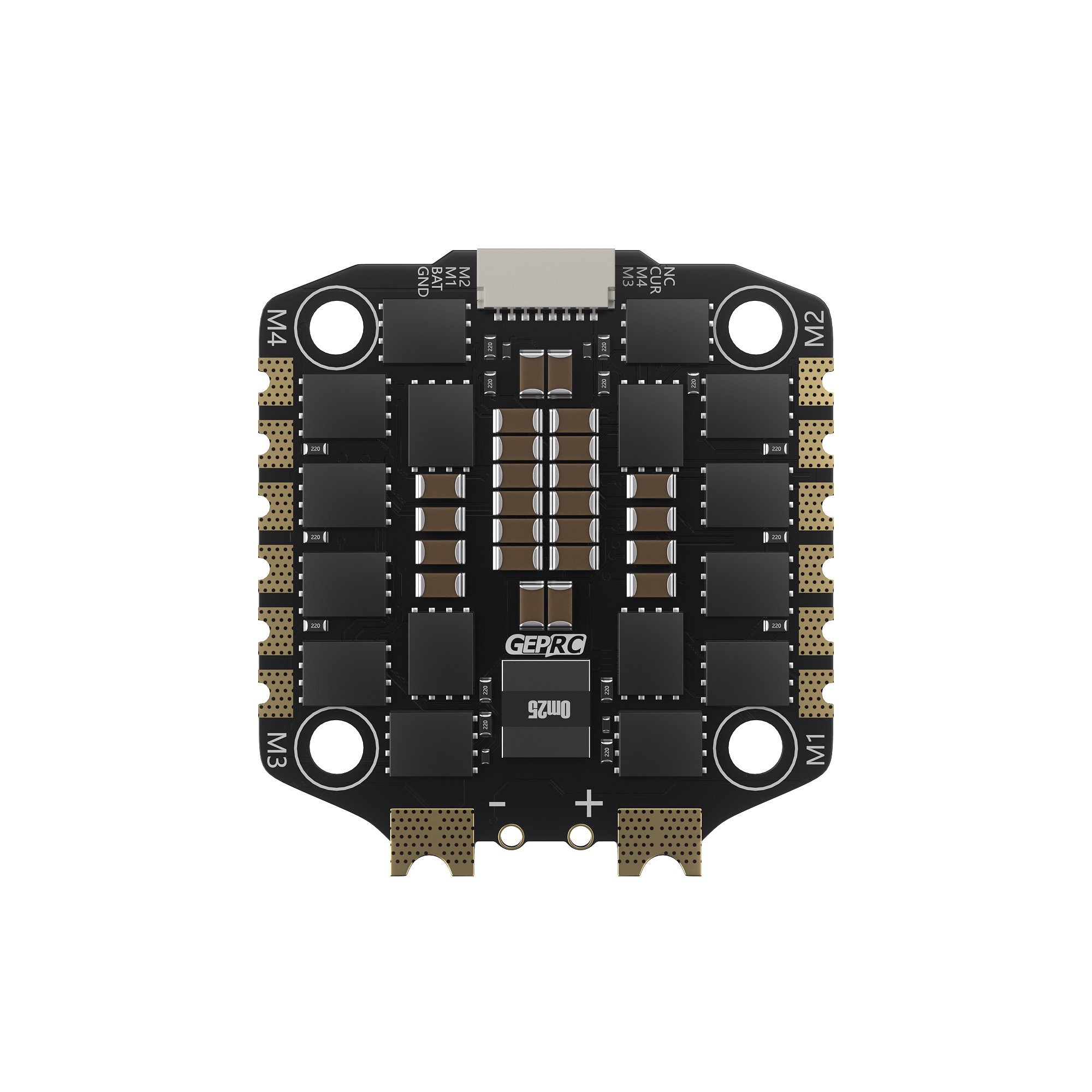

• TAKER H60_BLS 60A 4IN1 ESC for silky flight feel
• 16MB onboard black box storage
• Integrated LC power filter
• Type-C USB interface
• Direct DJI Air Unit plug-in support
• Dual independent BEC: [email protected] and 5V@3A

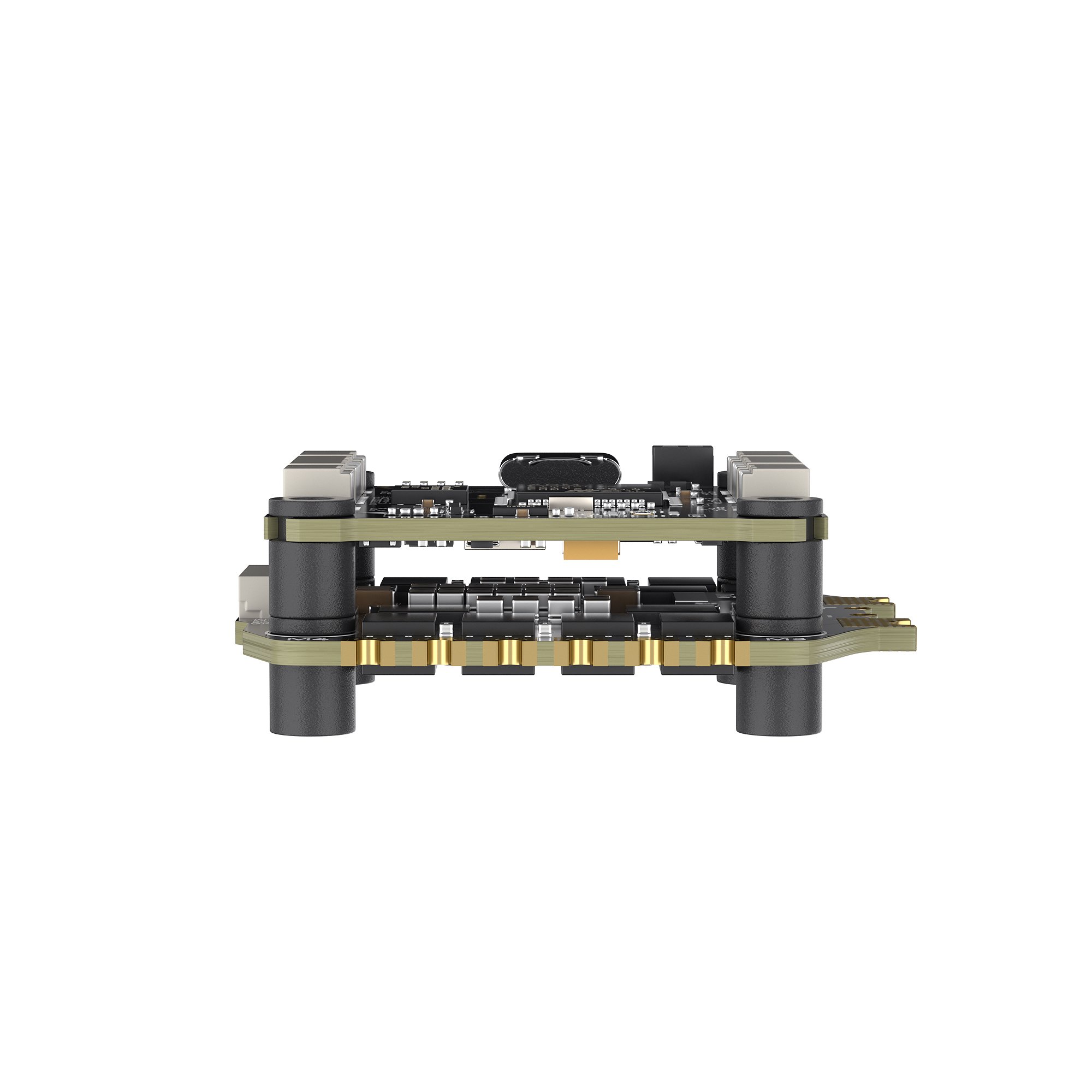

• Shock-absorbing mounting for stable gyro performance

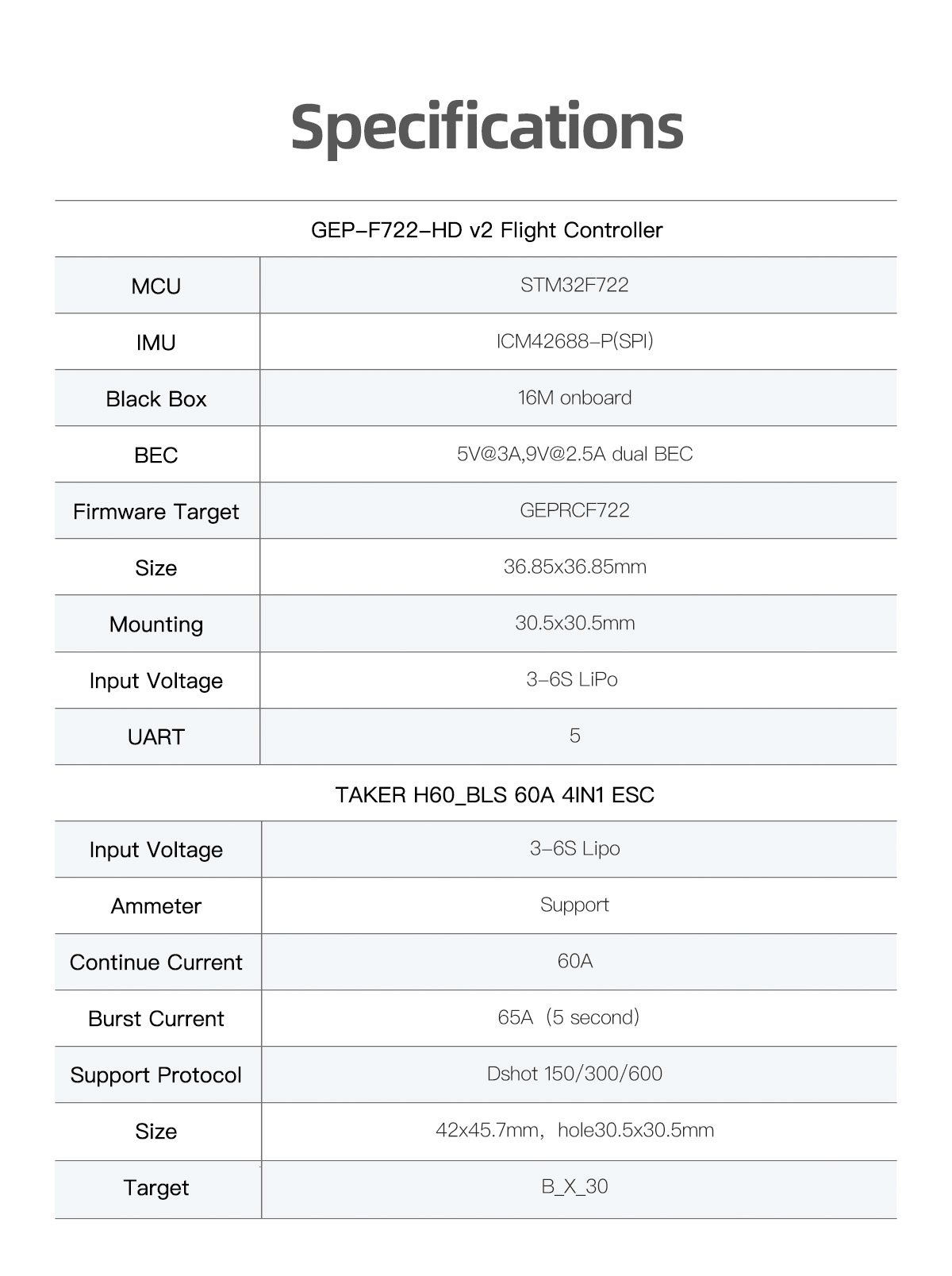

Specifications

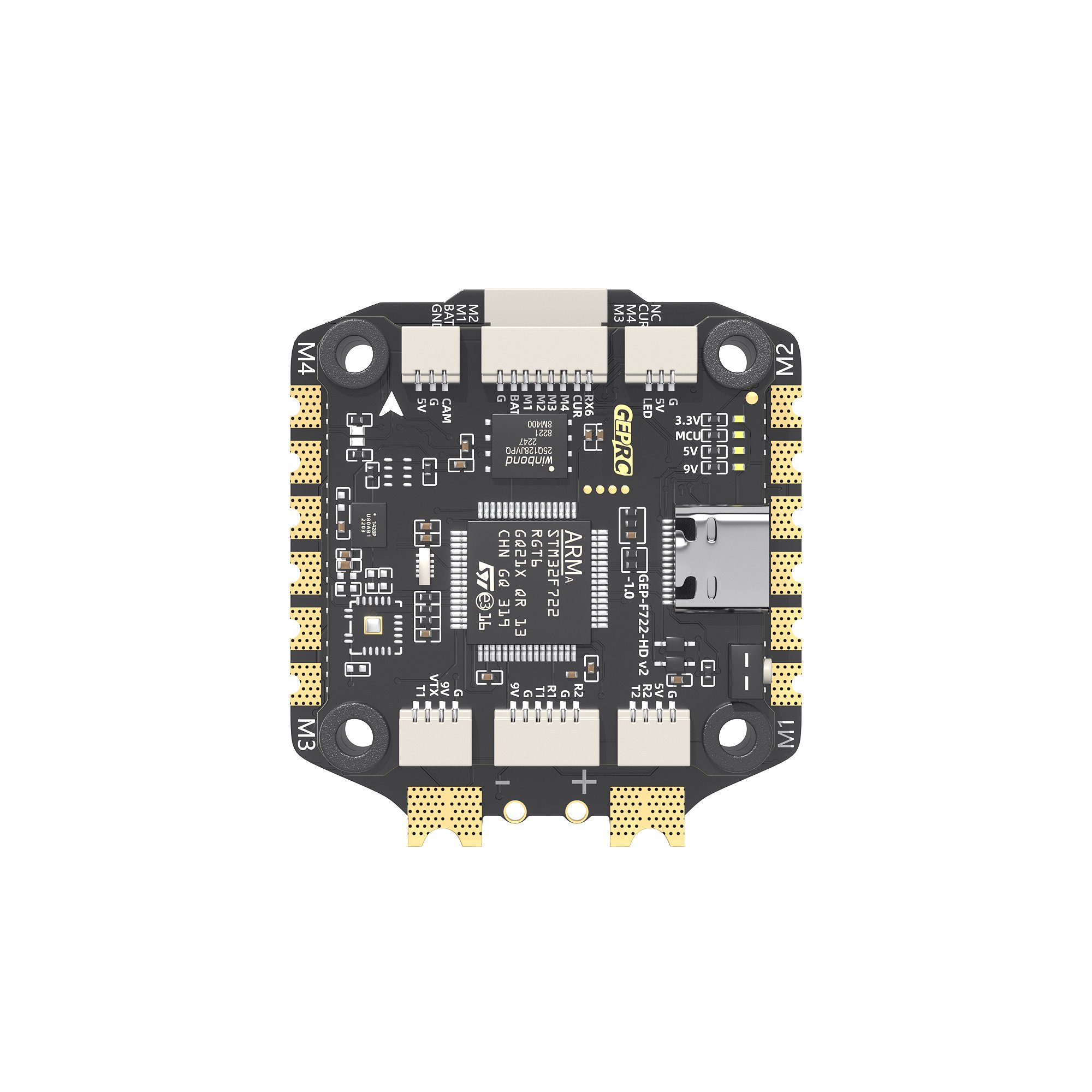

• Flight Controller: GEP-F722-HD V2
• MCU: STM32F722
• IMU: ICM42688-P (SPI)
• Input Voltage: 3–6S LiPo
• UARTs: 5
• OSD: Betaflight OSD (AT7456E)
• FC Size: 36.85×36.85mm, 30.5×30.5mm mounting
• FC Weight: 8.1g

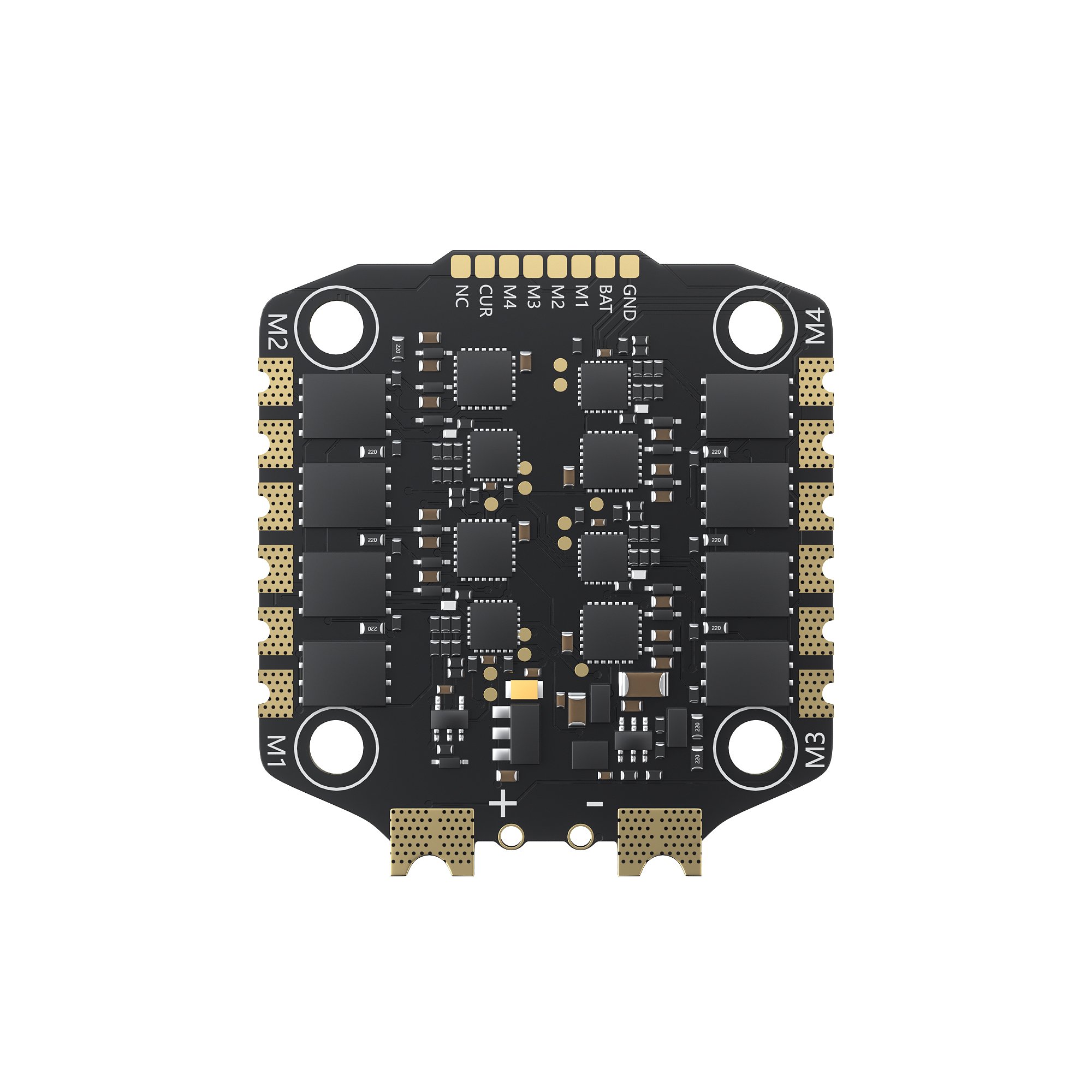

• ESC Continuous Current: 60A
• ESC Burst Current: 65A (5s)
• ESC Protocols: DShot150/300/600
• ESC Weight: 14.9g

Package Includes

• 1 x Flight Controller
• 1 x ESC
• 1 x Capacitor
• 1 x DJI Air Unit Adapter Cable
• 1 x Flight Controller Adapter Cable
• 1 x XT60 Power cable
• 4 x M3*30 Screws
• 4 x M3*25 Screws
• 8 x Nylon nuts
• 8 x Silicone grommets
• 2 x sh1.0 4pinsilicone cable
• 1 x Camera connection cable
