GepRC TAKER G4 45A 8Bit AIO
by GEPRC
Experience powerful performance with lightweight efficiency, advanced computing, and seamless integration, elevating every flight to perfection.
$139.99
Out of stock
Get an alert when this product is in stock
SKU: 1752
Categories: AIO (All in One) FCs, Electronics, Flight Controllers
Description

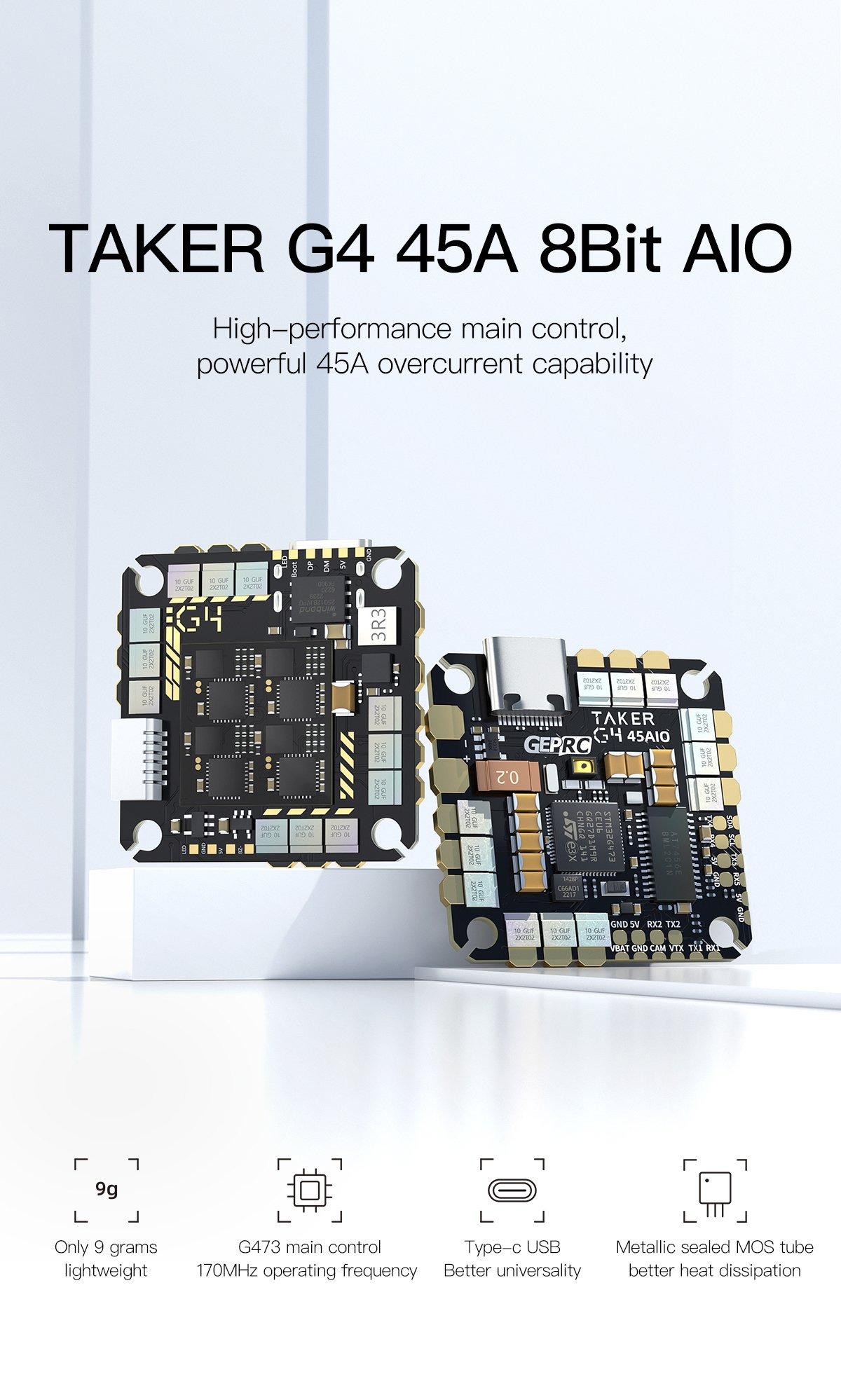

The GepRC TAKER G4 45A 8Bit AIO redefines compact power with its G473 flight controller, delivering seamless performance. Weighing just 9g, it combines robust overcurrent protection, versatile Type-C USB, and integrated ESU and MCU for unparalleled efficiency. With support for up to 6S LiPo batteries and precise current monitoring, it’s perfect for high-performance builds. Its advanced design guarantees a lightweight, space-saving solution that transforms your flying experience into pure enjoyment.
Features:
- Weighs only 9 grams.
- The G473 control possesses 170MHZ operating frequency and outstanding computing capability.
- The optimized Type-c USB has better versatility.
- The integrated ESU and MCU motivate FET directly, which is lightweight and space-saving.
Specifications:

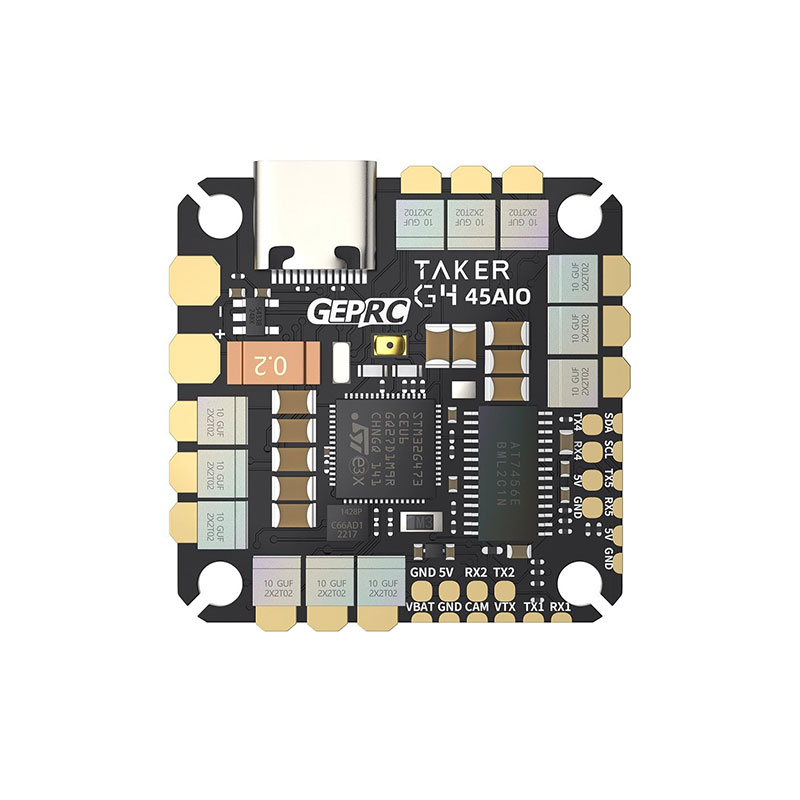

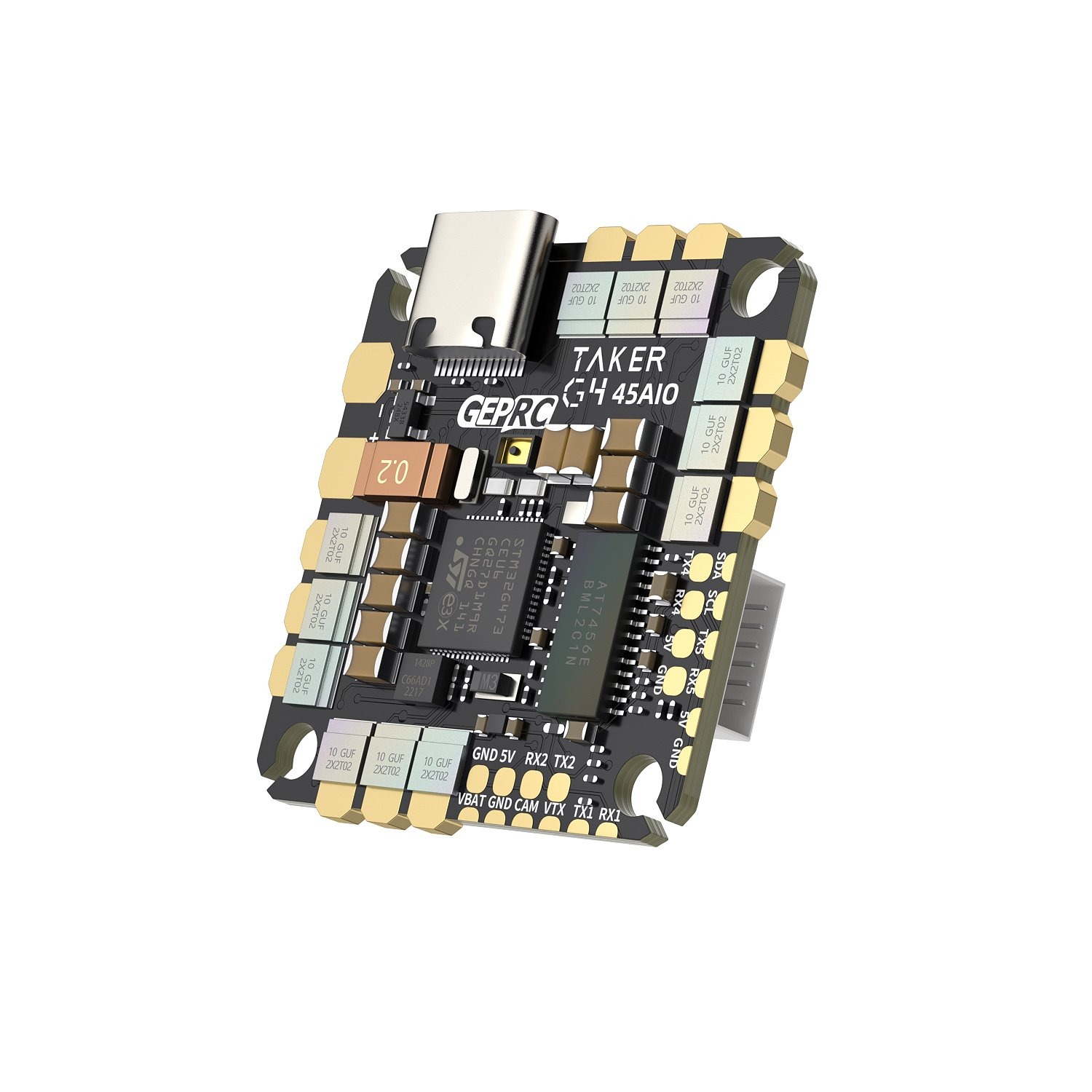

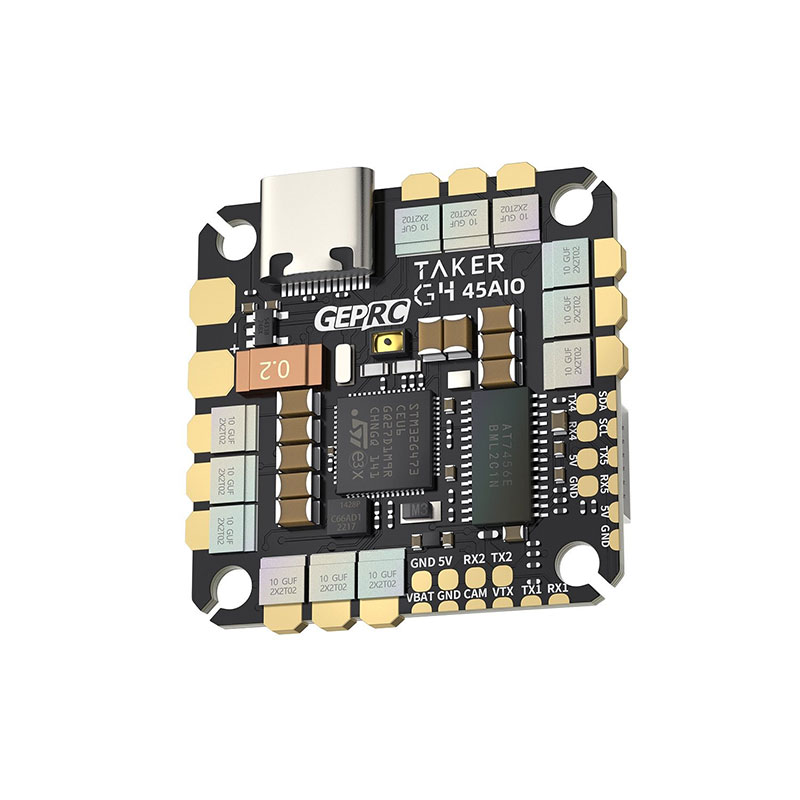

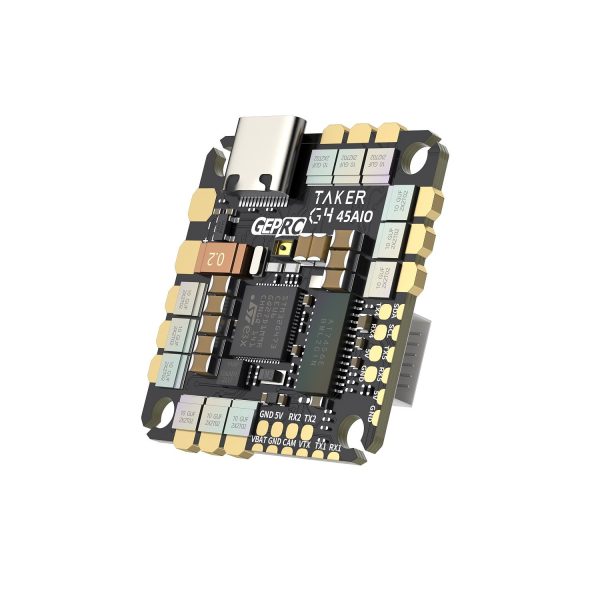

- Model Name:TAKER G4 45A 8Bit AIO
- MCU:STM32G473CEU6
- IMU:ICM 42688-P
- Firmware target:TAKERG4AIO
- OSD:Betaflight OSD w/ AT7456Ev
- Uart:R1 T1 / R2 T2 / R4 T4 / R5 T5
- Buzzer:YES
- LED :YES
- USB :Type-c USB
- BEC output:5V 3A

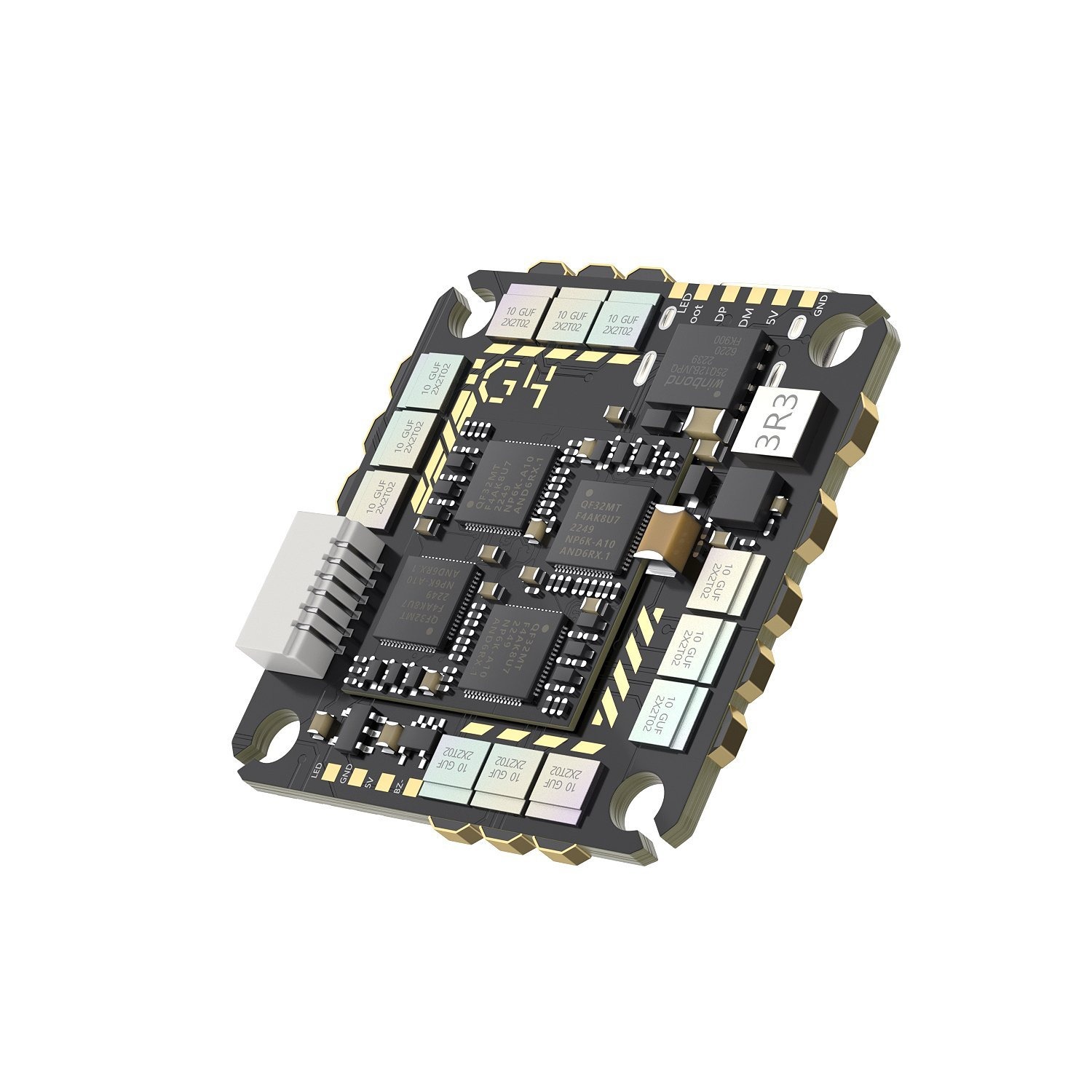

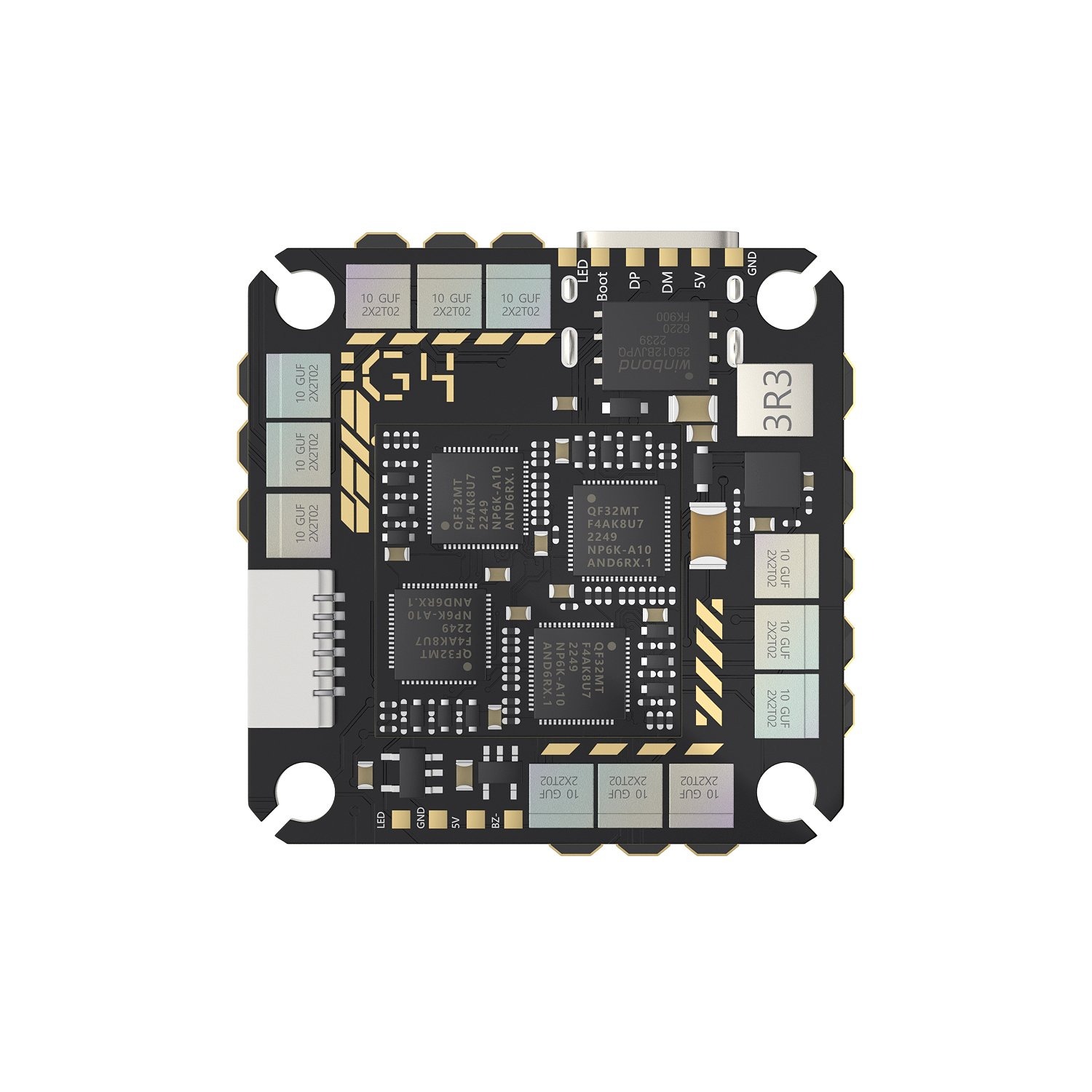

- ESC MCU:QF32MT
- Continuous Current:45A
- Burst Current:50A(5″)
- lnput Voltage:2~6S (LIPO Battery)
- Supports:Dshot600,Oneshot,Multishot
- Current meter:YES
- target:F4A AIO

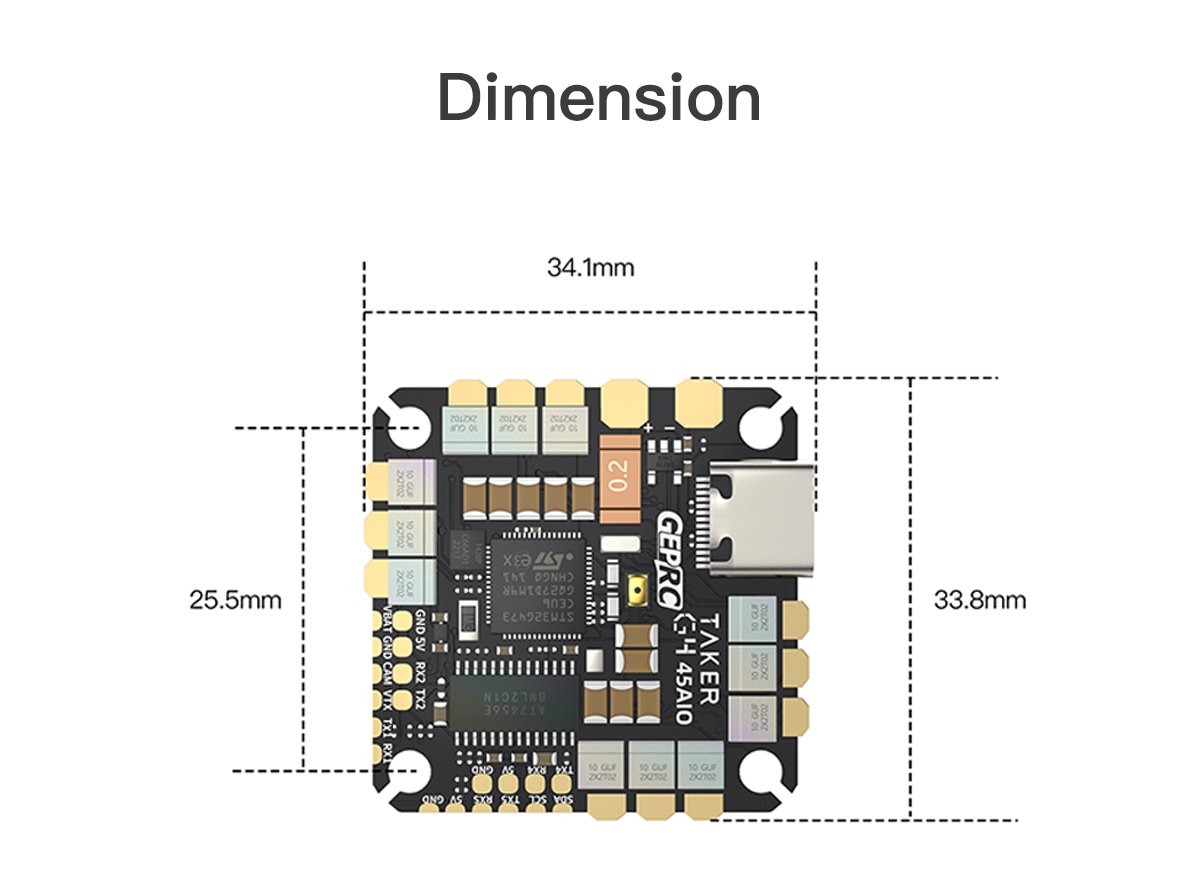

- Size:33.8mm * 34.1mm Board
- Install hole:25.5 mm * 25.5mm

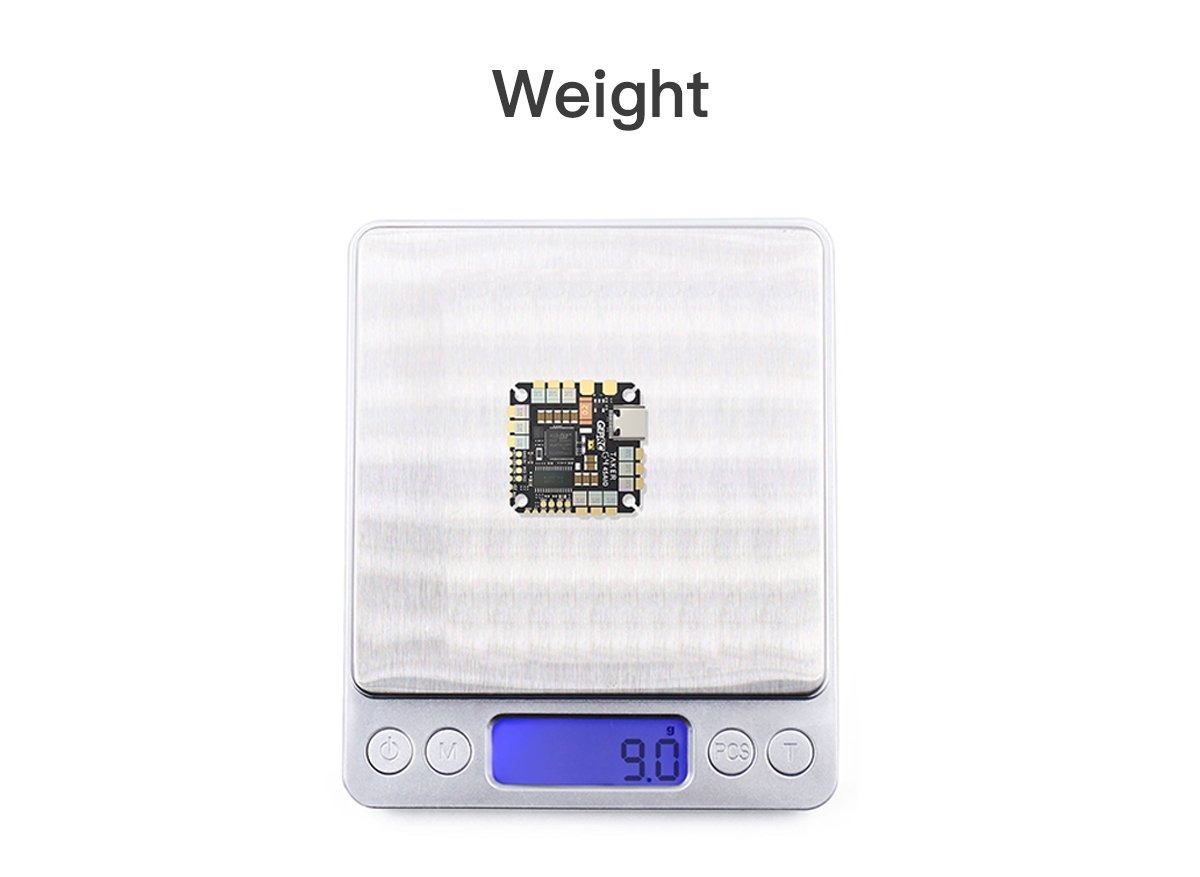

- Weight:9g

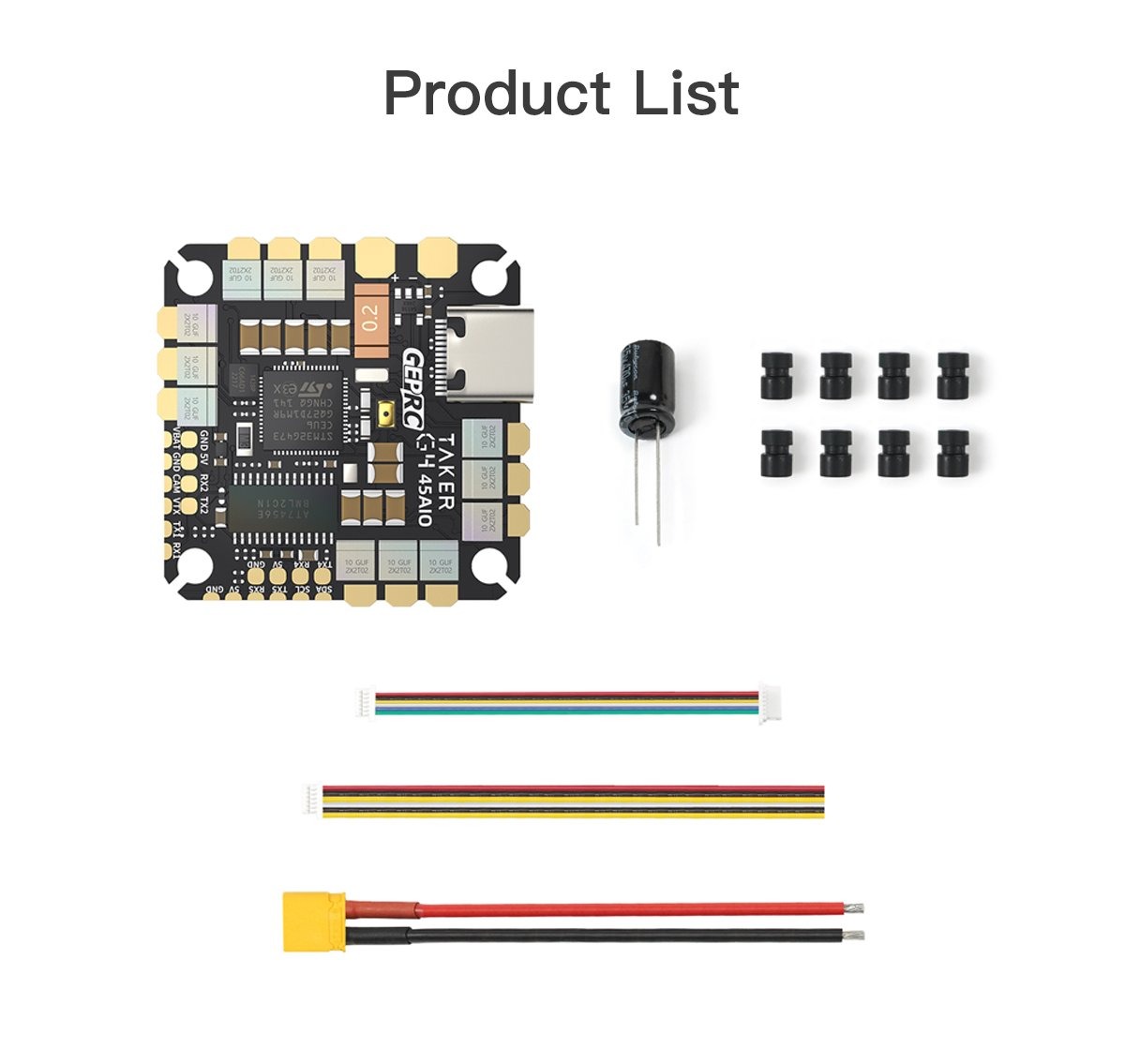

Package Includes:
- 1 x GEP-TAKER G4 45A AIO
- 1 x Cable Set
