Description

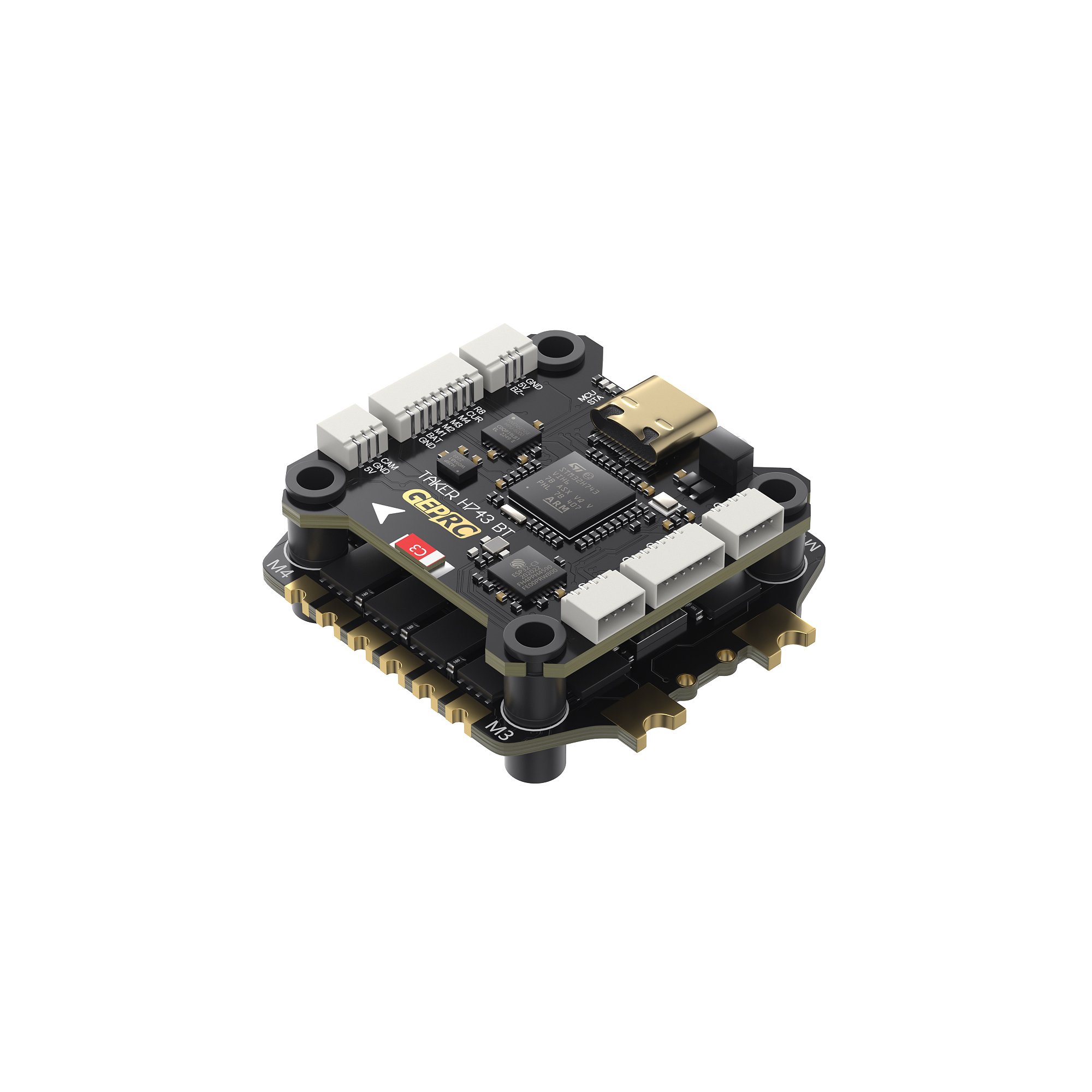

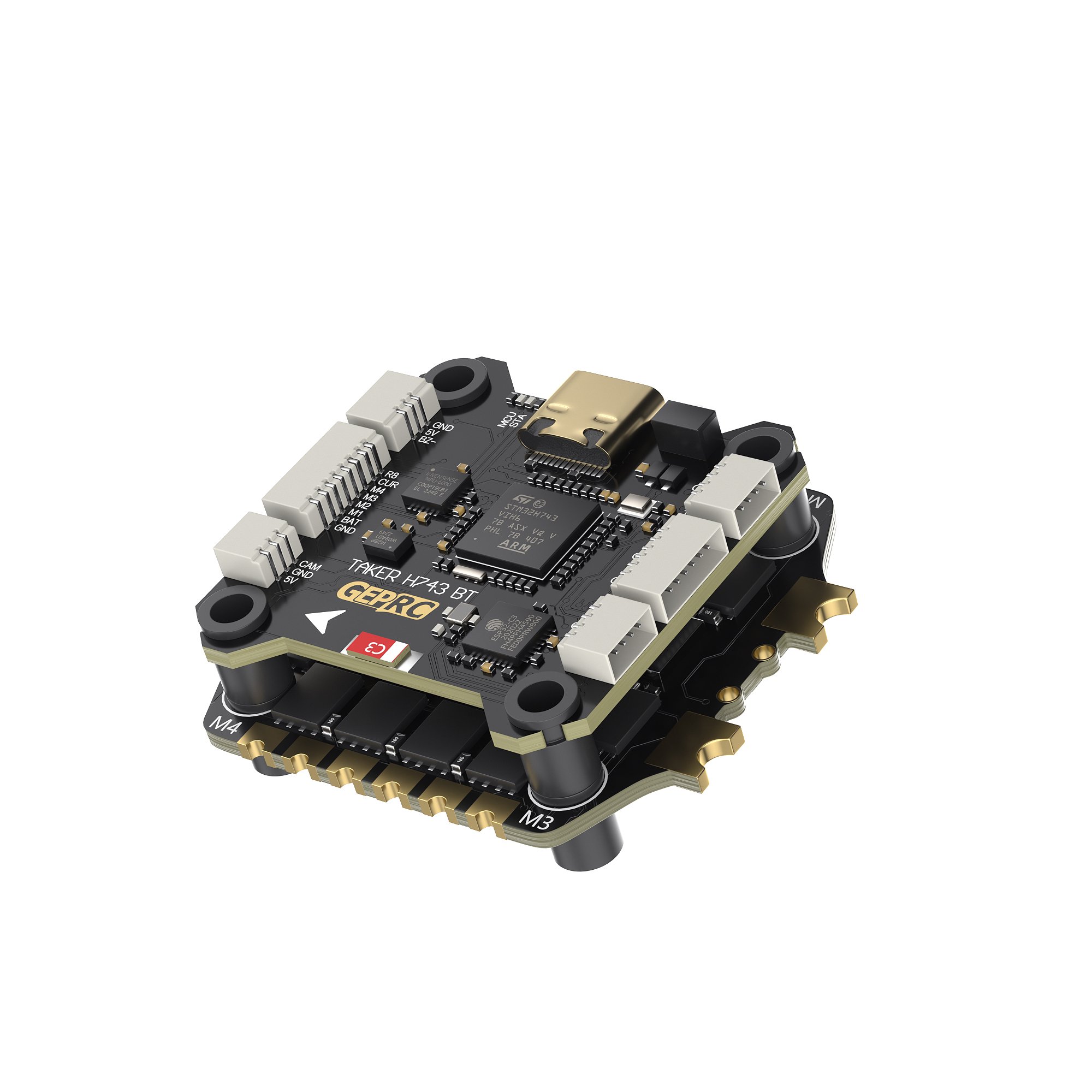

The GEPRC TAKER H743 BT 32Bit 65A Stack delivers elite flight control using a blazing fast STM32H743 processor, dual gyros, Bluetooth tuning, and massive blackbox storage for confident racing, freestyle, and cinematic builds. Paired with a smooth 65A BL32 4in1 ESC, rich BEC outputs, seven UARTs, barometer support, and broad firmware compatibility, it empowers demanding pilots with reliability, precision, flexibility, and clean power delivery across complex modern FPV systems builds.

Features

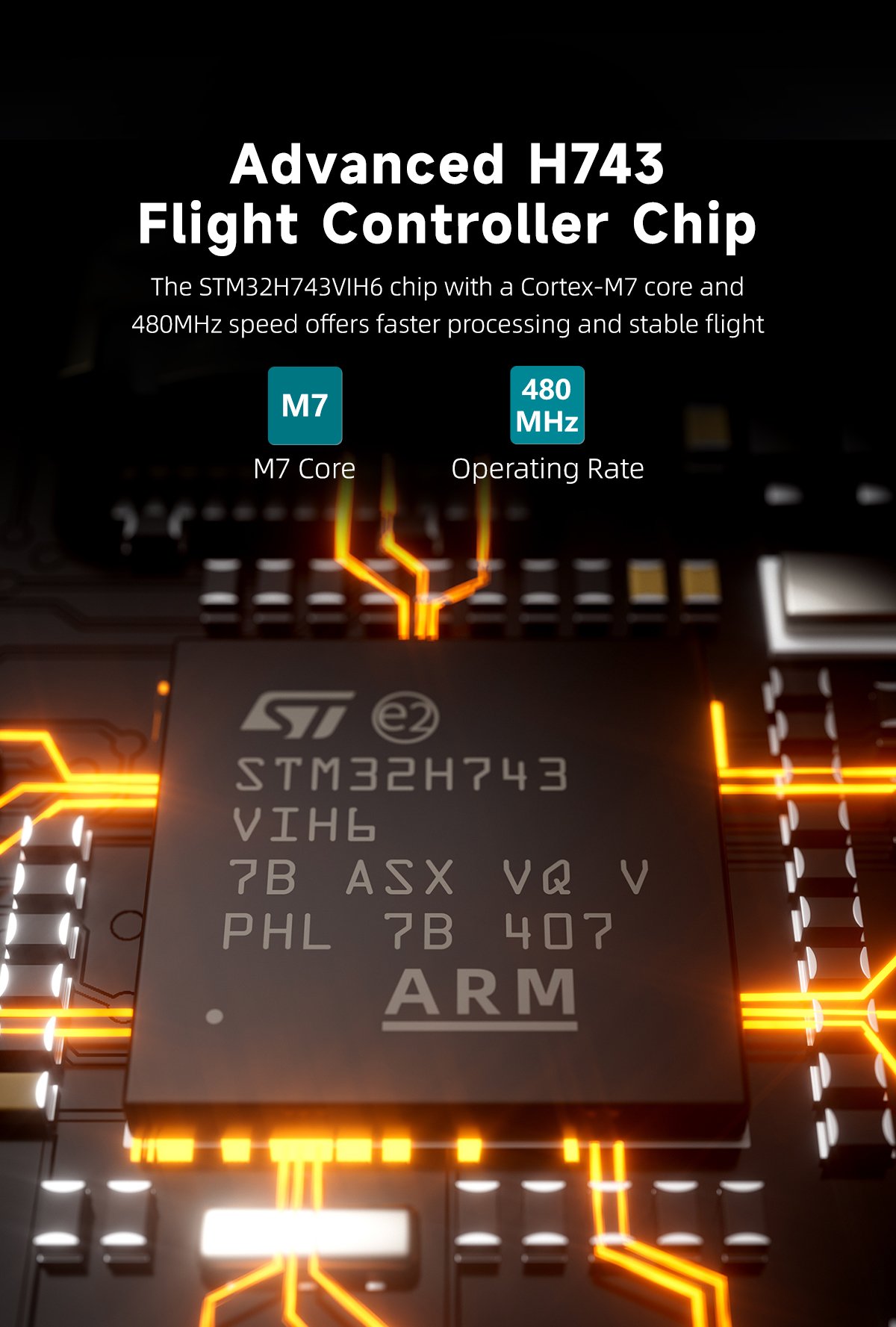

• High-performance STM32H743 Cortex-M7 processor up to 480MHz

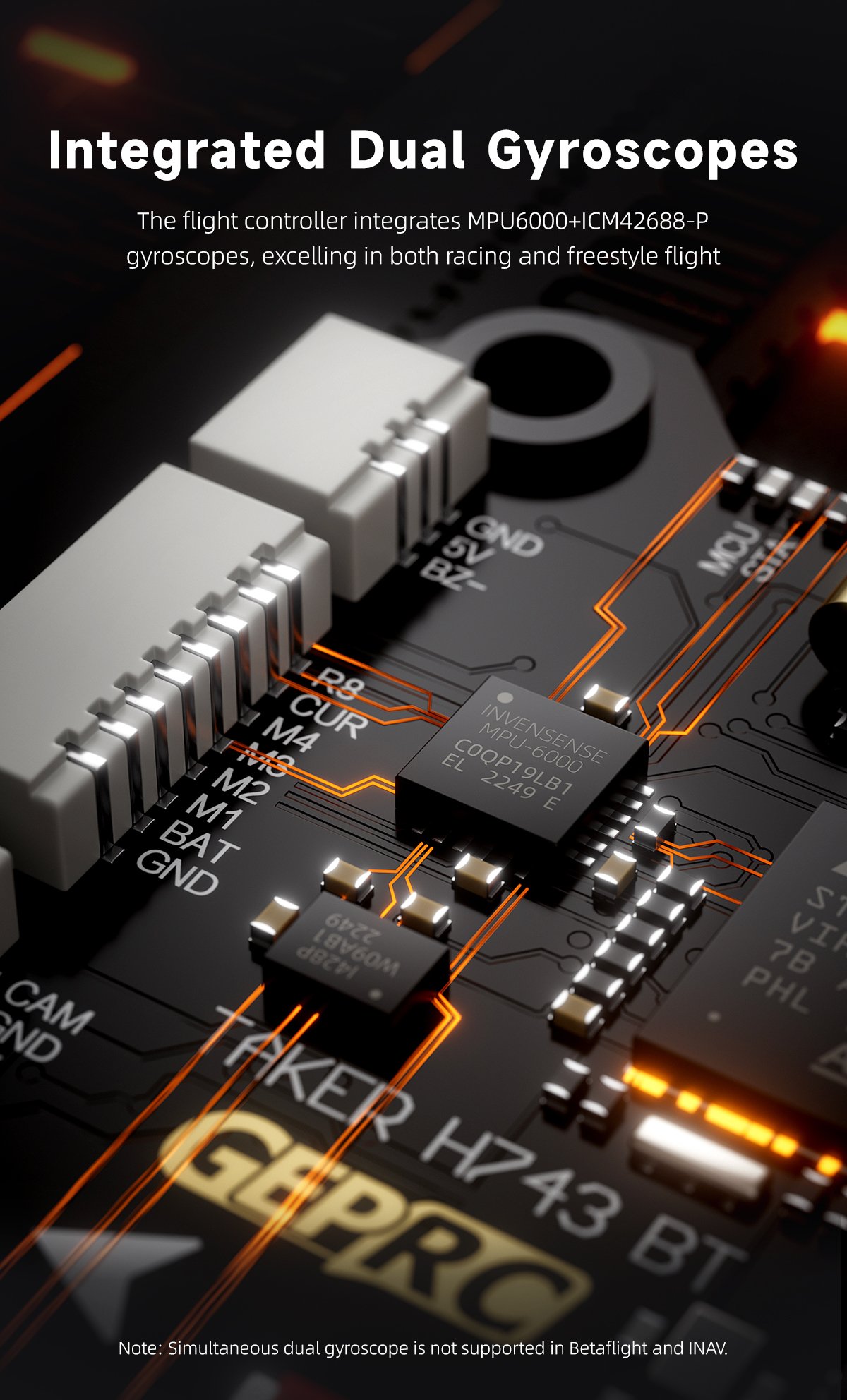

• Dual gyroscope system: MPU6000 + ICM42688-P
• Integrated Bluetooth for wireless parameter tuning

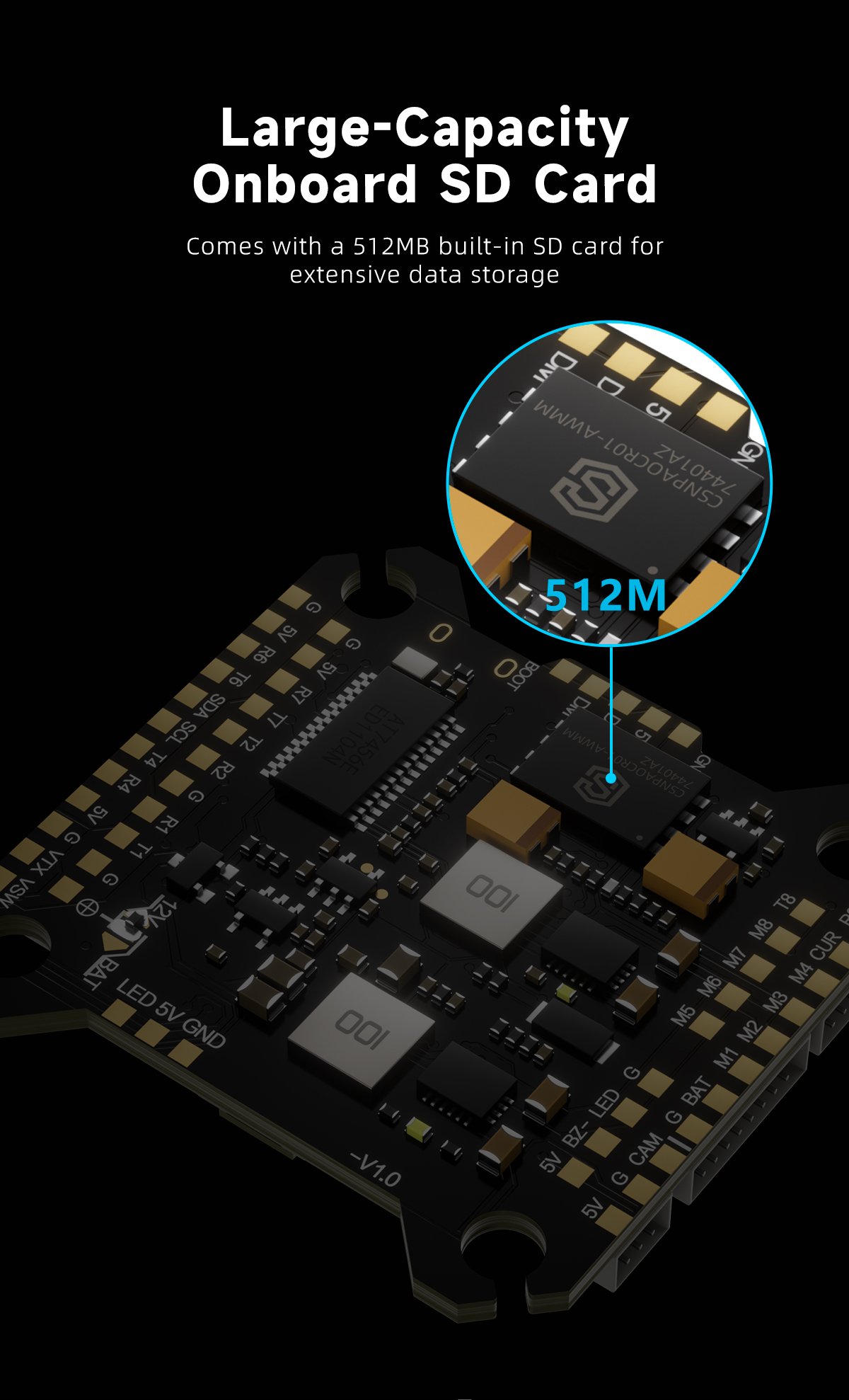

• 512MB onboard black box storage
• Plug-and-play design with no soldering required

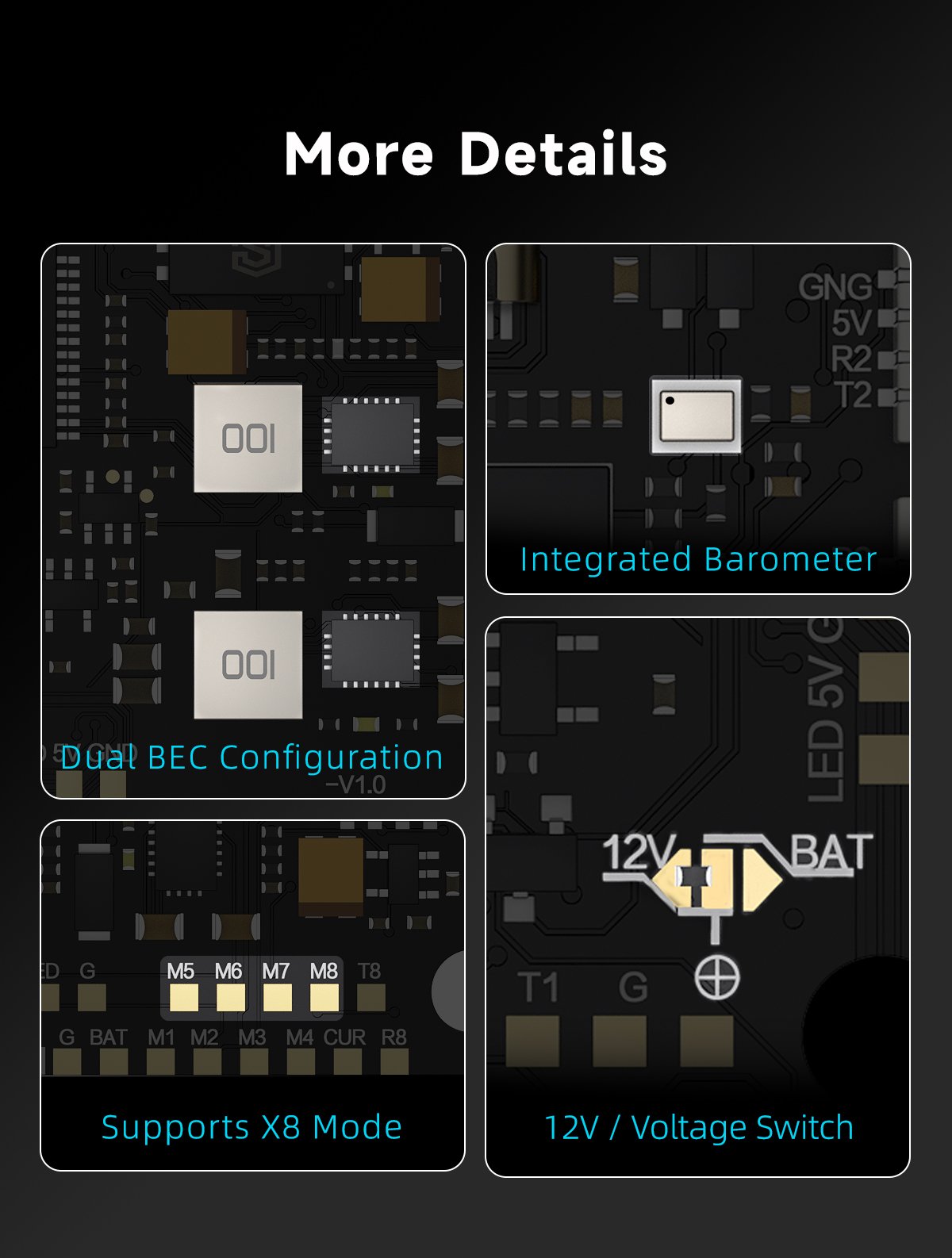

• Integrated barometer for advanced flight data
• Seven UART ports for extensive expandability
• Dual independent BEC outputs: 5V@3A and [email protected]
• Multi-firmware support: Betaflight, INAV, Ardupilot
• Matched 65A 32-bit 4in1 ESC for ultra-smooth performance

Specifications

• FC MCU: STM32H743
• IMU: MPU6000 + ICM42688-P (dual gyro)
• Black Box: 512MB onboard
• Bluetooth: Supported
• Barometer: Supported
• BEC Output: 5V@3A, [email protected]
• UART Ports: 7 (UART3 dedicated to Bluetooth)
• Input Voltage: 3–6S LiPo
• Mounting: 30.5×30.5mm
• FC Weight: 8.4g
• ESC Current: 65A continuous, 70A burst (5s)
• ESC Protocol: DShot150/300/600

Product Includes

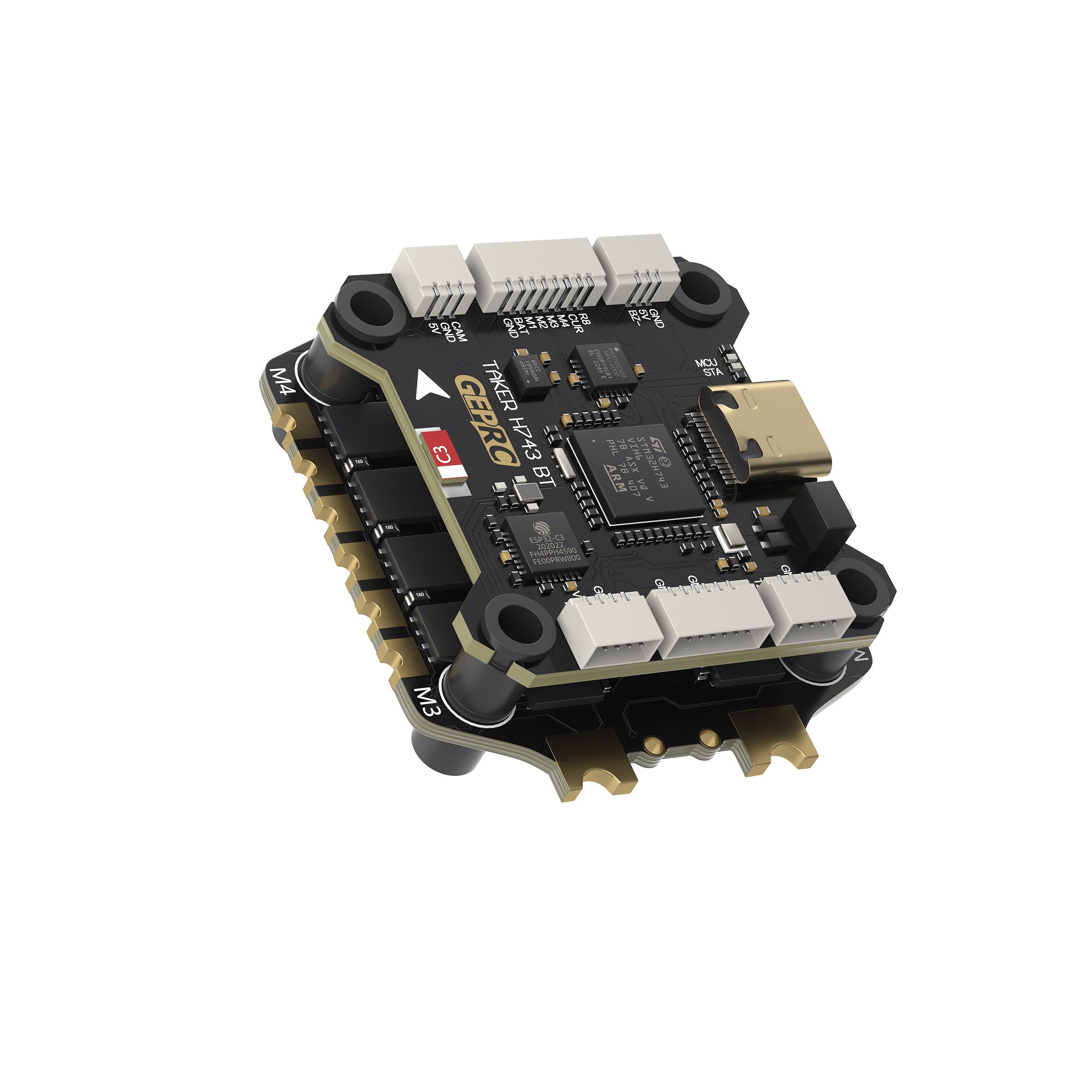

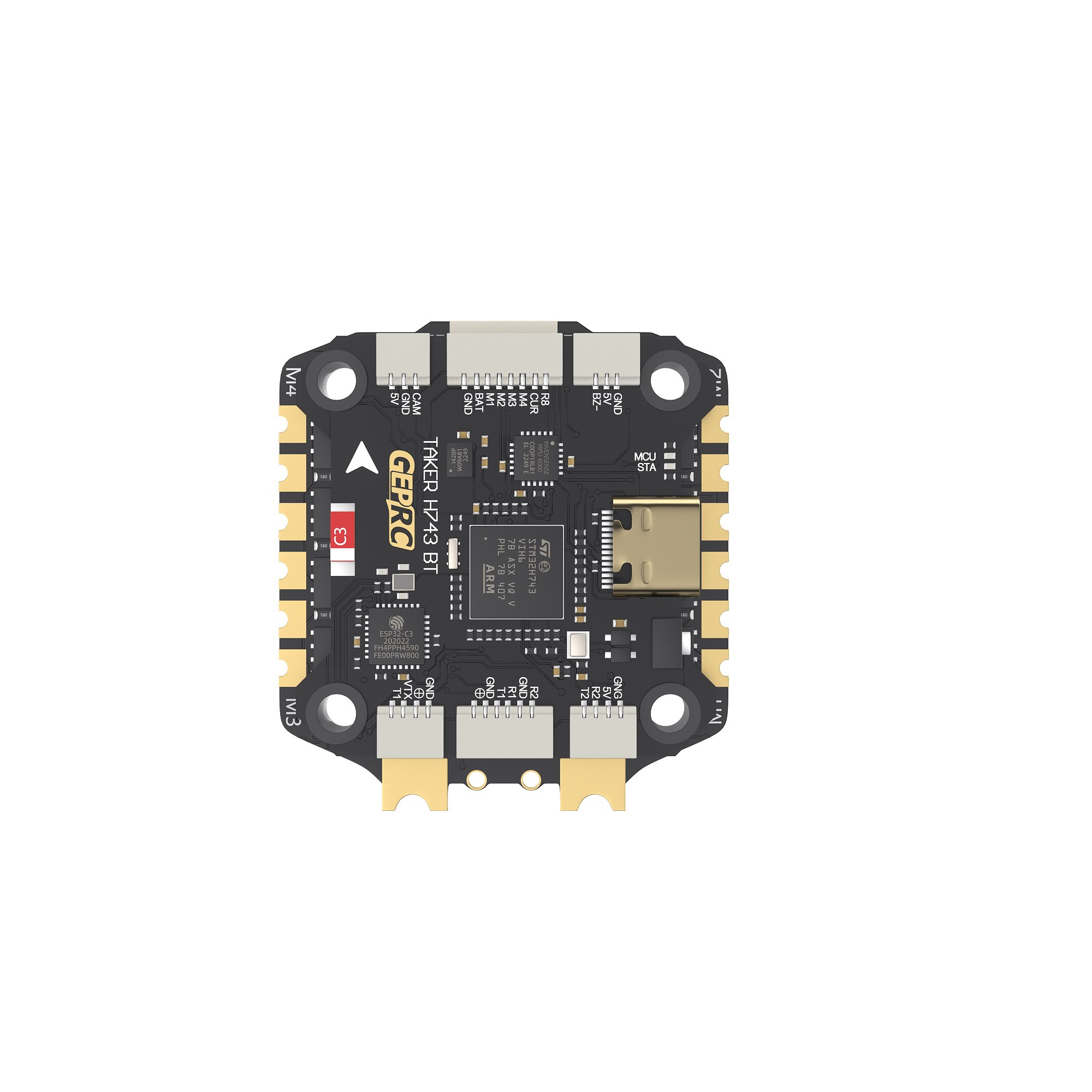

• 1 x TAKER H743 BT Flight Controller

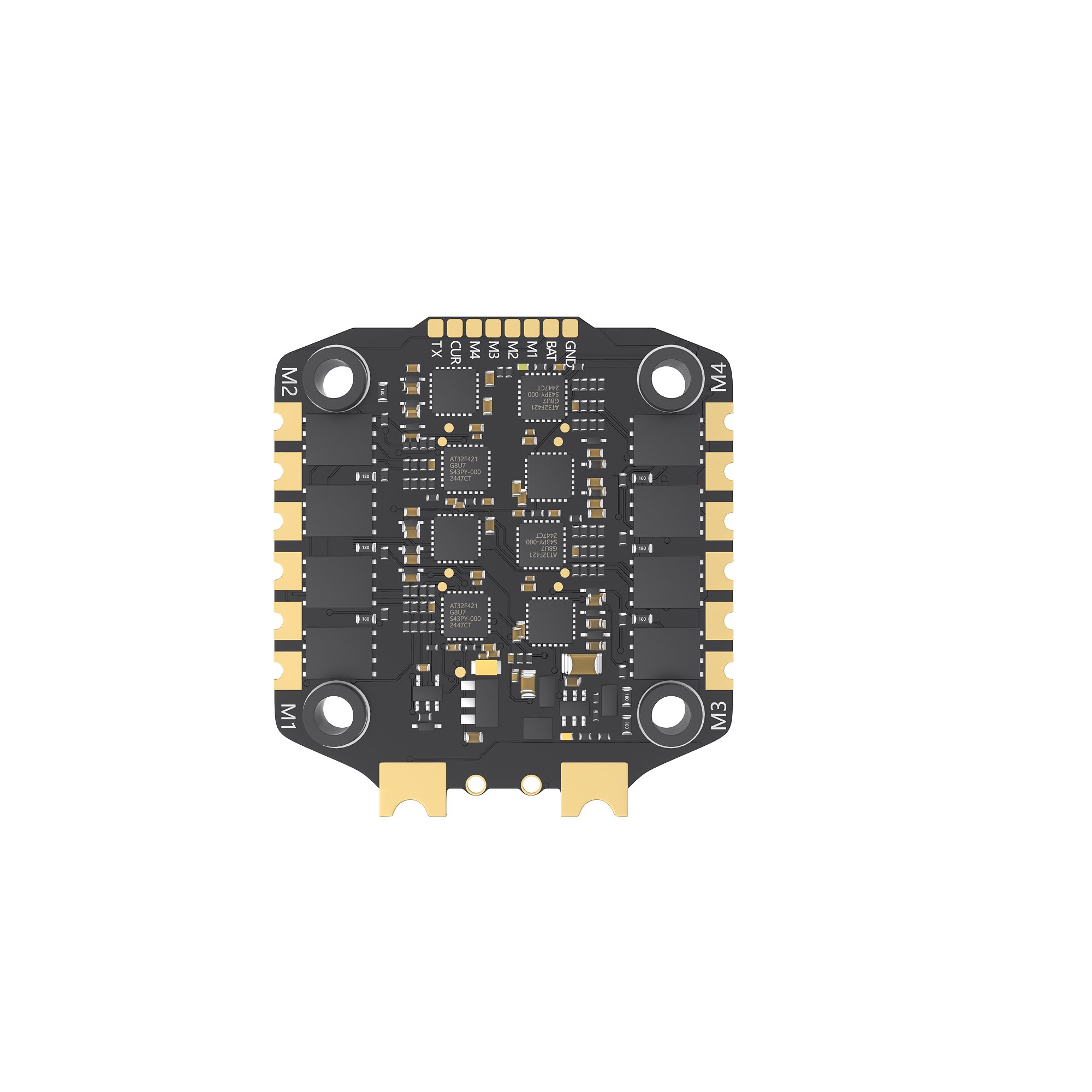

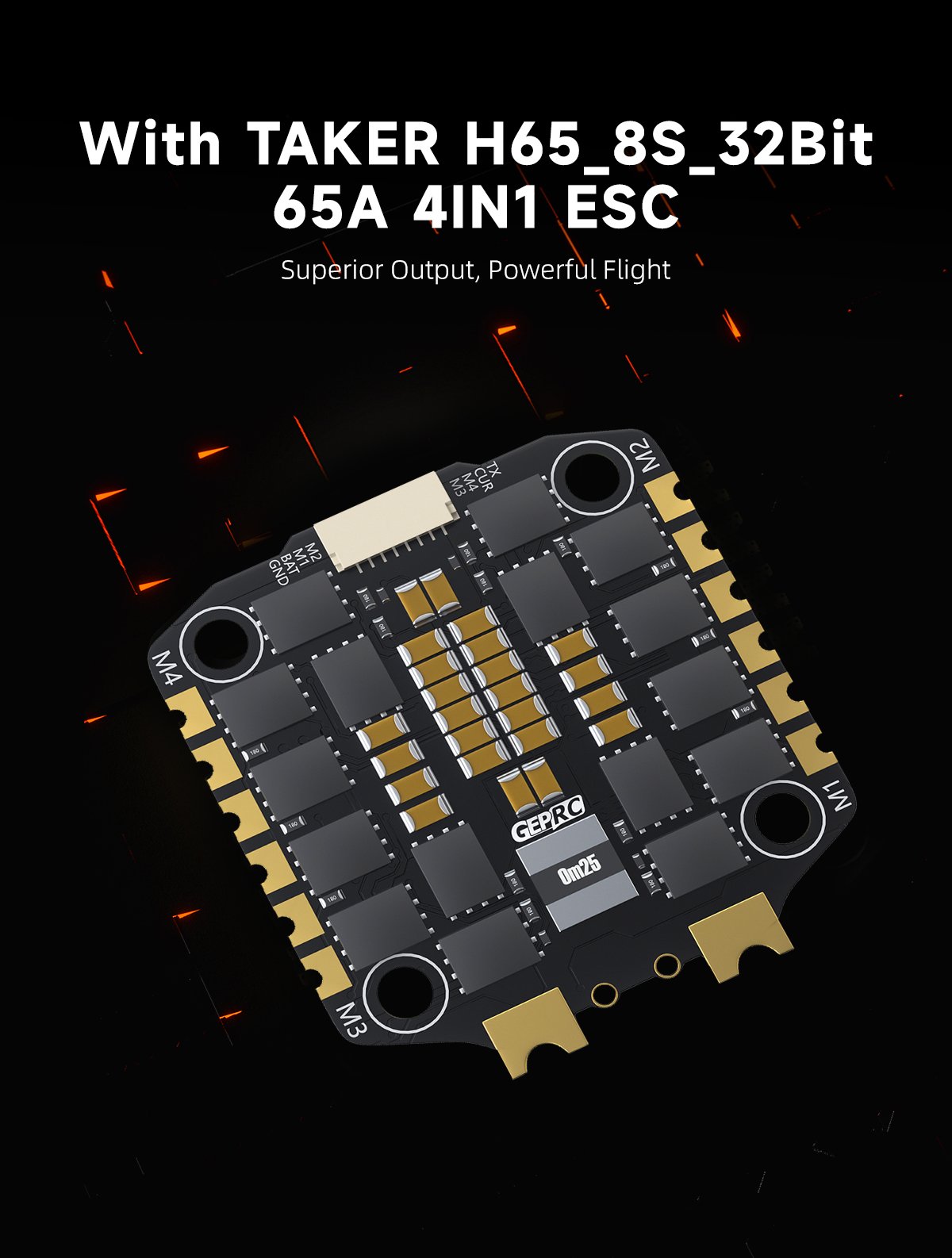

• 1 x TAKER H65_8S_32Bit 65A 4IN1 ESC
• 1 x Electrolytic capacitor(50V 1000uF)
• 1 x DJI connection cable(SH1.0 6pin 100mm)
• 1 x FC adapter cable(SH1.0 8pin 30mm)
• 1 x Receiver silicone cable(SH1.0 4pin 150mm)
• 1 x Camera connection cable(SH1.0-SH1.25 3pin 60mm)
• 1 x VTX connection cable(SH1.0 4pin-6pin 100mm)
• 1 x XT60 power cable(12AWG 110mm)
• 4 x M3*30 screws
• 4 x M3*25 screws
• 8 x Nylon nuts(M3)
• 12 x Silicone anti-shake pads(M3)
