Description

Note this version is BNF ExpressLRS 2.4GHz. We also have:

• BNF TBS Crossfire: GEPRC Vapor-D5 HD O4 Pro FPV Drone BNF Crossfire
• BNF DJI/PNP: GEPRC Vapor-D5 HD O4 Pro FPV Drone BNF DJI

The GEPRC Vapor-D5 HD O4 Pro FPV Drone BNF DJI GPS is a powerhouse redesigned for the DJI O4 Air Unit Pro, delivering superior image clarity with its advanced CMOS sensor. Featuring CNC aluminum lens housing, shock-absorbing silicone, and GEPRC SPEEDX2 motors, it ensures smooth, immersive flights with exceptional durability and precision.

Features:

• Supports the DJI O4 Air Unit Pro with a powerful CMOS sensor for better light sensitivity and sharper image detail.
• CNC aluminum alloy lens mount enhances the bold, mech-style look.
• Comes with GEPRC SPEEDX2 E series motors for strong, responsive power.

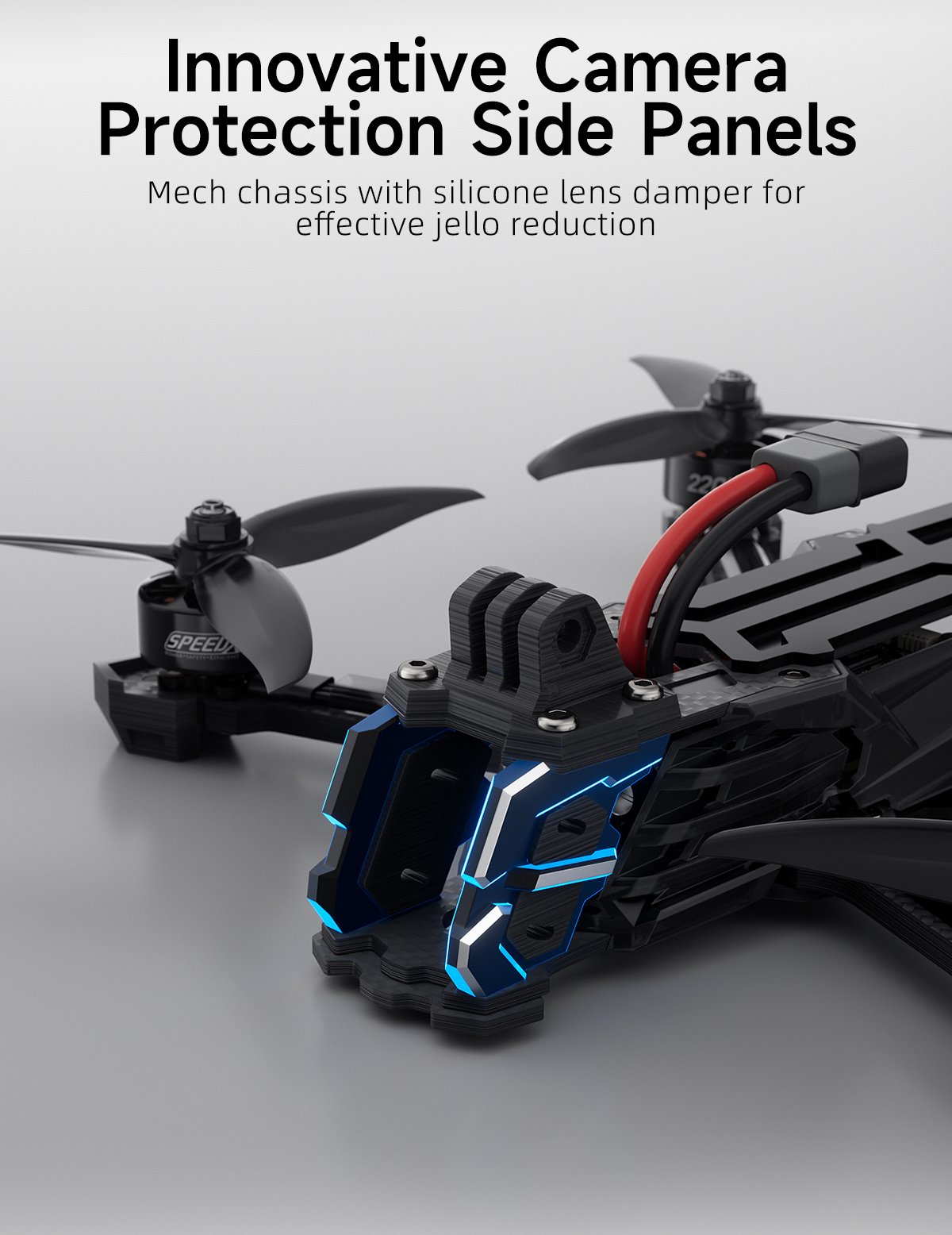

• Front lip design adds extra protection for the lens, making it more crash-resistant.

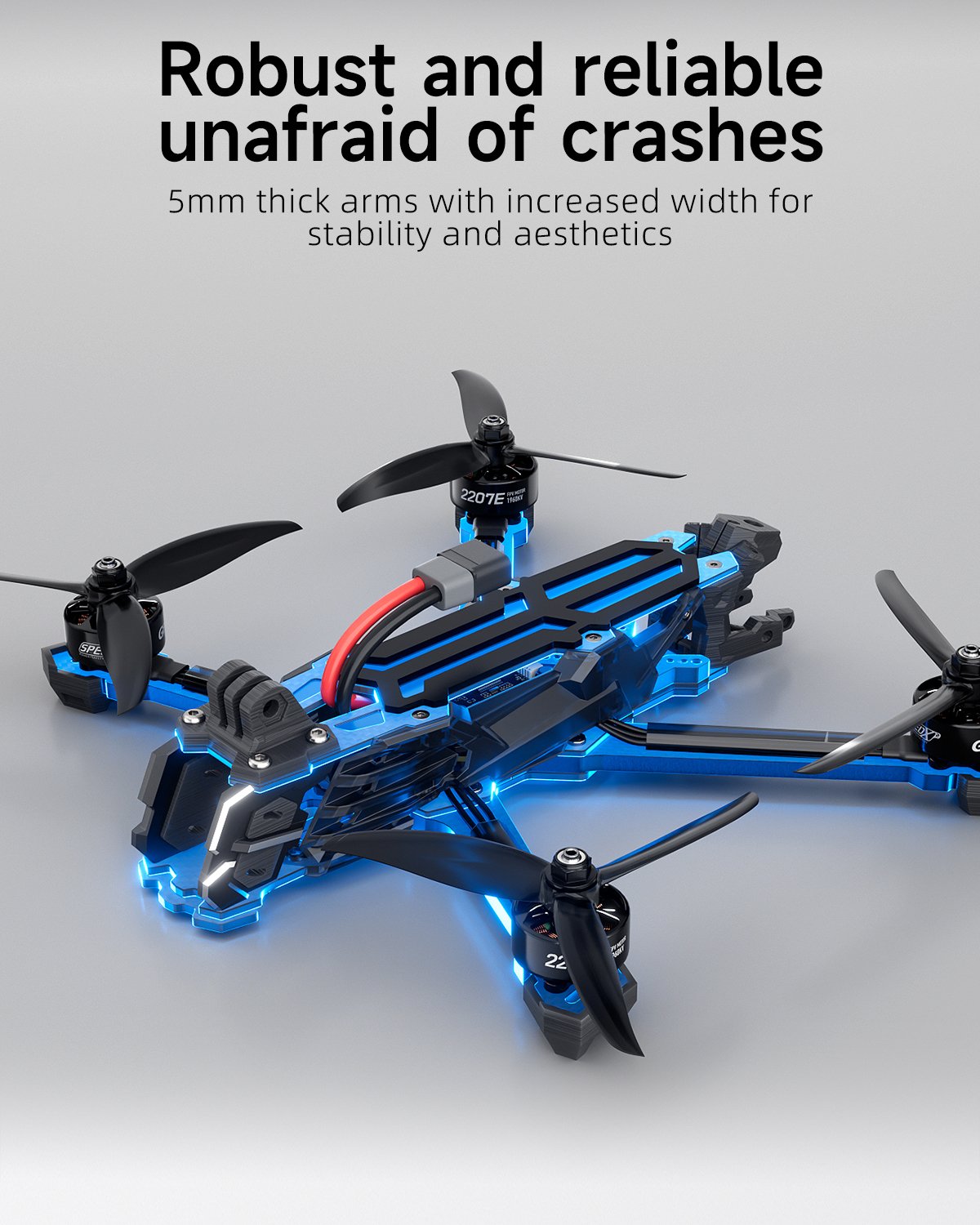

•  Classic 5mm carbon fiber arms with newly molded side plates for a tough, balanced frame.

Specifications:

• Model: Vapor-D5 O4 Pro WTFPV
• Frame: GEP-Vapor-D5 O4 Pro frame
• Wheelbase: 238.43mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate：2.5 mm
• Arm Thickness：5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyro: ICM42688-P(SPI)
• Barometer: BMP280
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: /
• Camera: /
• Antenna: /
• Connector: XT60
• GPS：/
• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
• 5-inch Propeller: GEMFAN 5136
• Vapor-D5 WTFPV PNP Version Weight: 405g±5g
• Receiver: PNP
• Recommended Battery: 6S LiPo 1550mAh – 2200mAh
• Flight Time: 13-17 min

Package Includes:

• 1 x Vapor-D5 WTFPV
• 2 x GEMFAN 5136
• 2 x Battery anti-slip pads
• 1 x Spare screw pack
• 2 x M20*250mm battery straps
• 1 x L-shaped screwdriver 1.5mm
• 1 x L-shaped screwdriver 2.0mm
• 1 x L-shaped screwdriver 3.0mm
• 1 x GoPro mount
• 1 x GPS mount
• 1 x Vapor side panel

• Spare arms: GepRC Vapor X Frame Parts (2 Options)
• Full Frame Kit: Coming Soon
• Original Propellor: Gemfan Vannystyle 5136-3 Propellers (5 Colours)
• Propellor alternative: HQProp Ethix P3.5 RAD Berry 5.1×3.5×3 Propeller (Set of 4)
• Value Battery: CNHL Black Series 1300mAh 22.2V 6S 100C Lipo Battery
• Performance Battery: GNB Battery 22.2V 160C 1400mAh 6S
• Lightweight HV Battery: GNB Battery 22.8V 120C 1300mAh 6S HV
• Premium Battery: Tattu R-Line Version 5.0 22.2V 150C 1400mAh 6S Battery
• Premium Battery: Tattu R-Line Version 5.0 22.2V 150C 1480mAh 6S Battery
