Description

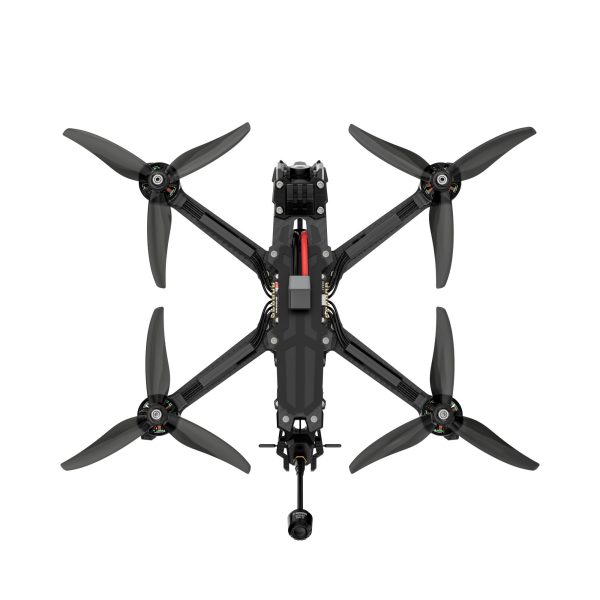

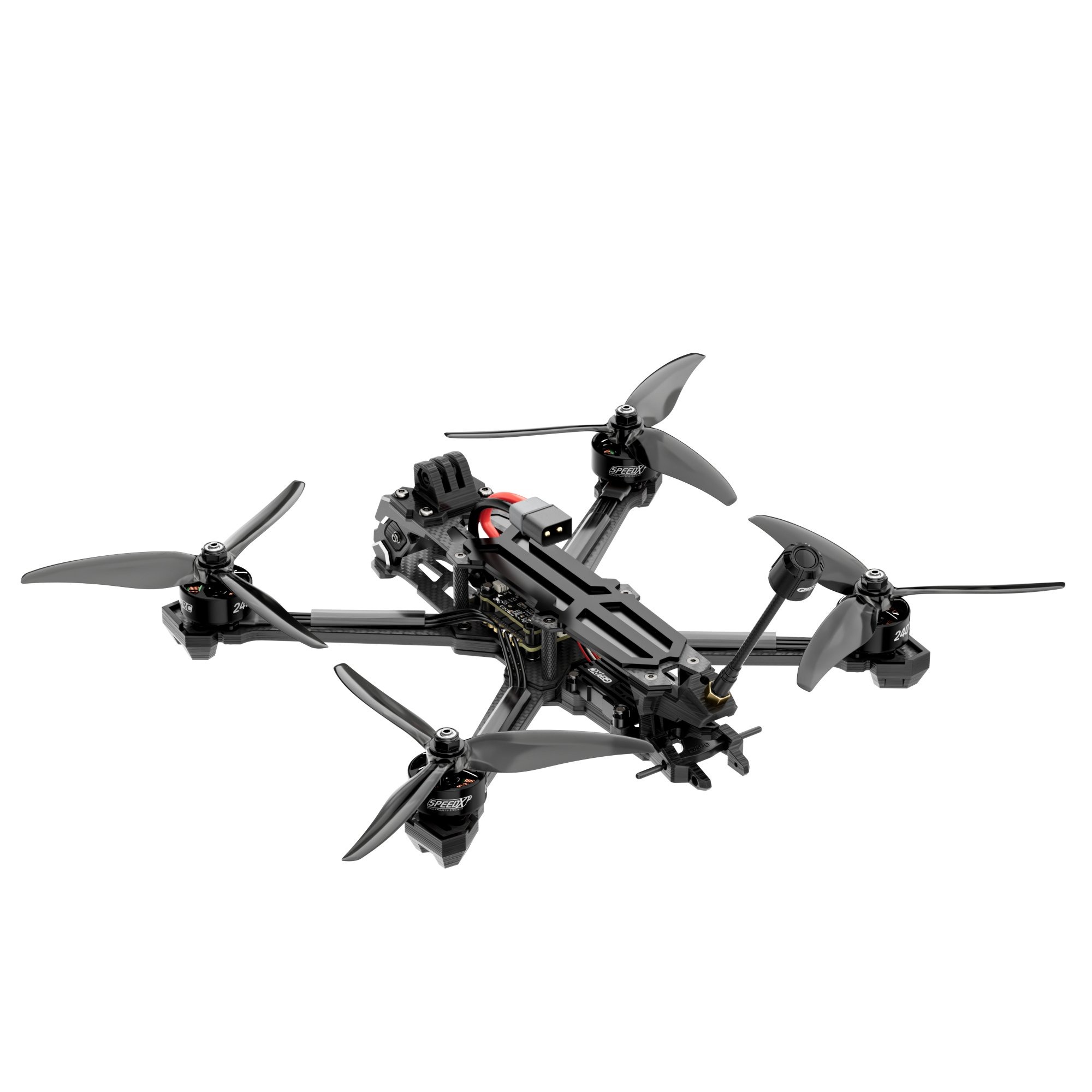

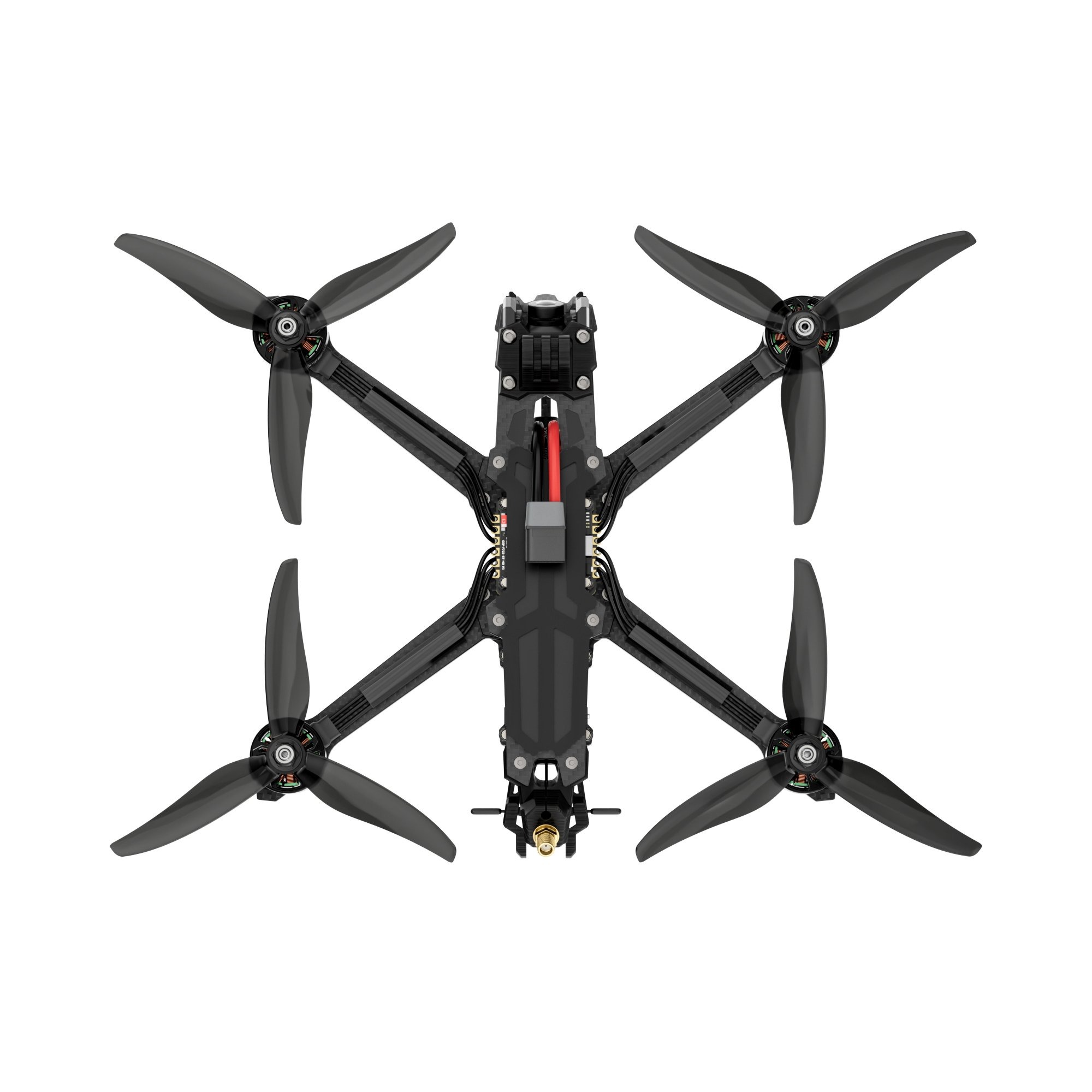

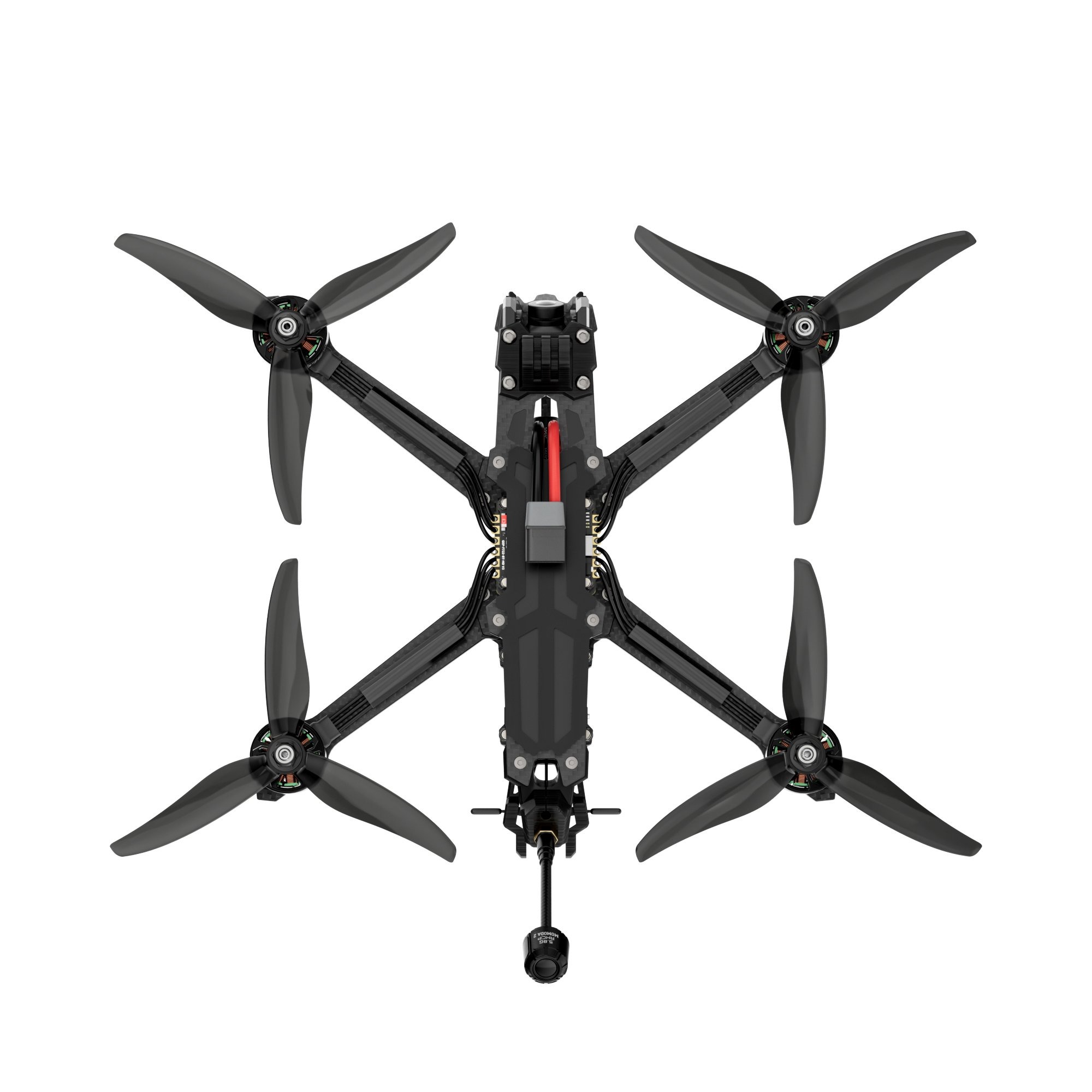

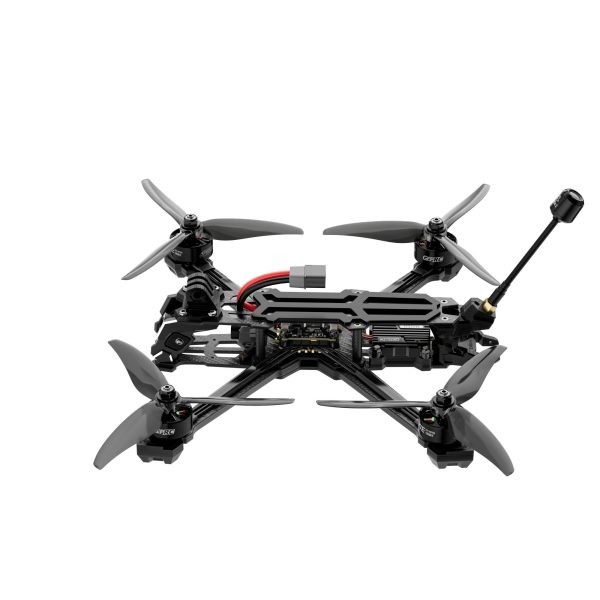

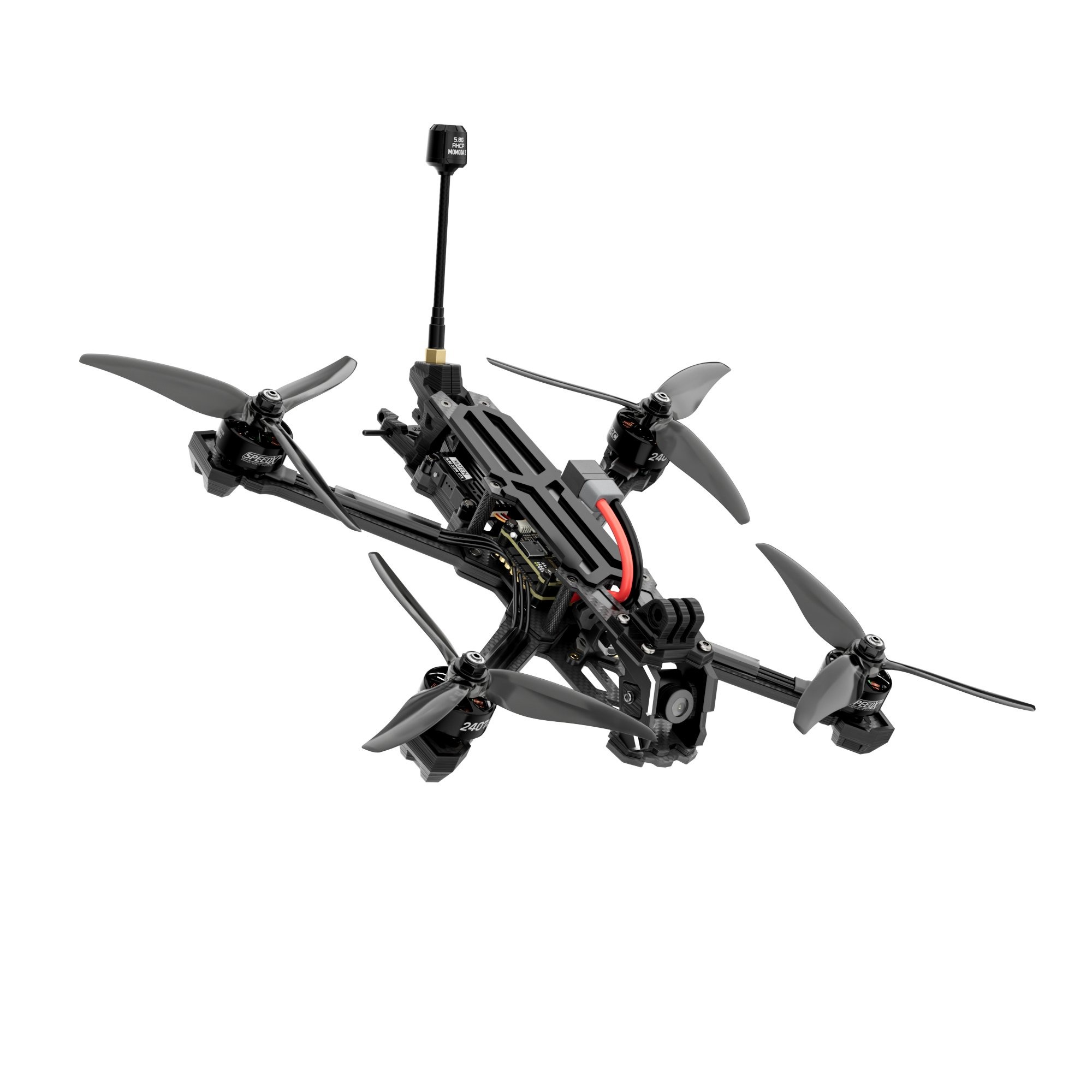

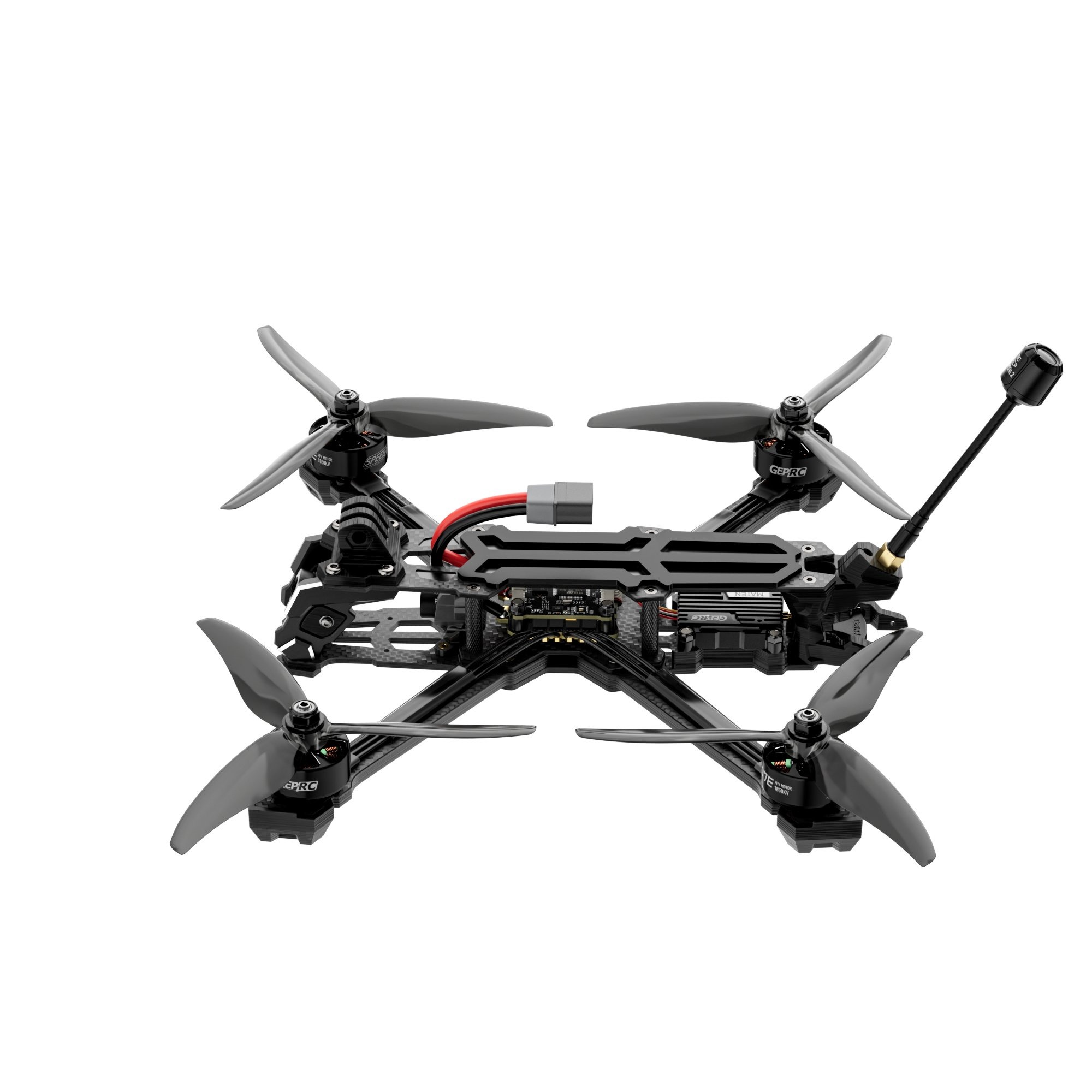

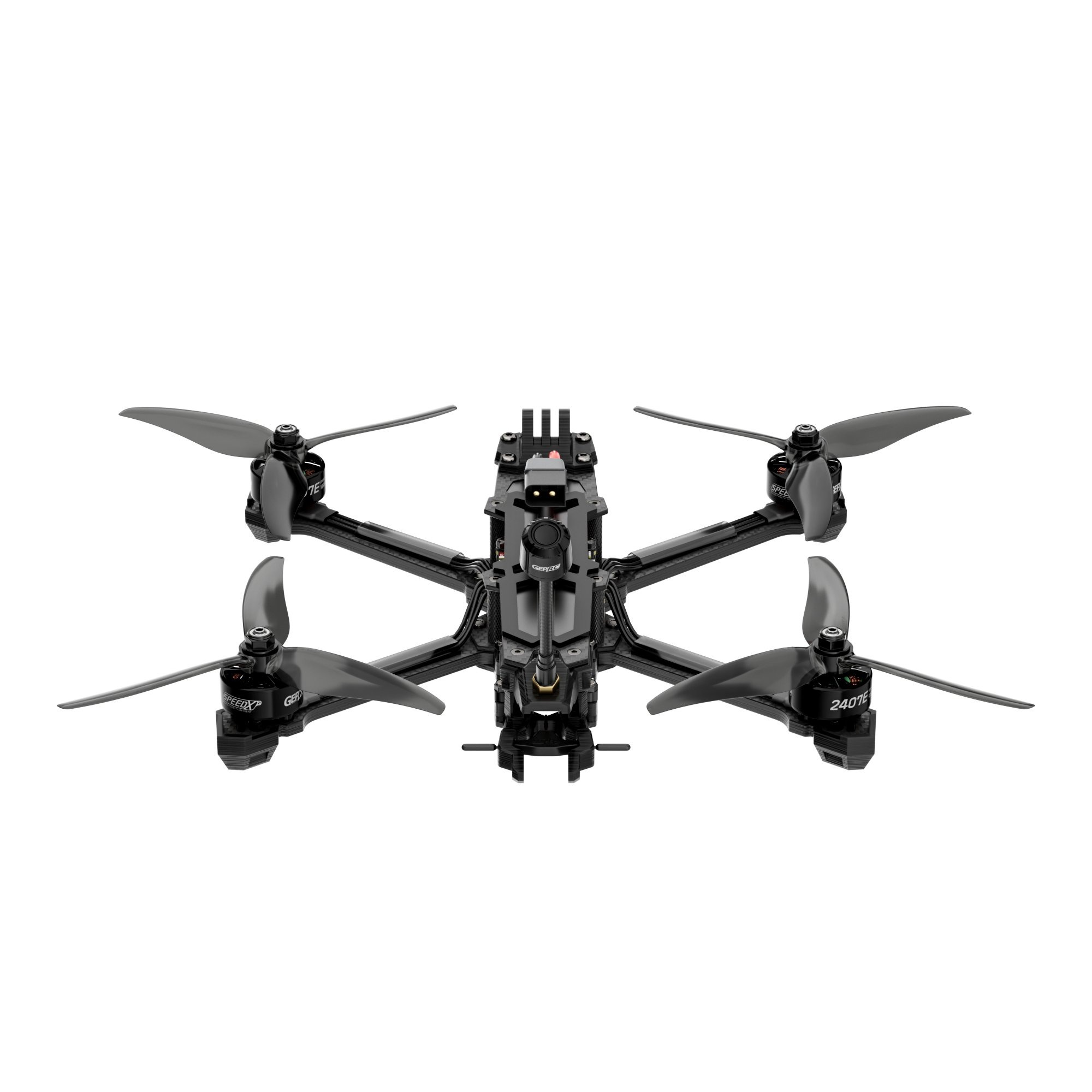

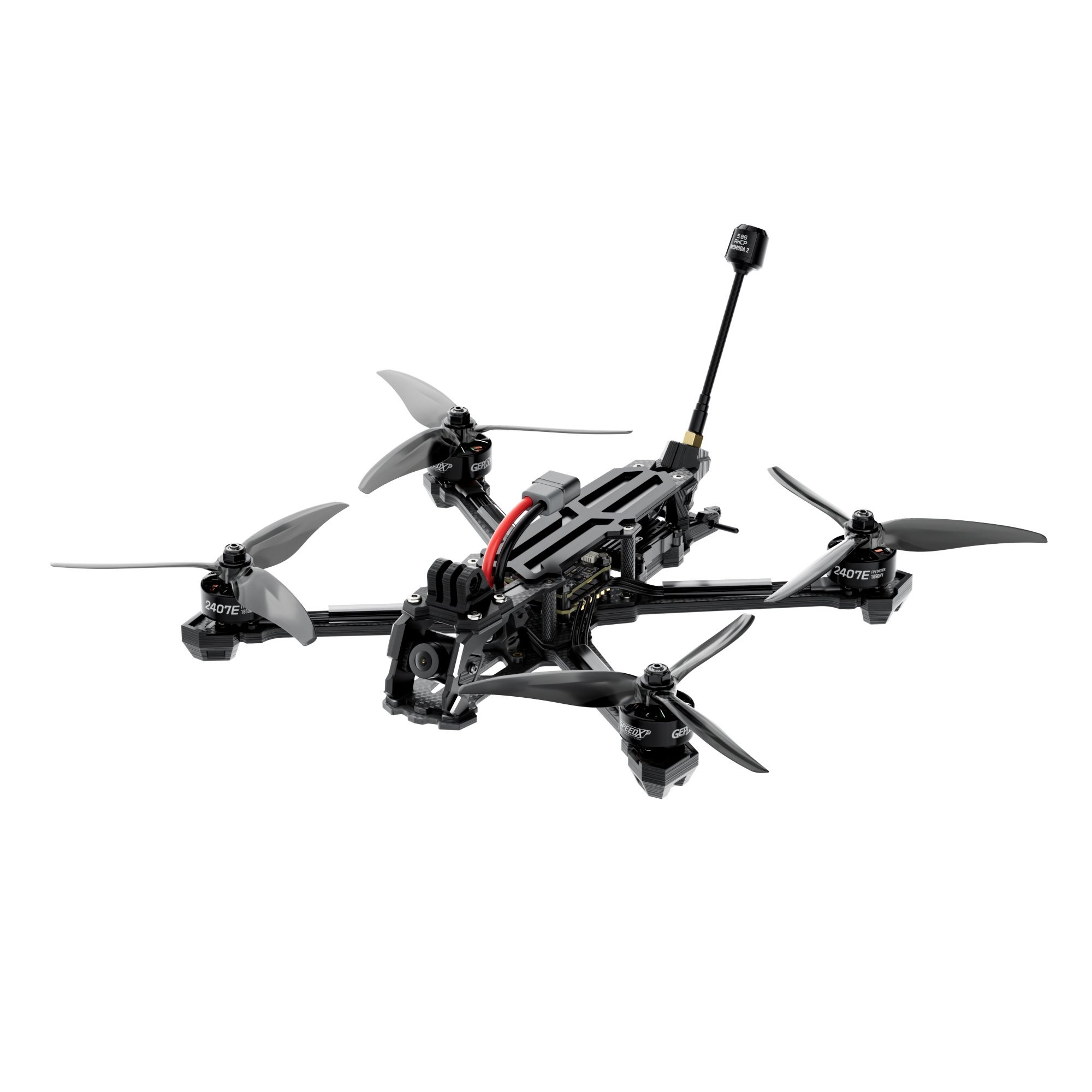

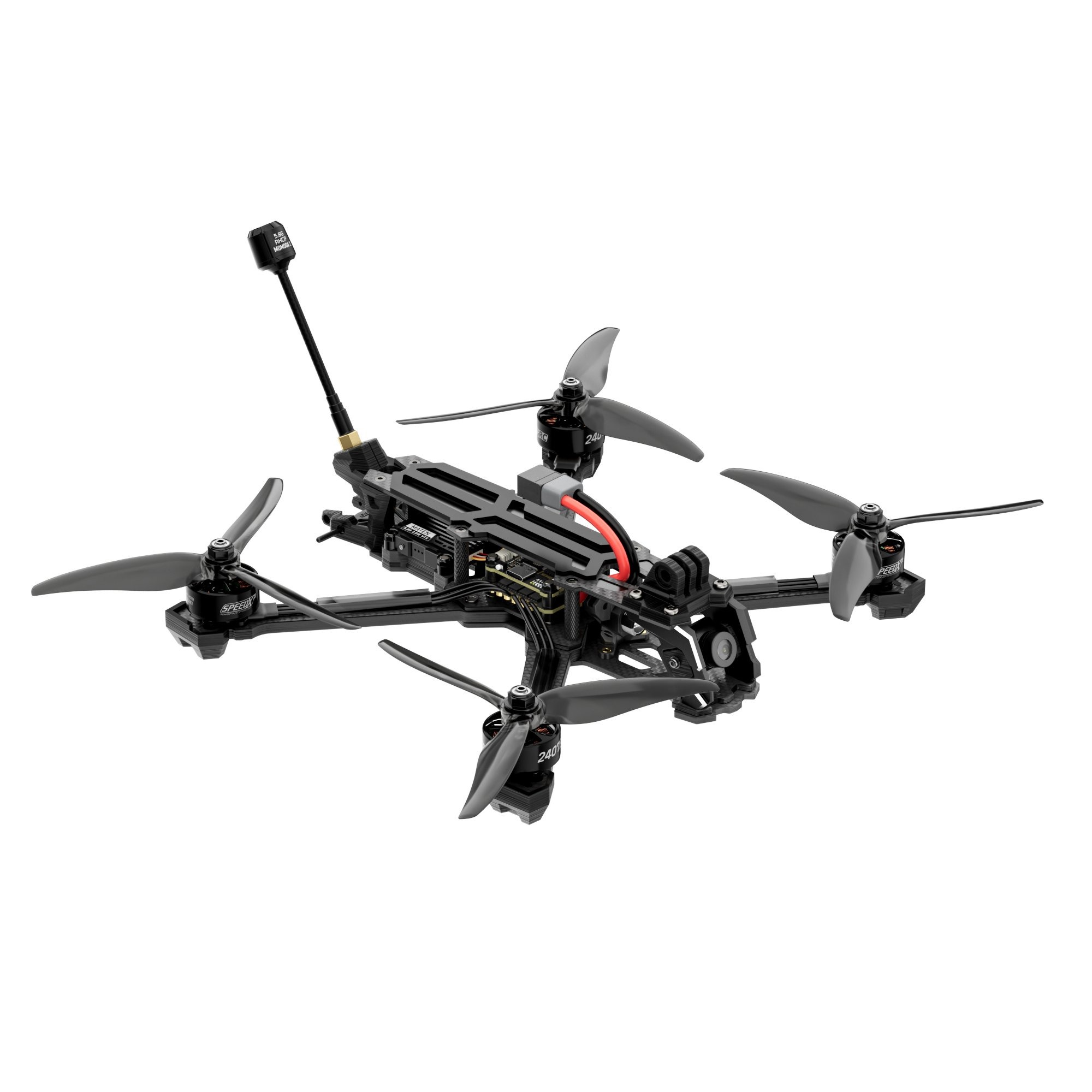

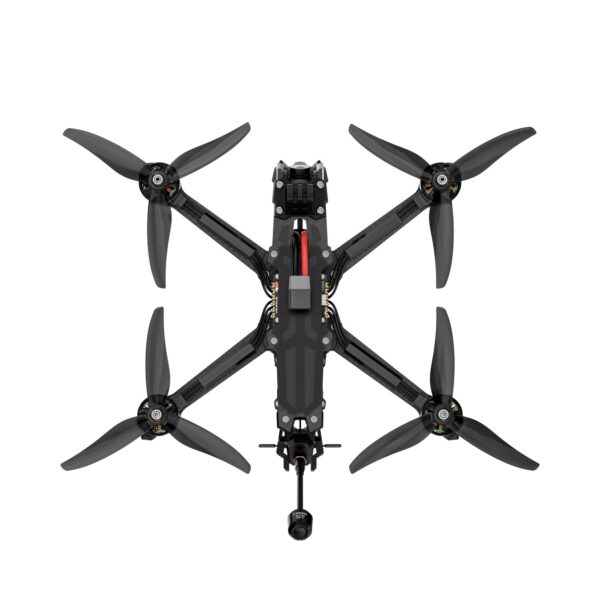

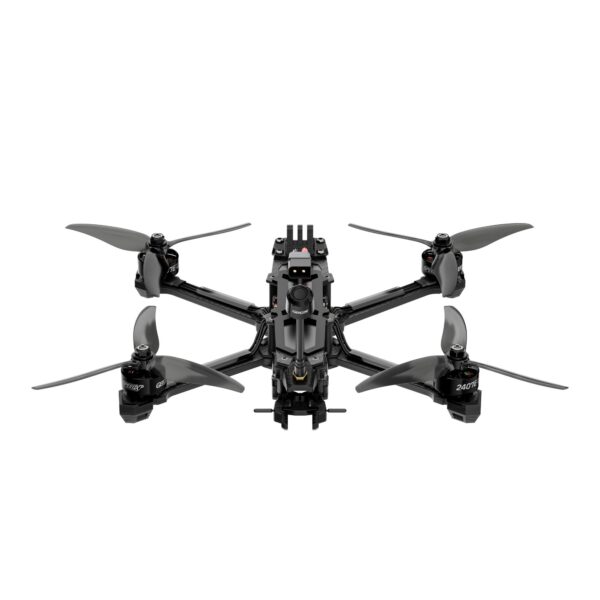

The GepRC Vapor-X5 Analog Freestyle FPV BNF ExpressLRS + GPS is engineered for ultimate freestyle performance. Equipped with the TAKER H60_BLS 60A 4IN1 ESC and GEP-F722-HD v2 FC, it delivers buttery-smooth flights. CNC aluminum alloy camera plates ensure durability, while 5mm carbon fiber arms provide unmatched strength. With GEPRC SPEEDX2 motors and versatile 5-inch or 6-inch models, it’s the perfect choice for pilots seeking precision, power, and agility. Experience flight like never before.
Features:
- Equipped with the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance.
- Â Paired with GEPRC SPEEDX2 series motors to deliver robust power for freestyle flying.
- Â The CNC aluminum alloy camera protection side plates enhance durability and aesthetics.
- Â The front lens protection design provides reassuring protection for flying.
- Â The increased width of the 5mm carbon fiber arms enhances frame aesthetics and strength.
- Â Available in 5-inch and 6-inch models, catering to various flying preferences.
Specifications:
- Model: Vapor-X5 Analog
- Frame: GEP-Vapor-X5 frame
- Wheelbase: 230 mm
- Top Plate: 2.0 mm
- Middle Plate: 2.0 mm
- Bottom Plate:2.5 mm
- Arm Thickness:5.0 mm
- FC: GEP-F722-HD v2
- MCU: STM32F722
- Gyro: ICM42688-P(SPI)
- Barometer: BMP280
- OSD: Betaflight OSD w/AT7456E
- ESC: TAKER H60_BLS 60A 4IN1 ESC
- VTX: MATEN 5.8G 1.6W VTX
- Camera: Caddx Ratel2
- Antenna: GEPRC Momoda2 5.8G Antenna RHCP SMA 90mm
- Connector: XT60
- 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
- 5-inch Propeller: GEMFAN 5136
- Vapor-X5 Analog PNP Version Weight: 409g±5g
- Receiver: PNP/GEPRC ELRS24/TBS Nano RX
- Recommended Battery: LiPo 1550mAh – 2200mAh
Package Includes:
- 1 x Vapor-X5 Analog
- 2 x GEMFAN 5136
- 2 x Battery anti-slip pads
- 1 x Spare screw pack
- 2 x M20*250mm battery straps
- 1 x L-shaped screwdriver 1.5mm
- 1 x L-shaped screwdriver 2.0mm
- 1 x GoPro mount
Recommended Spares (Not included):
- Spare arms: GepRC Vapor X Frame Parts (2 Options)
- Full Frame Kit: GepRC GEP Vapor X5 Frame
- Original Propellor: Gemfan Vannystyle 5136-3 Propellers (5 Colours)
- Propellor alternative: HQProp Ethix P3.5 RAD Berry 5.1×3.5×3 Propeller (Set of 4)
- Value Battery:Â CNHL Black Series 1300mAh 22.2V 6S 100C Lipo Battery
- Performance Battery: 160C coming soon.
- Lightweight HV Battery:Â GNB Battery 22.8V 120C 1300mAh 6S HV
- Premium Battery:
