Description

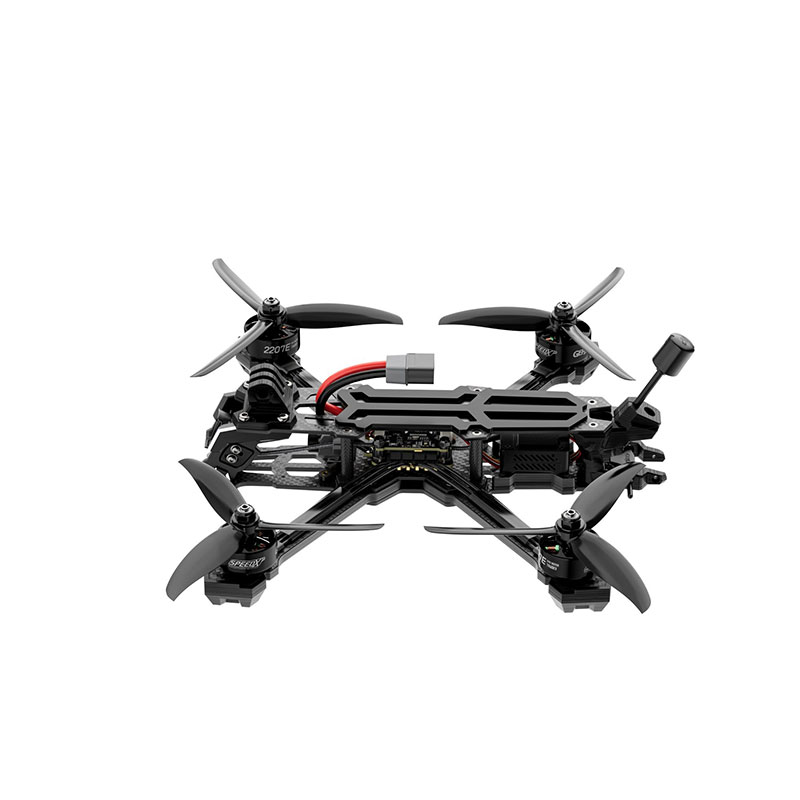

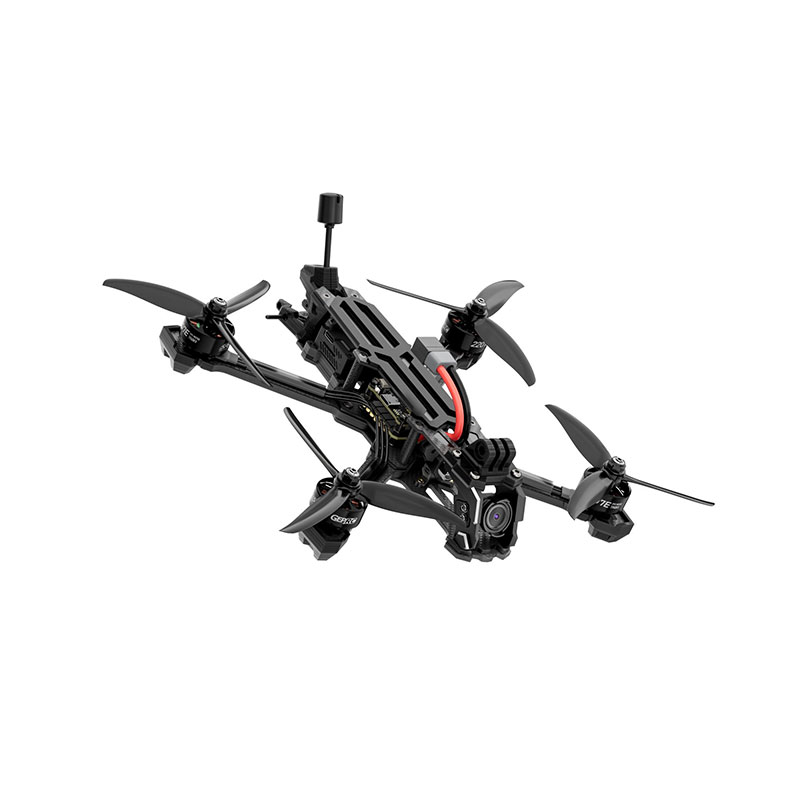

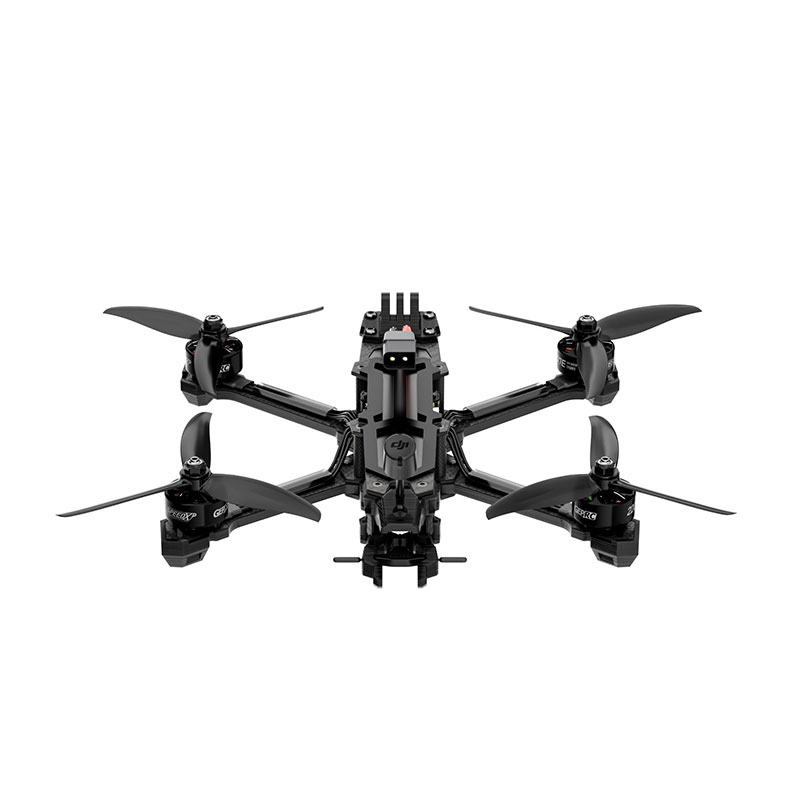

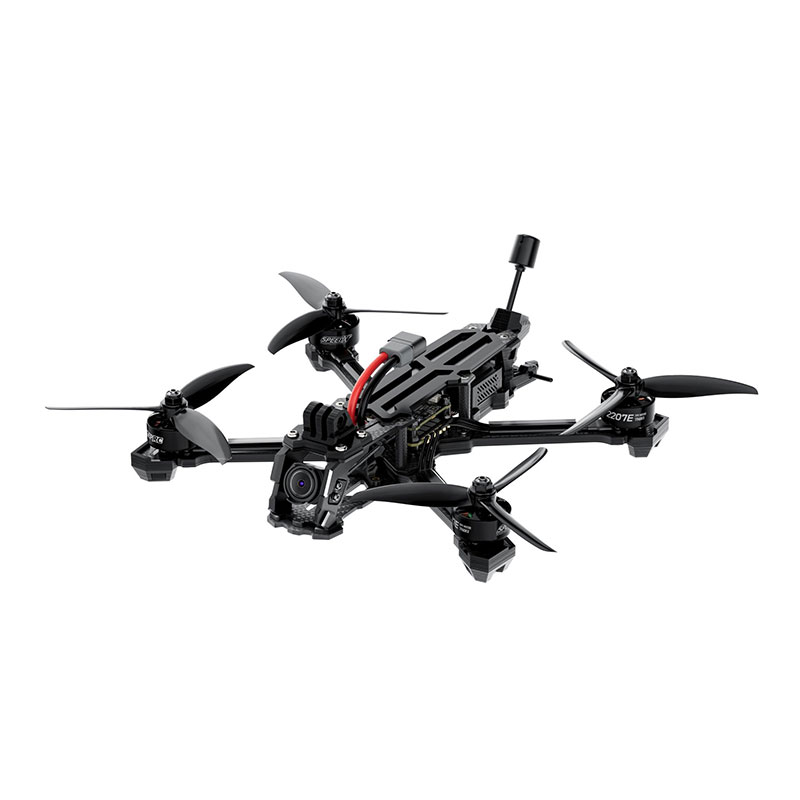

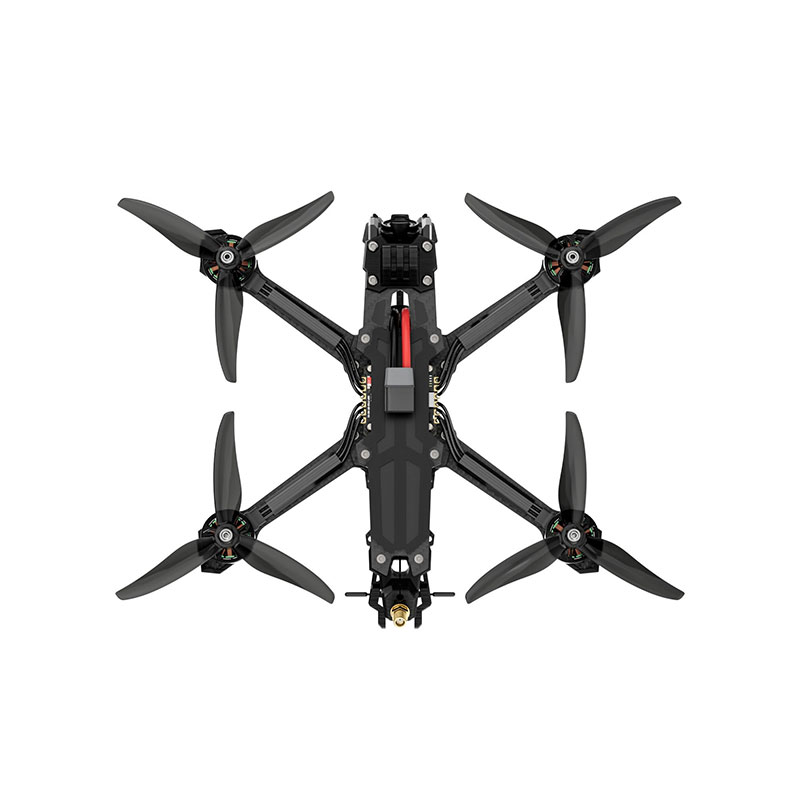

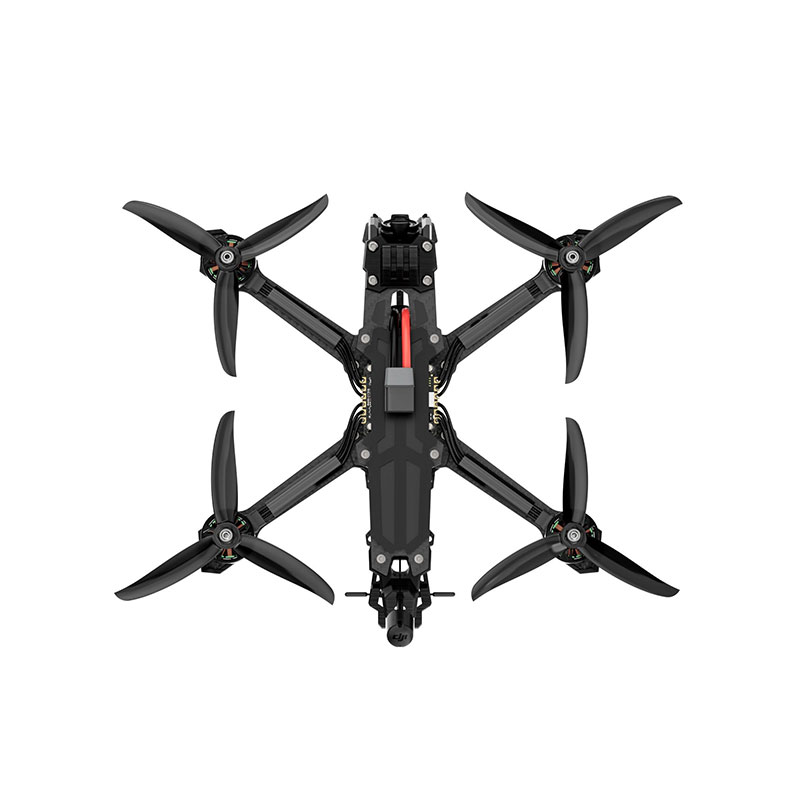

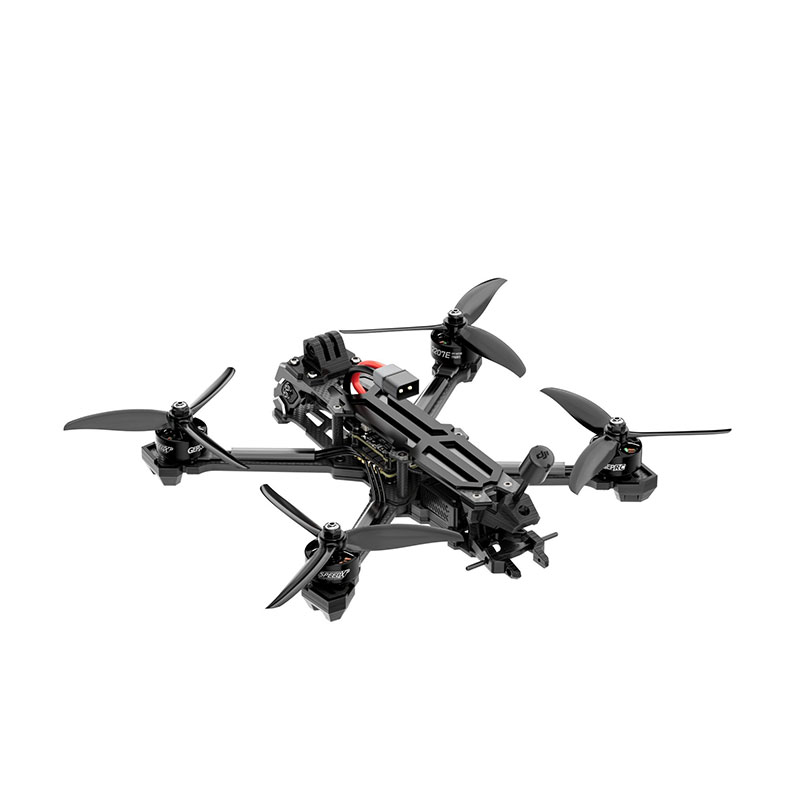

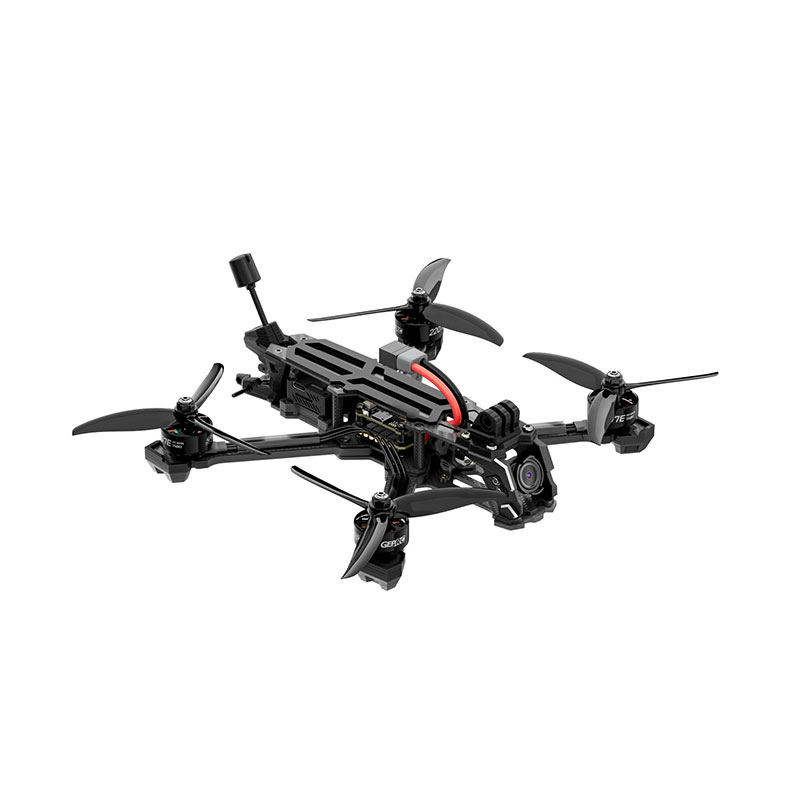

The GepRC Vapor-X5 O3 Freestyle FPV Drone BNF ExpressLRS + GPS redefines freestyle flying with its robust design, smooth performance, and innovative features. Equipped with the TAKER H60_BLS 60A 4IN1 ESC, GEP-F722-HD v2 FC, and GEPRC SPEEDX2 motors, it delivers exceptional agility and power. Its CNC aluminum alloy camera plates, wide X-frame, and carbon fiber arms enhance strength and aesthetics. Available in 5- and 6-inch models for tailored flying preferences.
Features:
- Equipped with the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance.
- Paired with GEPRC SPEEDX2 series motors to deliver robust power for freestyle flying.
- The CNC aluminum alloy camera protection side plates enhance durability and aesthetics.
- The front lens protection design provides reassuring protection for flying.
- The increased width of the 5mm carbon fiber arms enhances frame aesthetics and strength.
- Available in 5-inch and 6-inch models, catering to various flying preferences.
Specifications:
- Model: Vapor-X5 O3
- Frame: GEP-Vapor-X5 frame
- Wheelbase: 230 mm
- Top Plate: 2.0 mm
- Middle Plate: 2.0 mm
- Bottom Plate: 2.5 mm
- Arm Thickness: 5.0 mm
- FC: GEP-F722-HD v2
- MCU: STM32F722
- Gyro: ICM42688-P(SPI)
- Barometer: BMP280
- OSD: Betaflight OSD w/AT7456E
- ESC: TAKER H60_BLS 60A 4IN1 ESC
- VTX: O3 Air Unit
- Camera: O3 Camera
- Antenna: O3 original antenna
- Connector: XT60
- Optional GPS:GEP-M10 GPS
- 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
- 5-inch Propeller: GEMFAN 5136
- Vapor-X5 O3 PNP Version Weight: 419.5g±5g
- Receiver: PNP/GEPRC ELRS24/TBS Nano RX
- Recommended Battery: LiPo 1550mAh – 2200mAh
- Flight Time: 14-19 min
Package Includes:
- 1 x Vapor-X5 O3
- 2 x GEMFAN 5136
- 2 x Battery anti-slip pads
- 1 x Spare screw pack
- 2 x M20*250mm battery straps
- 1 x L-shaped screwdriver 1.5mm
- 1 x L-shaped screwdriver 2.0mm
- 1 x GoPro mount
Recommended Spares (Not included):
- Spare arms: GepRC Vapor X Frame Parts (2 Options)
- Full Frame Kit: GepRC GEP Vapor X5 Frame
- Original Propellor: Gemfan Vannystyle 5136-3 Propellers (5 Colours)
- Propellor alternative: HQProp Ethix P3.5 RAD Berry 5.1×3.5×3 Propeller (Set of 4)
- Value Battery: CNHL Black Series 1300mAh 22.2V 6S 100C Lipo Battery
- Performance Battery: 160C coming soon.
- Lightweight HV Battery: GNB Battery 22.8V 120C 1300mAh 6S HV
- Premium Battery:
Reviews
There are no reviews yet
