Description

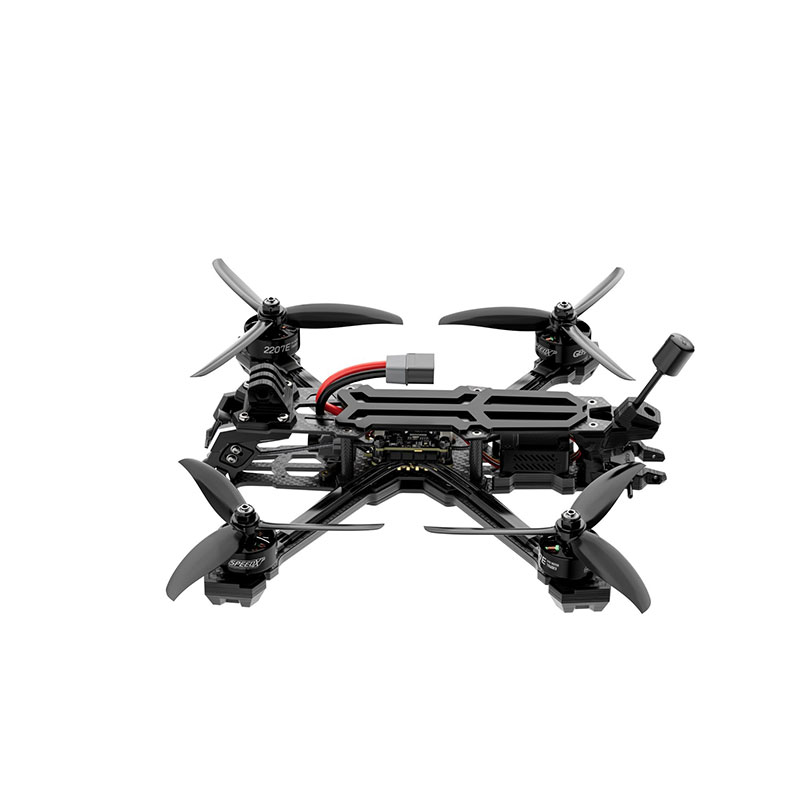

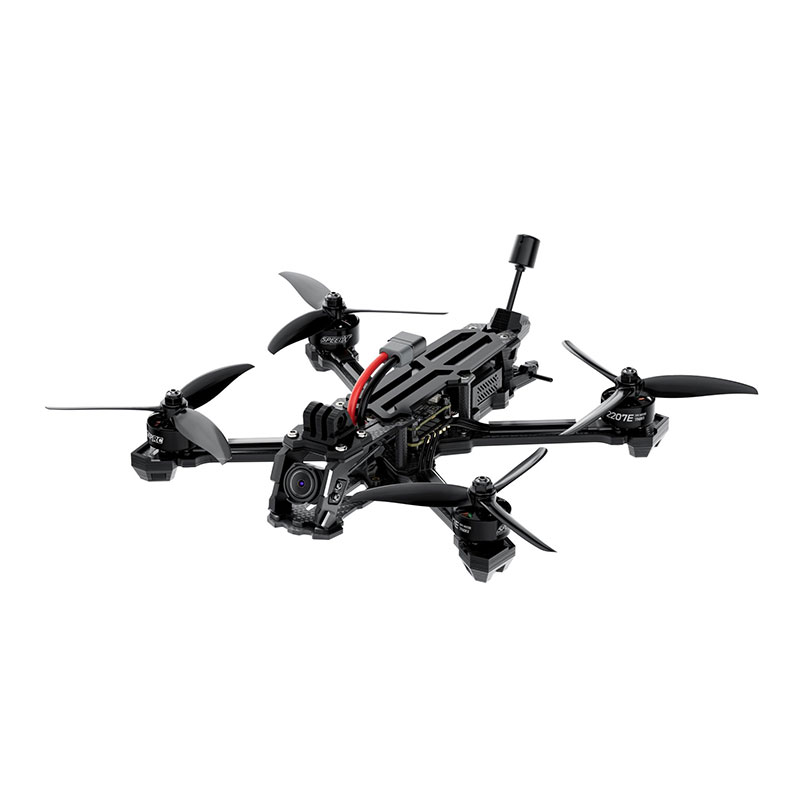

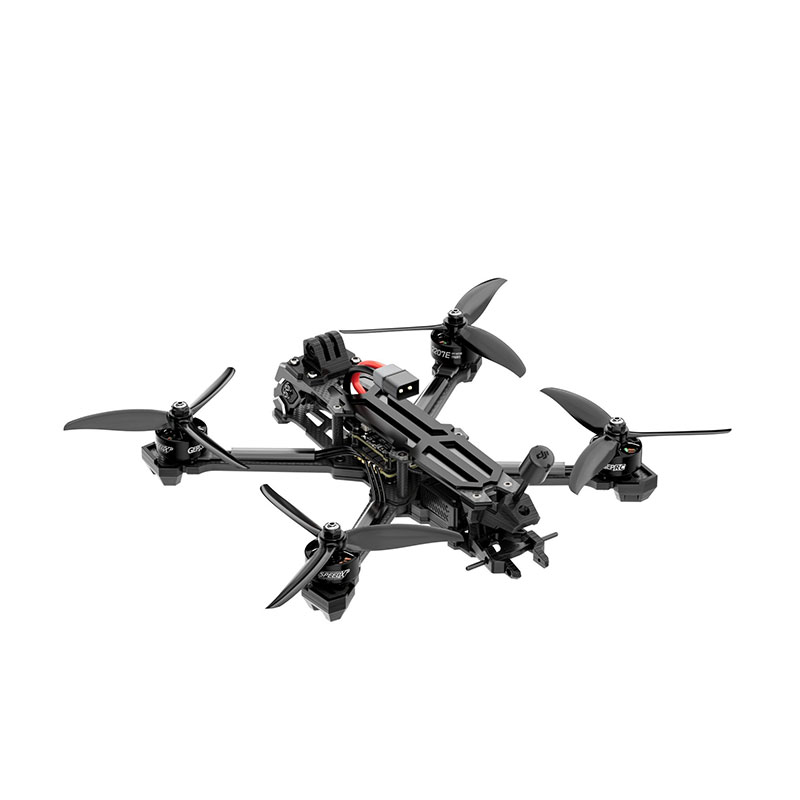

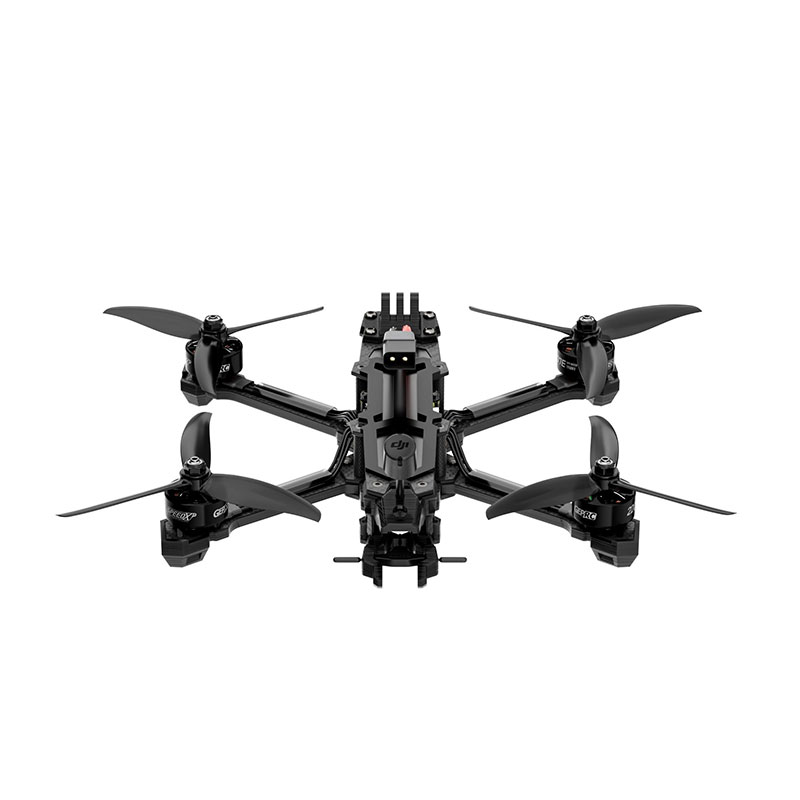

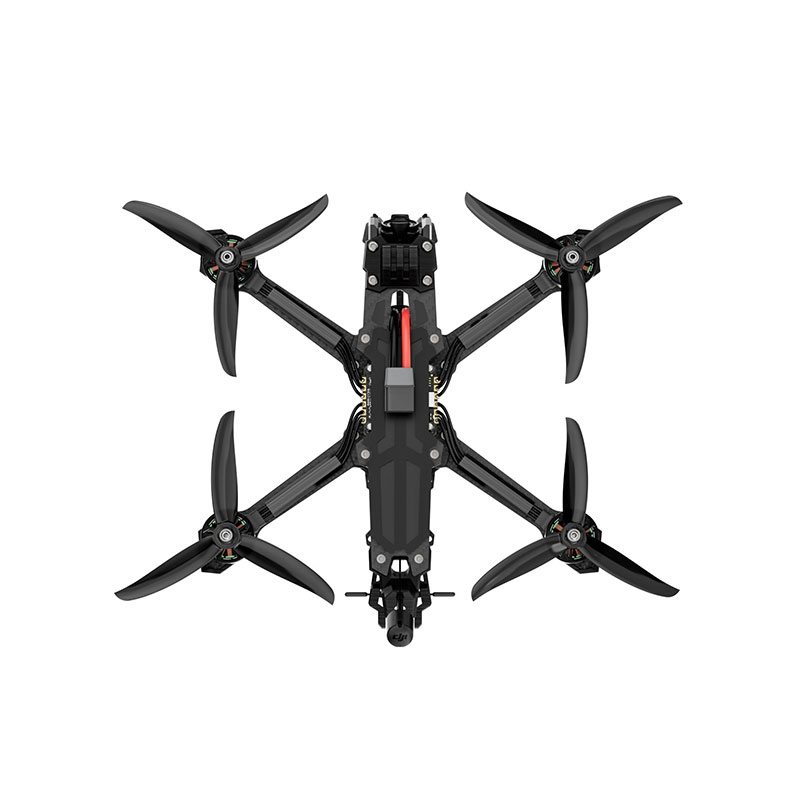

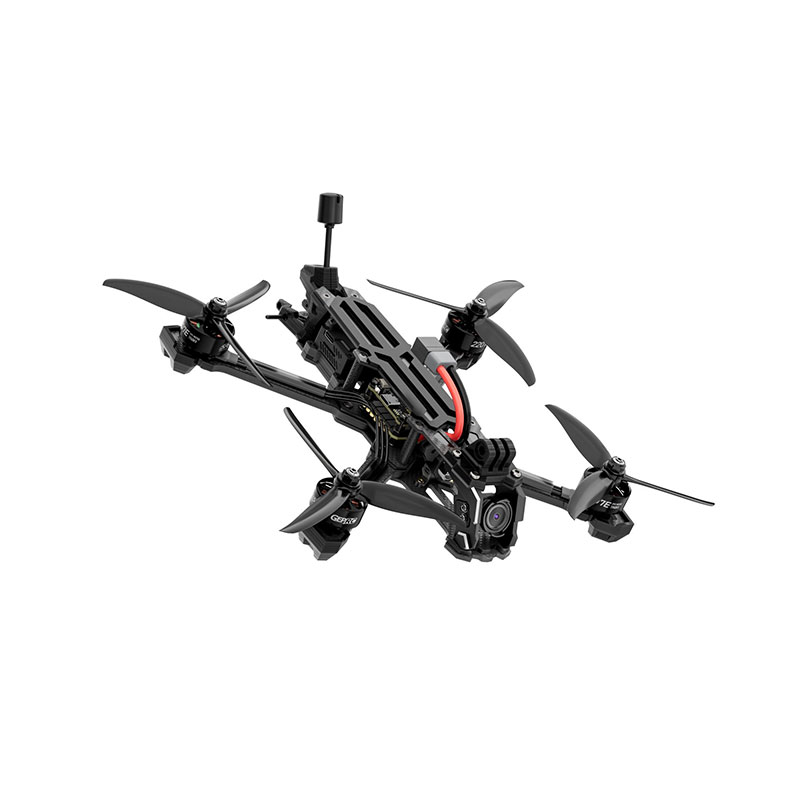

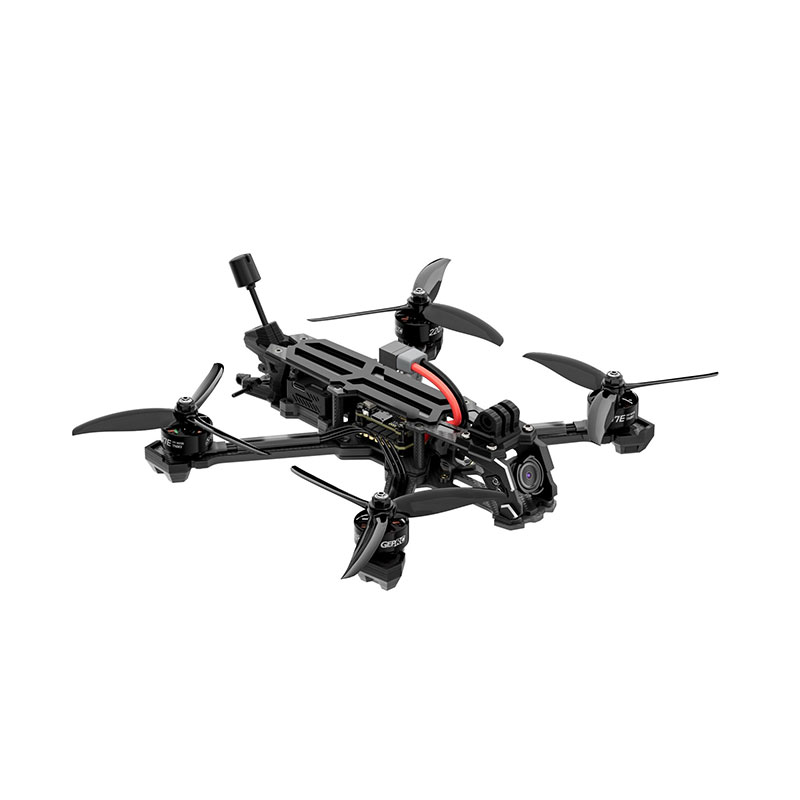

The GepRC Vapor-X6 O3 Freestyle FPV BNF ExpressLRS + GPS is crafted for pilots seeking ultimate freestyle precision. With its wide X-shaped frame, robust CNC aluminum alloy camera protection, and smooth flight powered by the TAKER H60_BLS 60A ESC and GEP-F722-HD v2 FC, it delivers unmatched performance. Choose between 5-inch and 6-inch models for a tailored flying experience, supported by enhanced carbon fiber arms for durability and sleek aesthetics.
Features:
- Equipped with the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance.
- Â Paired with GEPRC SPEEDX2 series motors to deliver robust power for freestyle flying.
- Â The CNC aluminum alloy camera protection side plates enhance durability and aesthetics.
- Â The front lens protection design provides reassuring protection for flying.
- Â The increased width of the 5mm carbon fiber arms enhances frame aesthetics and strength.
- Â Available in 5-inch and 6-inch models, catering to various flying preferences.
Specifications:
- Model: Vapor-X5 Analog
- Frame: GEP-Vapor-X5 frame
- Wheelbase: 230 mm
- Top Plate: 2.0 mm
- Middle Plate: 2.0 mm
- Bottom Plate:2.5 mm
- Arm Thickness:5.0 mm
- FC: GEP-F722-HD v2
- MCU: STM32F722
- Gyro: ICM42688-P(SPI)
- Barometer: BMP280
- OSD: Betaflight OSD w/AT7456E
- ESC: TAKER H60_BLS 60A 4IN1 ESC
- VTX: MATEN 5.8G 1.6W VTX
- Camera: Caddx Ratel2
- Antenna: GEPRC Momoda2 5.8G Antenna RHCP SMA 90mm
- Connector: XT60
- 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
- 5-inch Propeller: GEMFAN 5136
- Vapor-X5 Analog PNP Version Weight: 409g±5g
- Receiver: PNP/GEPRC ELRS24/TBS Nano RX
- Recommended Battery: LiPo 1550mAh – 2200mAh
Package Includes:
- 1 x Vapor-X6 O3
- 2 x HQprop 6X3.5X3
- 2 x Battery anti-slip pads
- 1 x Spare screw pack
- 2 x M20*250mm battery straps
- 1 x L-shaped screwdriver 1.5mm
- 1 x L-shaped screwdriver 2.0mm
- 1 x GoPro mount
Recommended Spares (Not included):
- Spare arms: GepRC Vapor X Frame Parts (2 Options)
- Full Frame Kit: GepRC GEP Vapor X6 Frame
- Latest 6″ Propeller: HQProp 6X2.5X3 Poly Carbonate Propeller (Grey)
- Propeller alternative: Gemfan Hurricane 6045 3-Blade Propeller (2 Colours)
- Value Battery: CNHL Black Series 1500mAh 22.2V 6S 100C Lipo Battery
- Performance Battery: 160C coming soon.
- Lightweight HV Battery: GNB LiPo Battery 22.8V 120C 1500mAh 6S HV
- Premium Battery: Tattu R-Line Version 5.0 22.2V 150C 1480mAh 6S Battery
