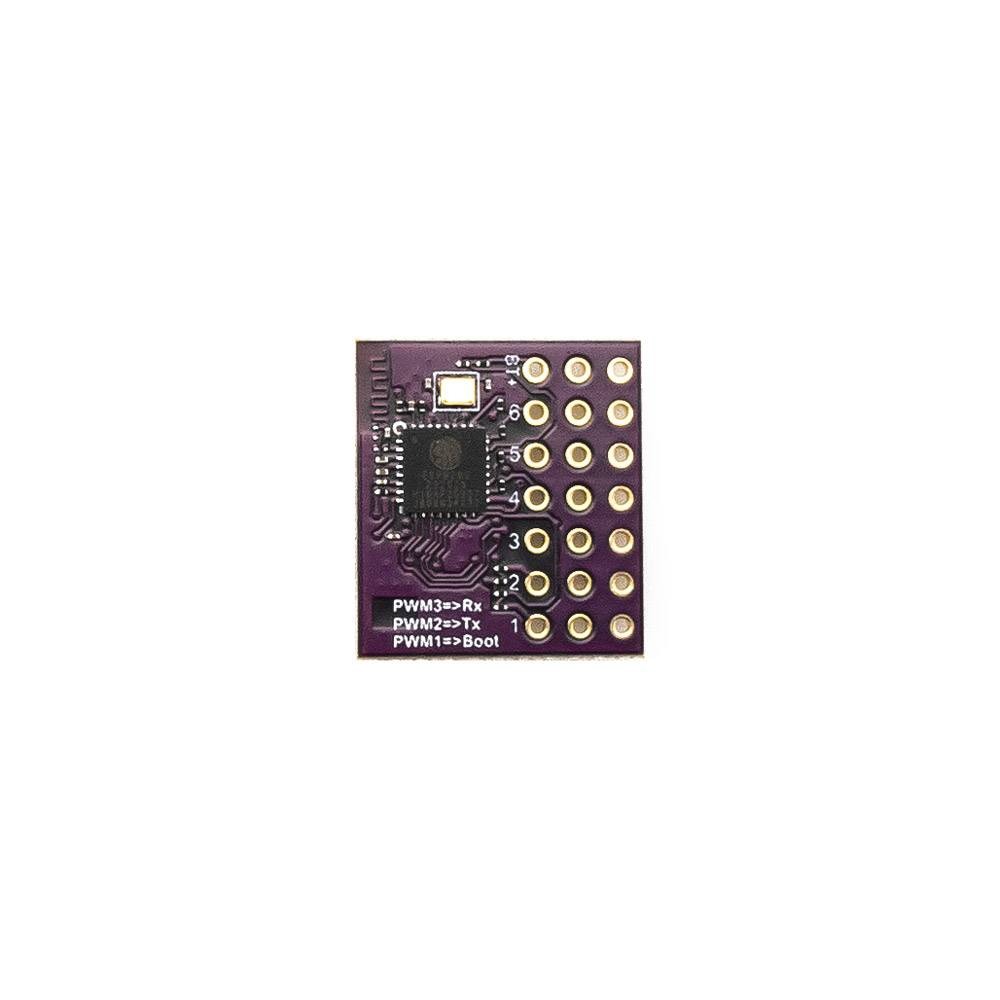

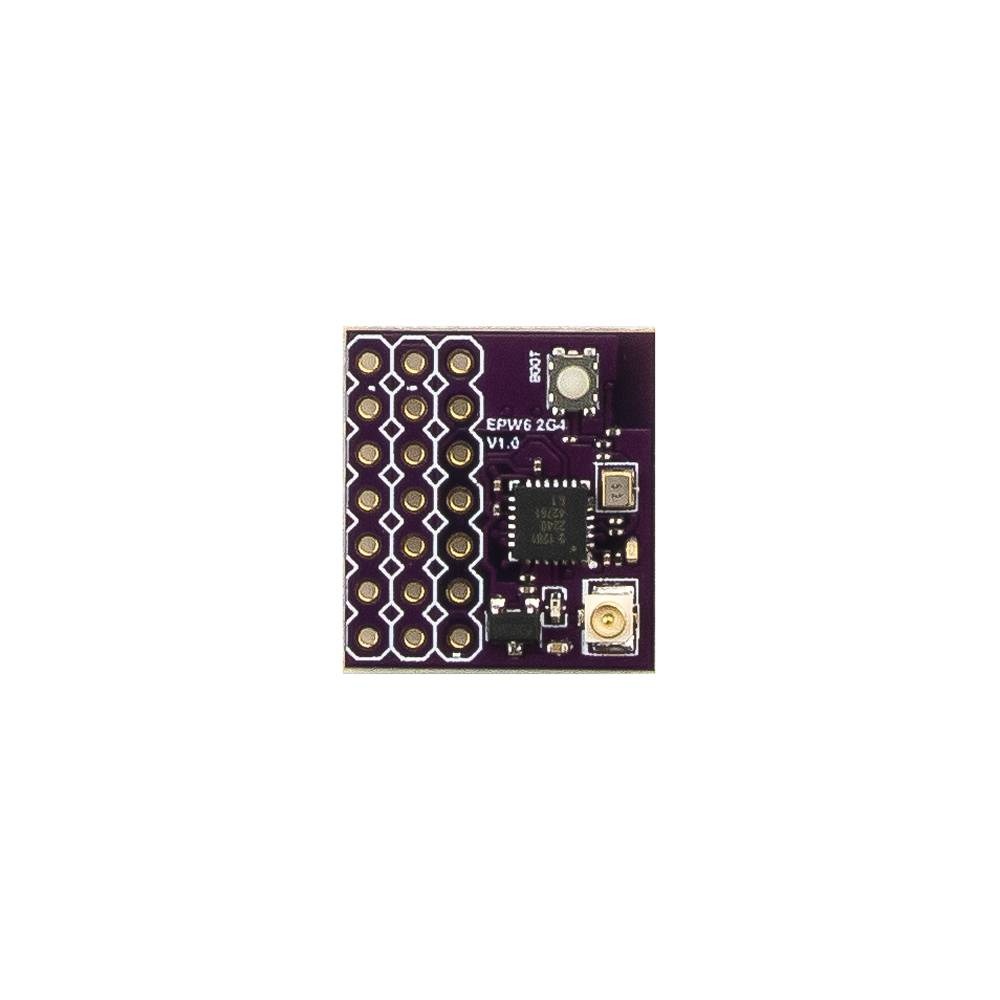

HappyModel TCXO ExpressLRS EPW6 2.4GHz 6CH PWM Receiver
by HappyModel
The Happymodel 2.4GHz TCXO ELRS PWM Receiver for Fixed-Wing is an open source program based on ExpressLRS, they are brilliant for your FPV Wing or Fixed-Wing.
$31.99
Hurry! Only 2 left in stock
Ships from our Tauranga warehouse
Description
The Happymodel 2.4GHz ELRS PWM Receiver now updated with TCXO receiver, uses a temperature-compensated crystal oscillator to help with accurate MCU clock frequency, thus improving the performance and reliability of your RC link. Despite the small size, the low latency and high refresh rate of the ELRS system allow this receiver to be used on fixed-wing planes.
Specifications:
- Item: Happymodel EPW6 TCXO 2.4GHz PWM receiver
- RF Frequency: 2.4GHz (2400~2480MHz)
- Antenna connector: IPEX MHF 1/U.FL
- Receiver protocol: PWM or CRSF
- PCB size: 19mm x 17.5m
- ESP8285, SX1280/1281
- Telemetry power: 12dbm
- Weight: 1.49g / antenna
- Input voltage: +5v~8.4v
- PWM outputs: 6x
- https://github.com/ExpressLRS/ExpressLRS
Firmware:
- Target option1: Generic ESP8285 6xPWM 2.4Ghz RX
- Target option2:HappyModel_EP_2400_RX
- CRSF Serial receiver via TX and RX
- PWM receiver via 1~6 PWM outputs
- Firmware update via WIFI

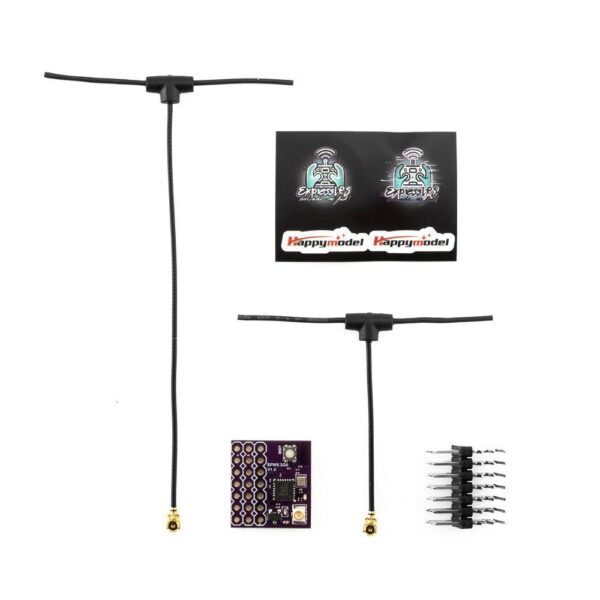

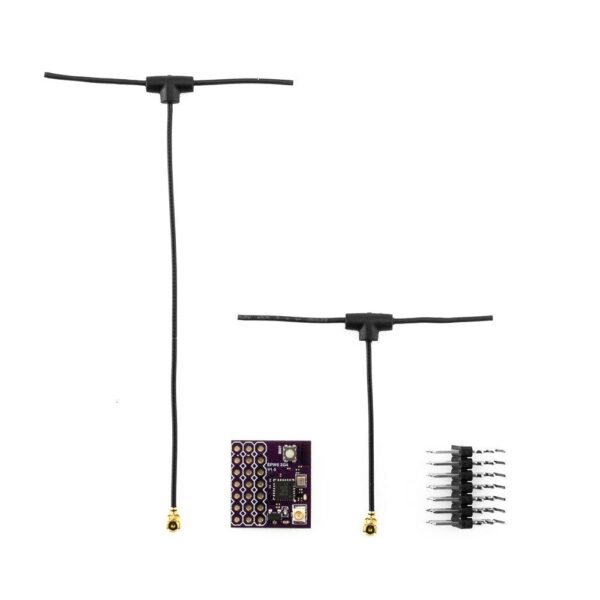

Package Included:
- 1x Happymodel TCXO ExpressLRS 2.4GHz 6CH PMW Receiver – EPW6
- 2x 2.4GHz antenna
- 3x 7pin 2.54mm
- 2x Stickers
Additional information
| Brand | |
|---|---|
| Protocol |
4 reviews for HappyModel TCXO ExpressLRS EPW6 2.4GHz 6CH PWM Receiver
Only logged in customers who have purchased this product may leave a review.
