HappyModel Mobula6 Freestyle HD – HDZero

Description

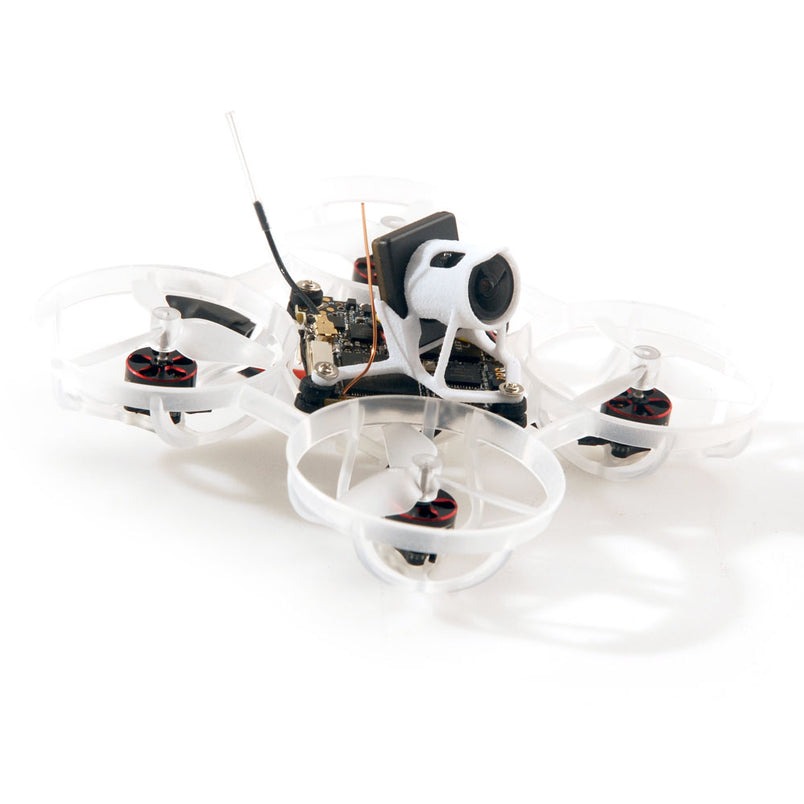

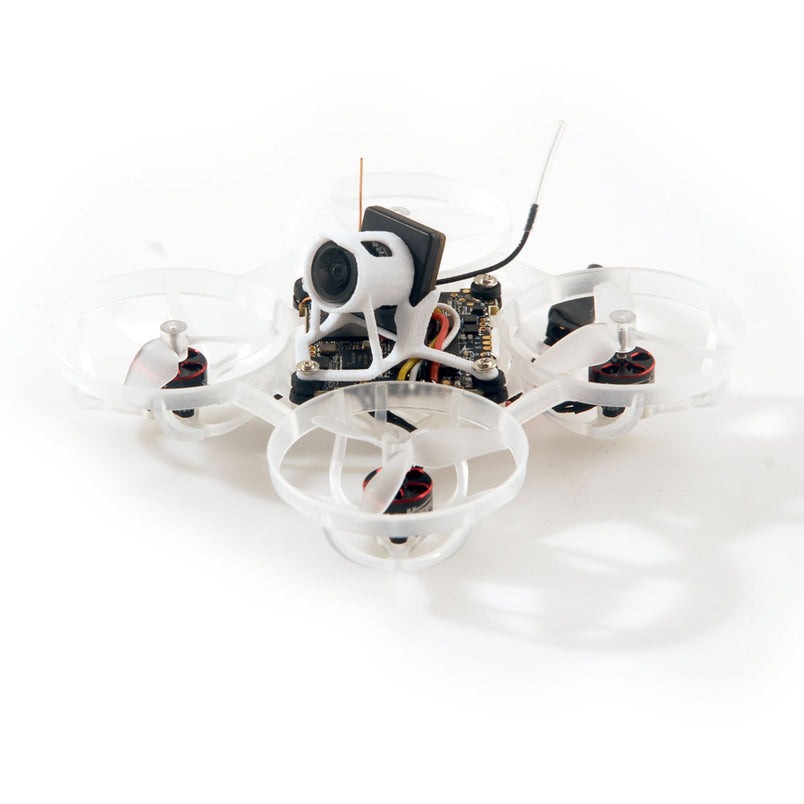

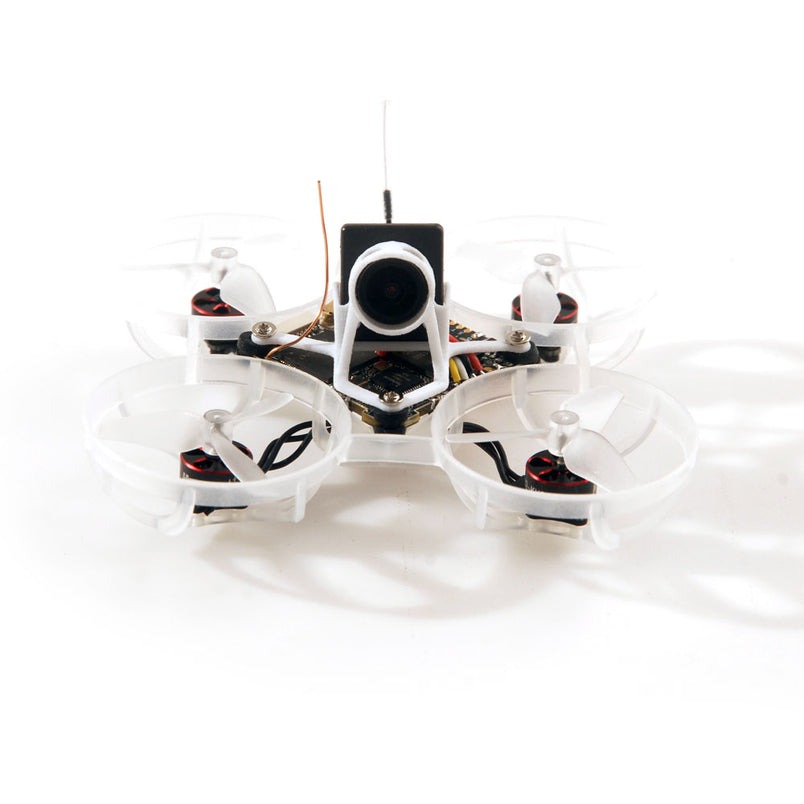

HappyModel Mobula6 Freestyle HD – HDZero is a 65nm low light BNF using the HDZero AIO5 designed for freestyle whooping. It is under 20grams.

Specifications:

• Weight: 19.6g
• Recommended Battery: 1S 300mAh with A30 or BT2.0 plug
• Propeller Size: 31mm
• AIO
  • MCU: STM32F411 (100MHz, 512K Flash)
  • Gyro: BMI270
  • On board voltage and amperage meters
  • Built-in 5A(each) BLHeli_S 4-in-1 ESC
  • Bluejay ESC firmware pre-installed
  • Built-in 5.8G HDZero VTX
  • Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0
  • Built-in 5V 1A BEC
  • Board size:28.5×28.5mm with a 25.5×25.5 mounting hole size
  • Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 out of factory
• HDZero Lux Camera
  • Sensor size: 1/2 inch
  • Resolution: 720p60 4:3 and 16:9
  • FOV: D:155° H:126° V:94°(4:3)
  • FOV: D:145° H:126° V:70°(16:9)
  • WDR
• Motors
  • Kv:28000
  • Stator diameter: 7mm
  • Stator length:2mm
  • Shaft diameter: Φ1mm
  • Weight:1.5g

Package Included:

• 1 x Happymodel Mobula6 Freestyle BNF
• 1 x Spare canopy
• 1 x Spare propeller(set)
• 1 x Screw driver
• 1 x propeller disassemble tool

Spares (Not Included):

• Frame: HappyModel Mobula6 2024 Frame (Grey/Clear)
• Canopy: HappyModel Mobula6 HDZero Camera Mount Bracket
• Propellers: Gemfan 1208-3 31mm 3-Blade Propeller 1.0mm Shaft (3 Colours)
• Motors: HappyModel SE0702 KV28000 for Mobula6 2024
• AIO: HDZero AIO5 F4 5A ELRS2.4
• Charger: VIFLY WhoopStor V3 6 Ports 1S Storage Charger Discharger

Recommended Batteries (Not Included):

• BT2 260mah: BetaFPV LAVA 3.8V 260mah Battery 1S HV
• BT2 300 mah: BetaFPV LAVA 3.8V 300mah Battery 1S HV
• A30 300mah: GNB Battery 3.8V 60C 300mAh 1S HV A30 Head Connector
• A30 380mah: GNB Battery 3.8V 60C 380mAh 1S HV A30 Head Connector
• We also have A30 cabled if you prefer.
