HappyModel Mobula7 Freestyle HD BNF Built-in HDZERO AIO5

Description

The HappyModel Mobula7 Freestyle HD BNF is an ultra-light 75mm powerhouse built for exhilarating freestyle whooping. Weighing only 24.5g, it features high-speed RS0802 KV25000 brushless motors and HQPROP 1.6-inch tri-blade propellers for unmatched agility. Its HDZero AIO5 system delivers stunning 720p60 HD video, while the built-in SPI ExpressLRS receiver ensures seamless control. Elevate your freestyle experience with precision, power, and breathtaking visuals—all in a compact, featherlight package.

Specifications:

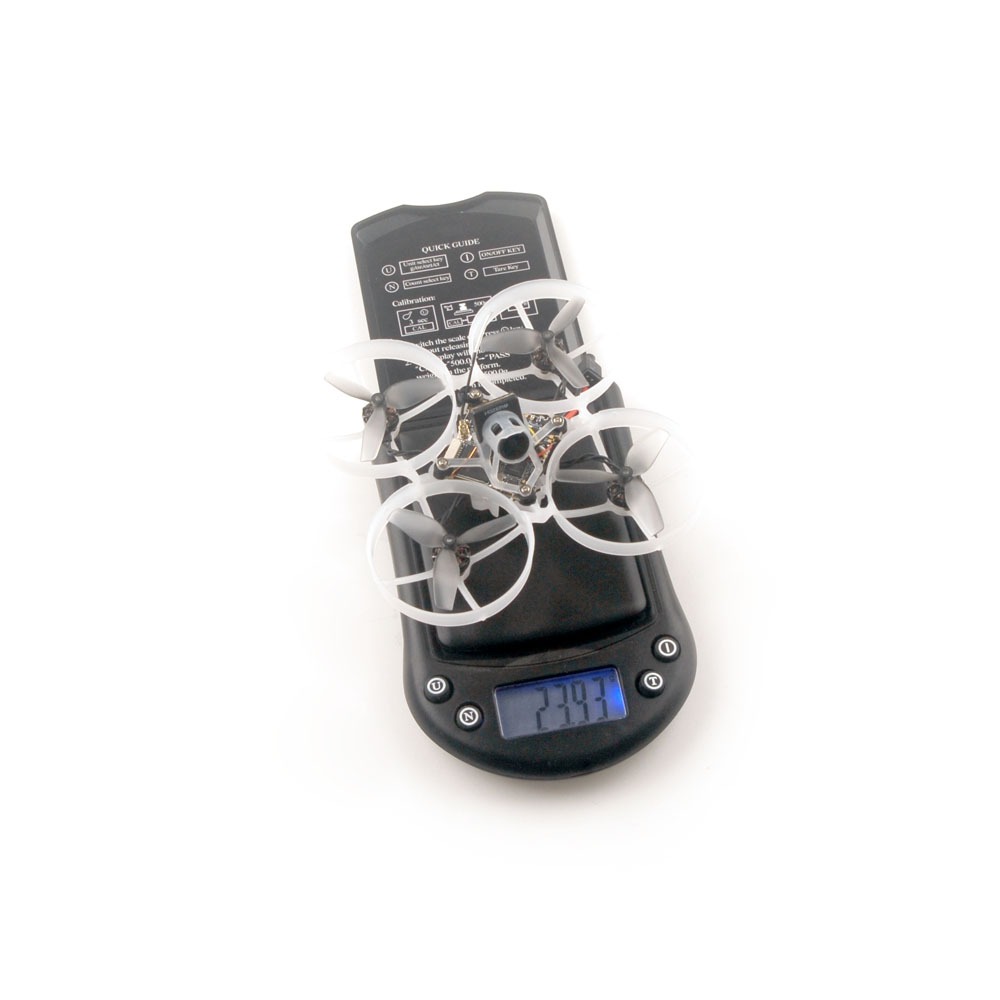

• Weight: 24.5g
• Recommended Battery: 1S 450mah/550mah/650mah
• Propeller Size: 40mm

AIO flight controller:

• MCU: STM32F411 (100MHz, 512K Flash)
• Gyro: ICM42688P
• On board voltage and amperage meters
• Built-in 5A(each) BLHeli_S 4-in-1 ESC
• Bluejay ESC firmware pre-installed
• Built-in 5.8G HDZero VTX
• Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0
• Built-in 5V 1A BEC
• Board size:28.5×28.5mm with a 25.5×25.5 mounting hole size
• Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 out of factory
• HDZero Lux Camera
• Sensor size: 1/2 inch
• Resolution: 720p60 4:3 and 16:9
• FOV: D:155° H:126° V:94°(4:3)
• FOV: D:145° H:126° V:70°(16:9)
• WDR

Motors:

• Model:RS0802
• Kv:25000
• Stator diameter: 8mm
• Stator length:2mm
• Shaft diameter: Φ1.5mm
• Weight:2.0g

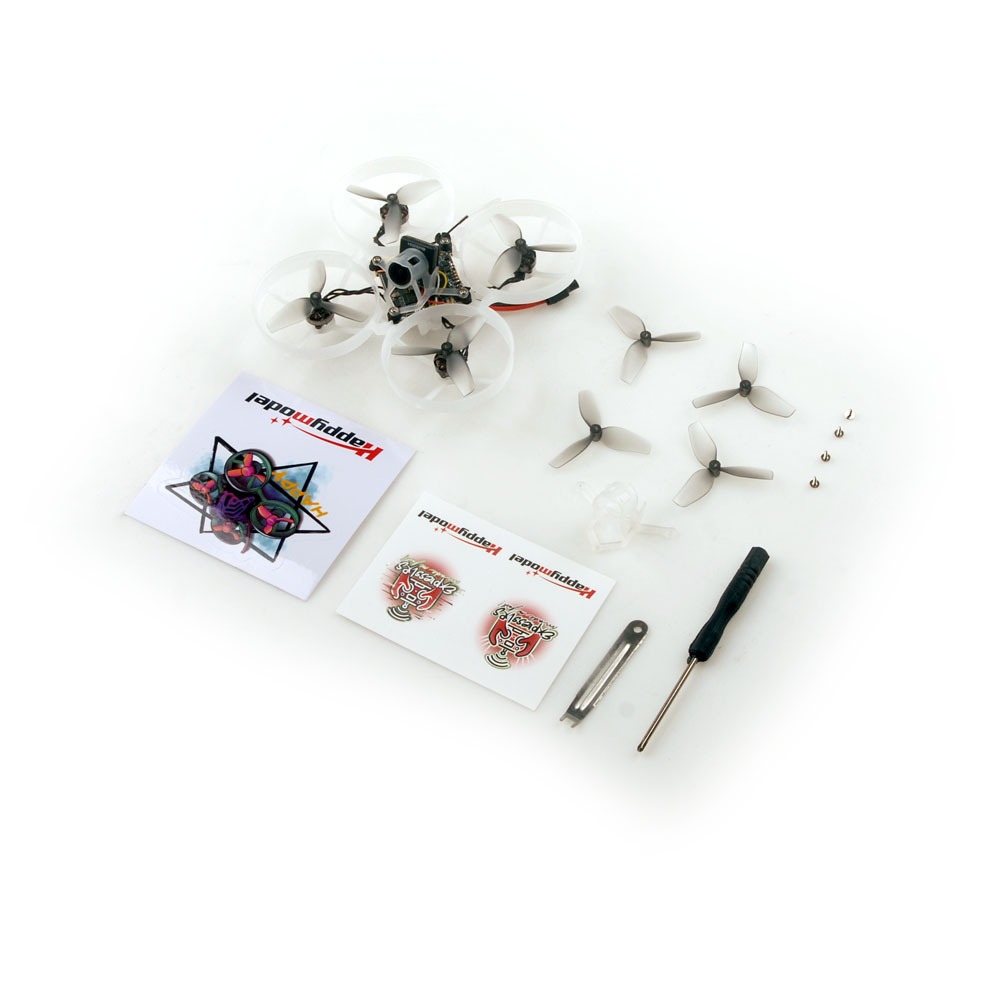

Package Includes:

• 1 x Happymodel Mobula7 Freestyle BNF 1S
• 1 x Spare canopy
• 1 x Spare propeller(set)
• 1 x Screw driver
• 1 x propeller disassemble tool

Spare Parts (Not Included):

• Props:
  • OEM: Coming soon HQProp
  • Alternative: Gemfan 40mm 1608 3-blade Propeller 1.5mm Set of 8 (3 Colours)
• Battery options (A30 and BT2.0 compatible)
  • GNB Battery 3.8V 80C 450mAh 1S HV A30 Head Connector
  • BetaFPV BT2.0 LAVA 450mAh 1S 75C HV Battery
  • KQ Recommends: BetaFPV BT2.0 LAVA 550mAh 1S 75C HV Battery
  • GNB Battery 3.8V 90C 660mAh 1S HV A30 Cable
  • GNB Battery 3.8V 100C 720mAh 1S HV A30 Cable
• AIO: HDZero AIO5 F4 5A ELRS2.4

Package Includes:

• 1 x Happymodel Mobula7 Freestyle BNF 1S
• 1 x Spare canopy
• 1 x Spare propeller(set)
• 1 x Screw driver
• 1 x propeller disassemble tool
