FIRMWARE TARGET: Betaflight CRAZYBEEF4SX1280

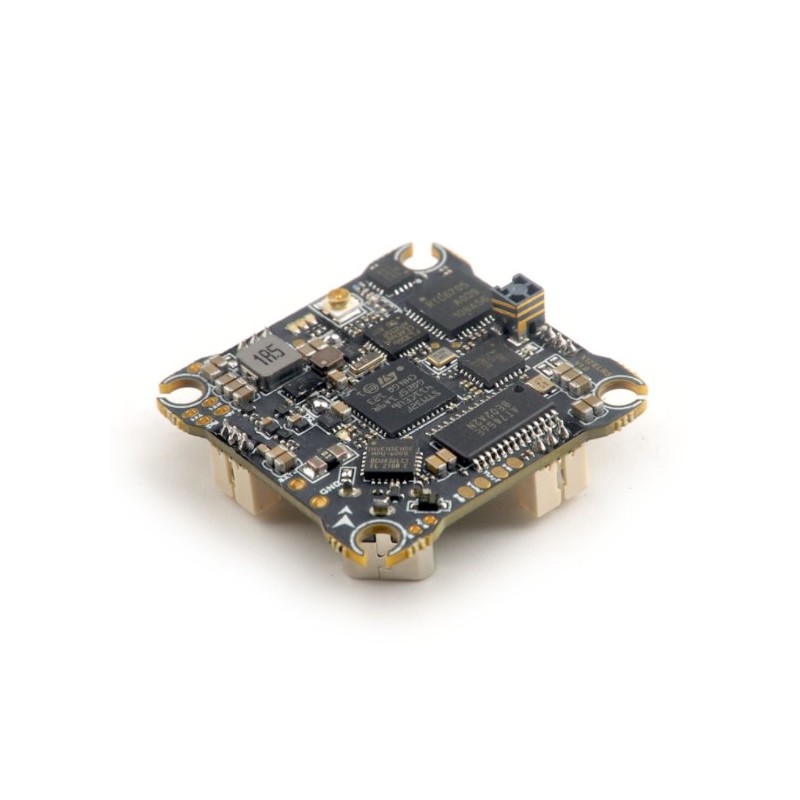

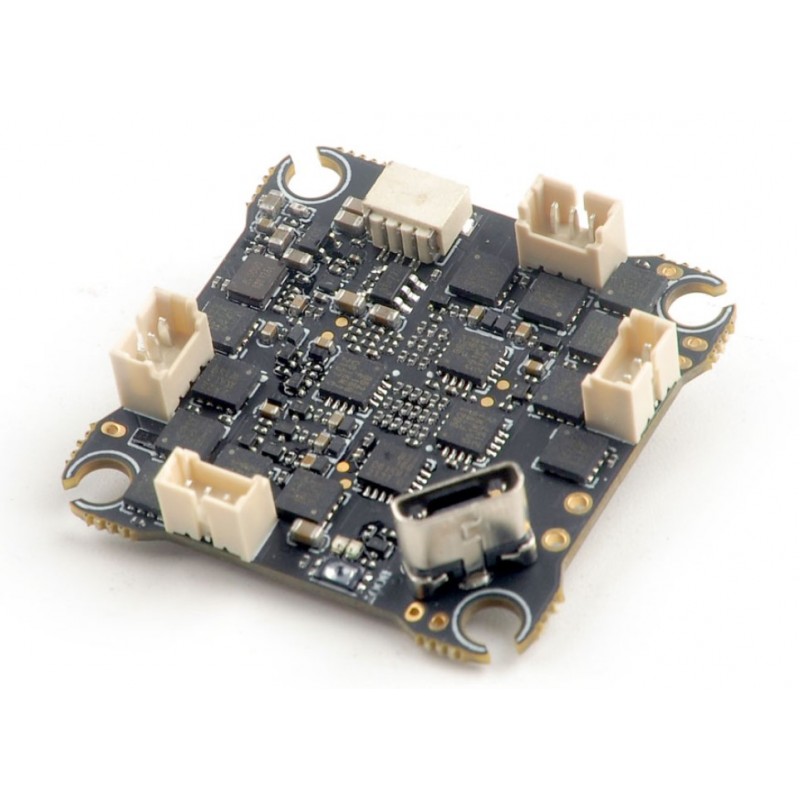

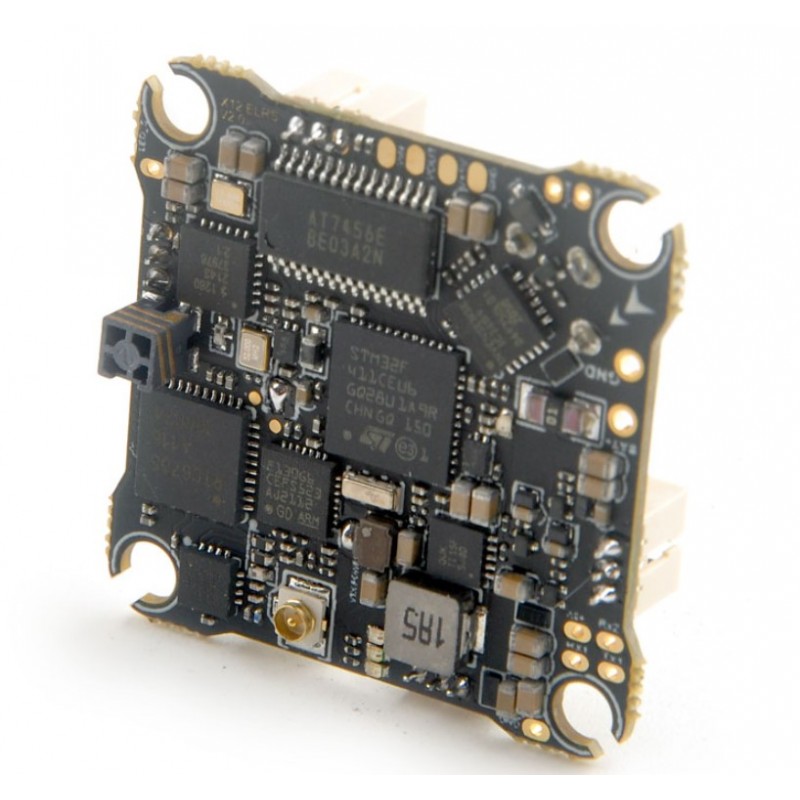

The HappyModel X12 ExpressLRS AIO Flight Controller is the world’s first 5-IN-1 AIO powerhouse, integrating a 12A Blheli_S ESC, Betaflight OSD, and a high-performance OPENVTX (up to 400mW). With an onboard SPI ELRS receiver supporting ELRS TX module 2.x firmware, it delivers exceptional RX and VTX range for brushless whoops. Experience next-level flight precision and reliability in a lightweight 5.1g design built for serious FPV enthusiasts.
Specifications:
- Brand Name: Happymodel
- Item Name: X12 AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX
- Betaflight firmware target:
- ELRS Version: CRAZYBEEF4SX1280
- FRSKY Version:CRAZYBEEF4FR
- FLYSKY Version:CRAZYBEEF4FS
- PNP Version:CRAZYBEEF4DX
- LITE Version:CRAZYBEEF4SX1280
- VTX antenna: U.FL
- Weight: 5.1g
- Support 1-2S Lipo/LIHV battery
- Size: 30mm*30mm*8mm
Flight controller
- X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
- X12 Frsky V2.1 flight controller built-in FRSKY 2.4G receiver Target: CRAZYBEEF4FR
- X12 Flysky V1.0 flight controller built-in Flysky AFHDS-2A 2.4G receiver Target:CRAZYBEEF4FS
- X12 PNP V1.0 flight controller without onboard receiver Target CRAZYBEEF4DX
- X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280
- MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: ICM20689 or BMI270 or ICM42688P(SPI connection)
- Mount hole size: 25.5mm*25.5mm
- Power supply: 1-2S battery input (DC 2.9V-8.7V)
- Built-in 12A(each) Blheli_S 4in1 ESC
- Built-in Betaflight OSD(SPI Control)
- Built-in 5.8G OpenVTX 0mw~400mw
- Built-in ExpressLRS 2.4G,Frsky D8/D16, Flysky AFHDS-2A
- Built-in voltage meter sensor , voltage meter scale 110Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC
- Power supply: 1-2S LiPo/LiPo HV
- Current: 12A continuous peak 15A (3 seconds)
- Support BLHeliSuite programmable
- Factory firmware: Z_H_30_REV16_7.HEX
- Default protocol: DSHOT300
- Support Bluejay firmware
- When use Blujay firmware with 48khz, should set startup power to 1100/1200
Onboard SPI ExpressLRS 2.4GHz Receiver
- Packet Rate option: 50Hz/150Hz/250Hz/500Hz
- ExpressLRS Firmware version: V2.0
- RF Frequency: 2.4GHz
- Antenna : SMD antenna
- Telemetry output Power: <12dBm
- Receiver protocol:Â SPI ExpressLRS
- Compatible with ExpressLRS V2.0 TX Module
- Couldn’t flash separately ExpressLRS firmware
Onboard Frsky SPI D8/D16 receiver Version
