Description

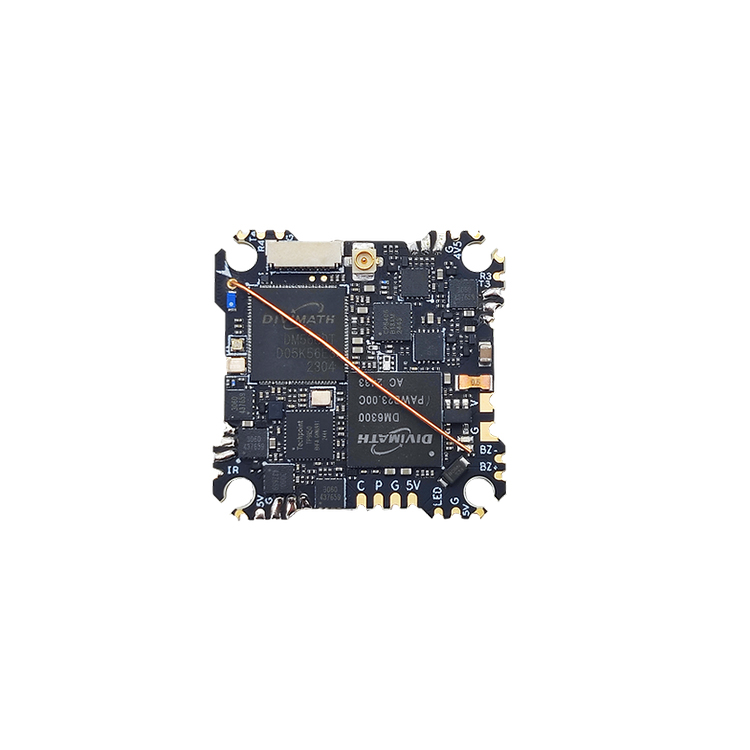

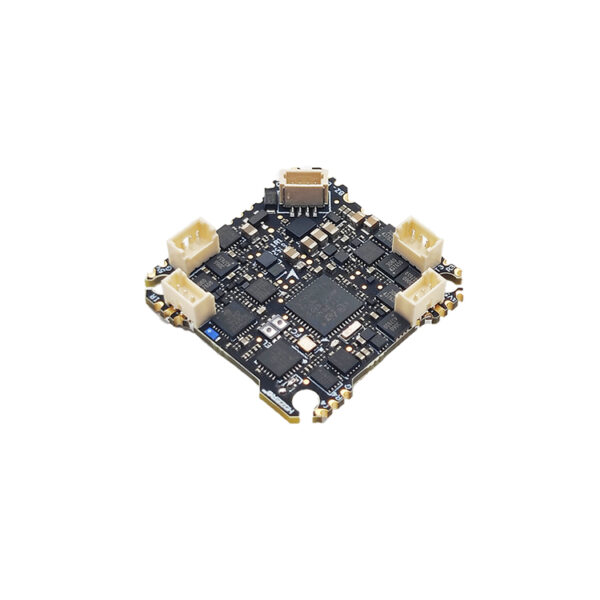

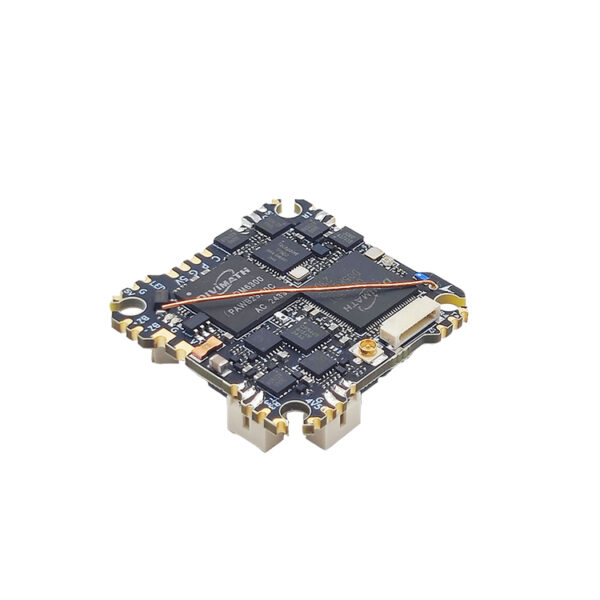

The HDZero AIO15 – 2S/3S Digital AIO Flight System is the ultimate all-in-one solution, integrating flight controller, digital VTX, ESC, ExpressLRS receiver, and BEC into a compact 31.3×31.3mm board. Designed for 2S–3S tiny whoops and micro freestyle builds, it delivers 15A continuous power, crisp HDZero video, and ultra-low latency performance—giving micro pilots the freedom to fly harder, faster, and longer without sacrificing clarity or responsiveness.

Designed in Response to Pilot Feedback

Pilots loved the convenience and weight of the HDZero AIO5, but wanted more power and voltage flexibility. The AIO5 was limited to:

• 5A ESCs
• 1S voltage only

The AIO15 solves this with:

• 15A ESCs (18A peak)
• 2S-3S battery support

Now you can fly harder, faster, and longer with the digital clarity and ultra-low latency HDZero is known for.

Features

• Integrated HDZero 5.8GHz Digital VTX
  • Output Power: 25mW / 200mW
  • Channels: R1- R8, F2/F4, L1 – L8
  • U.FL connector with included ultra-light linear antenna
• Built-in Serial ExpressLRS 2.4GHz Receiver
  • Packet rates: 50 – 1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
  • Pre-soldered enamel wire antenna
• Flight Controller
  • MCU: STM32G473 @170MHz, 512K Flash
  • Gyro: ICM42688
  • Onboard voltage and current sensing
  • Firmware target: HDZERO_AIO15
• 4-in-1 15A ESC
  • MCU: EFM8BB21
  • Current: 15Ax4 continuous, 18Ax4 peak (3s)
  • BlueJay firmware (Z_H_30_48_v0.19.2)
  • DShot600 ready
• 5V BEC
  • 5V @ 1A output for accessories and camera

Specifications

• Battery Input: 2S–3S (3.5V–13V)
• Mounting: 25.5×25.5mm M2
• Board Dimensions: 31.3×31.3mm
• Weight: 7.2g (with motor plugs)
• Compatibility: Fits popular whoop frames

Applications

Perfect for:

• 80mm freestyle whoops
• Lightweight micro drones
• Pilots seeking minimal weight with maximum performance
• Builders upgrading from the AIO5

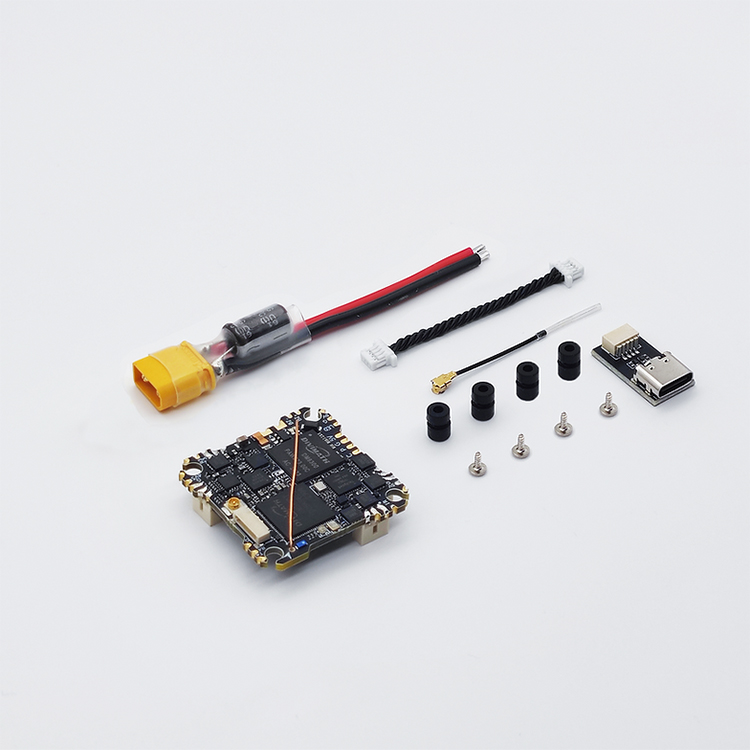

Package Includes

• 1x HDZero AIO15 board
• 1x Power cable with xt30 connector
• 4x screws
• 4x rubber grommets
• 1x ultra-lite linear VTX antenna
• 1x Adapter board
• 1x Adapter cable
