HDZero AIO5 F4 5A ELRS2.4
Integrating digital video and ExpressLRS, this AIO delivers a lightweight, durable solution for unmatched FPV performance.
$199.99
In Stock at KiwiQuads
Ships from our Tauranga warehouse
SKU: 1302
Categories: AIO (All in One) FCs, FPV Equipment, HDZero
Description

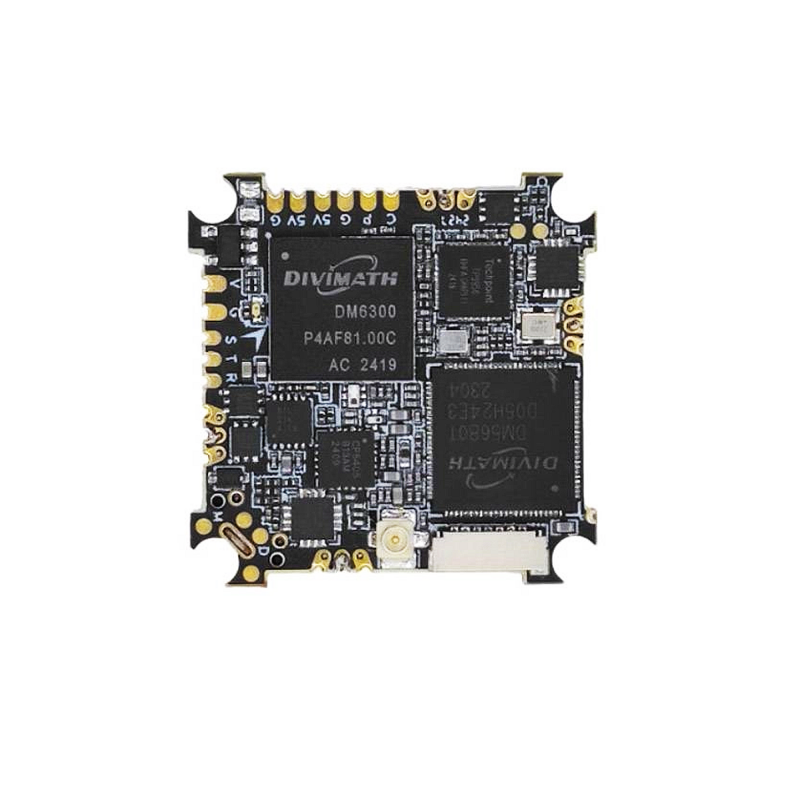

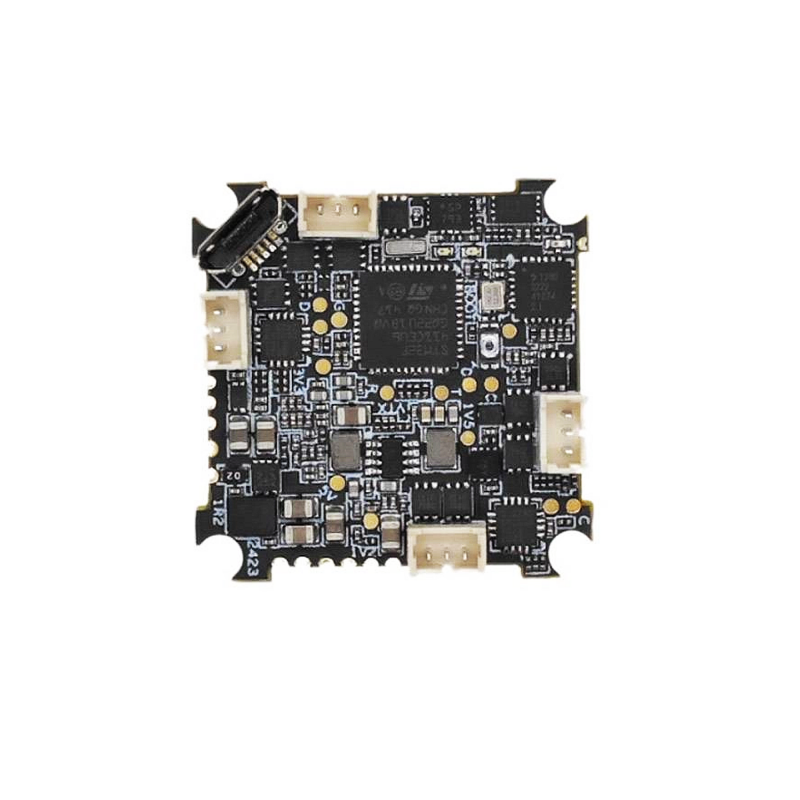

The HDZero AIO5 F4 5A ELRS2.4 revolutionizes tiny whoops with the world’s first digital video AIO, reducing the weight of bind-and-fly 65mm models to under 19.4g. It combines an F4 flight controller, HDZero digital video transmitter, SPI 2.4GHz ExpressLRS receiver, DSHOT 4-in-1 ESC, and a 5V BEC, delivering exceptional durability, performance, and simplicity in a single PCB for crystal-clear digital video and uncompromised flying experience.
Specifications:
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyro: BMI270
- On board voltage and amperage meters
- Built-in 5A(each) BLHeli_S 4-in-1 ESC
- MCU: EFM8BB21
- HV Current: 5A continuous peak 6A (3 seconds)
- Factory firmware: O_H_5_48_V0.19.2.HEX
- Dshot600 ready

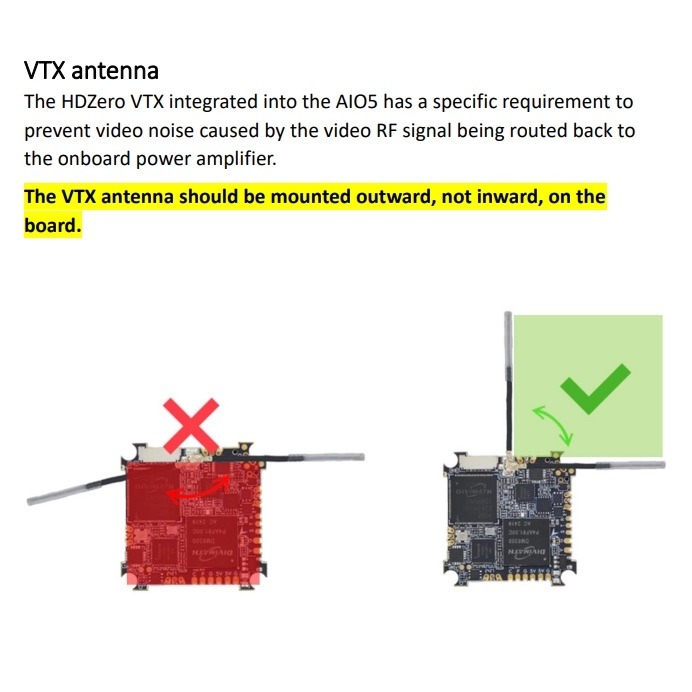

- Built-in 5.8G HDZero VTX
- RF output: 25mw/200mW
- Supported channels: R1-R8, F2/F4, L1-L8
- UFL connector (ultra-lite linear antenna included)

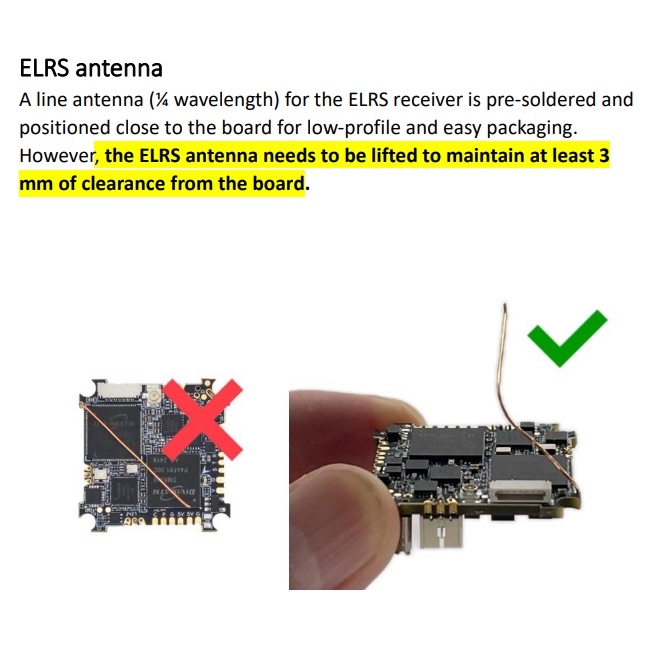

- Built-in SPI ExpressLRS 2.4GHz receiver
- Packet rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
- Pre-soldered enamel wire antenna
- Telemetry output power: <12dBm
- Built-in 5V 1A BEC
- Flight controller firmware target: CRAZYBEEF4SX1280
- Power supply: 1S battery (2.5V – 4.35V)
- Fully compatible with the popular whoop frames
- Board size:28.5×28.5mm with a 25.5×25.5 mounting hole size
- Weight: 5.7g(without motor plugs), 6.3g (with motor plugs)

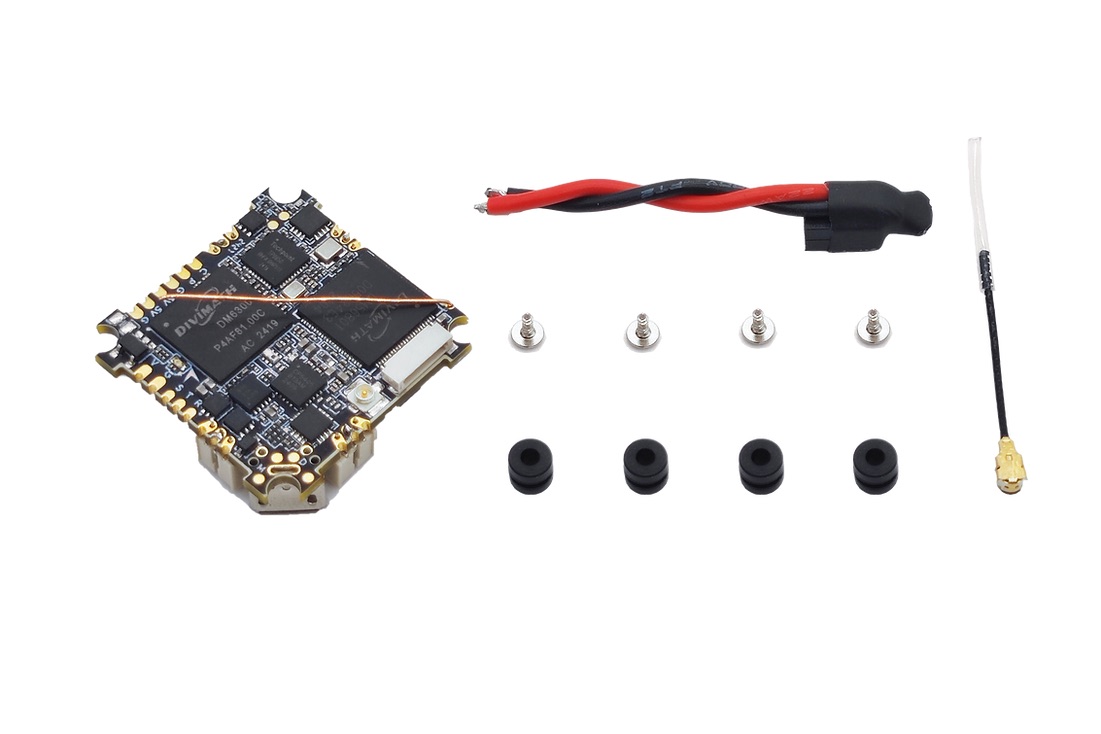

Package Includes:
- 1x HDZero AIO5 board
- 1x Power cable with inverted angle A30 connector
- 4x screws
- 4x rubber grommets
- 1x ultra-lite linear VTX antenna
Only logged in customers who have purchased this product may leave a review.
Related products
-
Foxeer Lollipop 4+ 5.8GHz RHCP U.FL Antenna 2PCS (3 Sizes)
5.00 out of 5(5) $46.99In stockSelect options This product has multiple variants. The options may be chosen on the product page -
Walksnail Avatar Coaxial Cable (5.5cm/9cm/14cm/20cm)
5.00 out of 5(5) $14.99 – $19.99In stockSelect options This product has multiple variants. The options may be chosen on the product page -
iFlight Blitz 5.8GHz 1.6W VTX Adjustable
5.00 out of 5(6) $84.99In stockAdd to cart -
Foxeer Lollipop 4+ 5.8GHz RHCP SMA Antenna 2PCS (60mm/150mm)
5.00 out of 5(6) $46.99In stockSelect options This product has multiple variants. The options may be chosen on the product page -
Foxeer Micro Razer 1200TVL 4ms FPV Camera Black
5.00 out of 5(1) $32.99Out of stockRead more -
BetaFPV VR03 FPV Goggles
4.38 out of 5(8) $149.99Out of stockRead more
Explore more from RunCam, HDZero
-
New!
Runcam Thumb 2 with 3x ND Filter Set
$214.99In stockAdd to cart -
New!
HDZero Lux Camera
$91.99In stockAdd to cart -
New!
HDZero Eco Camera
$59.99In stockAdd to cart -
New!
HDZero AIO5 F4 5A ELRS2.4
$199.99In stockAdd to cart -
New!
HDZero MIPI Cable (4 Sizes)
$14.99 – $35.99In stockSelect options This product has multiple variants. The options may be chosen on the product page -
New!
HDZero RunCam Replacement Lens for Digital Nano Camera
$23.99In stockAdd to cart
Other AIO (All in One) FCs you might like
-

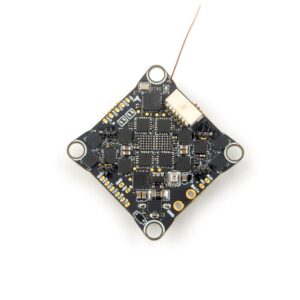

HappyModel CruxF405HD AIO Flight Controller 20A ESC with ExpressLRS
