Description

HDZero Goggle was designed with the FPV community for the FPV community.

• Open-source goggle software and CAD files, so you can customize it to your preferences
• Clear digital video immune to warping, color shifting, and image rolling
• 1080p 90hz adaptive refresh rate OLED micro-displays
• Resolutions for different flying types: 1080p30, 720p60, 540p90, and 540p60

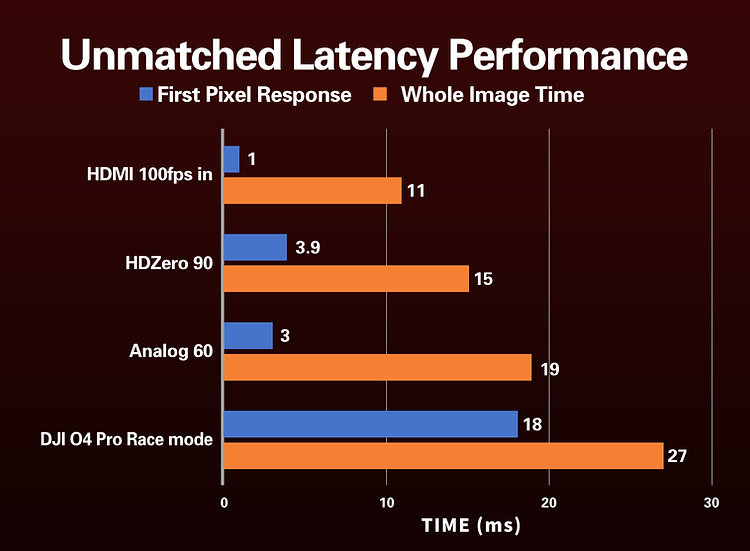

• Smoothest and fastest link for the most connected flying feel (3ms glass-to-glass)
• Fly with friends – 1-way broadcast doesn’t interfere with nearby pilots

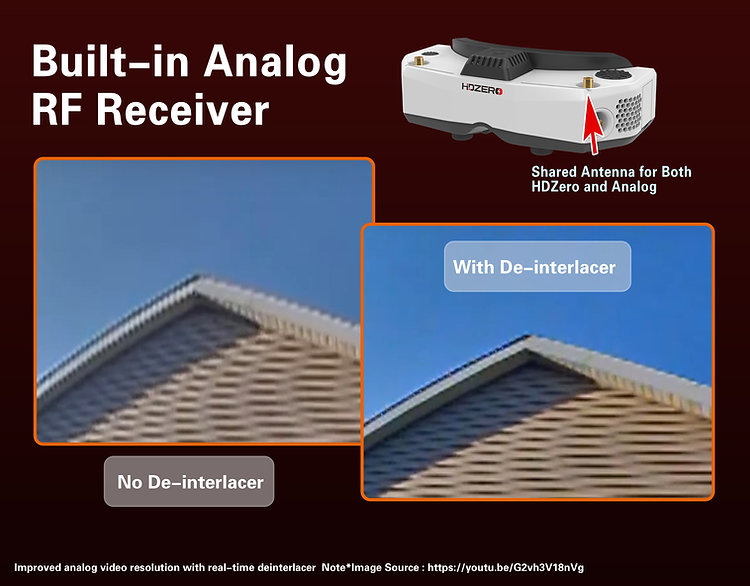

• Improved analog video resolution with real-time deinterlacer
• All the video input and output you need – one goggle for digital, analog, and HDMI video
• Analog 3.5mm AV input
• HDMI input and output (yes, it is possible to have both)
• Headphone/microphone combo jack
• Add-on Analog Module Bay with 2.4Ghz Wi-Fi module for future expansion:
• Video streaming to phone (possible future capability)
• OTA Goggle FW updates (possible future capability)
• Mount antennas to innovative rail mount system

Features:

• On/off sliding switch – be confident that the goggle is on or off at a glance or by feel
• Designed for open source, the new goggle runs Linux. All code for the user interface is new and open source

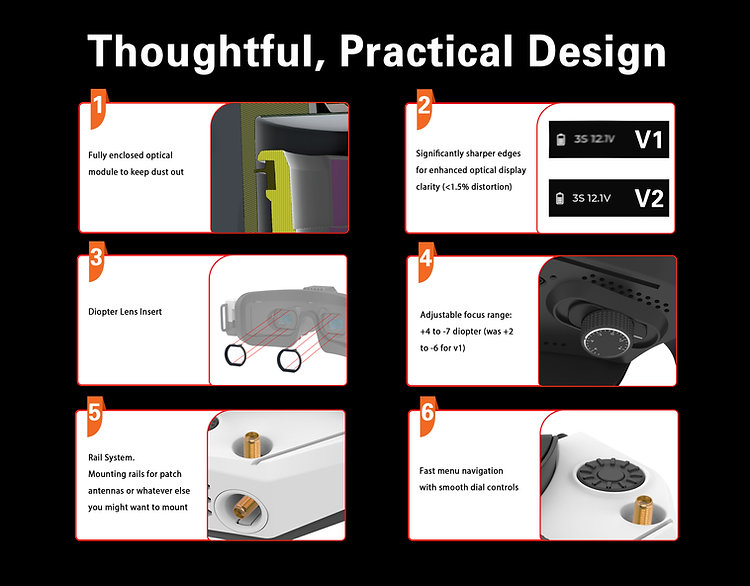

• Support diopter lens inserts

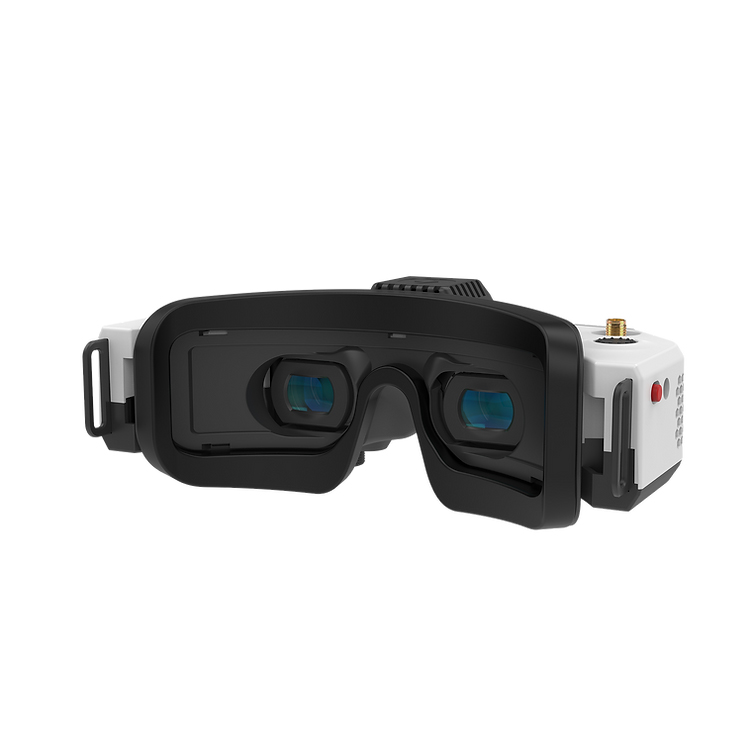

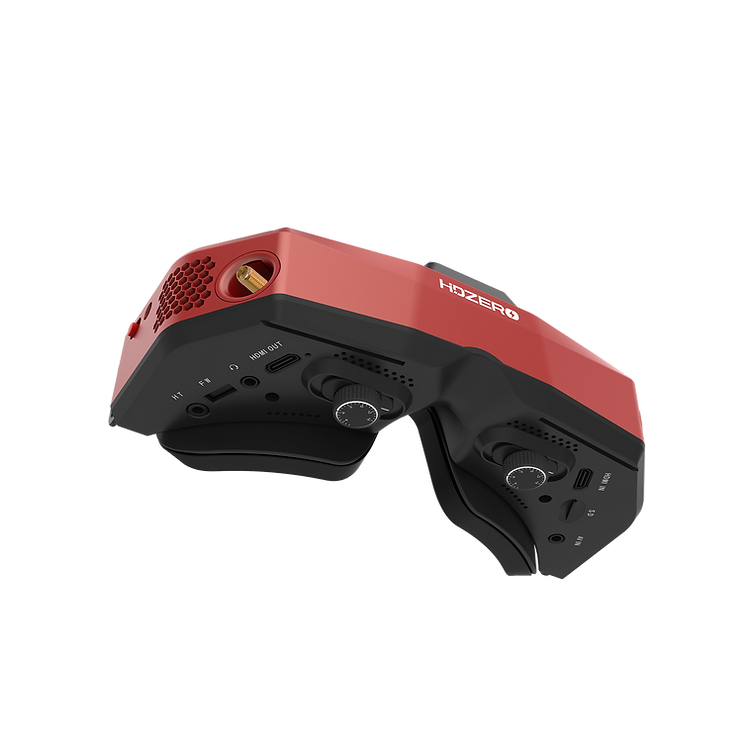

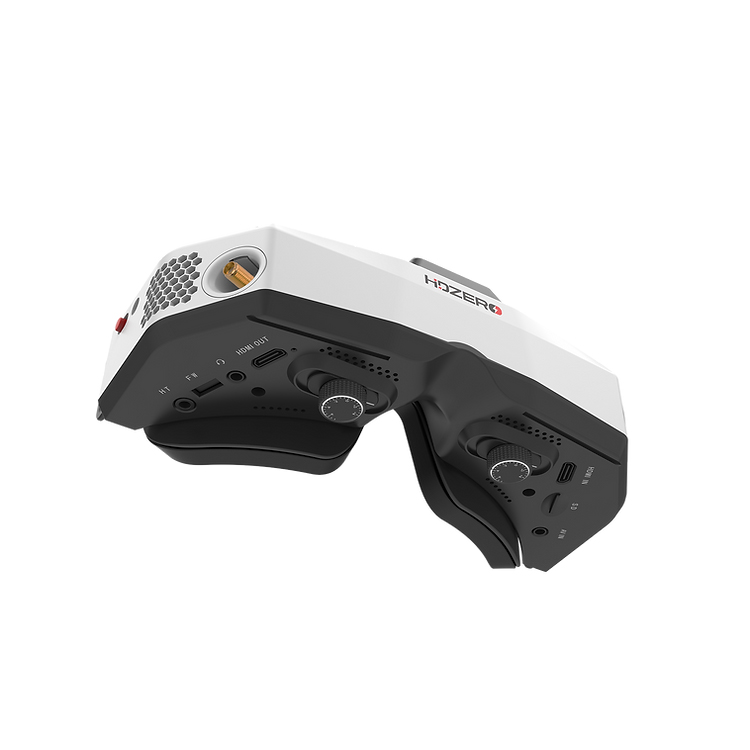

• 90Hz 1080p OLED screens with sliding IPD adjustment and dials for focus adjustment
• By integrating the entire goggle display pipeline with HDZero’s fixed-latency video transmission, these goggles achieve 3ms glass-to-glass sub-frame latency with no jitter or dropped frames
• Mounting rails for patch antennas or whatever else you might want to mount
• Recessed front SMA jacks so no need to remove antennas when packing the goggle away
• Three independently addressable fans work in combination to cool the internals and prevent fogging. They are soft mounted to prevent screen vibration and noise
• HDMI input and HDMI output
• Built-in microphone for DVR
• 3.5mm combination headphone / microphone jack for audio and external mic
• 3.5mm analog video/audio input for use with ground station inputs
• Integrated 2D deinterlacer that adds no delay for analog input
• Built-in ESP32
• Built-in H.265 DVR
• 6-axis smart inertial measurement for head tracking pan+tilt support
• Add-on side-mounted analog module bay that accepts most of today’s analog modules
• Add-on 2.4Ghz WiFi video streaming module for live steaming

Specification:

• HDZero Camera glass-to-goggle glass latency: <3ms
• Adjust IPD range: 57-70mm
• Adjustable focus range: +6 to -6 diopter
• Full HD 1920x1080p 90fps OLED micro display
• FOV: 46deg
• Input voltage: 7V-25.2V

Package Includes:

• 1x HDZero goggle
• 1x wide face plate
• 1x narrow face plate
• 1x foam padding
• 1x Goggle Strap
• 1x 1200mm XT60 cable
• 1x 150mm HDZero VTX programing cable
• 1x Thick Canvas Goggle Bag
• 1x Lens cloth
