Description

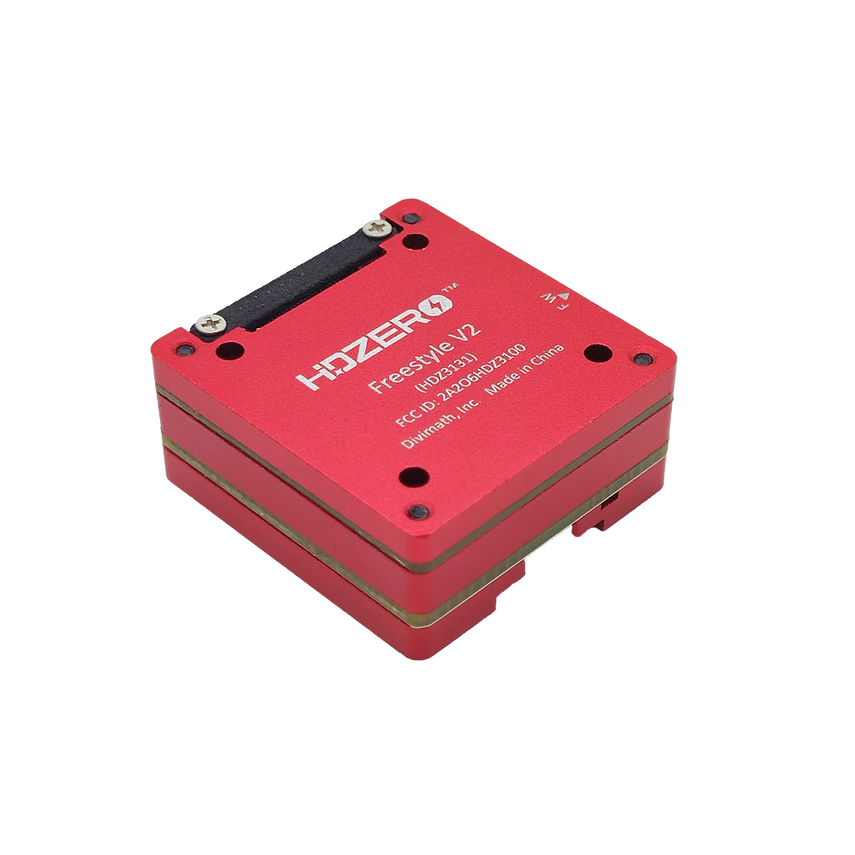

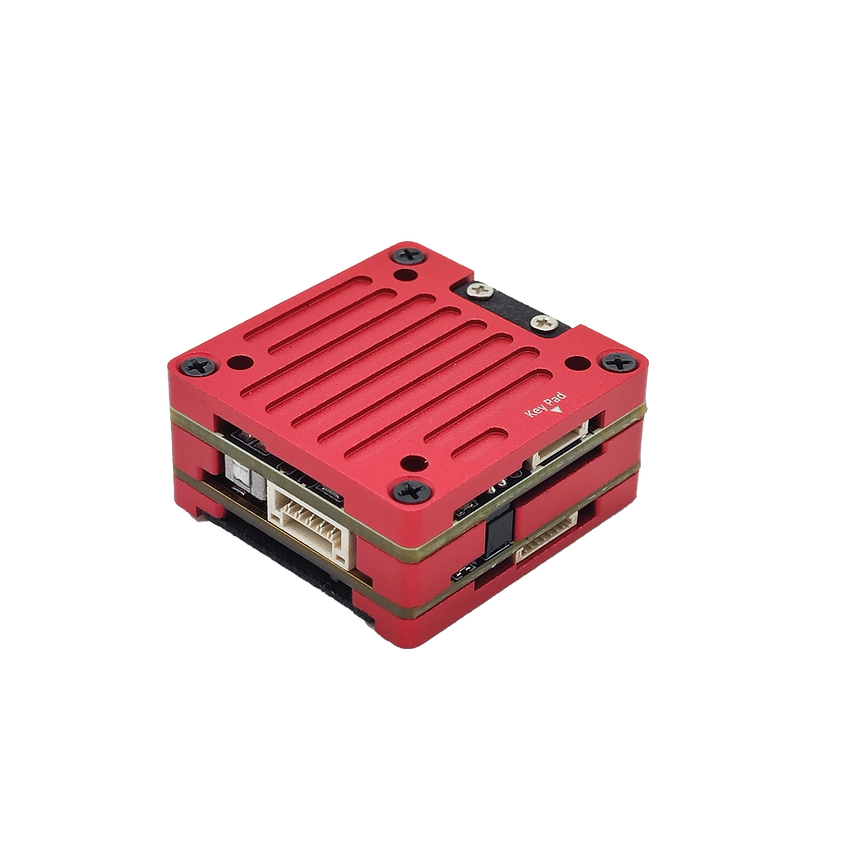

The HDZero Freestyle V2 VTX is the second-generation 5.8GHz digital video transmitter, designed for 3-5 inch HD drones. It features durable construction with a CNC-machined case, offering RF shielding and improved signal integrity. The VTX includes a wire harness for a solderless power and MSP UART connection. Both the antenna and MIPI cable are securely fastened with a retention bar and screws for added stability.

Features:

• Video Modes: 720p60, 1080p30, 540p60, 540p90
• Max RF Output: Up to 1W on R1 channel (with license/approval)

Specifications:

• Manufacturer: Divimath, Inc.
• Model: HDZero Freestyle V2 VTX
• Weight: 22.3g
• Dimensions: 29 x 30 x 14 mm
• Operating Frequency: 5.725-5.850 GHz
• Transmitter Power: 25mW, 200mW
• Mounting Pattern: 20×20 mm, M2 holes
• Antenna Interface: Secured U.FL
• Video In: Secured MIPI
• SmartAudio: Yes
• MSP Canvas Mode: Yes
• Input Power: 7-25V
• Operating Temperature: 32°F-104°F (0°C-40°C)
• Power Consumption: 6-15W

Package Includes:

• 1x Freestyle V2 VTX
• 1x Power Cable
• 1x SA Cable
• 1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
• 1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
• 1x Double Sided Tape (29 x 30 x 1mm)
