Description

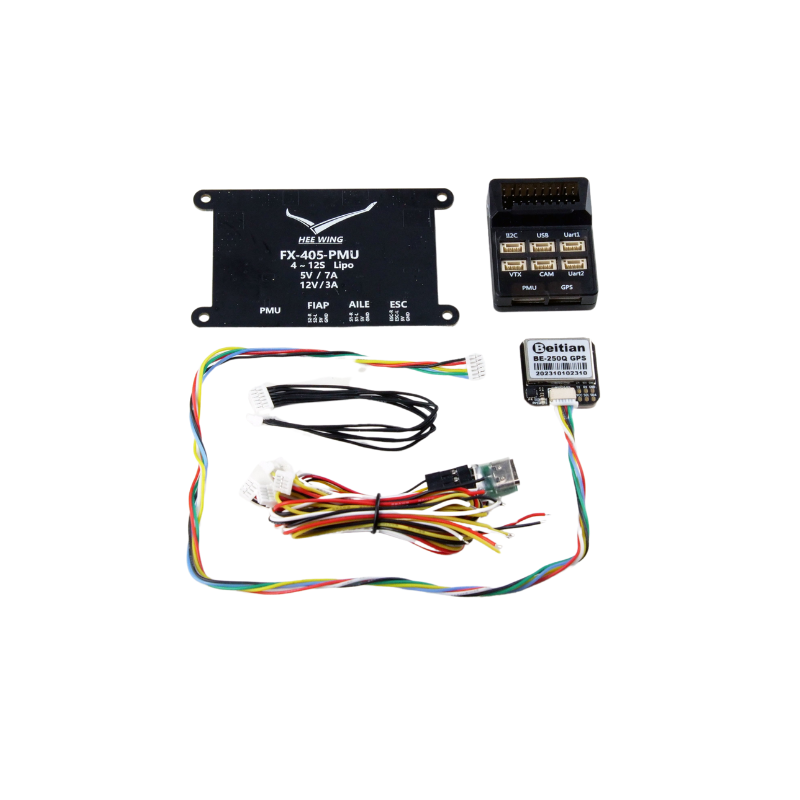

The HeeWing T2 FX-405 VTOL Flight Controller is the super small but powerful and VTOL capable flight controller from Heewing is available for purchase separately!

The PMU is specifically designed for T2, increasing the current to 100A+ and supporting up to 12A/53V maximum. Connecting cables increased to 5pcs totally!

Specifications:

• STM32F405 Microcontroller
• ICM42688 IMU
• SLP06 barometer
• Dataflash
• MAX7456 OSD
• 4 UARTs
• 9 PWM outputs
• FC Input Voltage : 5V
• PMU Input Voltage : 14.8V to 44.4V
• PMU Rated current: 0~100A
• FC Dimension : 44.3mm (L) x 34.4mm (W) x 13.7mm (H)
• FC Weight : 14.2gram (without PMU & wires)

Note:

• Comes pre-loaded with QLoiter/VTOL parameters for the T2 VTOL
• Supports both Analog and Digital FPV
• Supports SBUS, PPM, IBUS, ELRS, CRSF RC protocol

Package Includes:

• 1 x HeeWing T2 FX-405 VTOL Flight Controller
