Description

Note: iFlight refer to 100mm also as 130mm in some listings

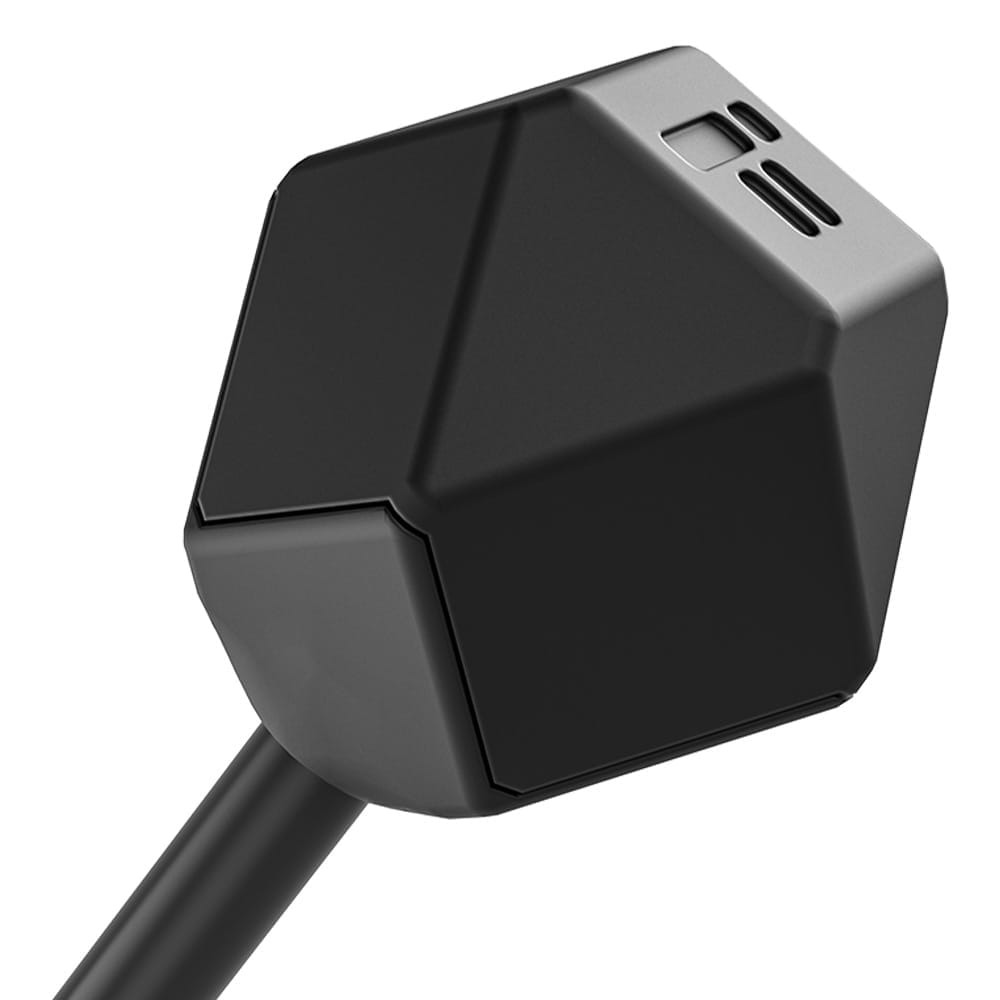

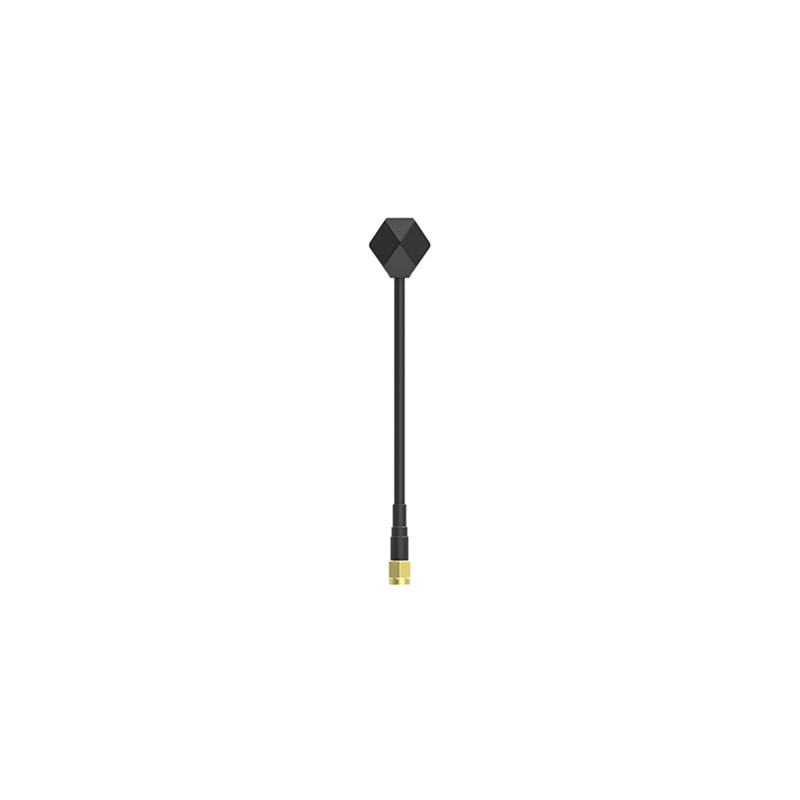

The iFlight 5.8GHz Albatross 100mm V2 Antenna (LHCP RP-SMA) redefines FPV performance with advanced ultrasonic welding and a rugged hexagonal design. Delivering superior durability, unmatched consistency, and optimal gain for DJI Digital FPV, this lightweight antenna ensures seamless stability and enhanced device performance. Its right-angle design simplifies installation, while the LHCP compatibility guarantees ideal pairing with DJI goggles. Elevate your flight experience with the reliable and innovative Albatross V2 antenna today!

Features:

• A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
• Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
• Achieves higher consistency in antenna gain, thereby improving device performance and stability.

Specifications:

• Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna
• Interface: LHCP
• Frequency range: 5.3GHz-6GHz
• Max Gain: 2.72dBi (5621MHz)
• MIN Gain: 2.12dBi (5436MHz)
• AVG Gain: 2.42dBi
• MAX VSWR: 1.72（5326MHz）
• MIN VSWR: 1.35（5917MHz）
• AVG VSWR: 1.62
• MAX radiation efficiency: 84.25%（5917MHz）
• MIN  radiation efficiency: 73.5%（5326MHz）
• AVG radiation efficiency: 80.3%
• Polarization: LHCP
• Cross polarization suppression: -26.7dB
• Axial Ratio：≤3
• Cable: RG141
• Weight: 9.5g
• Size: Total length: 130mm(±2mm), cable length:100mm

Package Includes:

• 1 x iFlight 5.8GHz Albatross 100mm V2 Antenna (LHCP RP-SMA)
