Description

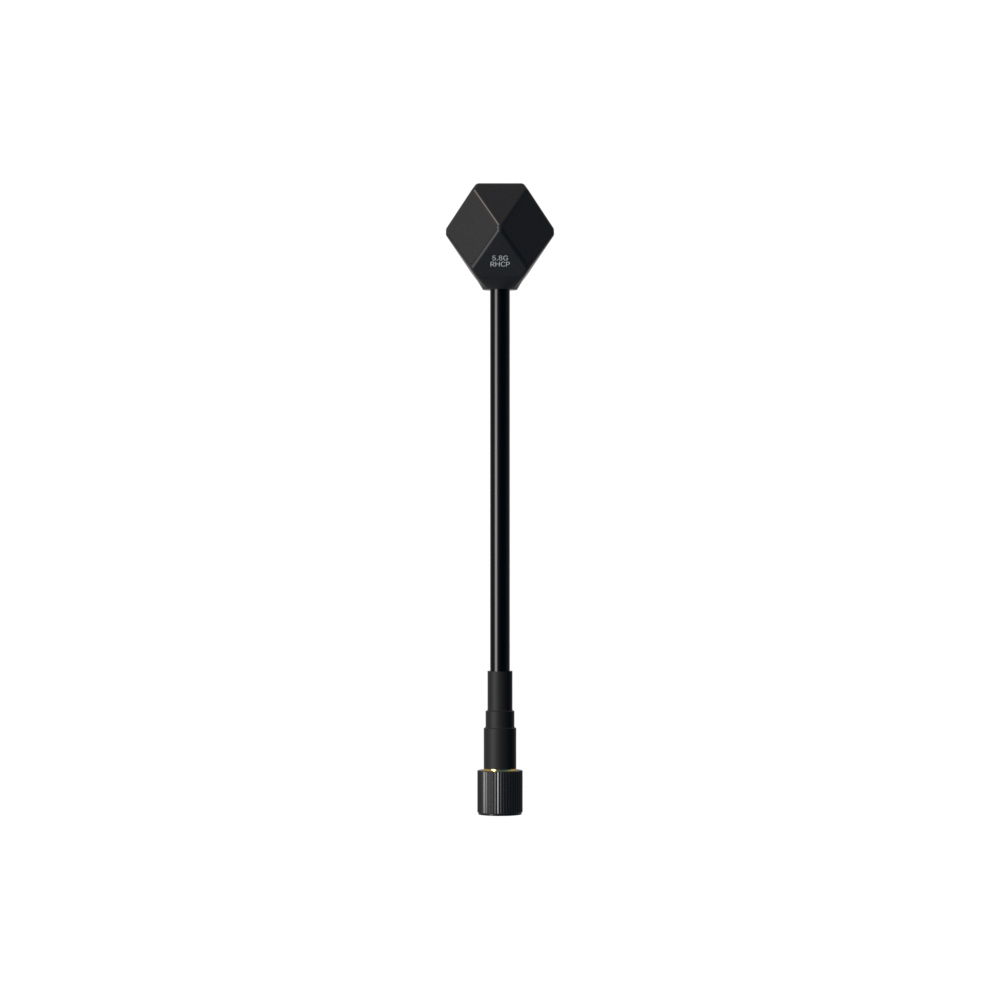

The iFlight Albatross V2.1 5.8GHz 130mm Antenna RHCP SMA delivers exceptional FPV signal stability with optimized RHCP polarization, impressive gain consistency, and durable ultrasonic welded construction for reliable long range performance. Its rugged hexagonal housing, lightweight RG141 cable design, and convenient right angle structure ensure secure mounting, enhanced durability, and smooth high quality video transmission during intense freestyle flights, racing sessions, and demanding aerial adventures for pilots seeking dependable performance every flight.

Features

• A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
• Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
• Achieves higher consistency in antenna gain, thereby improving device performance and stability.

Specifications

• Model: Albatross 5.8GHz RHCP SMA FPV Antenna
• Interface: RHCP SMA
• Frequency range: 5.3GHz-6GHz
• Max Gain: 2.85dBi (5695MHz)
• MIN Gain: 2.9dBi (5362MHz)
• AVG Gain: 2.9dBi
• MAX VSWR: 1.76（6000MHz）
• MIN VSWR: 1.20（5300MHz）
• AVG VSWR: 1.48
• MAX radiation efficiency: 68.77%（5700MHz）
• MIN  radiation efficiency: 65.17%（5300MHz）
• AVG radiation efficiency: 66.51%
• Polarization: RHCP
• Cross polarization suppression: -25dB
• Axial Ratio：≤3
• Cable: RG141
• Weight: 10.5±0.5g
• Size: Total length: 130mm (±5mm)

Package Includes

• 1 x iFlight Albatross V2.1 5.8GHz 130mm Antenna RHCP SMA
