iFlight Albatross V2 5.8GHz RHCP SMA Antenna 60mm
by iFlight
5.00 out of 5
(3 customer reviews)
Elevate your performance with the iFlight Albatross V2: a lightweight, rugged, and reliable antenna designed for unparalleled stability and gain.
$15.99
In Stock at KiwiQuads
Ships from our Tauranga warehouse
SKU: E1248
Categories: Antennas, FPV Equipment, Video Antennas
Description
Note: iFlight refer to 60mm also as 90mm in some listings

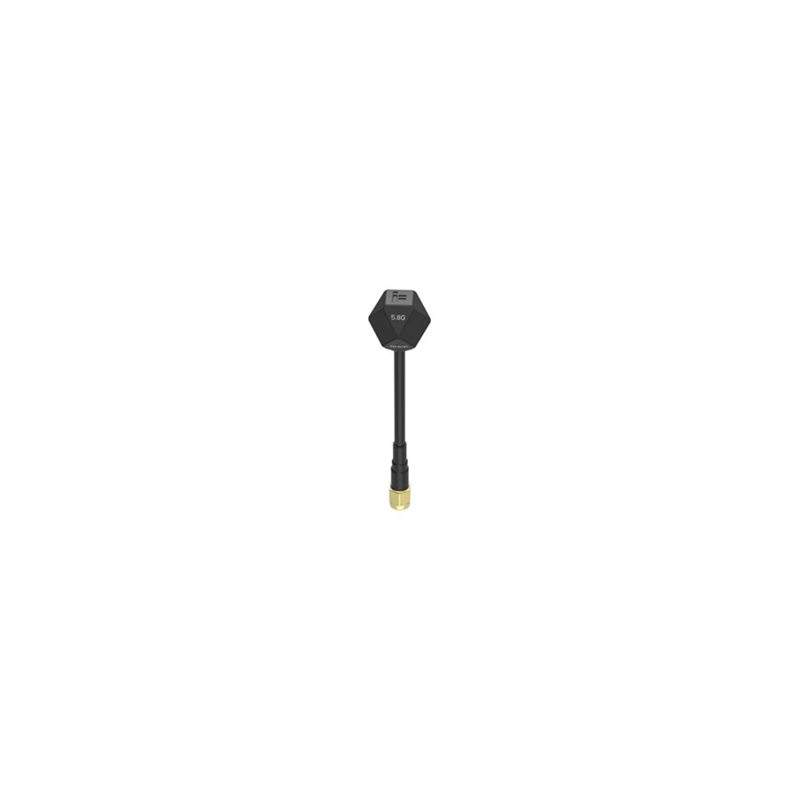

The iFlight Albatross V2 5.8GHz RHCP SMA Antenna 60mm with upgraded welding technology and a unique rugged design, the antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2 antenna.
Features:

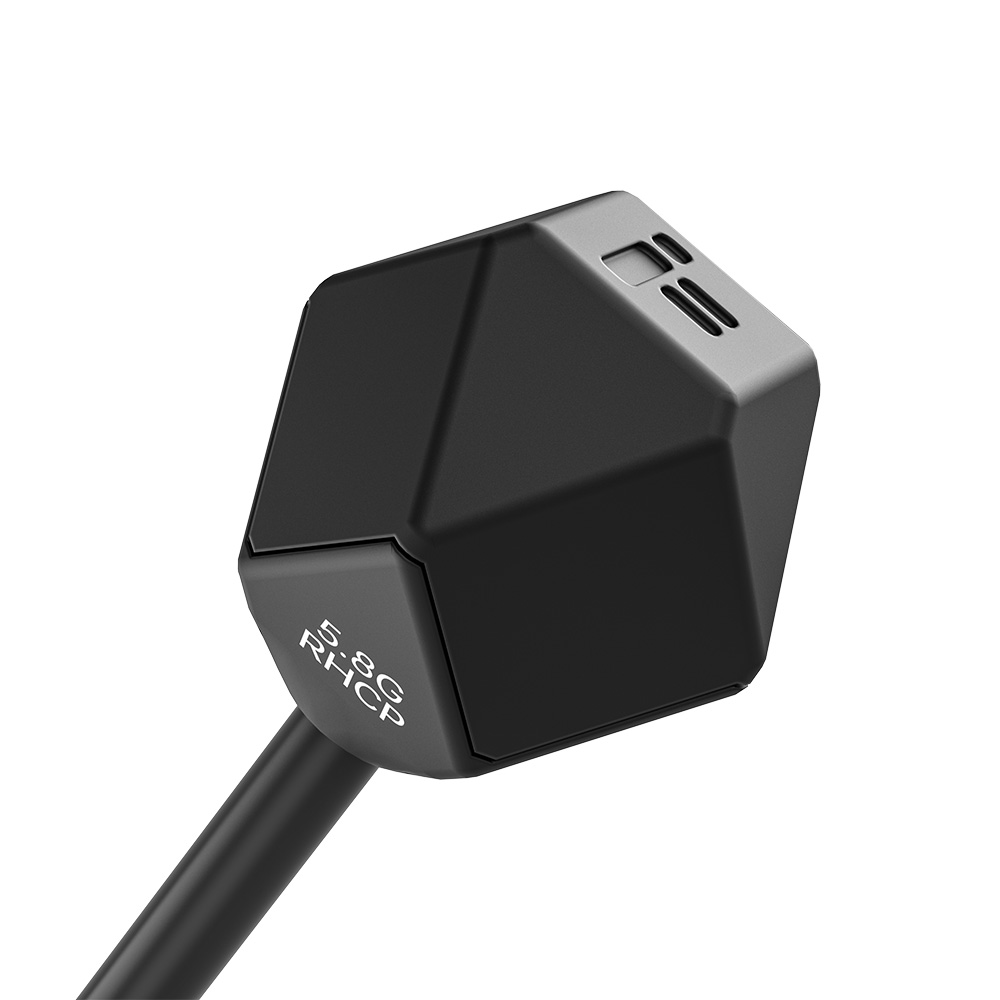

- A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
- Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
- Achieves higher consistency in antenna gain, thereby improving device performance and stability.
Specifications:
- Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna

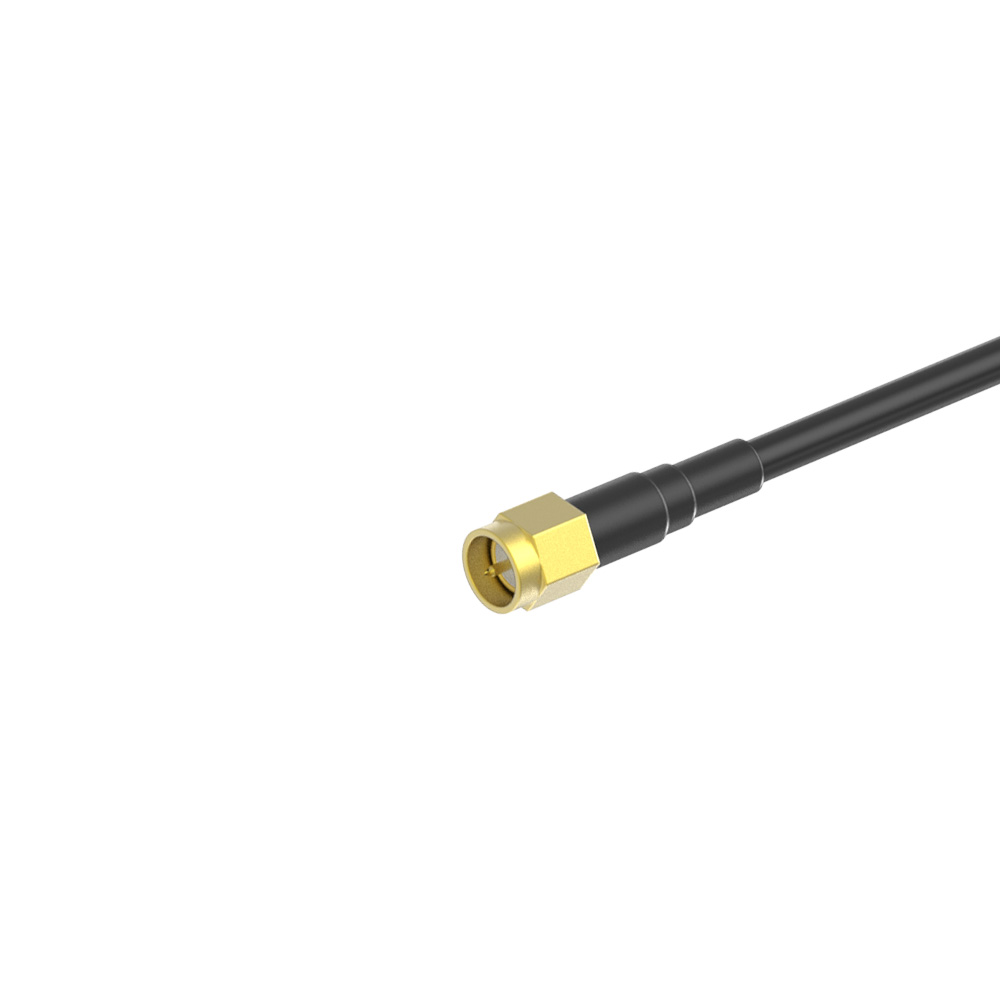

- Interface: RHCP SMA
- Frequency range: 5.3GHz-6GHz
- Max Gain: 2.65dBi (5695MHz)
- MIN Gain: 2.06dBi (5362MHz)
- AVG Gain: 2.4dBi
- MAX VSWR: 1.76(5917MHz)
- MIN VSWR: 1.46(5621MHz)
- AVG VSWR: 1.75
- MAX radiation efficiency: 86%(5436MHz)
- MIN radiation efficiency: 76%(5917MHz)
- AVG radiation efficiency: 83%
- Polarization: RHCP
- Cross polarization suppression: -25dB
- Axial Ratio:≤3
- Cable: RG141
- Weight: 7g
- Size: Total length: 85mm, cable length:60mm
Packaging Includes:
- 1 x Albatross V2 5.8 GHz RHCP SMA Antenna 60mm
