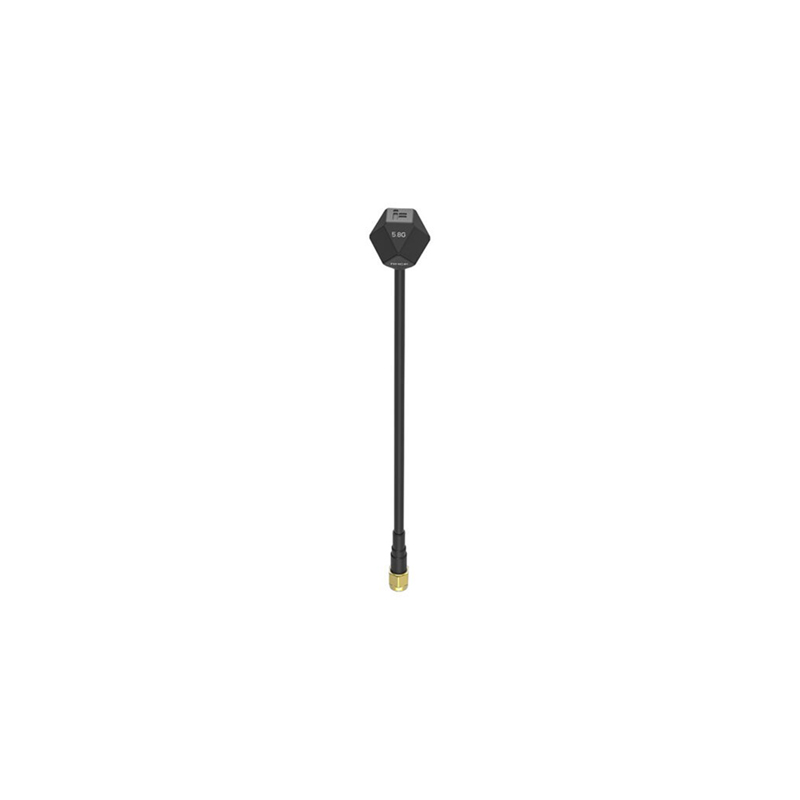

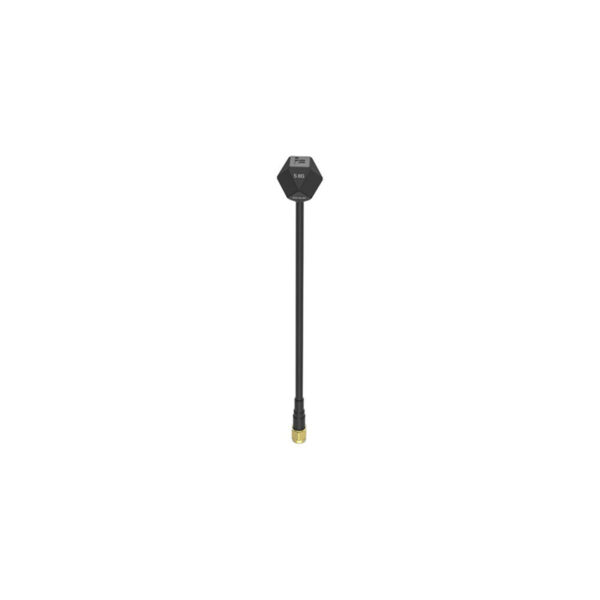

iFlight Albatross V2 5.8GHz LHCP RP-SMA Antenna 150mm

Description

Newly upgraded Durable 5.8G SMA RHCP V2 Antenna for Analog or Digital FPV.

The perfect upgrade part for your DJI Air Unit to avoid buying fragile stock antennas again and again…

Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!

Features:

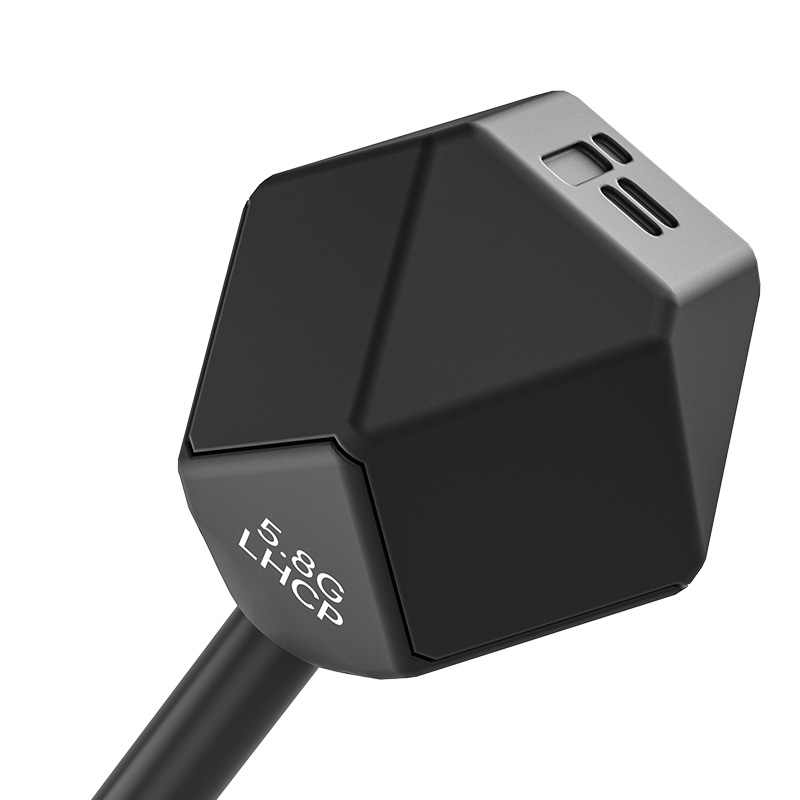

• A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
• Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
• Achieves higher consistency in antenna gain, thereby improving device performance and stability.

Specifications:

• Max Gain: 2.72dBi (5621MHz)
• MIN Gain: 2.12dBi (5436MHz)
• AVG Gain: 2.42dBi
• MAX VSWR: 1.72（5326MHz）
• MIN VSWR: 1.35（5917MHz）
• AVG VSWR: 1.62
• MAX radiation efficiency: 84.25%（5917MHz）
• MIN radiation efficiency: 73.5%（5326MHz）
• AVG radiation efficiency: 80.3%
• Polarization: LHCP
• Cross polarization suppression: -26.7dB
• Axial Ratio：≤3
• Cable: RG141
• Weight: 11.5g
• Size: Total length: 175mm, cable length:150mm

Included:

• 1 x 5.8GHz LHCP RP-SMA FPV Antenna
