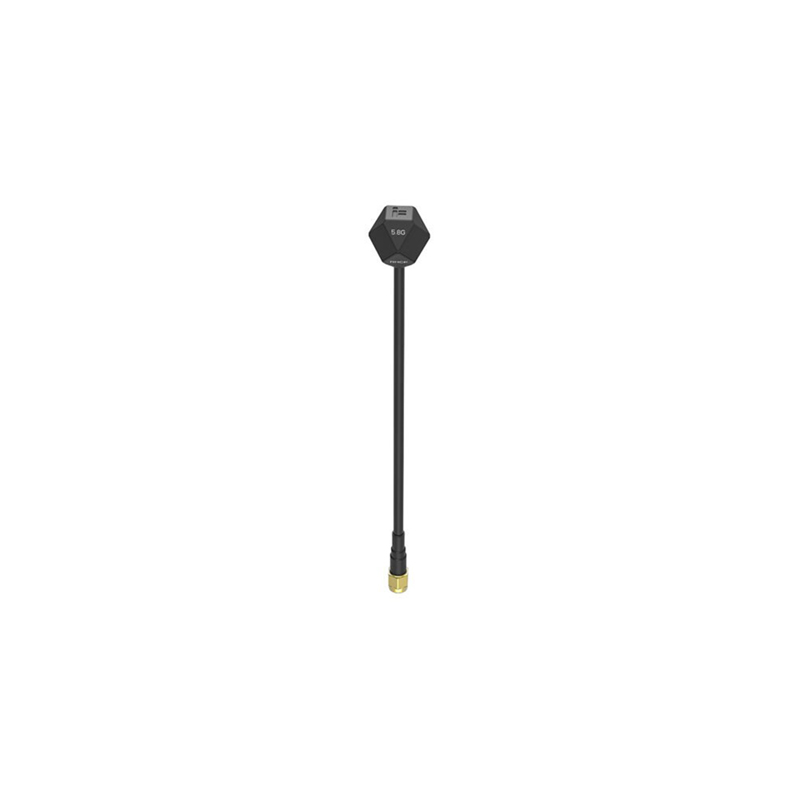

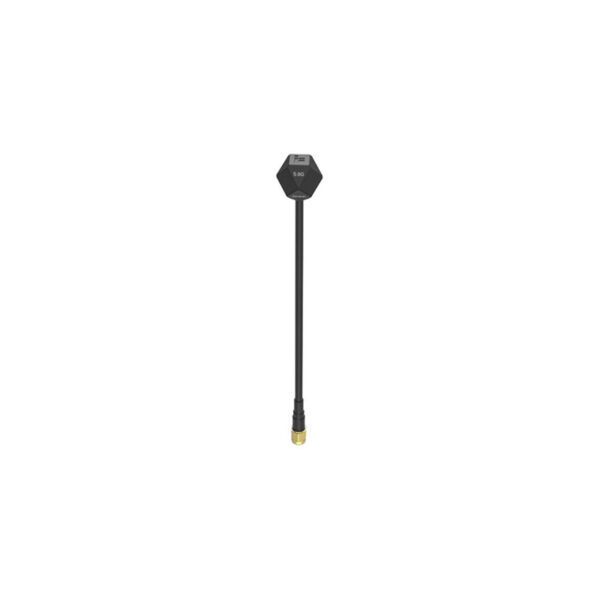

iFlight Albatross V2 5.8GHz RHCP RP-SMA Antenna 150mm

Description

Newly upgraded Durable 5.8G RP-SMA RHCP V2 Antenna for Analog or Digital FPV.

Features:

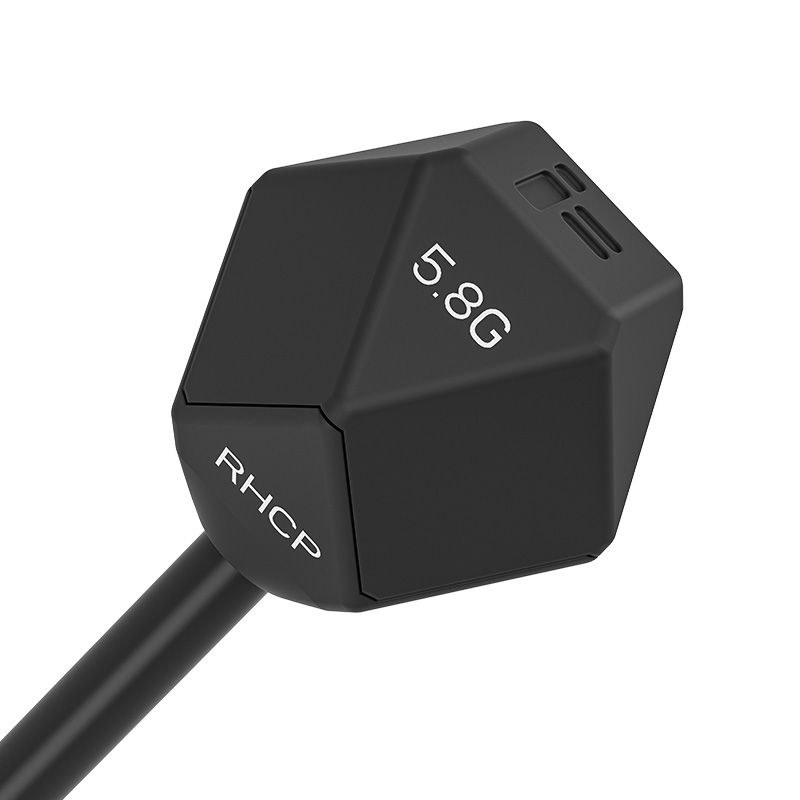

• A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
• Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
• Achieves higher consistency in antenna gain, thereby improving device performance and stability.

Specifications:

• Max Gain: 2.65dBi (5695MHz)
• MIN Gain: 2.06dBi (5362MHz)
• AVG Gain: 2.4dBi
• MAX VSWR: 1.76（5917MHz）
• MIN VSWR: 1.46（5621MHz）
• AVG VSWR: 1.75
• MAX radiation efficiency: 86%（5436MHz）
• MIN radiation efficiency: 76%（5917MHz）
• AVG radiation efficiency: 83%
• Polarization: RHCP
• Cross polarization suppression: -25dB
• Axial Ratio：≤3
• Cable: RG141
• Weight: 11.5g
• Size: Total length: 175mm, cable length:150mm

Included:

• 1 x 5.8GHz FPV Antenna
