Description

Note: iFlight refer to 150mm also as 180mm in some listings

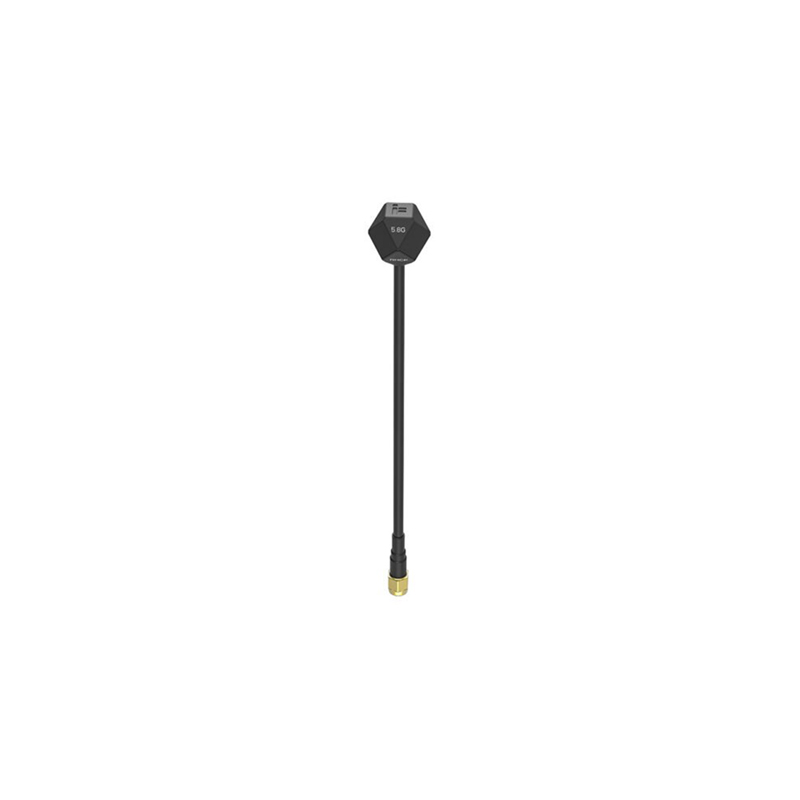

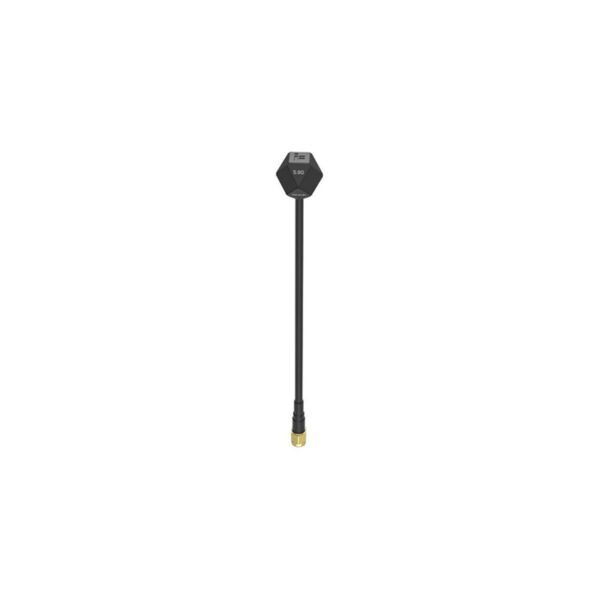

Newly upgraded Durable 5.8G SMA RHCP V2 Antenna for Analog or Digital FPV.

RHCP SMA is typically for Analog Builds.

Features:

• A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
• Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
• Achieves higher consistency in antenna gain, thereby improving device performance and stability.

Specifications:

• Max Gain: 2.65dBi (5695MHz)
• MIN Gain: 2.06dBi (5362MHz)
• AVG Gain: 2.4dBi
• MAX VSWR: 1.76（5917MHz）
• MIN VSWR: 1.46（5621MHz）
• AVG VSWR: 1.75
• MAX radiation efficiency: 86%（5436MHz）
• MIN radiation efficiency: 76%（5917MHz）
• AVG radiation efficiency: 83%
• Polarization: RHCP
• Cross polarization suppression: -25dB
• Axial Ratio：≤3
• Cable: RG141
• Weight: 11.5g
• Size: Total length: 175mm, cable length:150mm

Included:

• 1 x 5.8GHz RHCP SMA 150mm FPV Antenna
