Description

Note: iFlight refer to 60mm also as 90mm in some listings

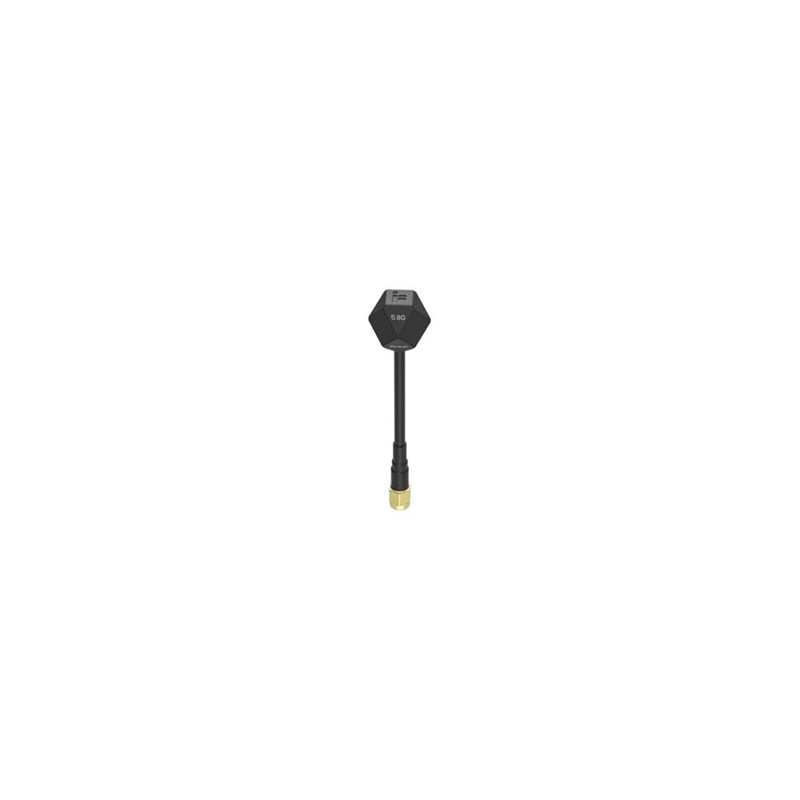

The iFlight Albatross V2 5.8GHz RHCP SMA Antenna 60mm with upgraded welding technology and a unique rugged design, the antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2 antenna.

Features:

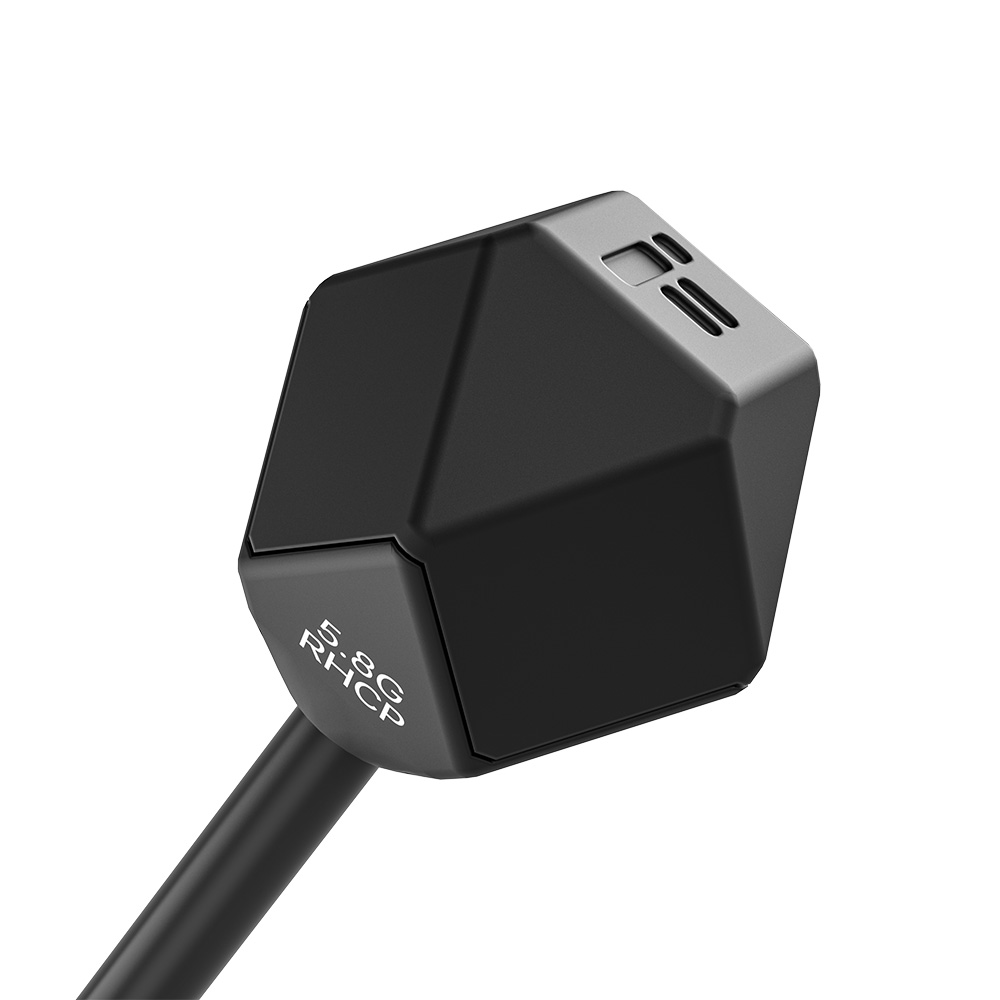

• A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
• Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
• Achieves higher consistency in antenna gain, thereby improving device performance and stability.

Specifications:

• Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna

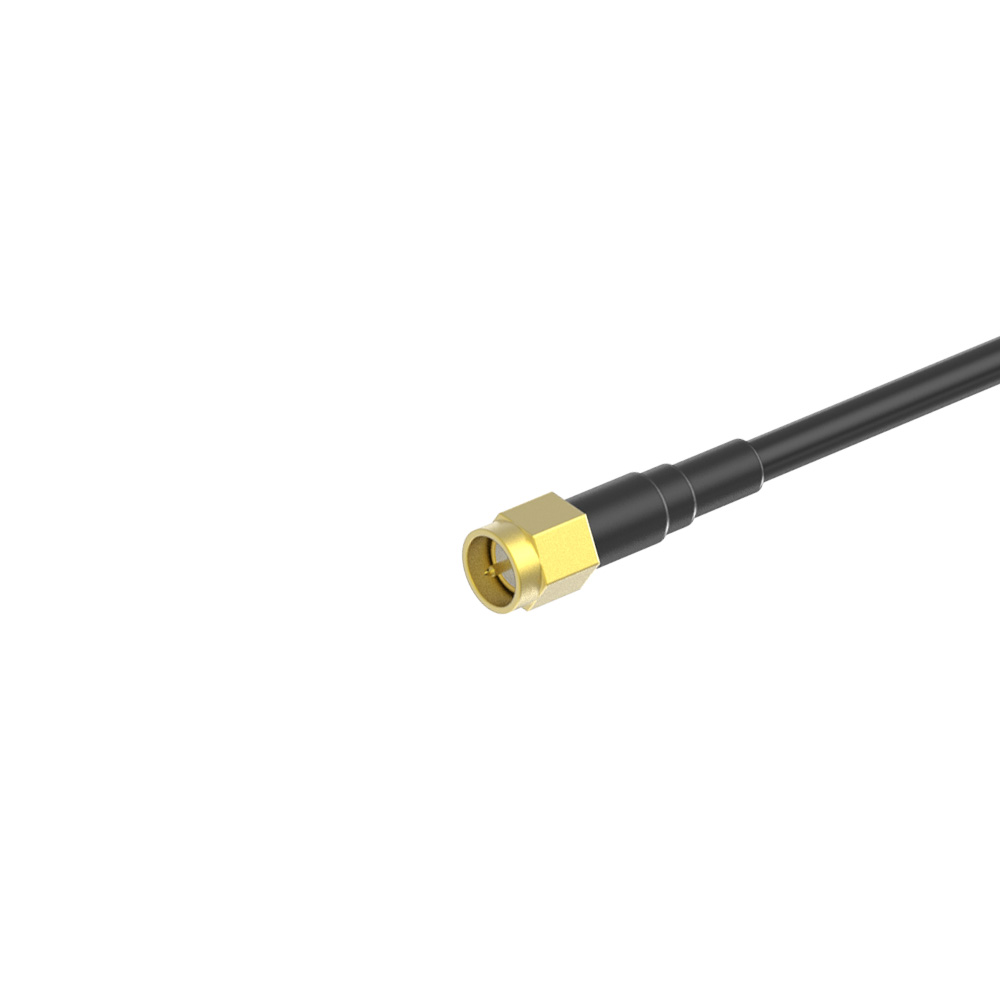

• Interface: RHCP SMA
• Frequency range: 5.3GHz-6GHz
• Max Gain: 2.65dBi (5695MHz)
• MIN Gain: 2.06dBi (5362MHz)
• AVG Gain: 2.4dBi
• MAX VSWR: 1.76（5917MHz）
• MIN VSWR: 1.46（5621MHz）
• AVG VSWR: 1.75
• MAX radiation efficiency: 86%（5436MHz）
• MIN  radiation efficiency: 76%（5917MHz）
• AVG radiation efficiency: 83%
• Polarization: RHCP
• Cross polarization suppression: -25dB
• Axial Ratio：≤3
• Cable: RG141
• Weight: 7g
• Size: Total length: 85mm, cable length:60mm

Packaging Includes:

• 1 x Albatross V2 5.8 GHz RHCP SMA Antenna 60mm
