Description

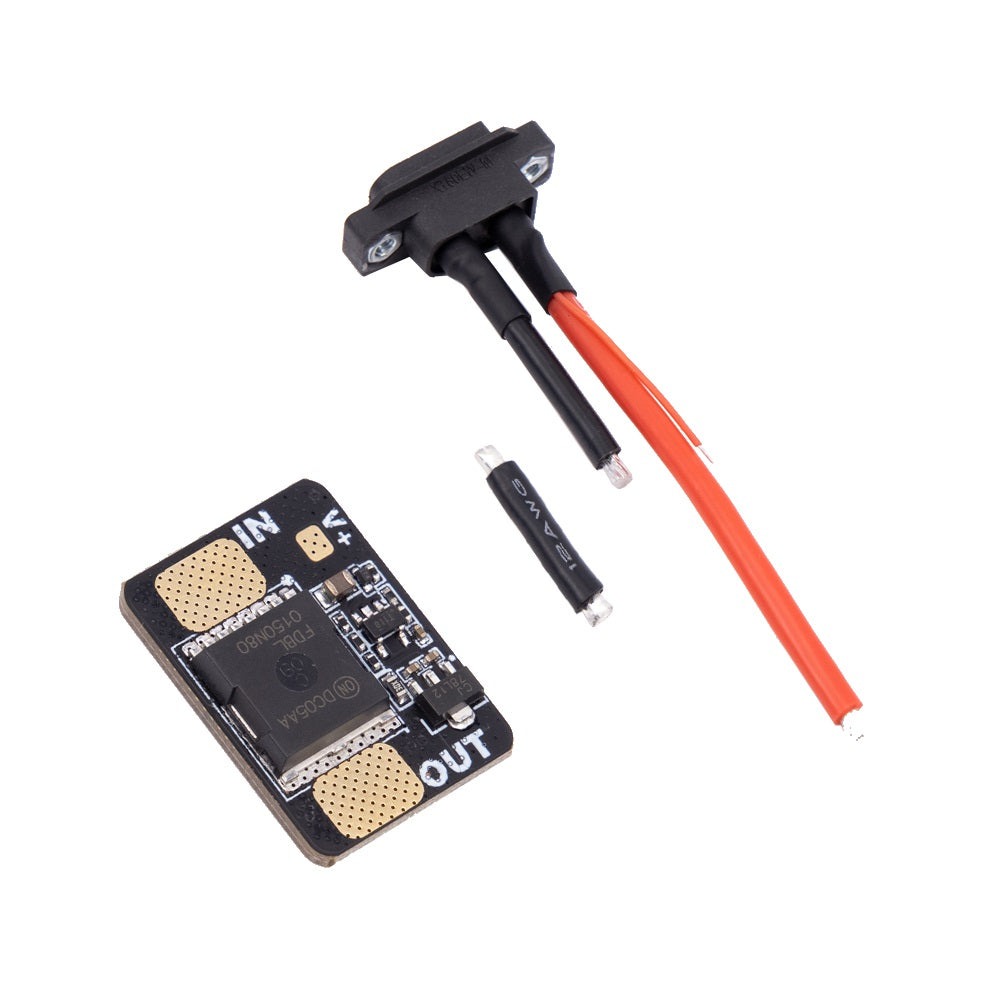

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

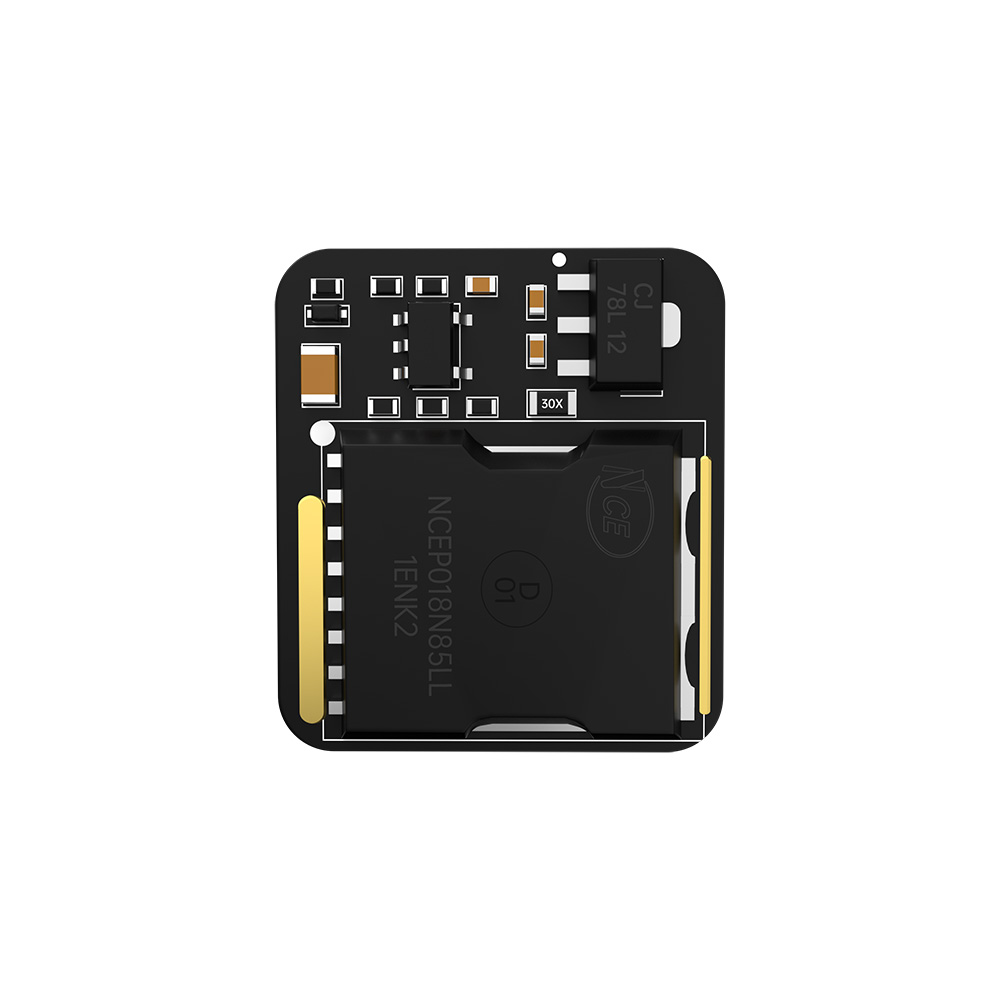

Option 1 18*16 – For Nazgul Evoque F5/F6 and Nazgul5 V3/Chimera 7 pro (5″ to 7″)

• Input voltage: 3-6S (9-26V)
• Continuous overcurrent: 30A for 60 minutes
• Size: 18*16mm
• Weight: 2.4g/ 2.6g

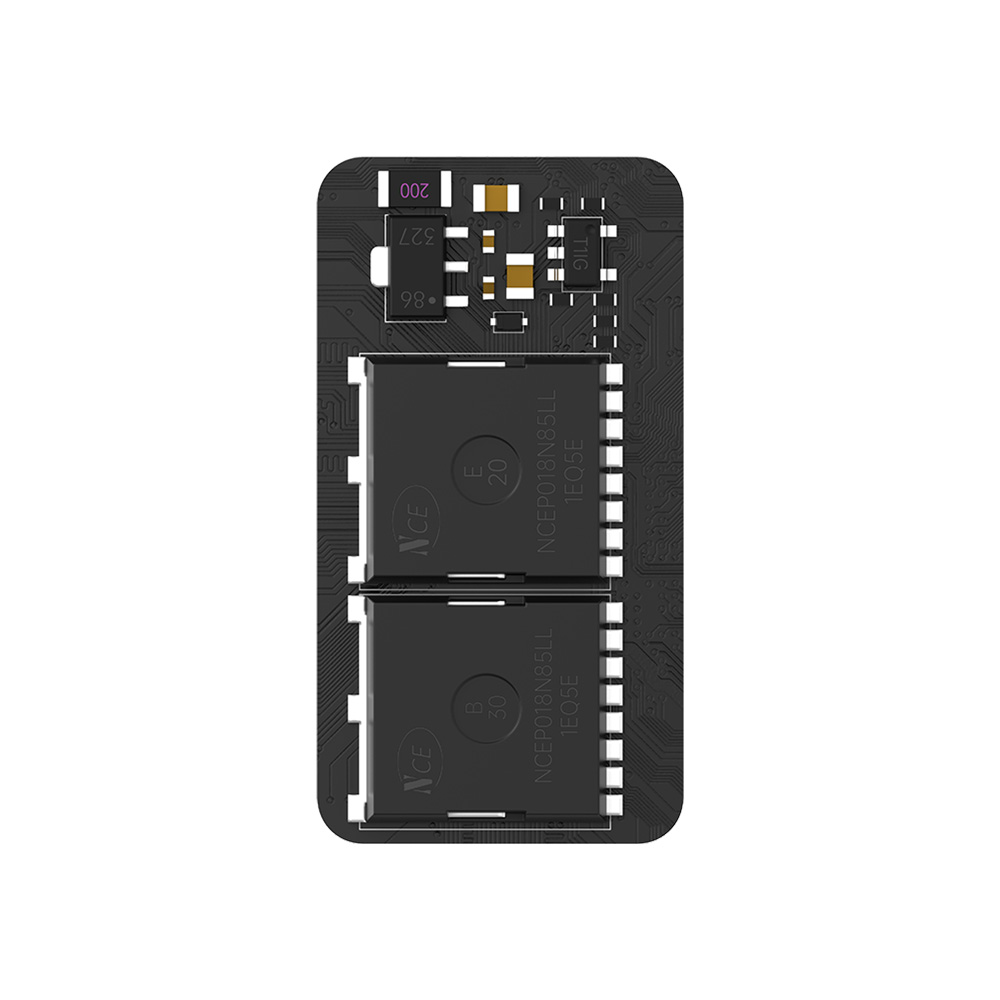

Option 2 30*16 For high current draw Quads 8″+

• Input voltage: 4-6S (14-26V)
• Continuous overcurrent: 150A
• Instantaneous current: 160A
• Size: 30*16mm
• Weight: 4.5g

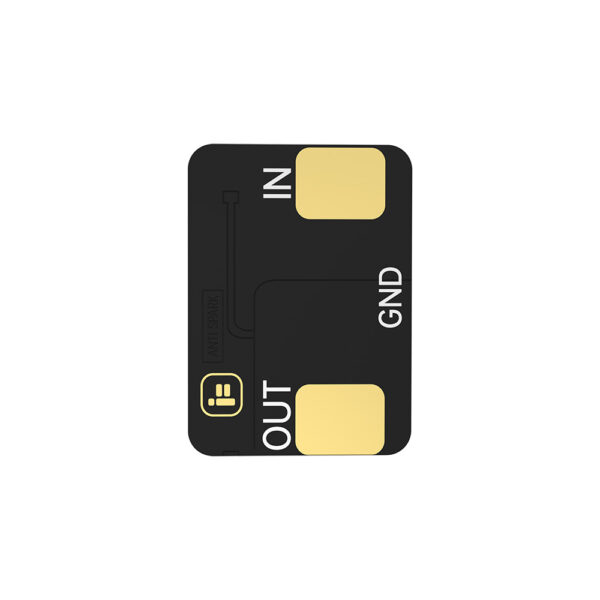

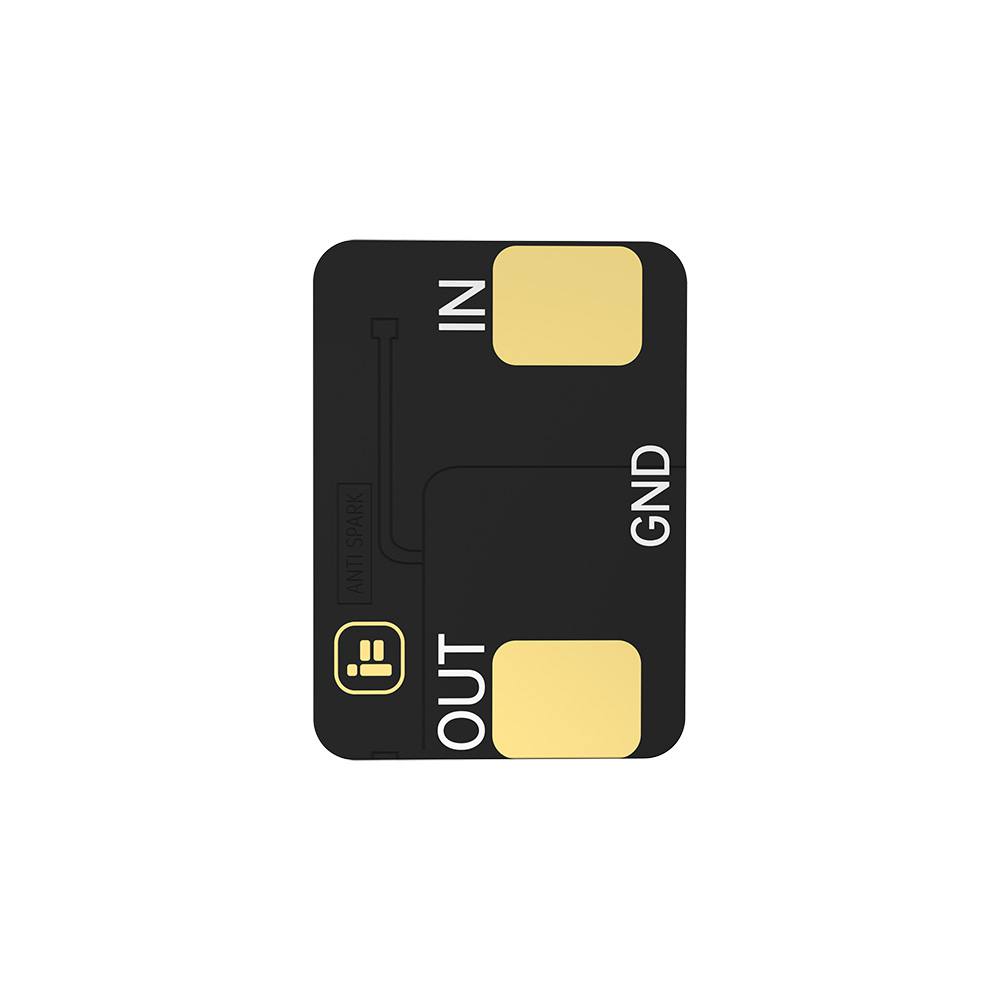

Option 3 25*18 For high current draw Quads 8″+

• Input voltage: 3-6S (9-26V)
• Continuous overcurrent: 30A for 60 minutes
• Size: 25*18mm
• Weight: 2.6g
