Description

Features:

• Stable output power
• 4 Power levels up to 1600mW;
• 40 Channels (including Raceband)
• Fast frequency lock, no startup interference with other pilots
• Built-in output power self-check functionality
• VTX telemetry with IRC Tramp protocol

Tips:

VTX is set to 25mW by default! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

Specs:

• Input voltage: 7V～36V

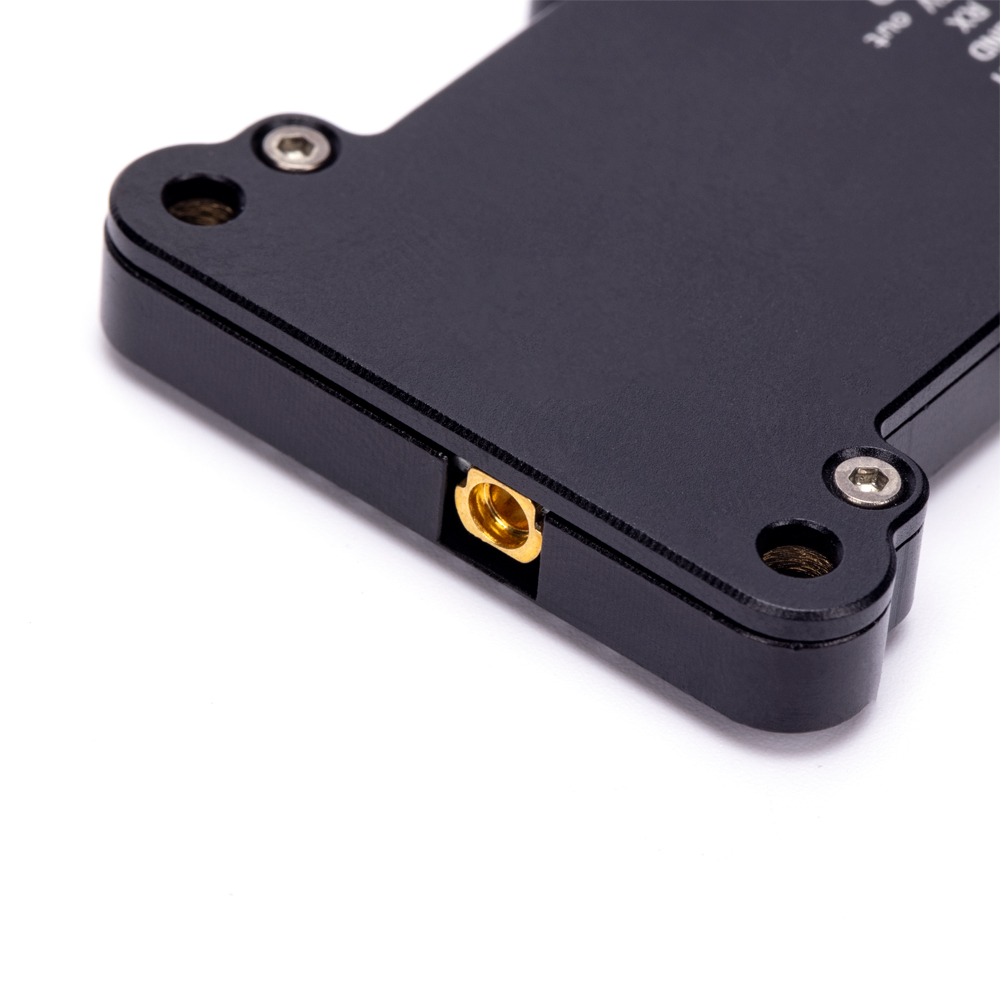

• Interface: MMCX
• Power levels: PIT/25mW/400mW/800mW/1600mW
• Channels: 40 (including Raceband)
• Mounting pattern: 30.5×30.5mm/Φ3

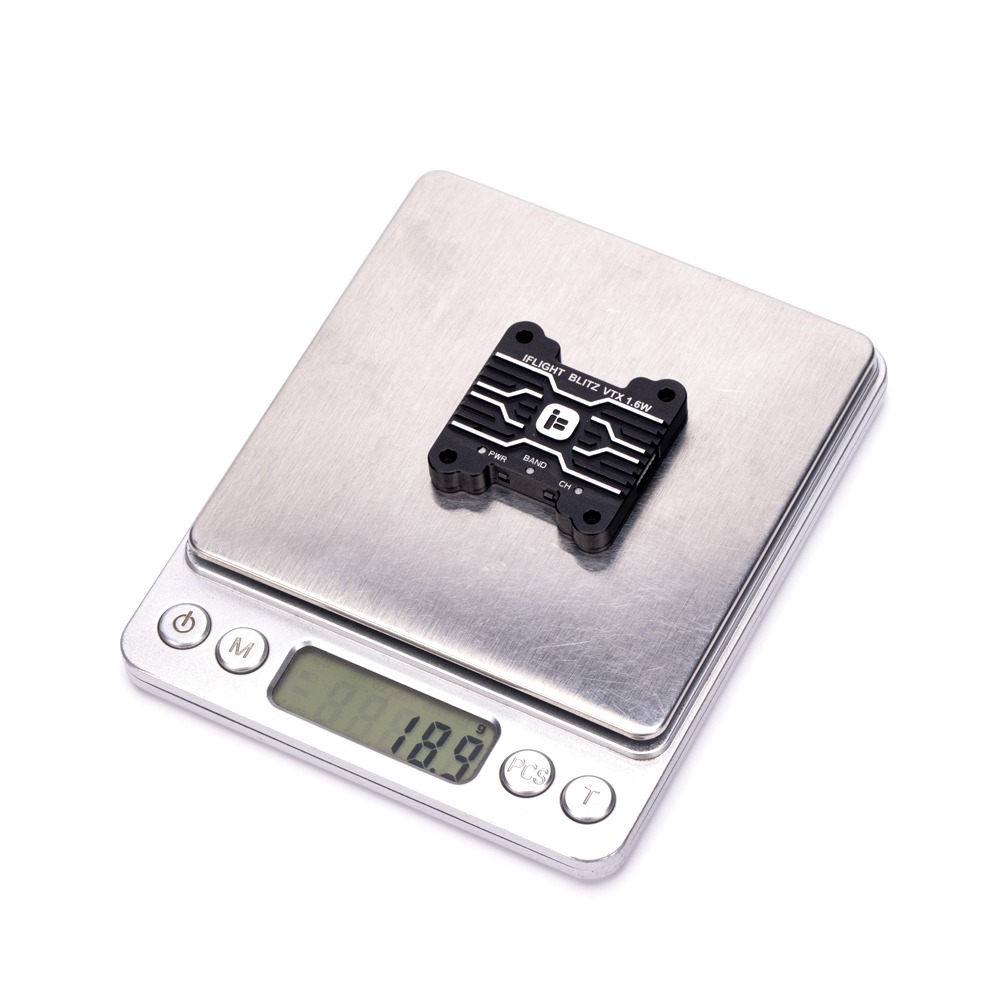

• Lightweight: 18.9g (excluding antenna)
• VTX telemetry: IRC Tramp
• Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
• All our VTX tables can also be found here: LINK
• IRC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Warning：

• Install Antenna before use.
• To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.

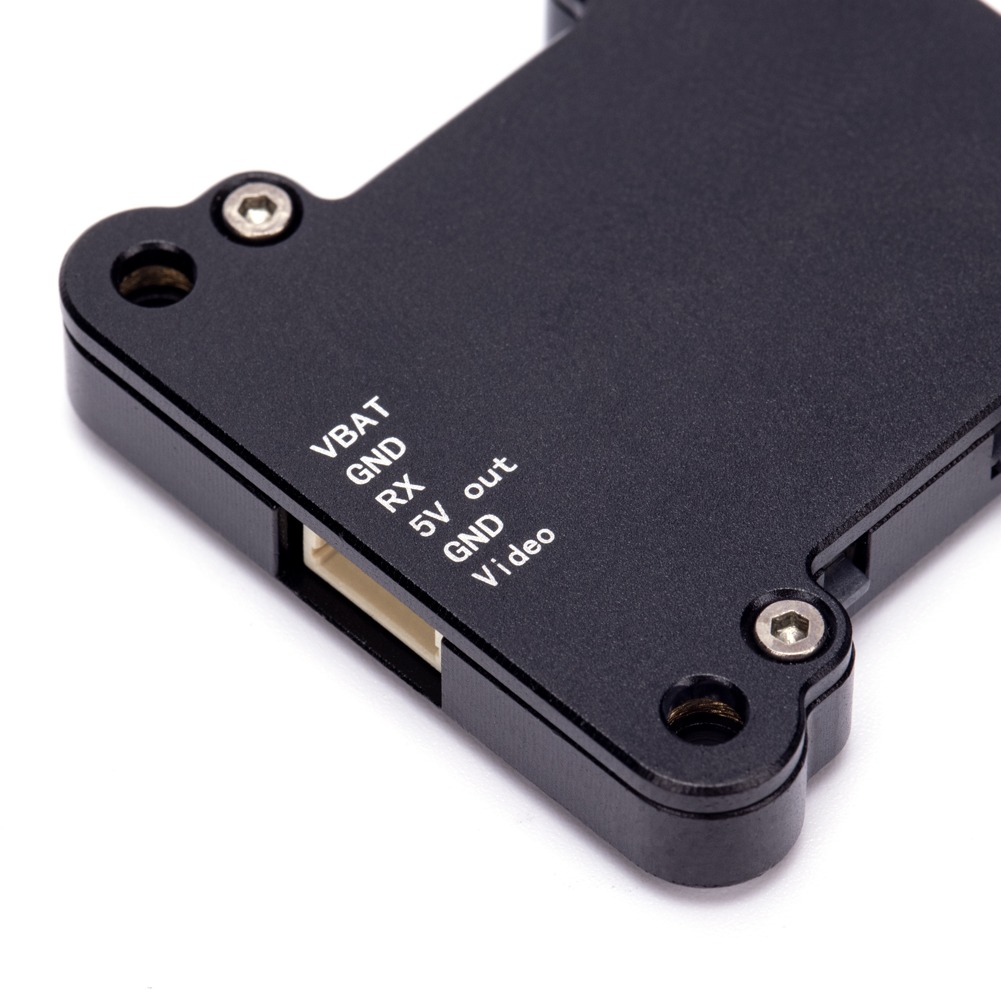

• The 5V Output is for a Camera/Cooling Fan use only! Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

Package includes:

• 1x 1.6W VTX
• 1x MMCX to SMA Female pigtail 100mm.
• 1x SH1.0 6P cable 100mm.
