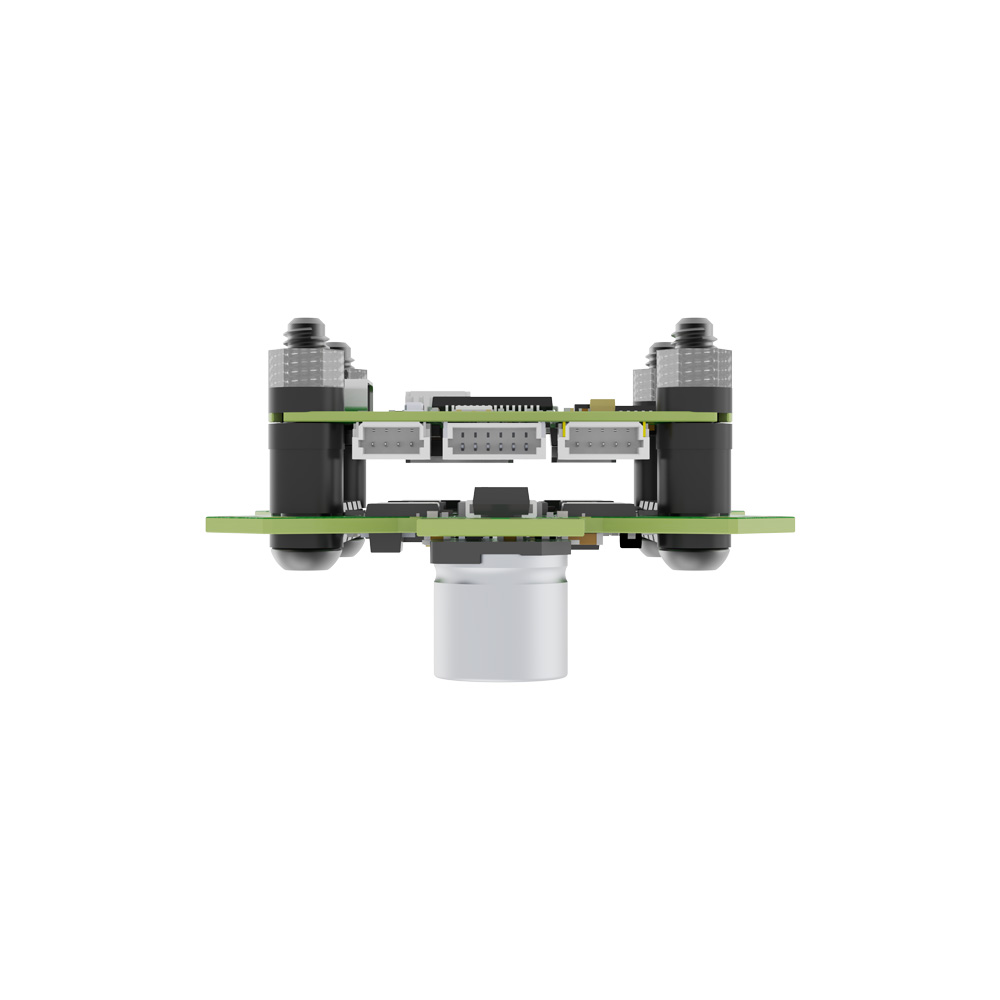

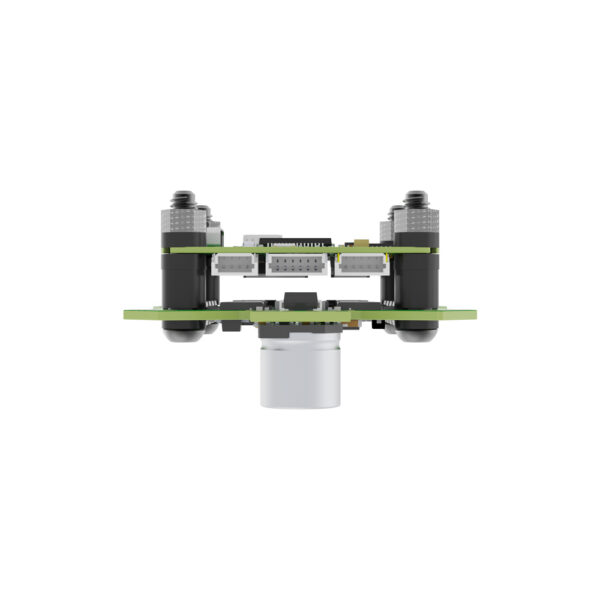

iFlight BLITZ F7 Stack E55 for Chimera7

Description

This is the replacement iFlight Blitz stack for your iFlight BOB57 and Chimera 7 series, also suitable for any quad with 30×30 mounting.

Features:

• Improved circuit design, better components and lower electrical noise!
• DJI HD VTX Connector (Plug-and-Play / No soldering required)
• FC indicator LEDs for visual debugging

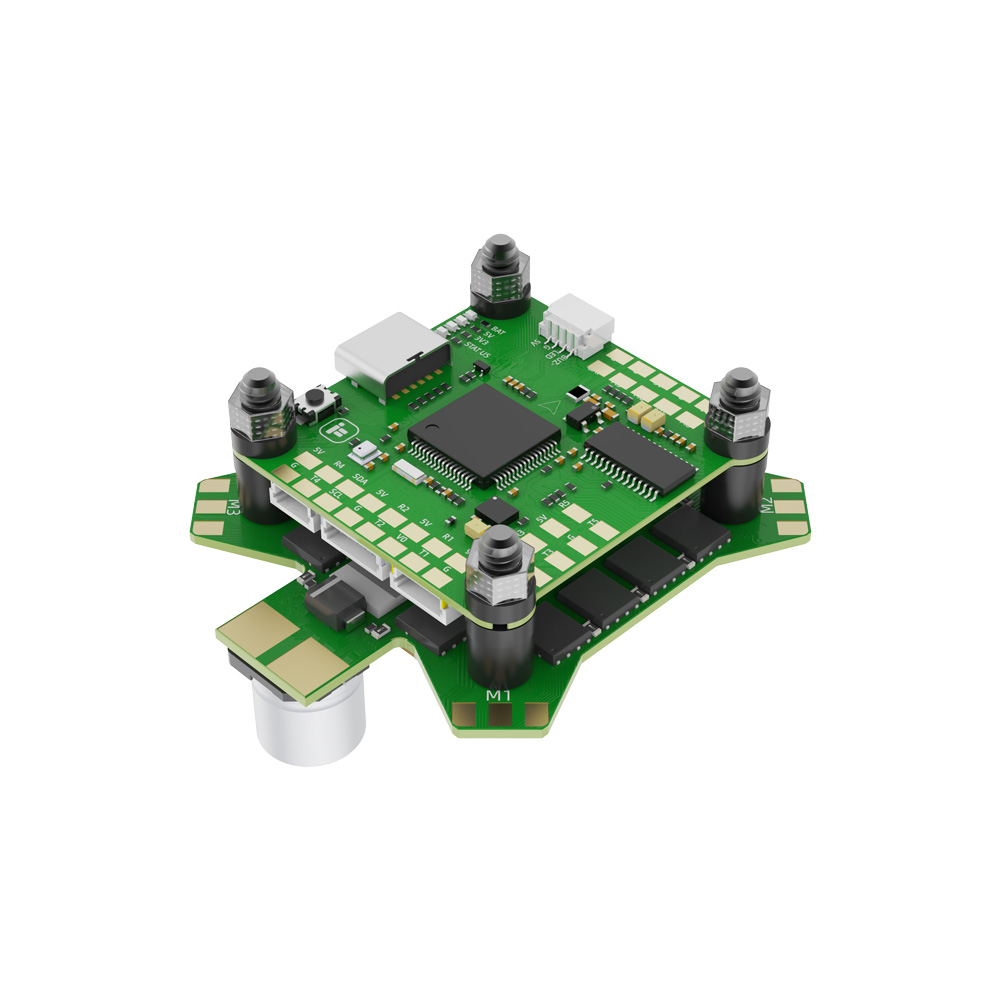

Flight Controller:

• MCU: STM32 F722
• Gyro: BMI270
• Barometer: DPS310
• OSD Chip: AT7456E
• Flash: 32MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C serial: SDA / SLA pads
• Smartaudio / IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Firmware target: IFRC-IFLIGHT_BLITZ_F722
• Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
• Dimensions: 36.5*35 mm
• Weight: 7.8g
• BEC: 5V 2.5A / 9V 2A

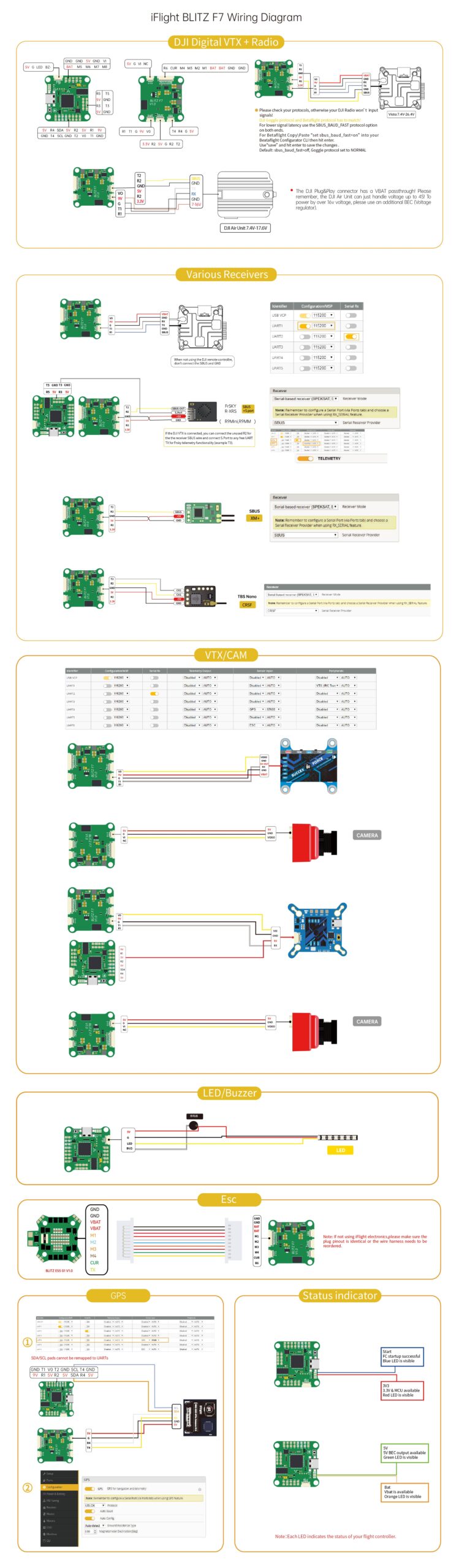

Wiring Suggestion:

• UART 1 for VTX HD / Analog
• UART 2 for a Receiver
• UART 3/4/5 for GPS or other sensors that require a serial port
• UART 6 for ESC Telemetry

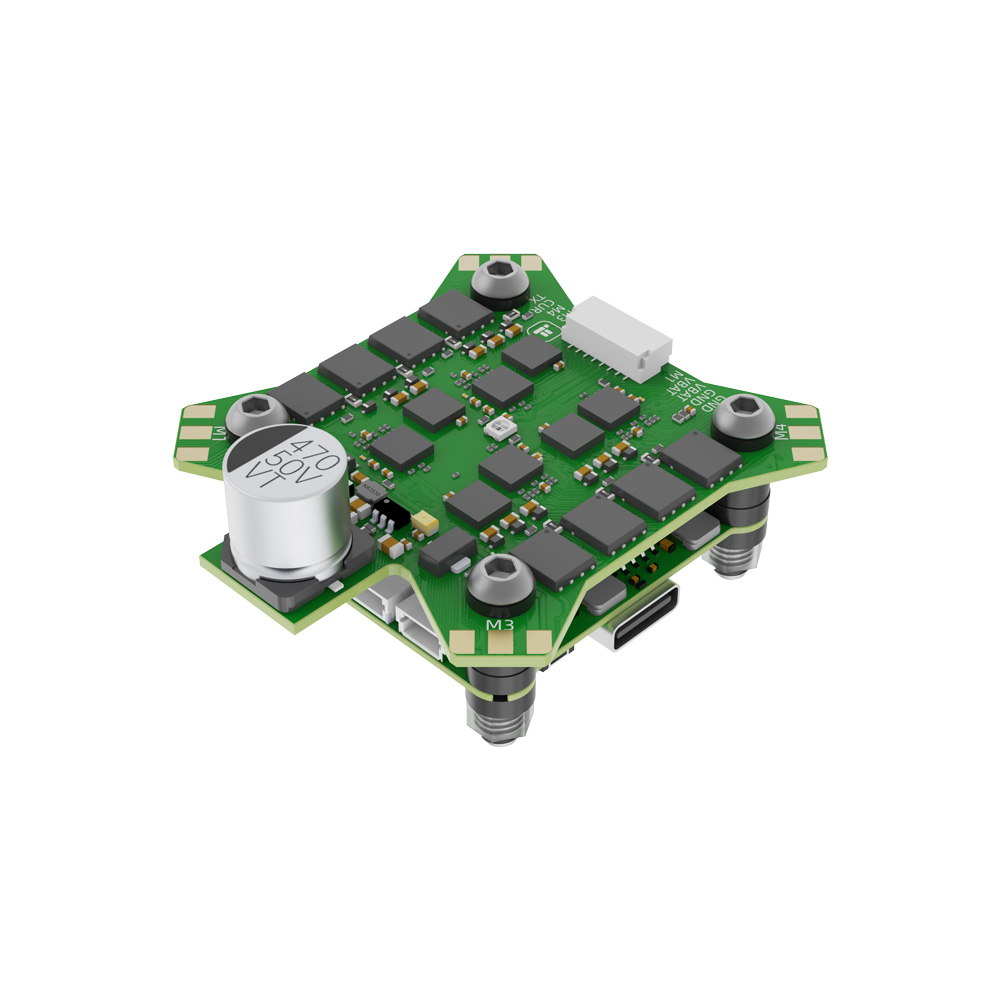

ESC

• Mounting Holes: 30.5*30.5mm/Φ4mm
• Weight: 15.3g
• Supports 2-6S lipo input
• MCU：G071
• Constant: 55 Amps
• Burst: 65 Amps
• Current sensor: Yes
• BEC: No
• Current rate: 200
• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
• Target: IFLIGHT_BLITZ_G2

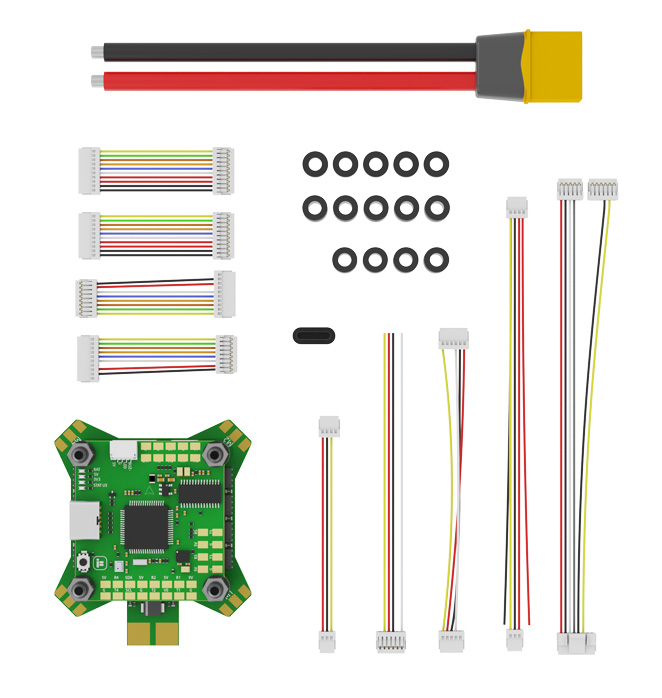

Includes:

• 1 x BLITZ F7 V1.1 Flight Controller
• 1 x BLITZ E55S 4-IN-1 2-6S ESC
• 1 x silicon grommets
• 1 x wire harness for F7 Flight controller
