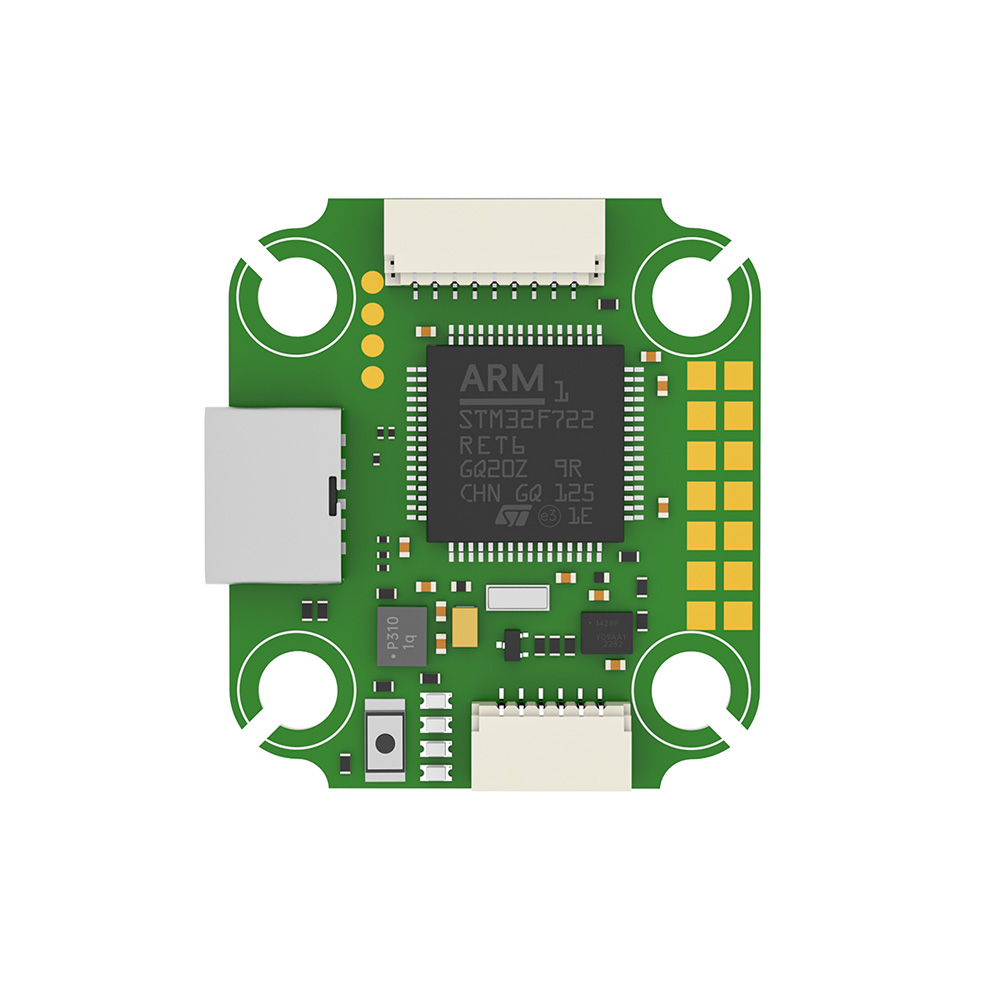

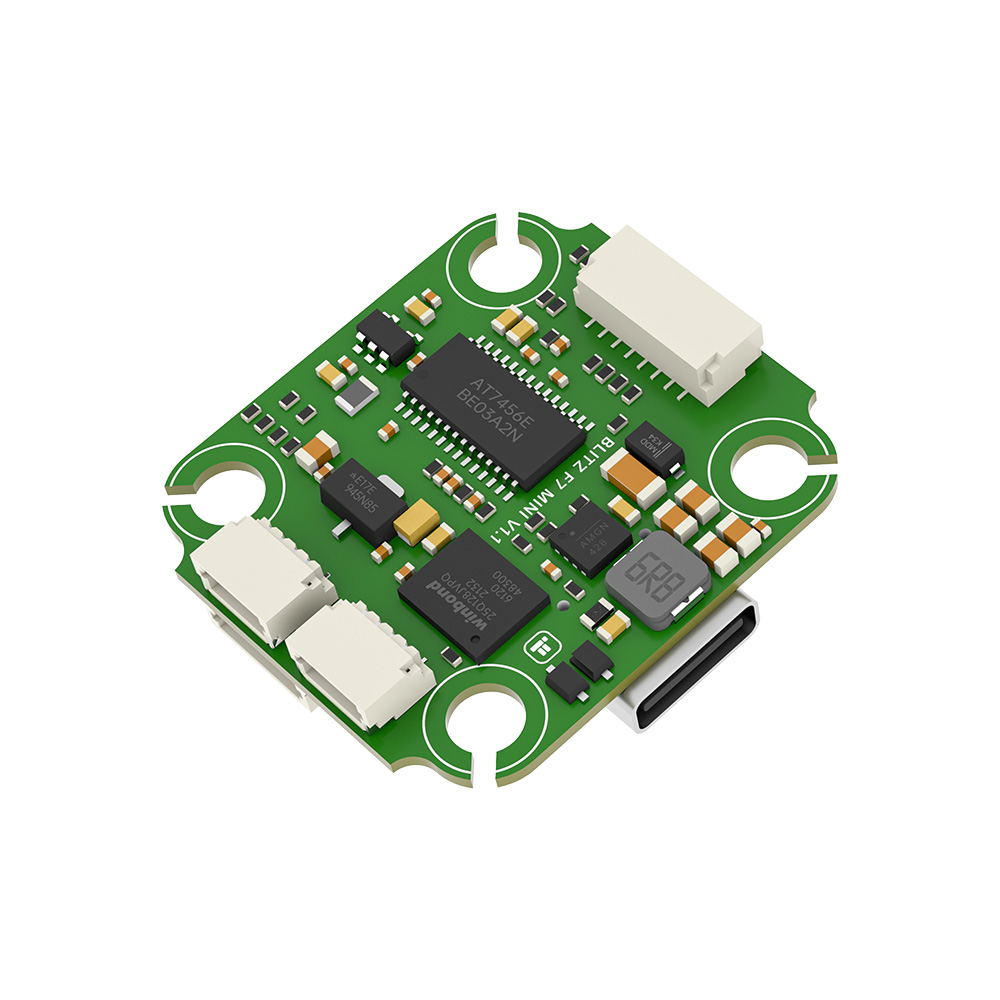

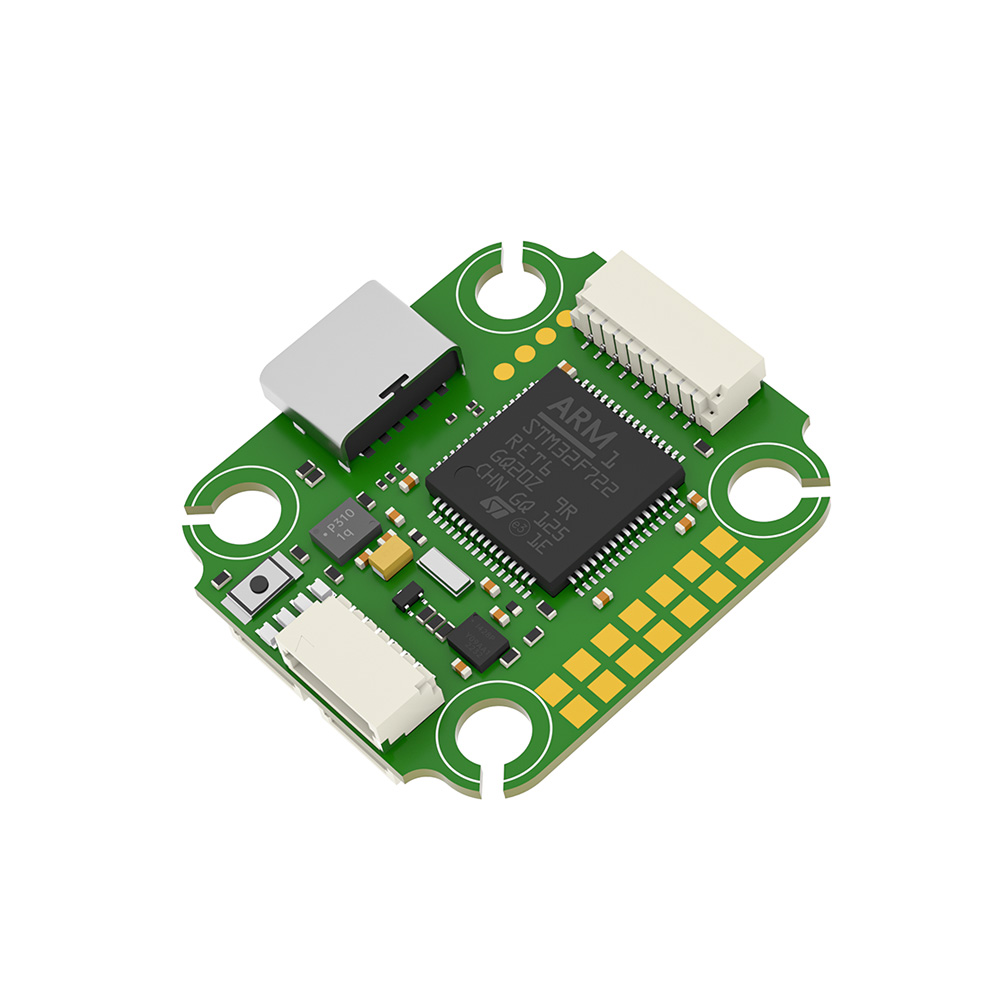

iFlight BLITZ Mini F7 V1.2 Flight Controller (Evoque Spare)
by iFlight
Experience unparalleled flight precision with iFlight BLITZ Mini F7 V1.2: Plug-and-Play DJI HD, low-noise design, and visual debugging.
$114.99
Out of stock
Get an alert when this product is in stock
SKU: 1538
Categories: 20mm Flight Controllers, Electronics, Flight Controllers
Description
The iFlight BLITZ Mini F7 V1.2 Flight Controller boasts an improved circuit design with lower electrical noise and a DJI HD VTX Connector for easy plug-and-play setup, featuring FC indicator LEDs for effortless visual debugging. Elevate your flight experience with precision and reliability!
Features:
- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
Specifications:
- MCU: STM32 F722
- Gyro: ICM42688
- Barometer: DPS310
- OSD Chip: AT7456
- Flash: 8MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA/SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFRC-IFLIGHT_BLITZ_F722

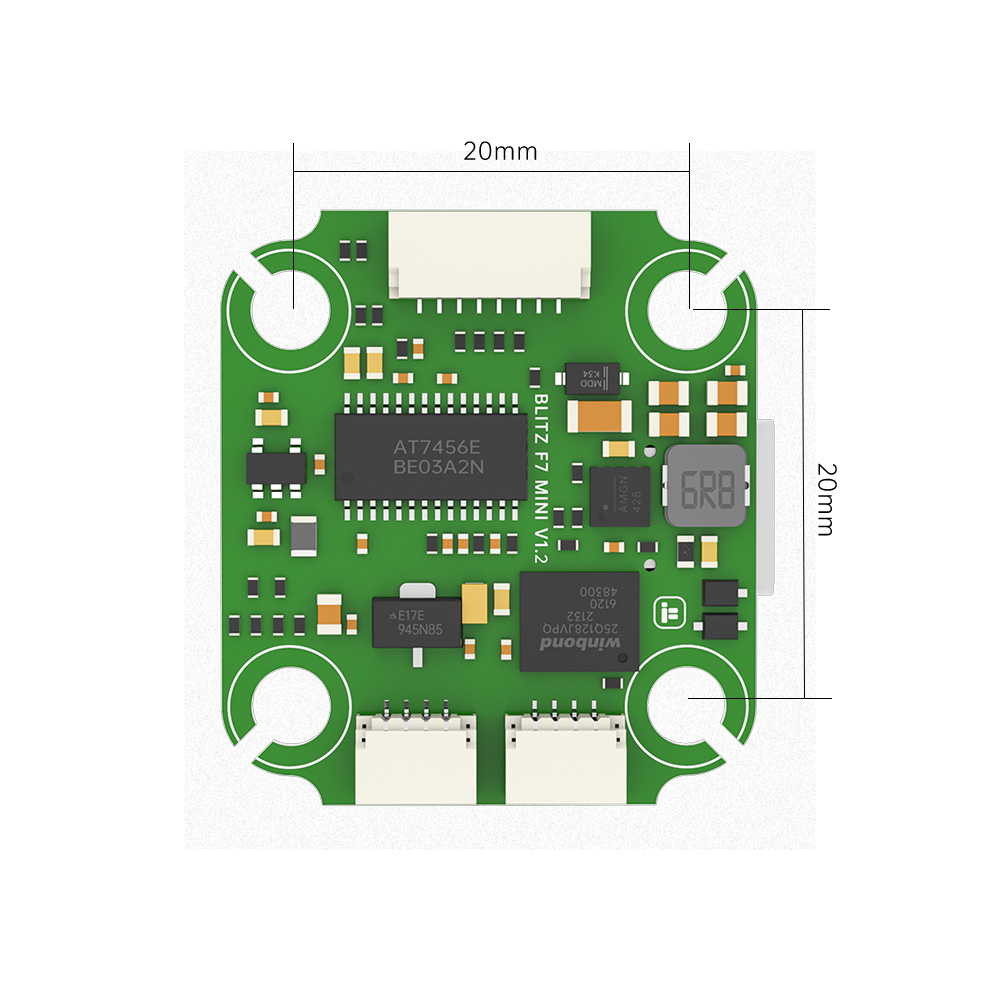

- Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
- Dimensions: 30.5×27 mm
- Weight: 5g
Package Includes:
- 1 x BLITZ Mini F7 V1.2 Flight Controller
- 1 x FC connectors
- 1 x Silicon grommets
