The iFlight Borg F7 Mini Stack (Borg 60 Mini ESC) delivers elite racing performance with lightning-fast response, reliable power delivery, and advanced connectivity for serious FPV pilots. Built with the STM32F722RET6 MCU, ICM42688 gyro, and powerful 60A ESC, this compact stack supports 4S–8S setups while ensuring smooth control, stable video transmission, and dependable telemetry. Designed for racers demanding precision, durability, and versatility, it transforms every flight into a high-speed, confidence-driven racing experience.

Features

• Designed specifically for high-performance FPV racing drones
• Supports 4S to 8S LiHV battery input compatibility
• STM32F722RET6 processor ensures fast and reliable flight performance
• Equipped with ultra-responsive ICM42688 gyro sensor
• Integrated 12V BEC with remote VTX power switching capability
• Reliable FPC cable connection system for ESC integration
• SH1.0 connectors improve secure peripheral connectivity
• Supports DJI MSP, SmartAudio, IRC Tramp, and HDZero VTX protocols
• 32MB Blackbox flash memory for detailed flight logging
• Six UART ports for flexible peripheral configuration
• Borg Mini 60 ESC supports continuous 60A current output
• Bidirectional DSHOT and ESC telemetry supported
• Compact 20×20 mounting design ideal for racing builds
• Compatible with DShot150/300/600, MultiShot, and OneShot protocols

Specifications

Flight Controller (FC)

• MCU: STM32F722RET6
• Gyro: ICM42688
• Barometer: SPA06-003
• OSD Chip: AT7456E (LGA)
• Flash Memory: 32MB Blackbox
• Input Voltage: 4–8S LiHV
• UARTs: 6
• Motor Outputs: 4
• LED Controller: Supported
• Beeper Pad: Supported
• VTX Protocol: DJI MSP / SmartAudio / IRC Tramp / HDZero
• BEC Output: 5V 2.5A, 12V 2A
• Mount Pattern: 20×20mm / Φ4mm

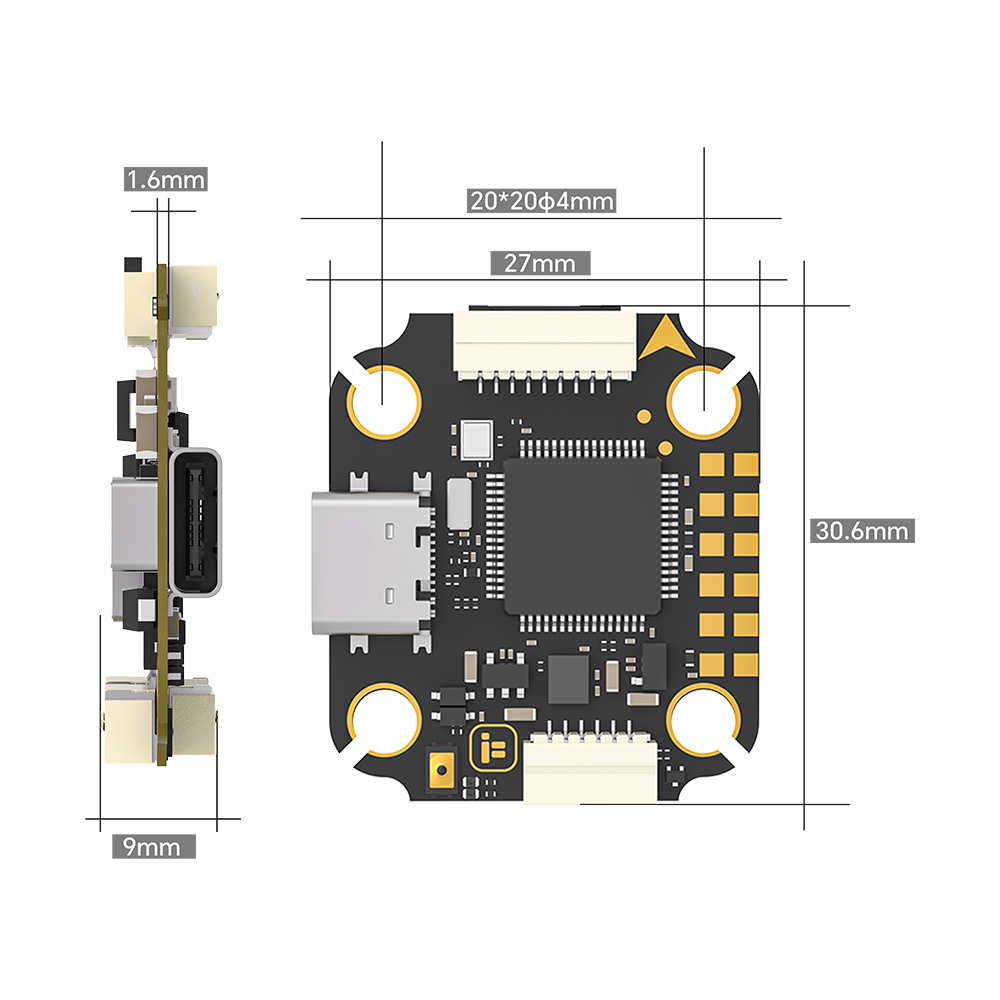

• Dimensions: 27×30.6mm±1
• Firmware Target: IFLIGHT_BLITZ_F722

ESC (Borg Mini 60 ESC)

• Input Voltage: 2–6S LiHV
• Continuous Current: 60A
• Burst Current: 65A (10s)
• MCU: STM32G071N
• Driver: FD6288
• Firmware: BL32 (32-bit ESC)
• Telemetry: Supported
• Bidirectional DSHOT: Supported
• Current Sensor: Yes
• Protocols: DShot150/300/600, MultiShot, OneShot
• Mounting Holes: 20×20mm / Φ4mm

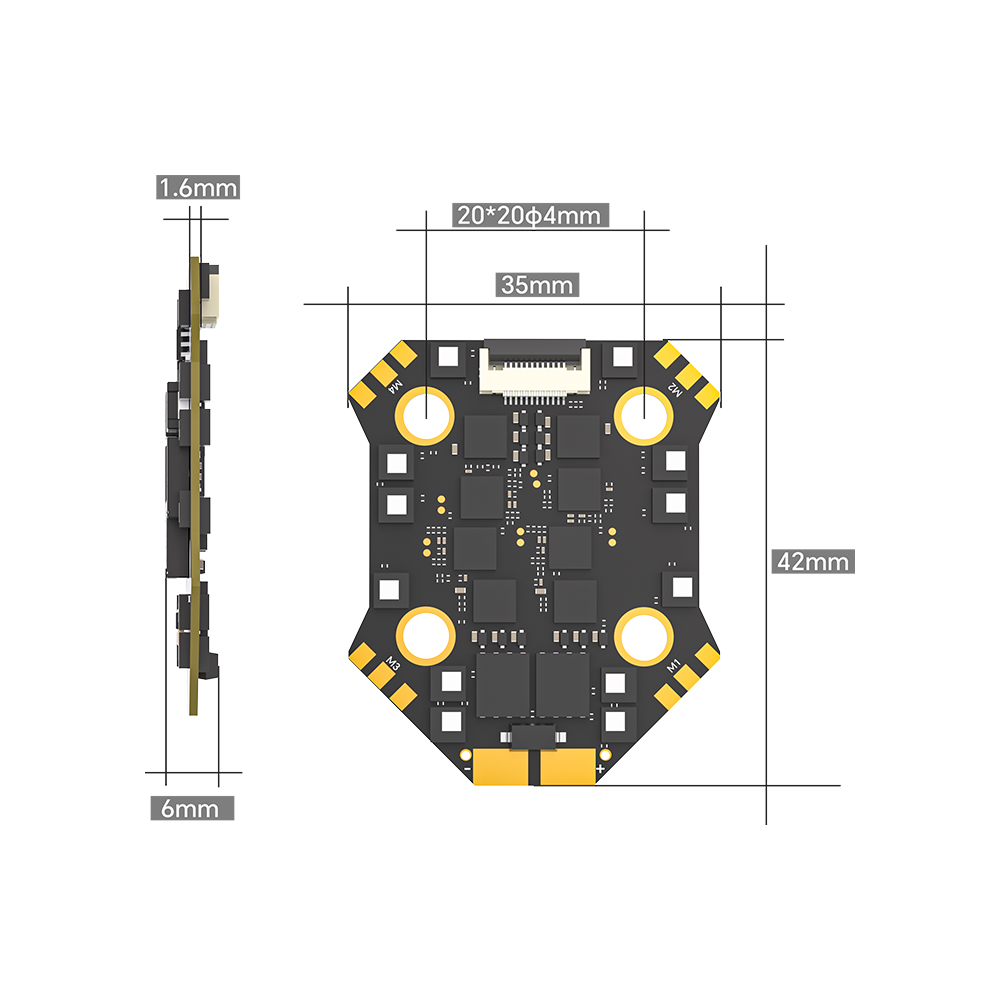

• Dimensions: 42×35mm±1

Package Includes

• 1× Borg Mini F7 Flight Controller
• 1× Borg Mini 60 ESC
• 1× Cable Set
• 5× Silicon Grommets
