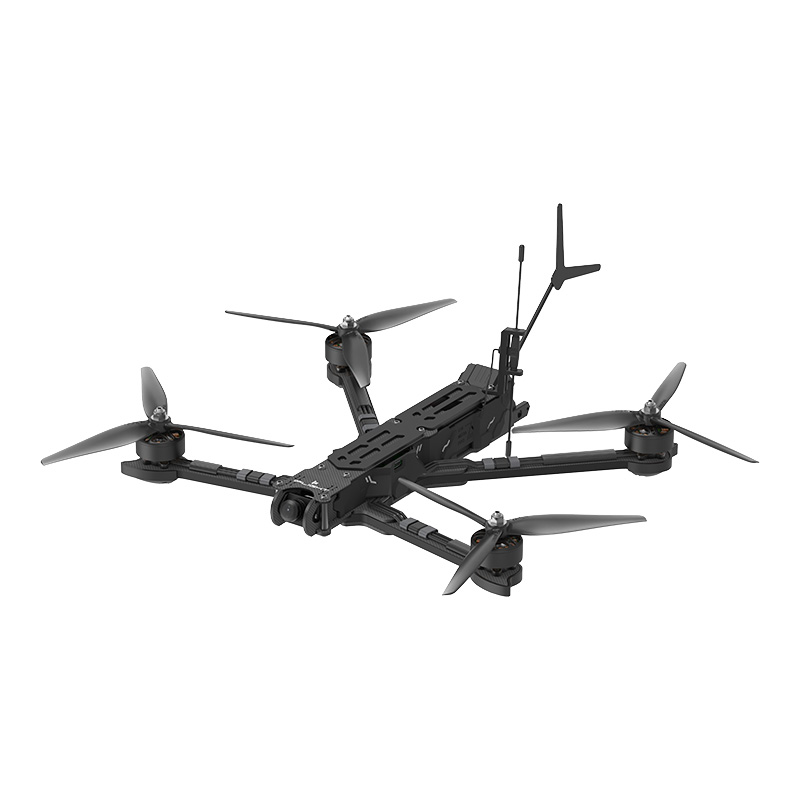

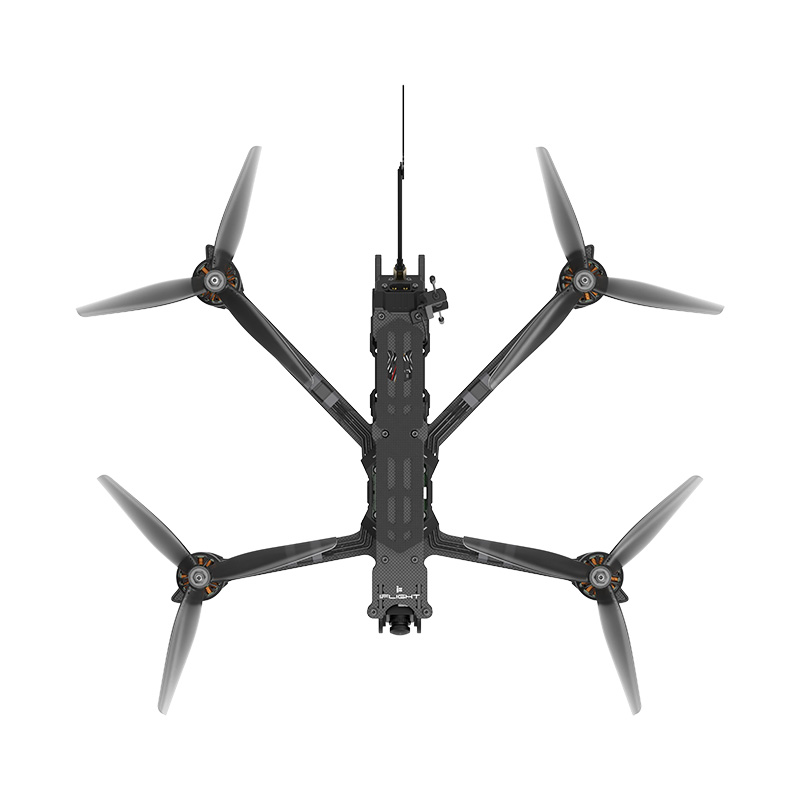

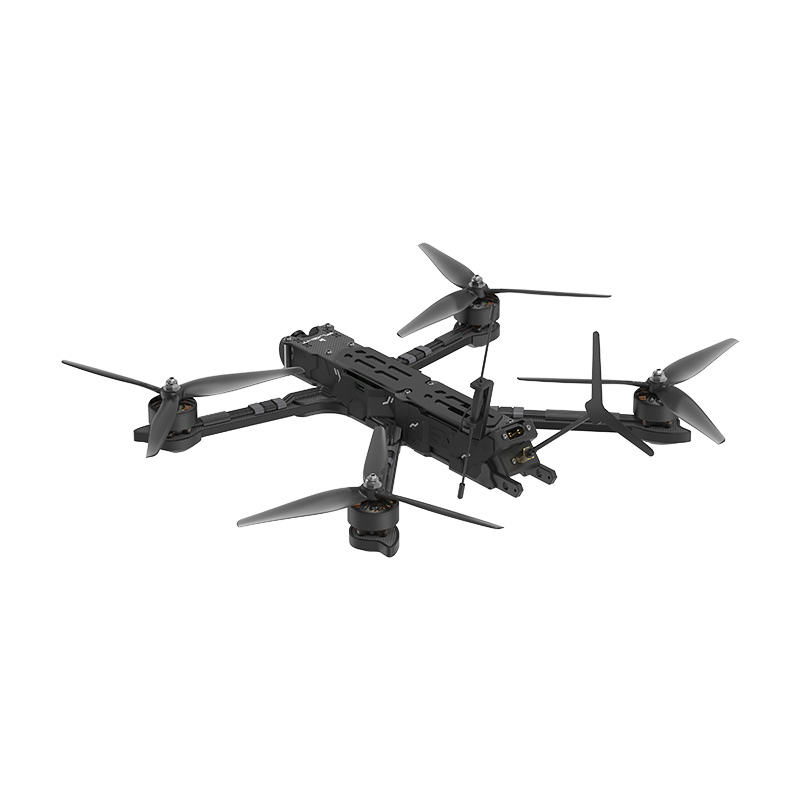

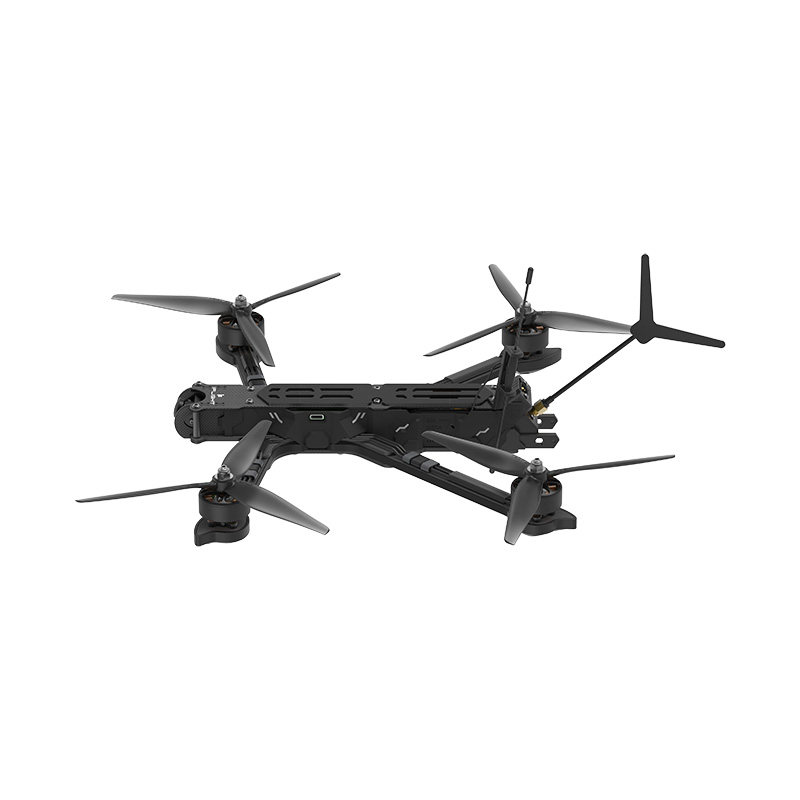

iFlight Chimera7 ECO BNF ExpressLRS

Description

KiwiQuads also stocks a Plug-and-Play (PNP) version to select your own receiver: iFlight Chimera7 ECO PNP Choose Rx

Features:

Latest Chimera7 ECO Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Economic and Efficient Electrical System

A super stiff frame for minimum resonance and XING-E 2809 motors for 7.5inch prop control. Equipped with the powerful BLITZ ATF435 Flight Controller, BLITZ 1.6W/2.5W Whoop VTX, and the BLITZ E55S 4-in-1 ESC, this setup offers a high level of power and functionality.

Specifications:

• Product Name: Chimera7 ECO 6S Analog
• FC: BLITZ ATF435 Flight Controller
• ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC
• Video Transmission: BLITZ Whoop 1.2G 1.6W VTX / BLITZ Whoop 1.6W VTX / BLITZ Whoop 2.5W VTX
• Frame: 327mm wheelbase
• Motor: XING-E 2809 1250KV motors
• Prop: 7.5X3.7X3 propellers
• Weight: 677g(Without Battery)
• Dimensions (L×W×H)：270x199x34mm
• Max Speed: 140km/h
• Maximum Takeoff Altitude: 7000 m
• Max Hover Time: Approx. 30 mins（With 6S2P 8000mAh Battery)
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm
• Antennas: Single Antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass (Optional)

Package Includes:

• 1 x Chimera7 ECO 6S Analog BNF
• 1 x Battery pad
• 1 x Antennas
• 2 x Propellers(Pairs)
• 2 x Battery strap

Reccomended Batteries:

General Flying: GNB Battery 22.2V 100C 2200mAh 6S

Long Range (lipo): GNB Battery 22.2V 100C 3000mAh 6S

Long Range (li-ion): Auline Li-Ion Battery 6S 22.2V 3000mAh VTC6

Super Long Range (li-ion): iFlight Fullsend 6S 4000mAh Li-Ion Battery

Spares:

Props Standard: HQProp DP 7.5X3.7X3 Light Grey (Set of 4)

Note:

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact KiwiQuads or iFlight customer support at [email protected] or www.iflightrc.freshdesk.com
