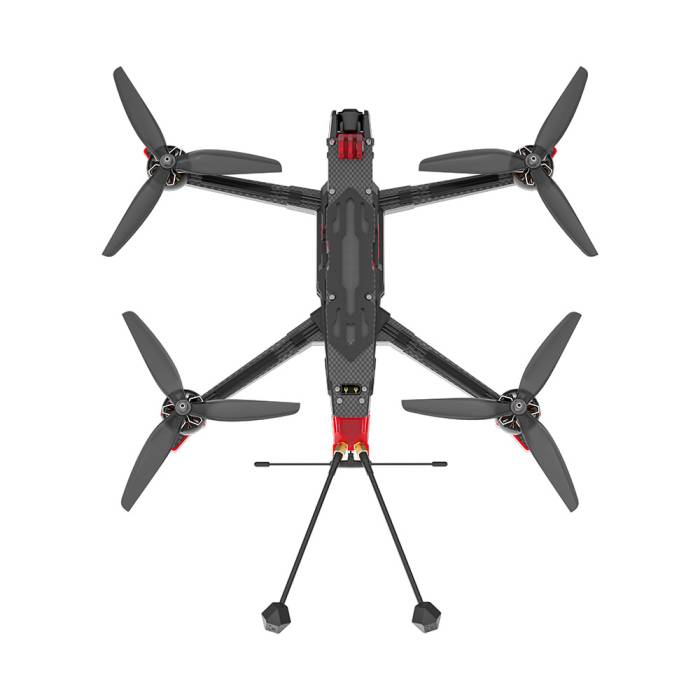

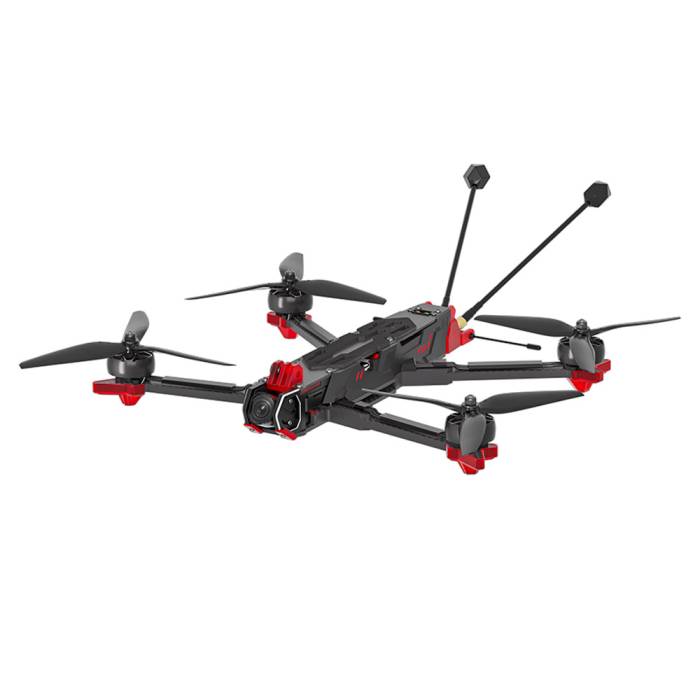

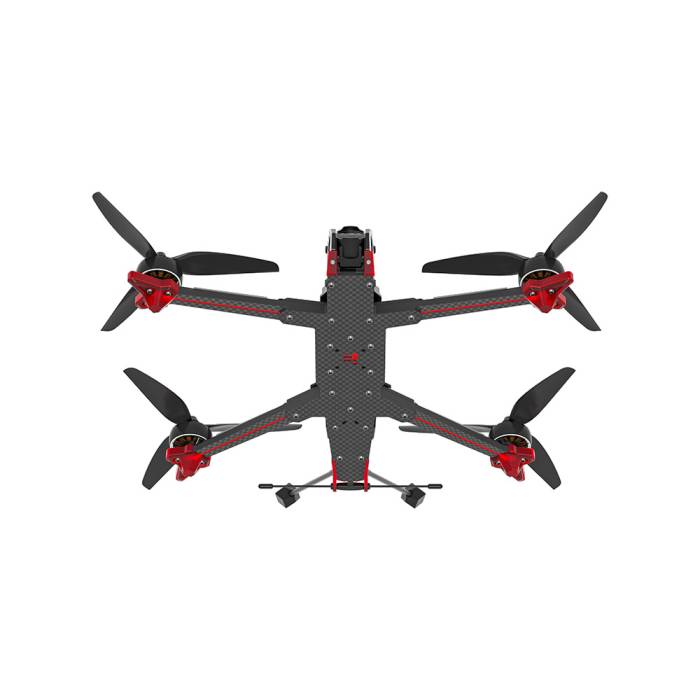

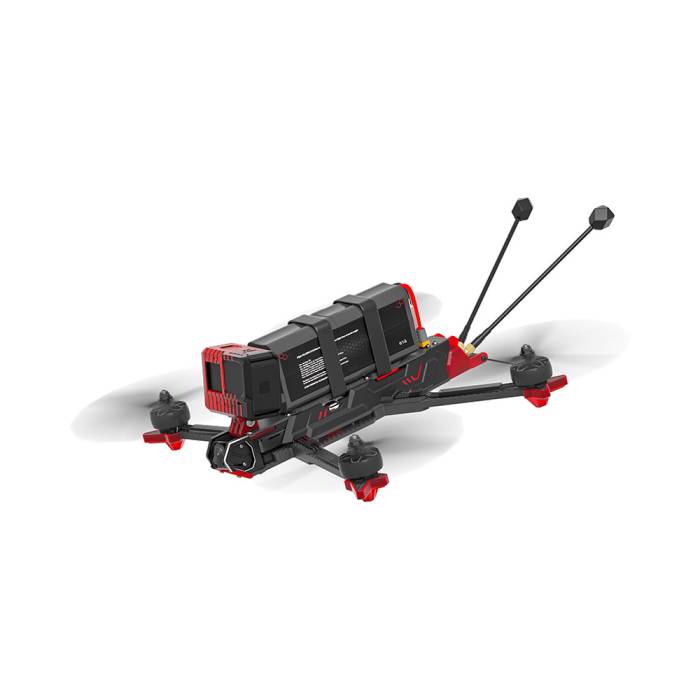

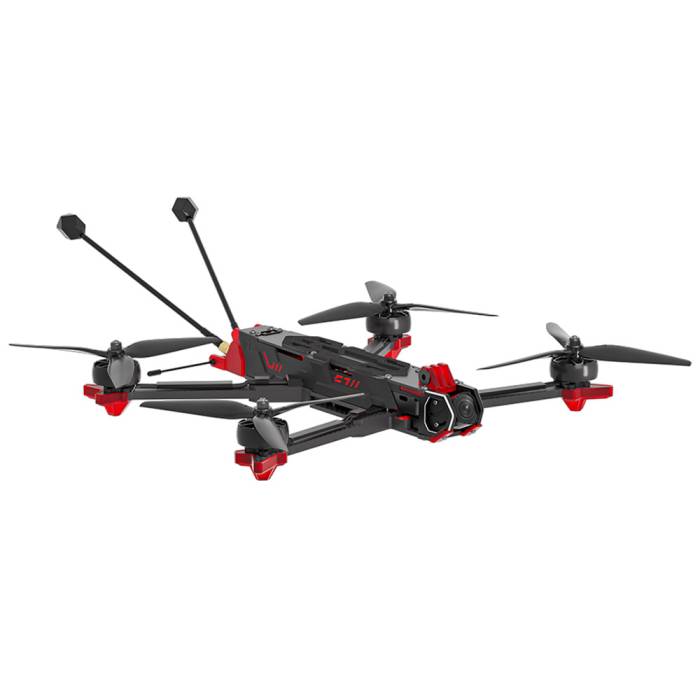

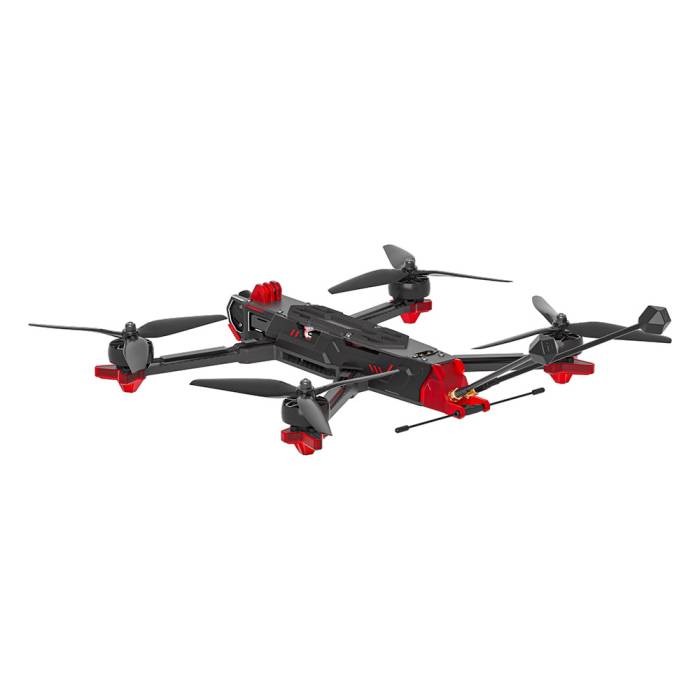

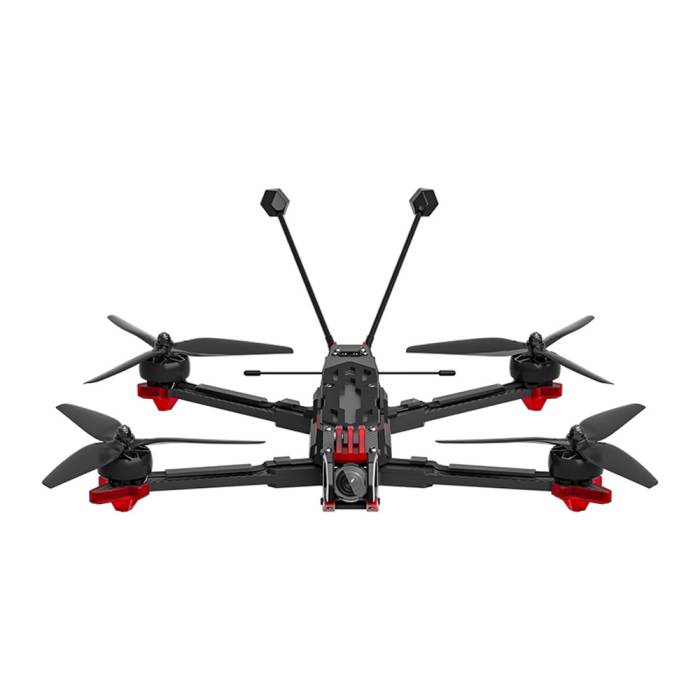

iFlight CineLR 7 O4 Long Range Drone BNF ExpressLRS + GPS

Description

Pre-Order info: our stock is in transit and we are expecting it to arrive around 27th Jan.

Note this version is ExpressLRS 2.4Ghz. We also have:

• BNF DJI option iFlight CineLR 7 O4 Long Range Drone BNF DJI + GPS

• BNF TBS Crossfire option iFlight CineLR 7 O4 Long Range Drone BNF TBS Crossfire+ GPS
• Given this is a LR quad, if you would like a Diversity or Gemini Receiver please contact us at [email protected] to discuss.

iFlight’s new generation FPV drone, the 7-inch long-range CineLR 7, combines sleek design, easy maintenance, and a high-performance electronics system. Designed for immersive FPV experiences and professional video recording, CineLR 7 delivers exceptional flight performance and cinematic-quality footage. Whether you’re tackling freestyle tricks, high-speed pursuits, or long-range filming, CineLR 7 is engineered to meet diverse flying needs with precision and reliability.

Features:

• Innovative Frame Design, No Props in View: SH Series adopted an innovative frame design with no props in view while allowing flexibility for freestyle tricks. With balanced motor output, provides enhanced overall flight performance.
• Quick-release Side Panels: Quick-release side panels provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.
• 4K Stabilized Video: SH Series is equipped with the latest DJI O4 Pro Air Unit, upgraded with 1.1/1.3-inch image sensor, it captures delicate details in low-light environments. With a 155° ultra-wide angle, capturing breathtaking visuals. Enjoy real-time video transmission with up to 1080p/100fps for an immersive flying experience. (Source DJI)
• Up to 25mins Long-range Flight Time: Capable of carrying an efficient high capacity battery, explore the skies like never before with extended flight time. Recommended 6S 4000mAh Li-Ion above (slow cruising) or 6S 3300mAh lipo battery.
• High-performance Core Electronics System: Equipped with racing-grade BLITZ Mini F7 FC and BLITZ E55R 4-IN-1 ESC for high-intensity flight maneuvers. It features a larger MOS and offers a 65A max burst current, which enhances stability and improves heat dissipation.
• Built-in high-precision GPS Module: The integrated high-precision GPS module with tpu cover prevents signal loss from external damage, reducing flyaway risks and enhancing device safety.

Specifications:

• Product Name: SH CineLR 7 6S O4 HD
• Geometry: H-shaped
• FC: BLITZ F722 Flight Controller
• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O4 Pro Air Unit
• Frame: 334mm wheelbase
• Motor: XING2 2809 1250KV motors
• Prop: HQ 7.5X3.7X3 propellers
• Weight: 770±5g(Without Battery)
• Takeoff Weight: Approx. 1628±5g (incl. 21700 6S 8000mAH)
• Dimensions (L×W×H): 285*196*45mm
• Max Speed: 140km/h
• Maximum Takeoff Altitude: 7000 m
• Max Hover Time: Approx. 18mins with 6S 3300mAh battery | Approx. 25mins with 6S 8000mAh battery
• Recommended load: 800g
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range: -20° to 40° C
• Antennas: Dual Antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission:

• Product Name: DJI O4 Pro Air Unit
• Image Sensor: 1/1.3-inch
• Lens: FOV: 155°
• ISO: 100-25600
• Video Resolution: Max 4K@120fps
• Video Format: MP4, Max Video Bitrate: 130Mbps
• Color Mode: Standard/D-Log M
• Stabilization: Super Stabilization 3.0+ (RockSteady 3.0+)/ Stabilization Function Off (Supports Gyroflow)
• Live View Quality: 1080P@100fps
• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
• Communication Bandwidth: Max 60 MHz
• Antenna: Dual antennas
• Internal Memory: 4GB
• Supported SD cards: microSD cards (max. 512GB)

Compatibility:

• DJI Goggles 3 / DJI Goggles N3/ DJI Goggles 2 / DJI Goggles Integra

The flight control firmware needs to be configured to support the SBUS protocol so that the DJI FPV remote controller can be used.

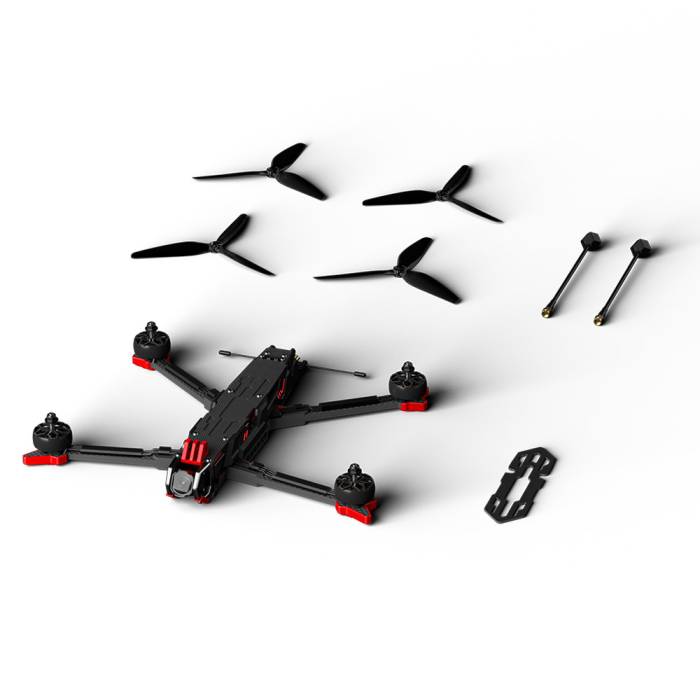

Package includes:

• 1 x SH CineLR 7 6S O4 HD
• 1 x Battery pad
• 2 x 7.5 inch Prop(Pairs)
• 1 x Battery strap
• 1 x Screw bag

Recommended (not included) Batteries:

• General Flying: GNB LiPo Battery 22.2V 100C 2800mAh 6S
• Performance Pack:  GNB Battery 22.2V 120C 2600mAh 6S
• Long Range (lipo): GNB Battery 22.2V 100C 3000mAh 6S
• Long Range (lipo): GNB Battery 22.2V 120C 4500mAh 6S XT90 (note adaptor needed)
• Long Range (li-ion): Auline Li-Ion Battery 6S 22.2V 3000mAh VTC6
• Long Range (li-ion): Auline Li-Ion Battery A45 6S1P 22.2V 4000mAh XT60
• Premium Long Range (li-ion): iFlight Fullsend 6S 4000mAh Li-Ion Battery
• Super Huge Long Range (li-ion): Auline Li-Ion Battery 6S2P 22.2V 8000mAh XT60

Recommended (not included) Spares:

• Original Props: HQProp DP 7.5X3.7X3 Light Grey (Set of 4)
• Alternate Options; Gemfan Cinelifter 7.5″ 7535 3-Blade Propeller
