The iFlight ELRS 500mW Dualband Receiver redefines reliability with its dualband technology, supporting 2.4GHz, 868MHz, and 900MHz frequencies. Featuring a temperature-compensated crystal oscillator (TCXO), it ensures stable performance in any environment. Perfect for long-range flights, aerial photography, and FPV freestyle, this receiver delivers unmatched precision and reliability for all your flying needs. Elevate your experience with iFlight.

Note: this does not support diversity, it can only operate on a single frequency at a time.

• Single-Sided Components: Optimizes space efficiency.
• Aluminum Heat Sink: Protects electronics and enhances interference resistance.
• SH1.0 Connector: Easy installation with robust connectivity.
• High-Power Telemetry: Supports 500mW telemetry return for stronger signals and reduced telemetry loss.

• MCU: ESP32 C3
• RF: LR1121
• Frequency Bands: 2.4GHz、868MHz、900MHz
• Receiver Type: Single antenna
• Telemetry power: 100-500mW (20-27dBm)
• LNA: YES

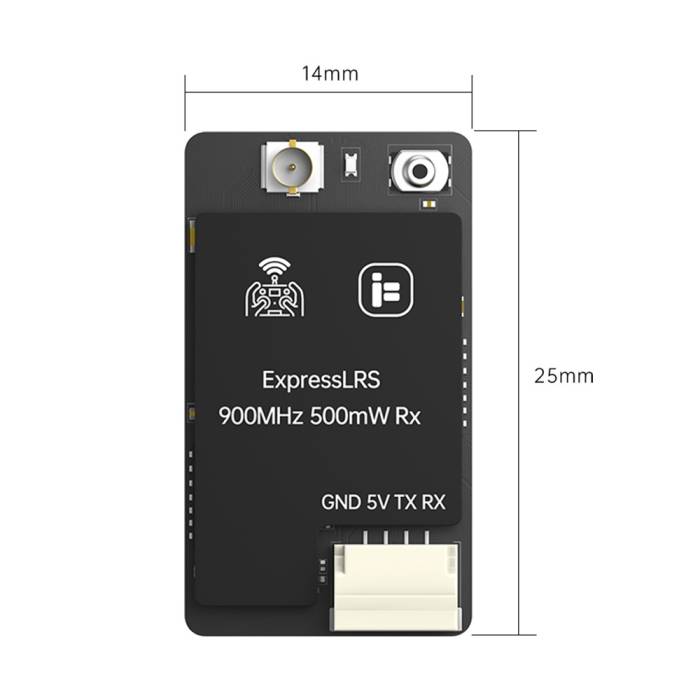

• Dimension: 14*25*4.3mm(±0.5）
• Weight: 1.9g(±0.5g)
• Lua Script: iF DB 500mW RX
• TCXO: Yes
• Firmware Version: ELRS 3.5.3

• 1x iFlight ELRS 500mW Dualband Receiver

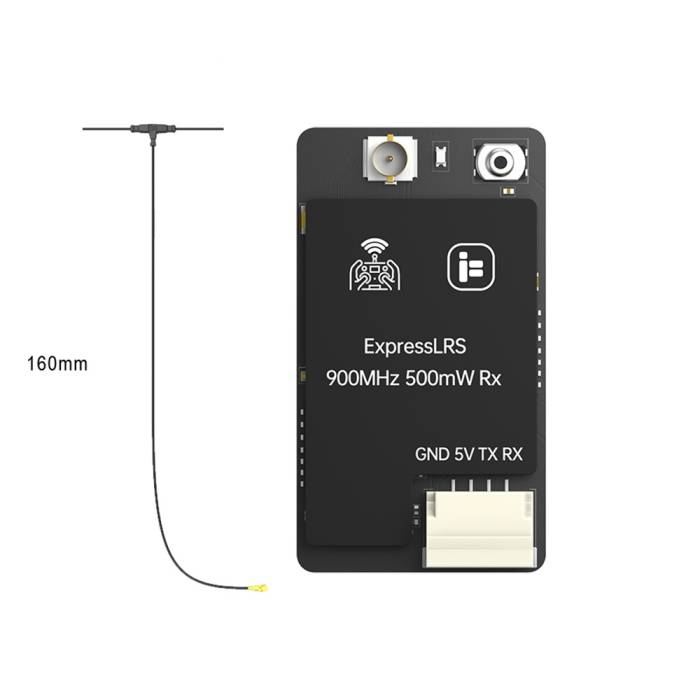

• 1x Antenna
