Description

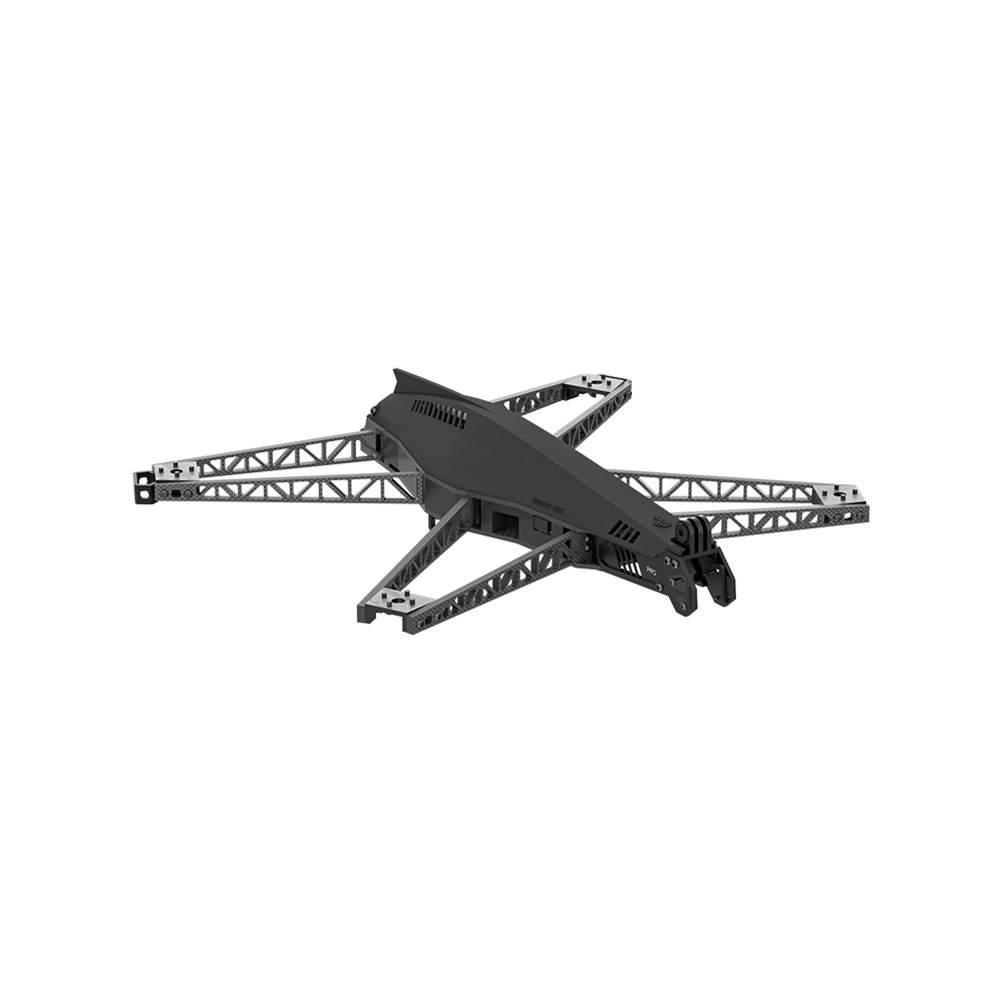

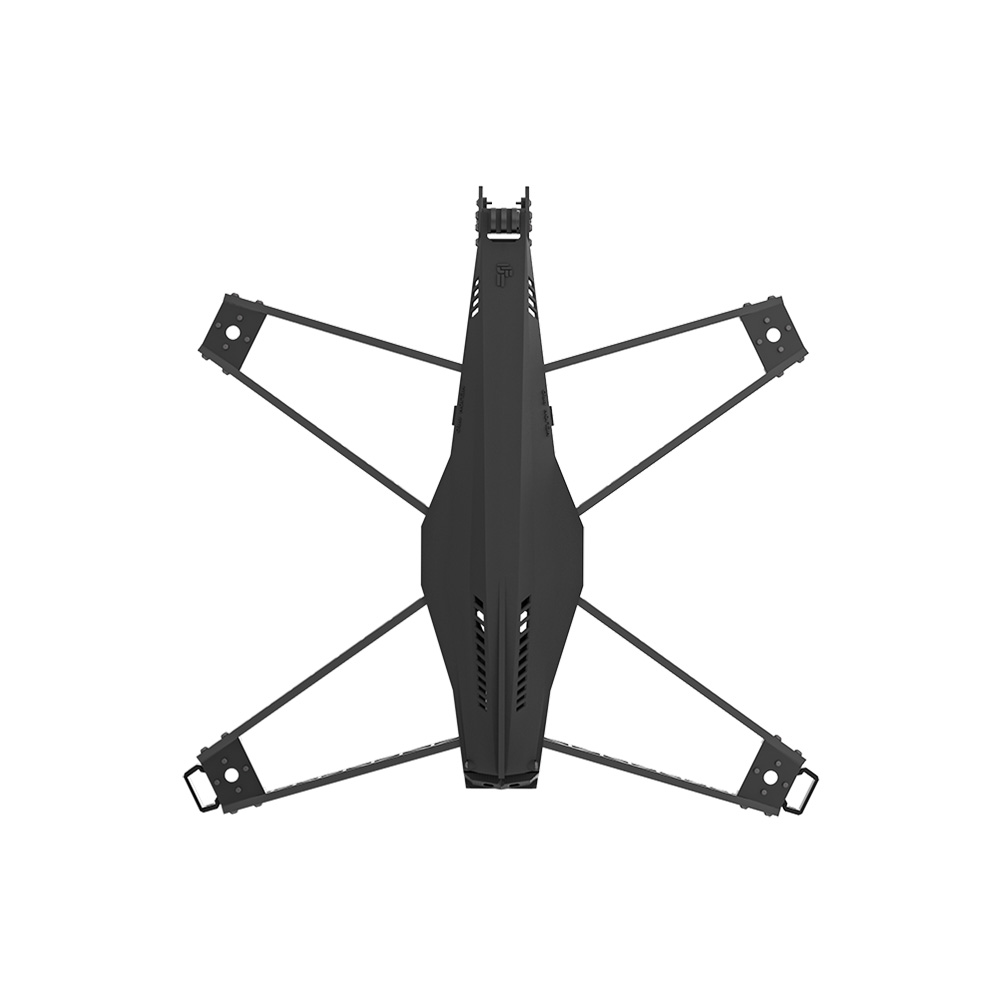

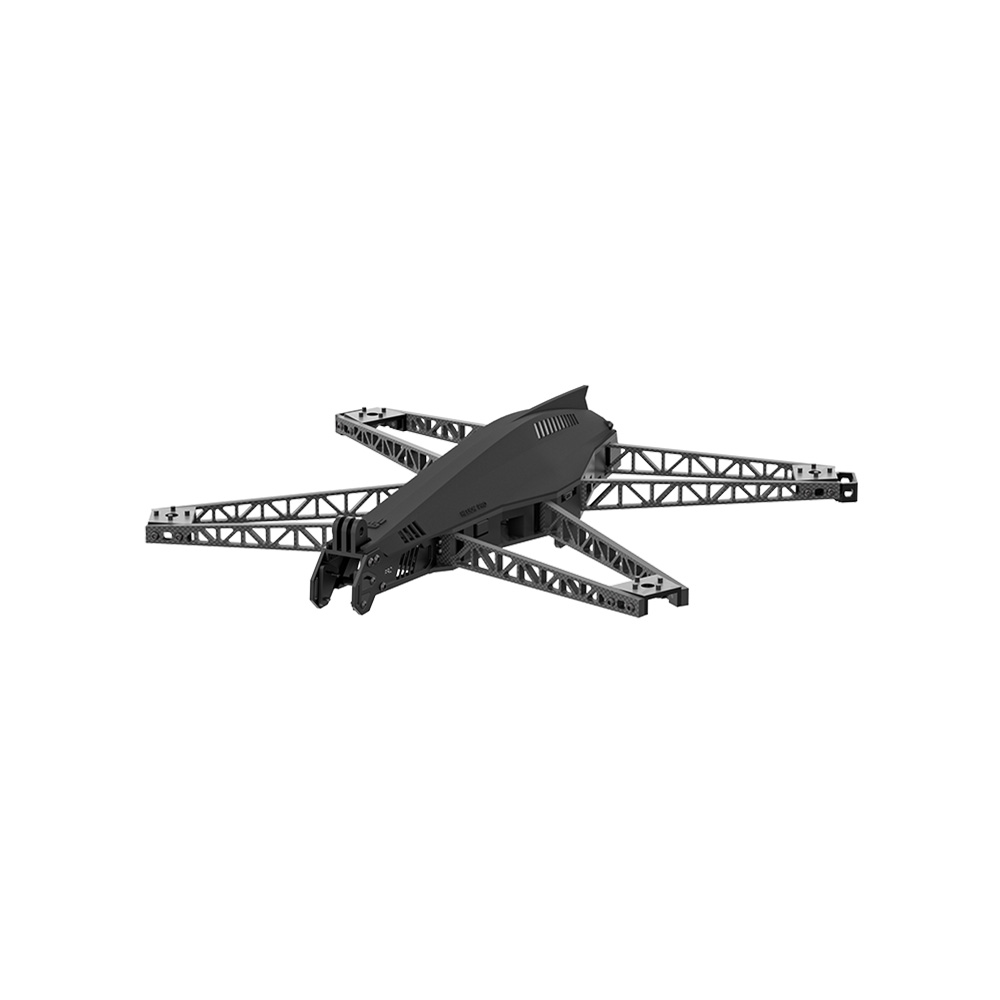

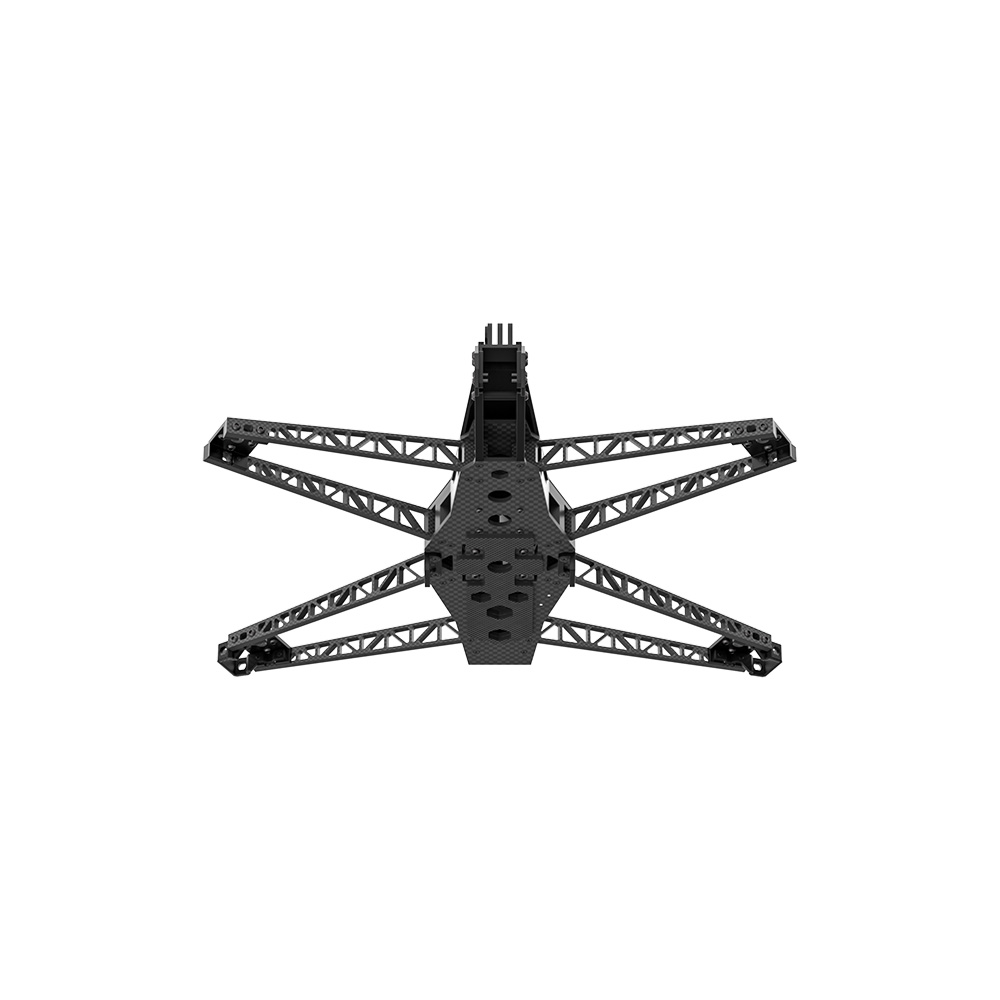

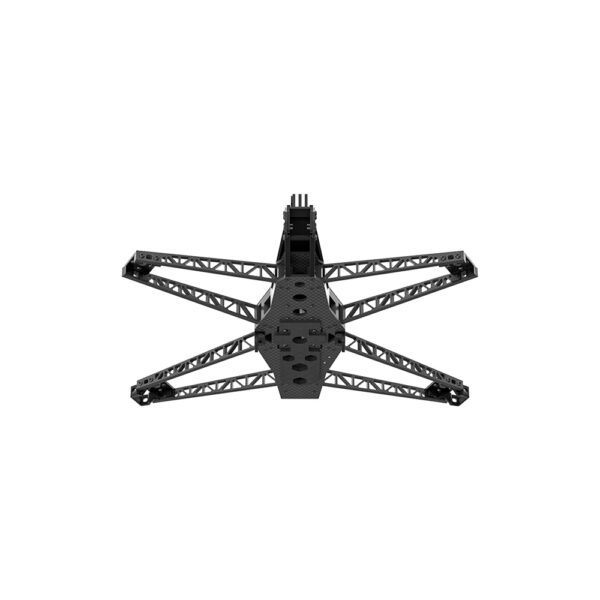

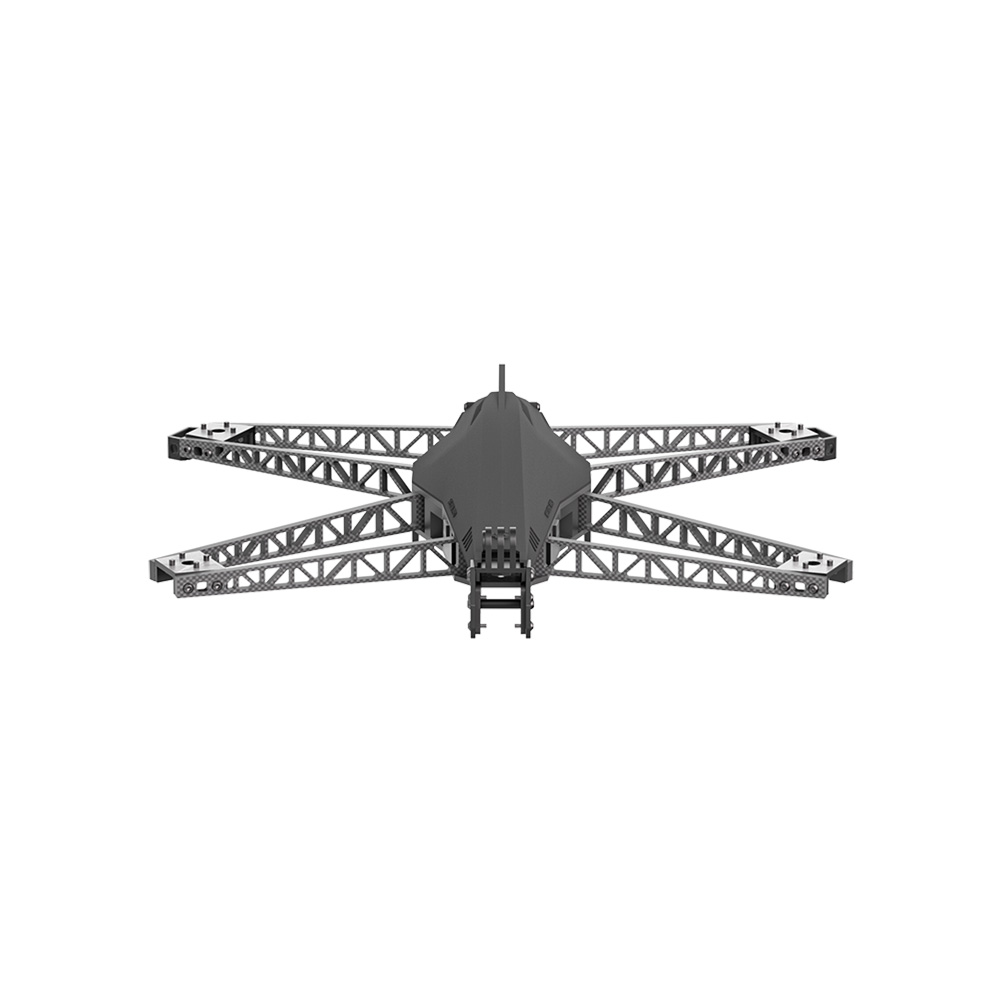

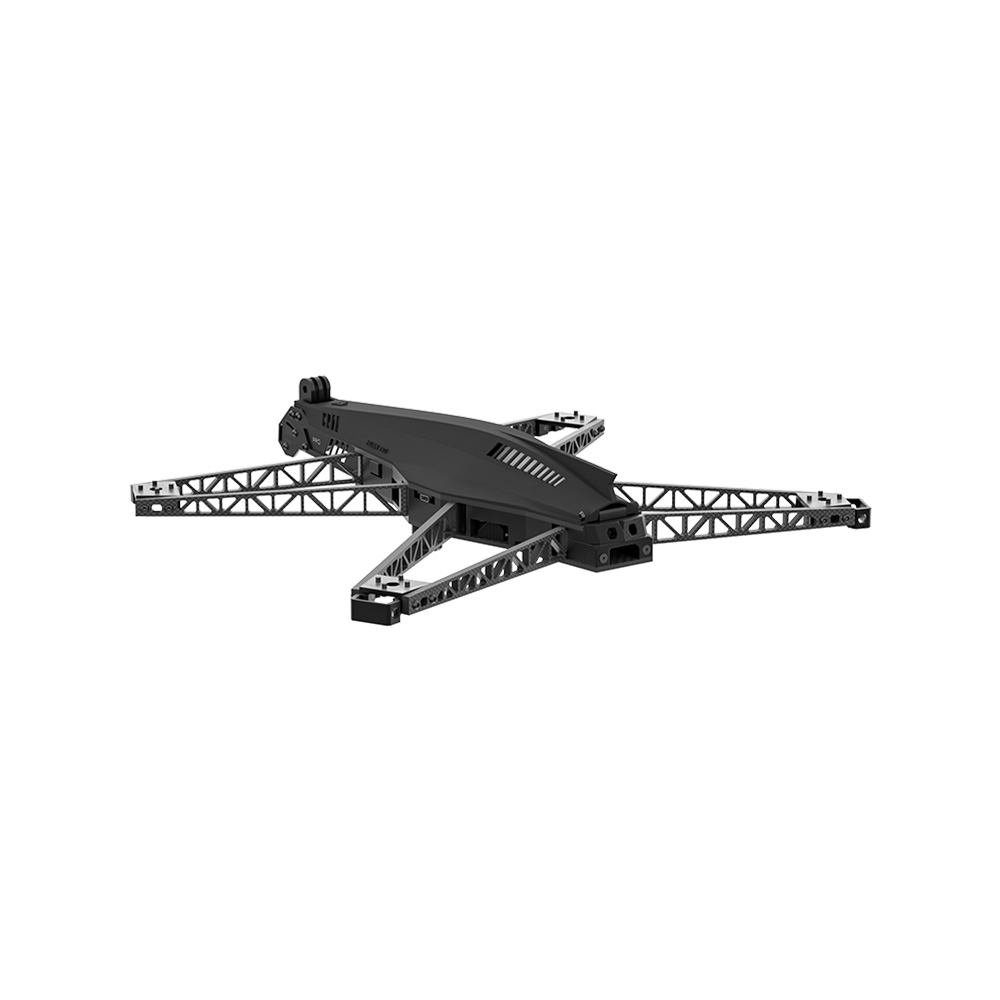

The iFlight Helion Pro 10″ Frame Kit is the ultimate long-range solution engineered for endurance, strength, and aerodynamic efficiency. Designed in collaboration with 2RAW, it features an innovative Aero-Shell for easy maintenance and core protection, plus advanced truss arms for unmatched rigidity. Its USB-C power option future-proofs your setup, making it ideal for both today’s and tomorrow’s tech. Built for wind resistance, stability, and freedom—Helion redefines what long-range truly means.

Features

Aero-Shell

• Unique aerodynamic shell design for improved airflow and performance
• Allows easy access for maintenance without compromising internal protection
• Quick open-close mechanism for convenience during repairs or adjustments

Advanced Truss Arms

• Features the proven 2RAW truss arm design
• Delivers an exceptional strength-to-weight ratio
• Maintains high torsional resistance for superior flight stability

USB-C Power

• Integrated USB-C plug to power action cameras during flight
• Future-proofed for compatibility with upcoming compact camera systems
• Ensures uninterrupted footage, even when your cam runs low on battery

Specifications

• • Product Name: Helion Pro Frame Kit

• Frame Wheelbase: 414mm
• Frame Dimensions: L320 × W262 × H70 mm
• Arm Thickness: 5mm
• Bottom Plate Thickness: 3mm
• Top Plate Thickness: 3mm
• Max Flight Stack Height: 20mm
• Max VTX Height: 20mm
• Flight Stack Mounting: 30×30 / Φ3mm
• VTX Mounting: 25.5×25.5 / Φ2mm
• Motor Mounting: 19×19 / Φ3mm
• Weight: 681±10g
• Compatibility: DJI O4 Air Unit Pro

Package Includes

• 1 × Helion Pro Frame Kit
• 1 × TPU Set
• 4 × Motor Wire Shield Tubes
• 2 × Battery Anti-Slip Pads
• 2 × Battery Straps
• 1 × Screw Bag
