Lightweight and Compact

• 5-inch drone weighing only 300 grams.

• Redesigned frame layout ensures precise fitting of all components inside the canopy.

• Maximizes space utilization for a compact and efficient build.

Innovative Quick-Release Aero Shell

• Aerodynamic canopy design with quick-release buckle for fast replacement and maintenance.

• Protects electronics from dirt and moisture for added confidence in tough conditions.

Convenient User Experience

• Secured battery plug prevents power cable from contacting propellers.

• Built-in LHCP antenna enhances protection and aesthetics.

• Front-mounted receiver slot for easy receiver replacement.

• Wire shielding tube allows LED strip installation while preventing damage.

DIY Customized Space

• Standard 20×20 mounting holes, compatible with HDZero and other VTX.

• Antenna mount with silicone pads supports more VTX antenna options.

• Canopy cover made of carbon plate with TPU, replaceable by removing six screws.

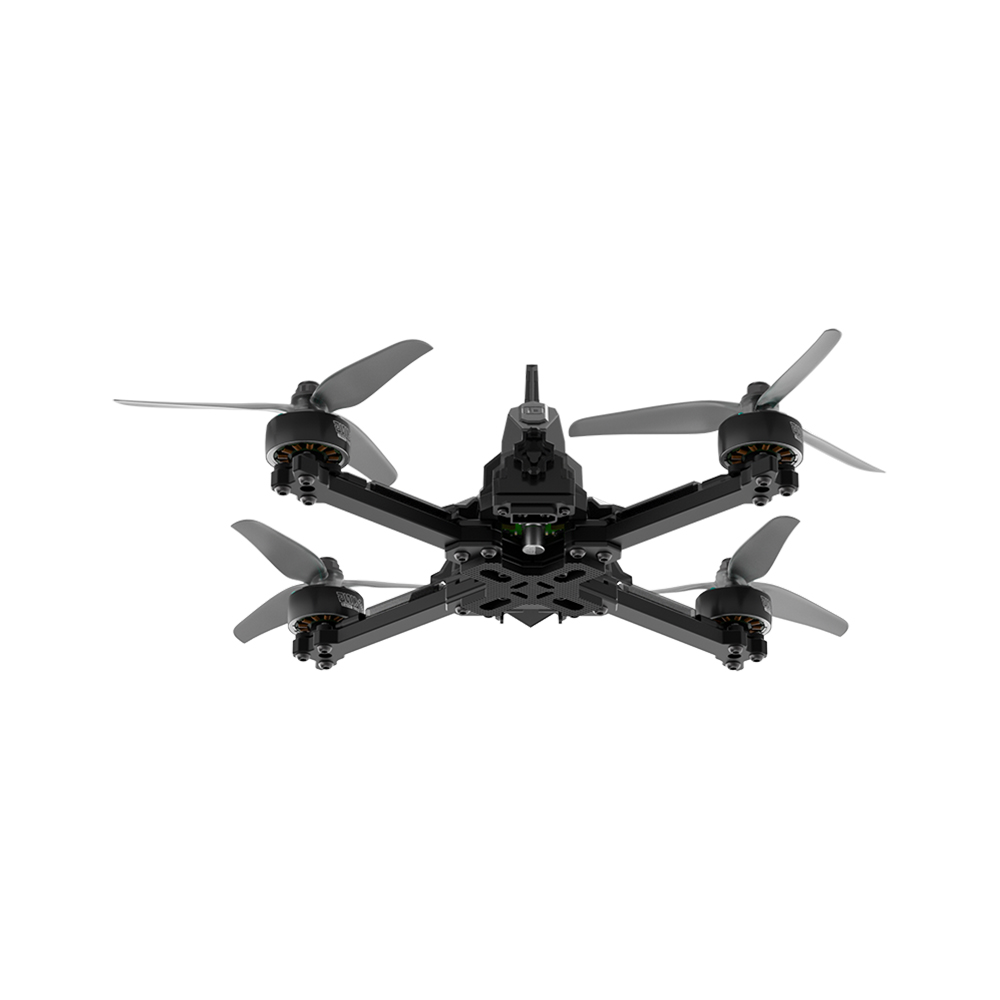

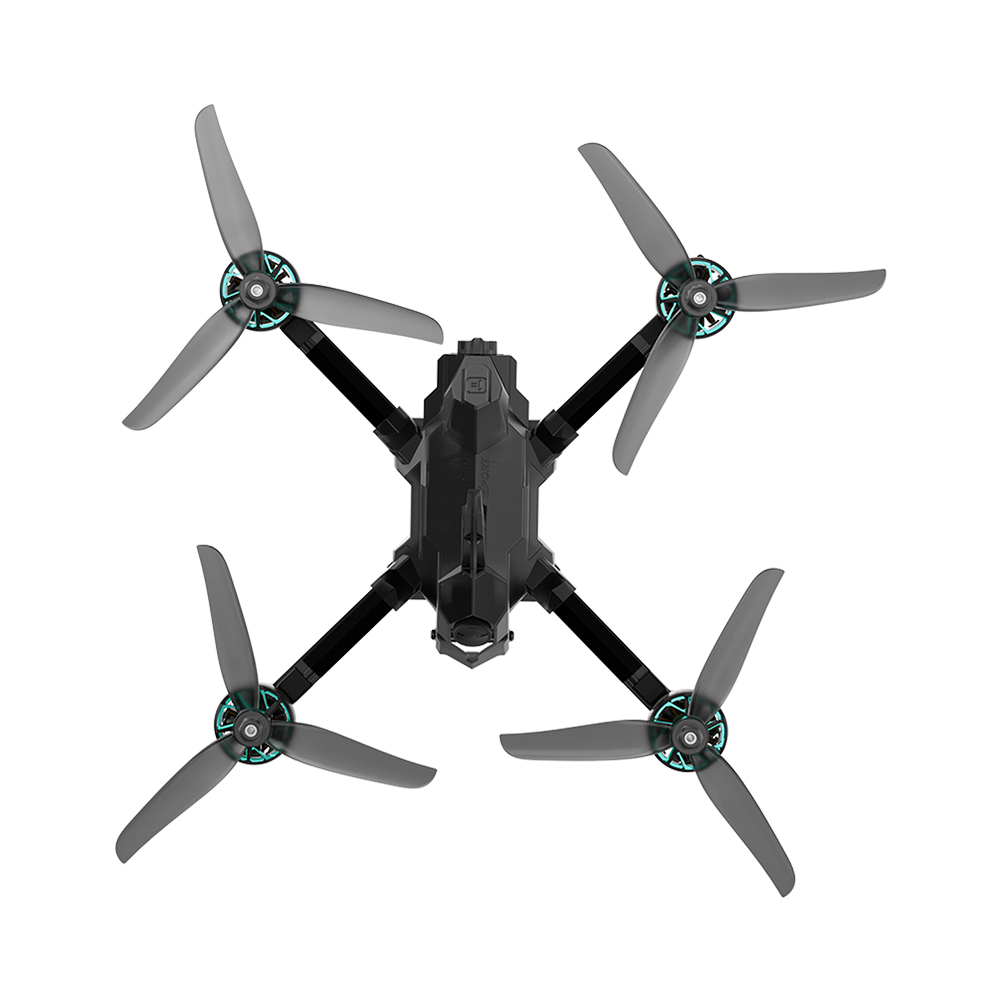

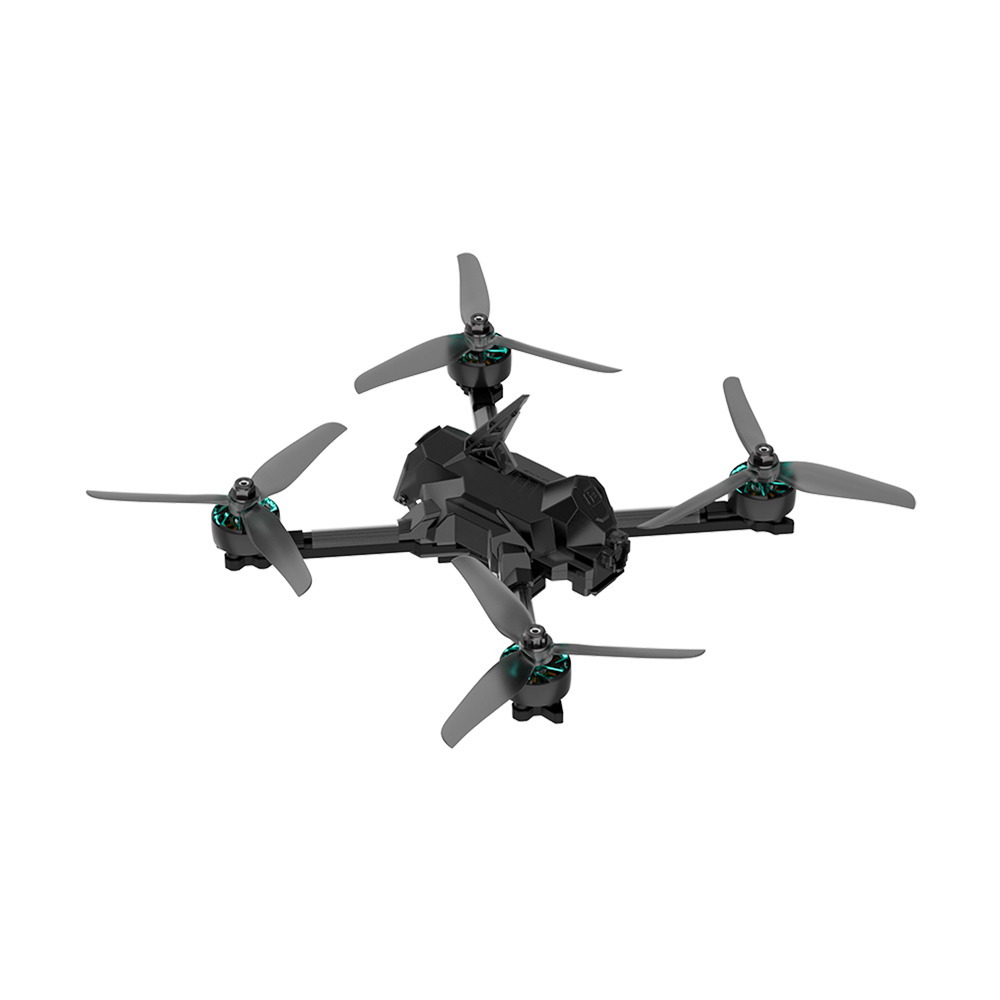

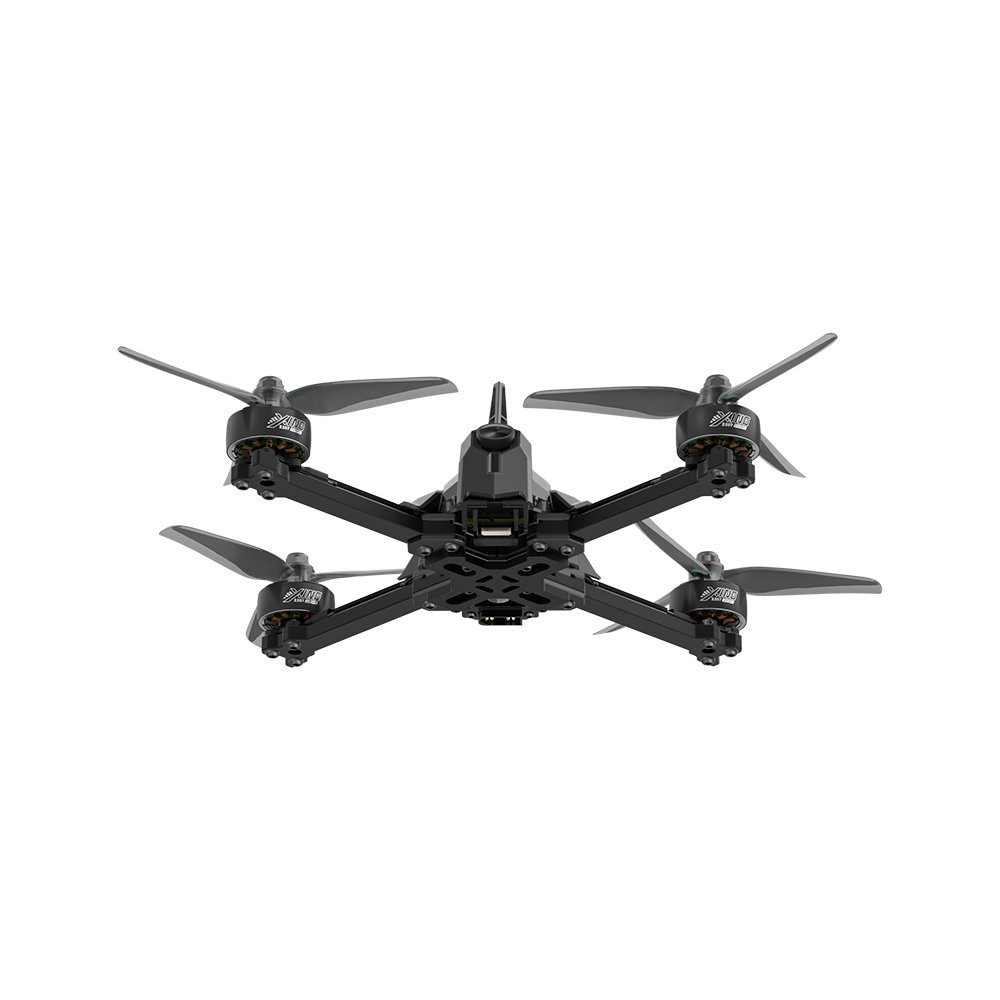

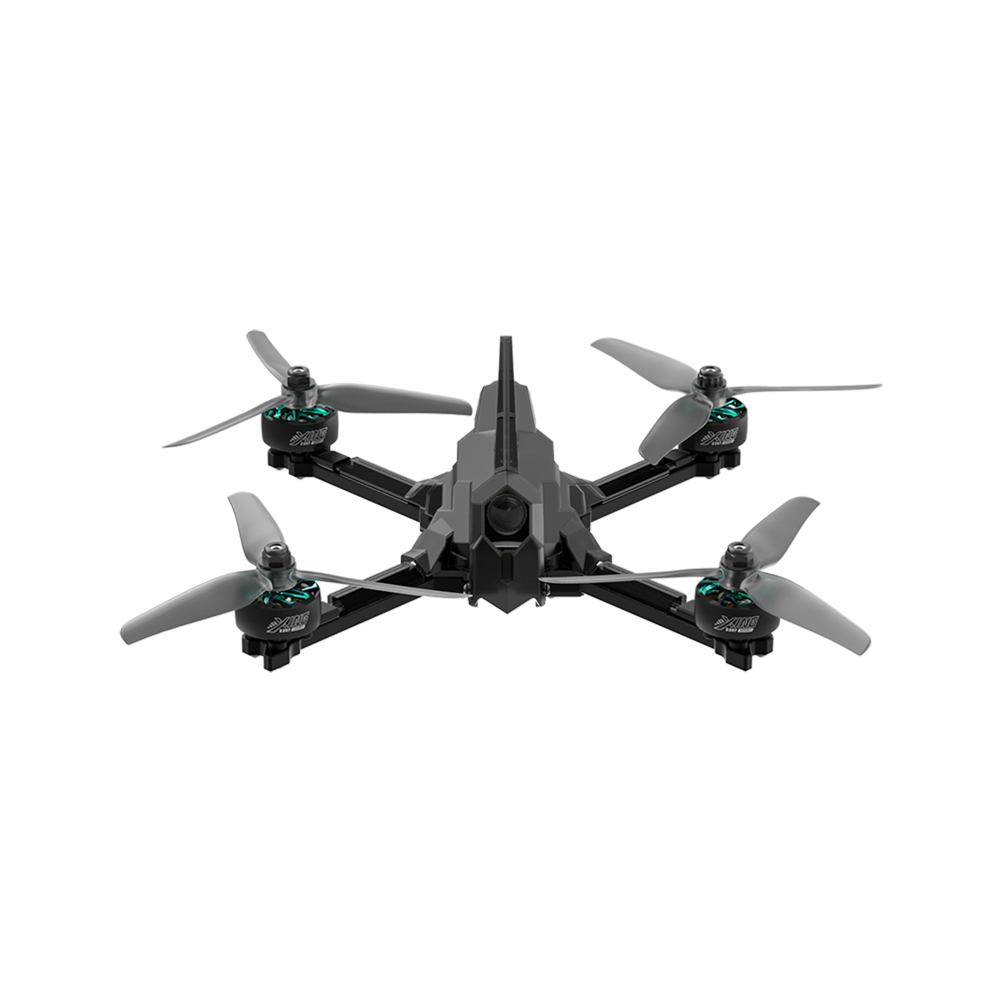

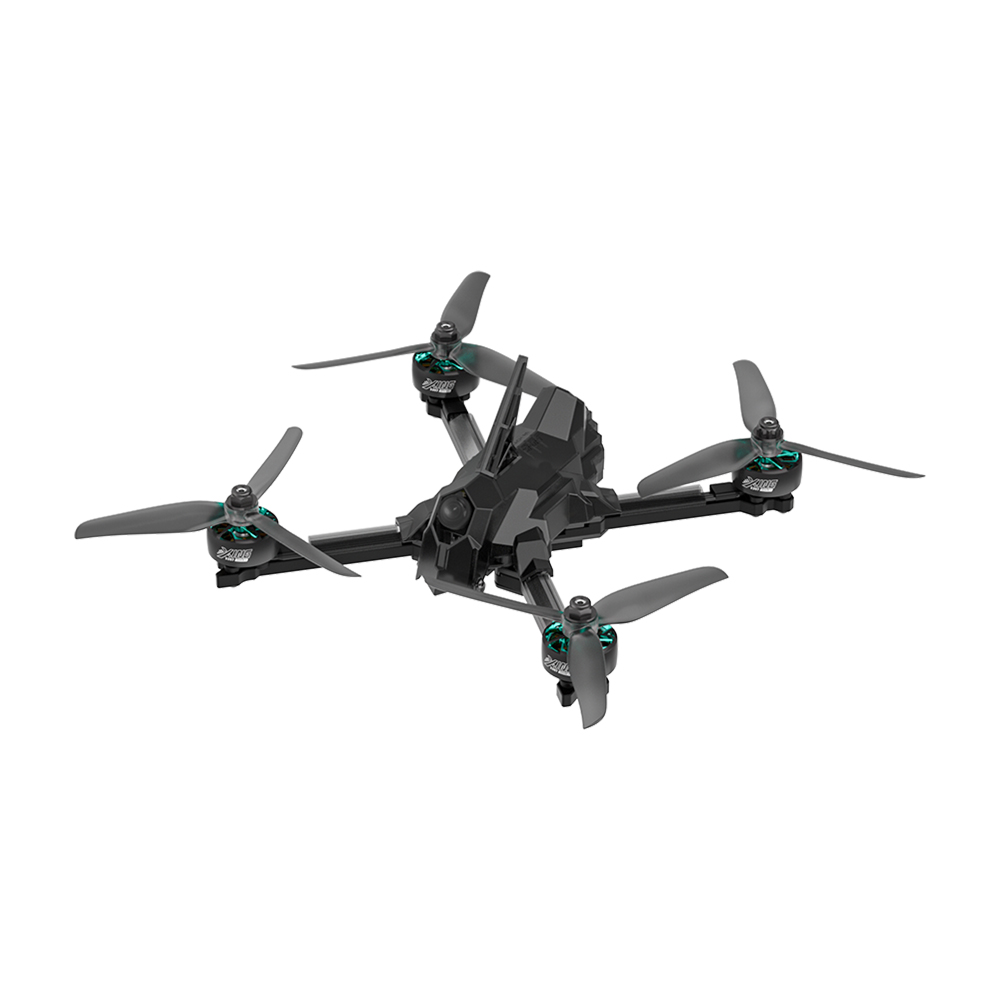

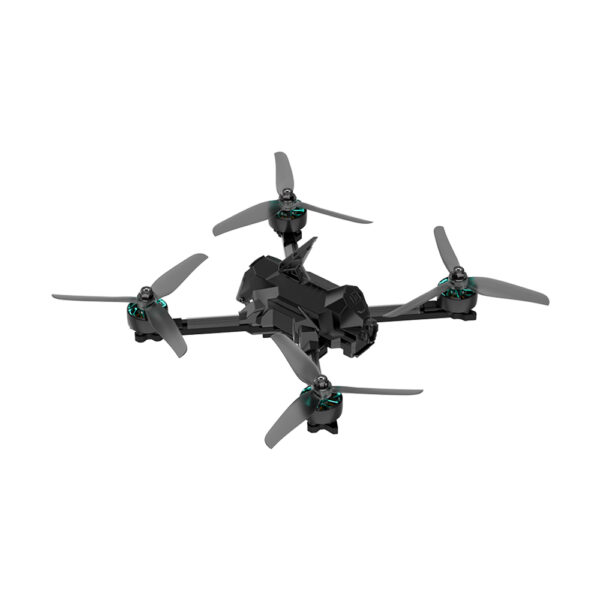

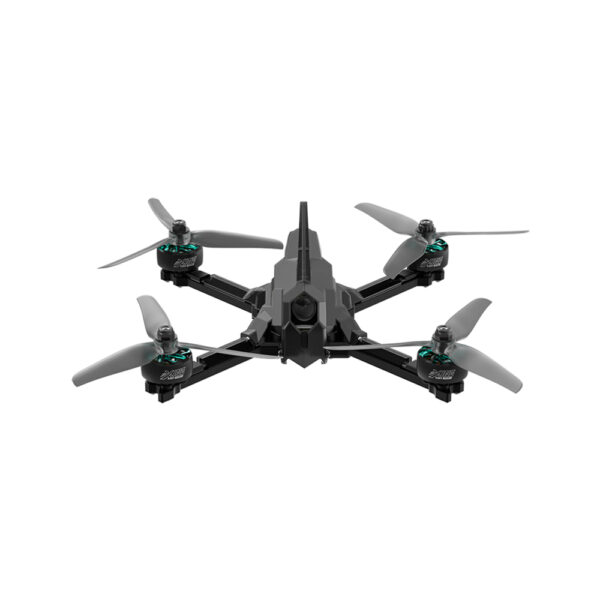

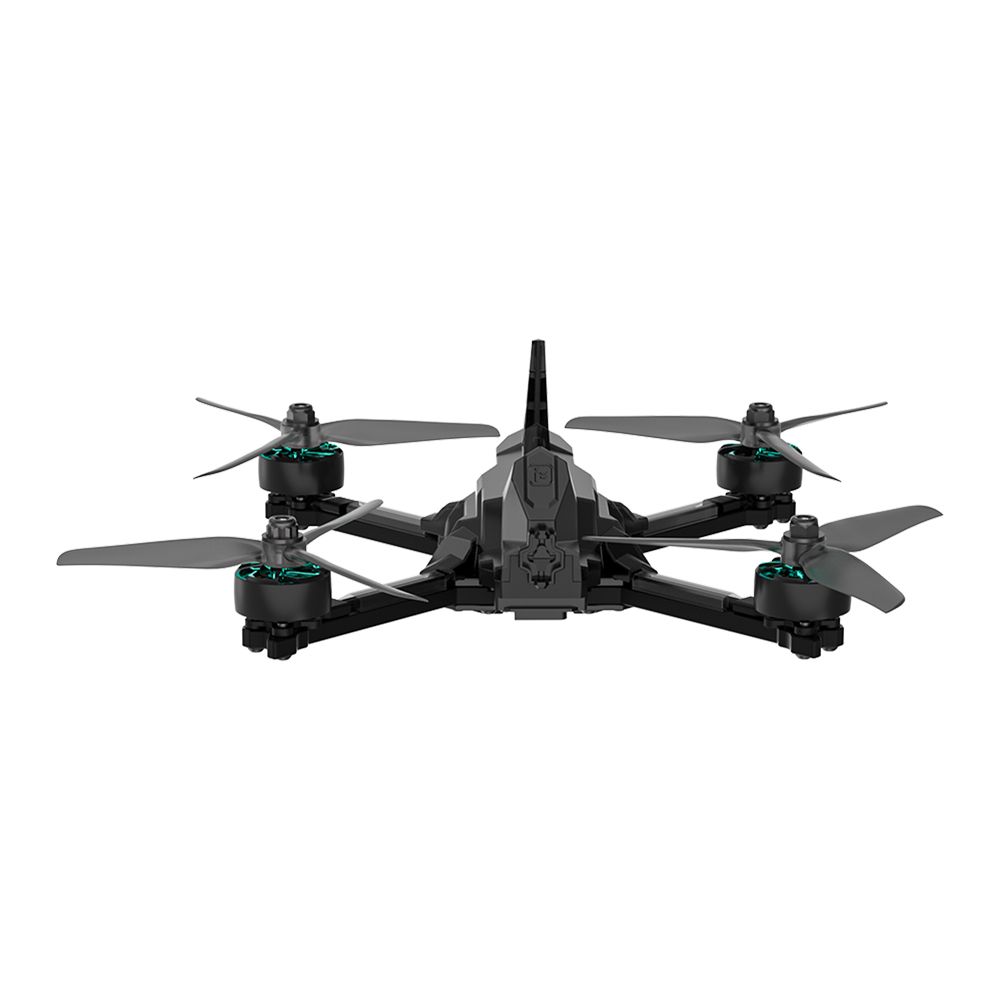

Product Name: Mach R5 Sport 6S HDZero

Flight Controller (FC): BLITZ Mini F722

ESC: BLITZ E55R 4-IN-1 2–6S 55A ESC

Video Transmission: HDZero Race V3 VTX

Camera: HDZero Nano 90 CAM

Frame: 210mm wheelbase

Motors: R5 2207 2050KV

Propellers: Nazgul R5 V2

Weight: 300g

Takeoff Weight: Approx. 525g (with 6S 1400mAh battery)

Dimensions (L×W×H): 148 × 148 × 51 mm

Max Speed: 240 km/h

Maximum Takeoff Altitude: 6000 m

Max Hover Time: Approx. 12 min (with 6S 1400mAh, no load)

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single LCHP Antenna

GNSS: N/A
