Description

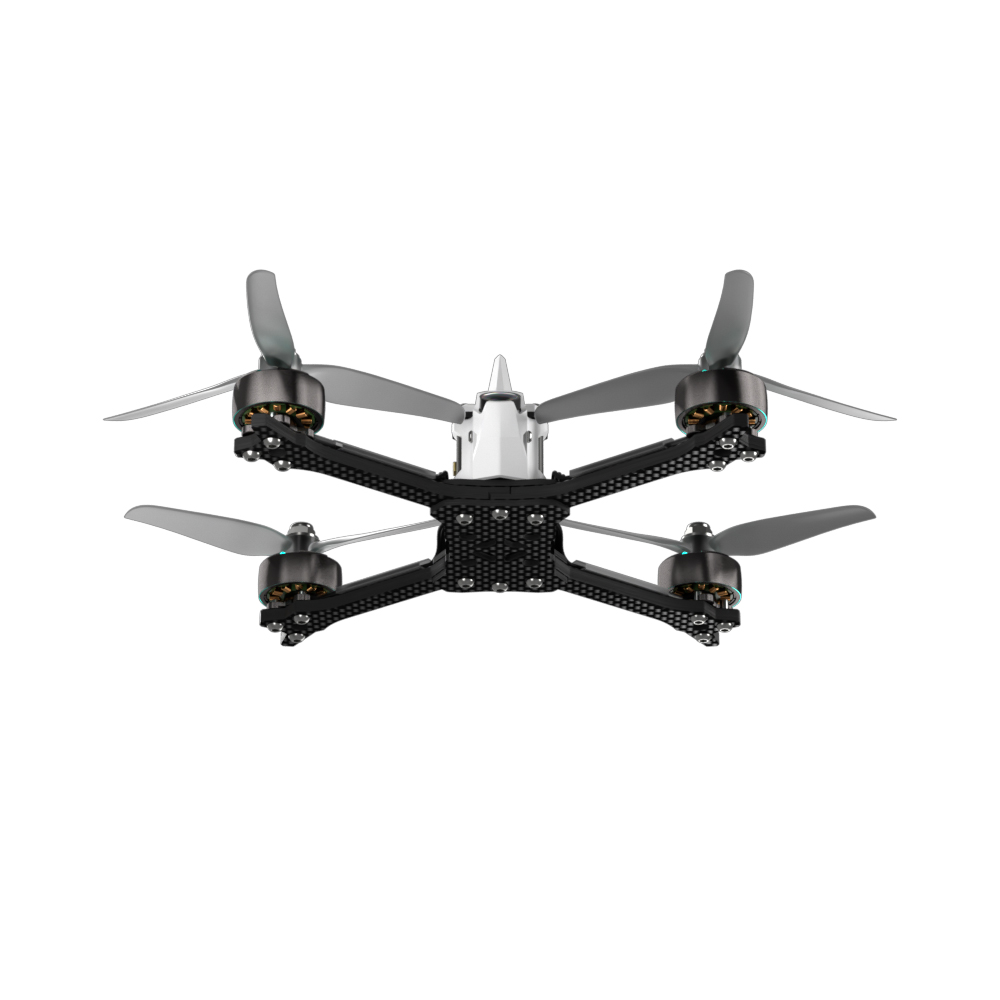

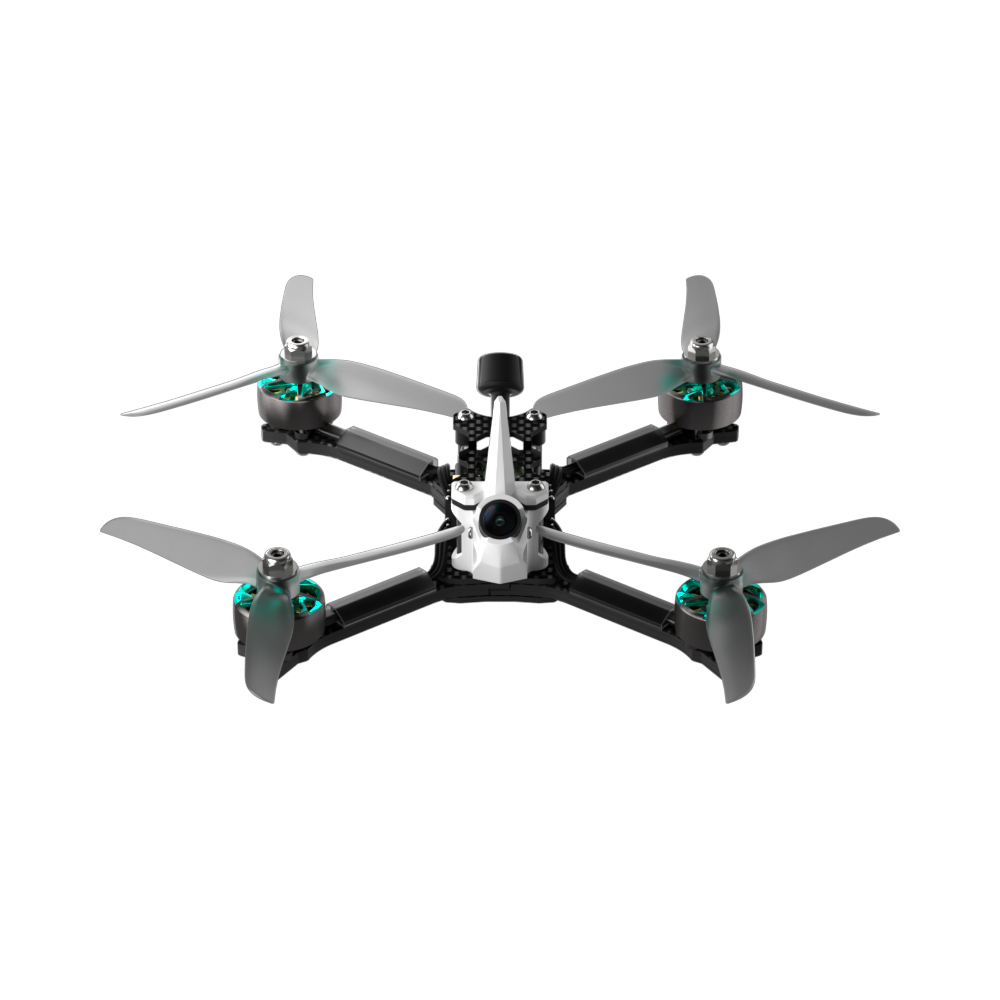

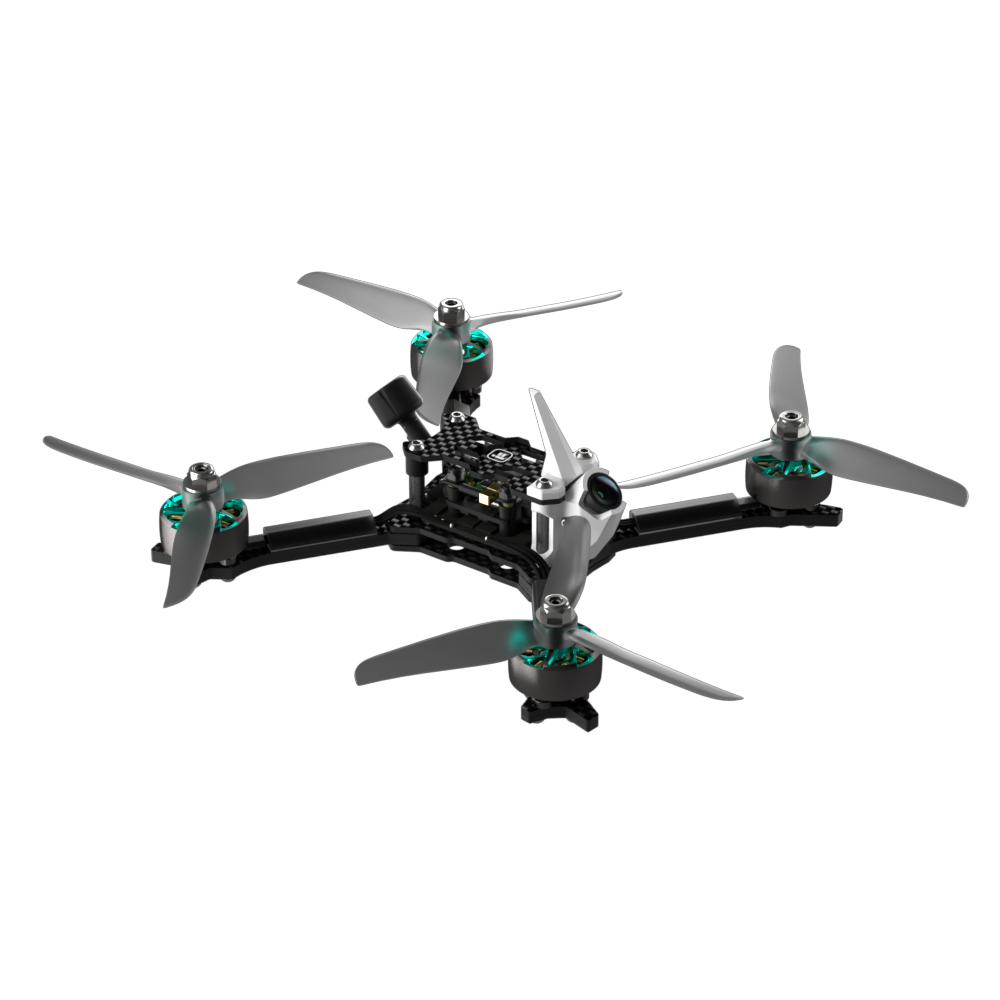

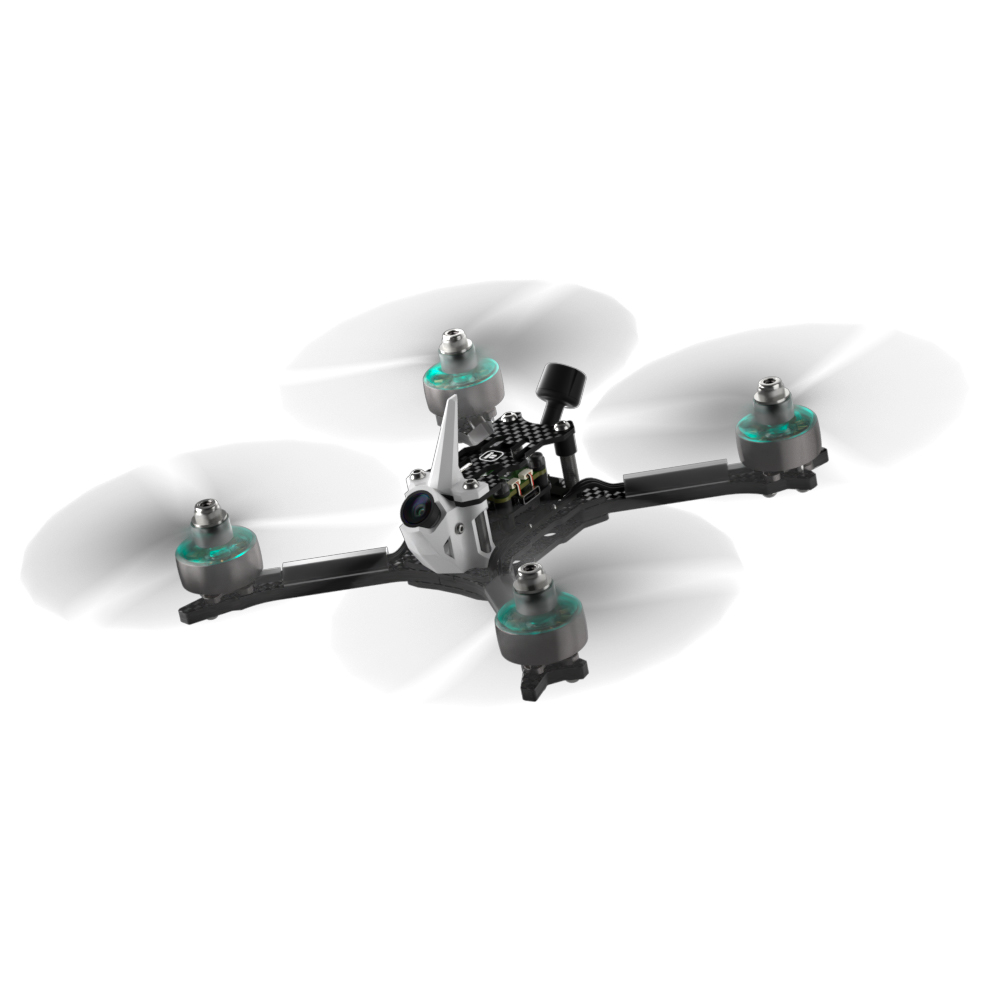

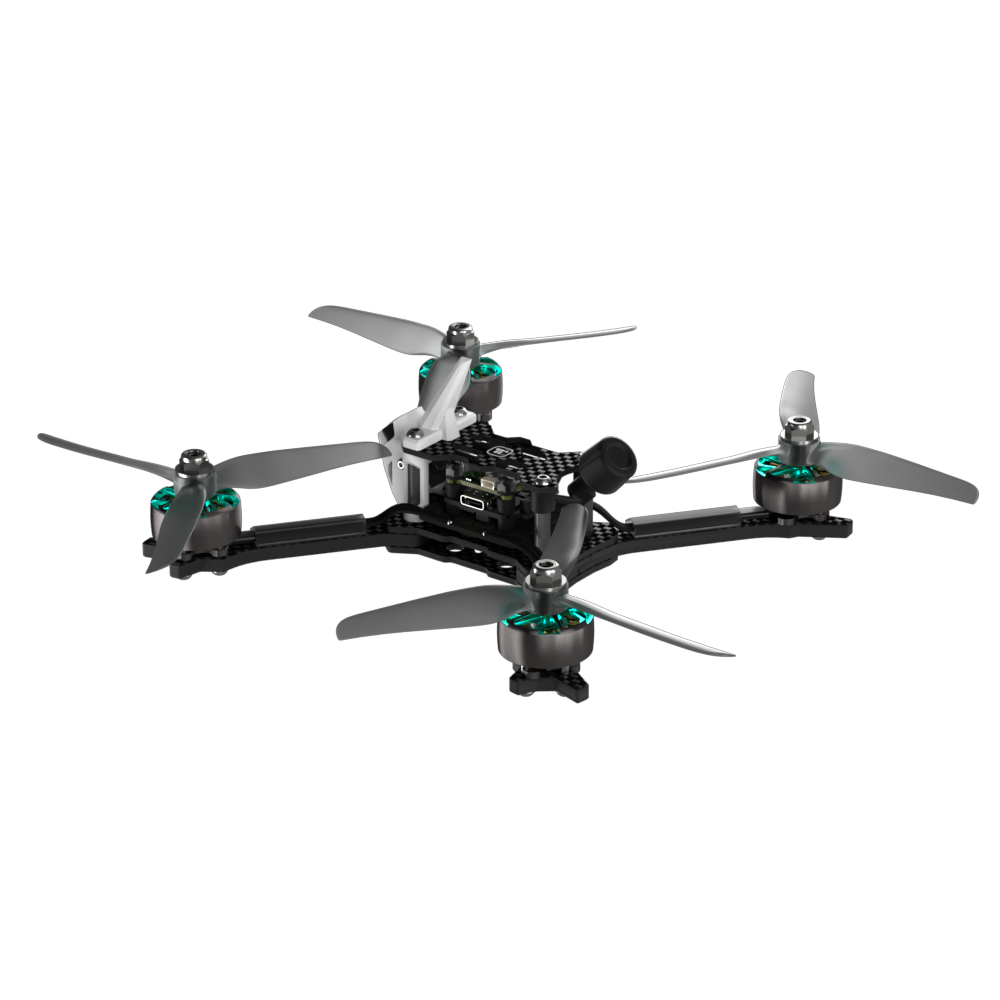

The iFlight Mach R5 Ultra Analog 6S BNF ELRS 2.4GHz w/SMD Antenna delivers lightning-fast racing performance with a lightweight 285g H-frame, upgraded T700 carbon plates, and powerful 2207 2100KV motors built for aggressive speed runs. Engineered for elite FPV pilots, it reaches blistering speeds up to 245km/h while the integrated ELRS receiver, anti-spark protection, and Borg 60RS ESC ensure ultra-responsive control, stable power delivery, and dependable durability through every intense race and sharp maneuver.

Features

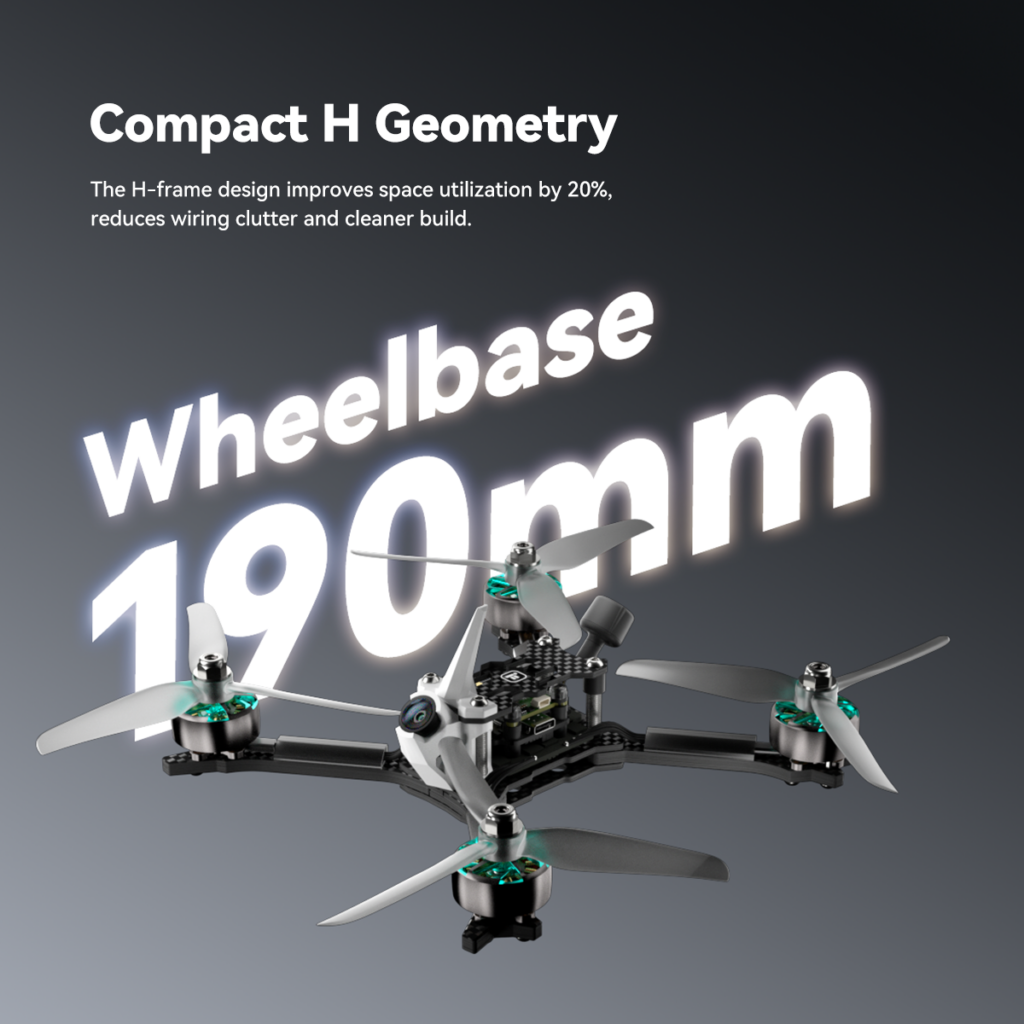

• Compact H-frame geometry with improved space utilization

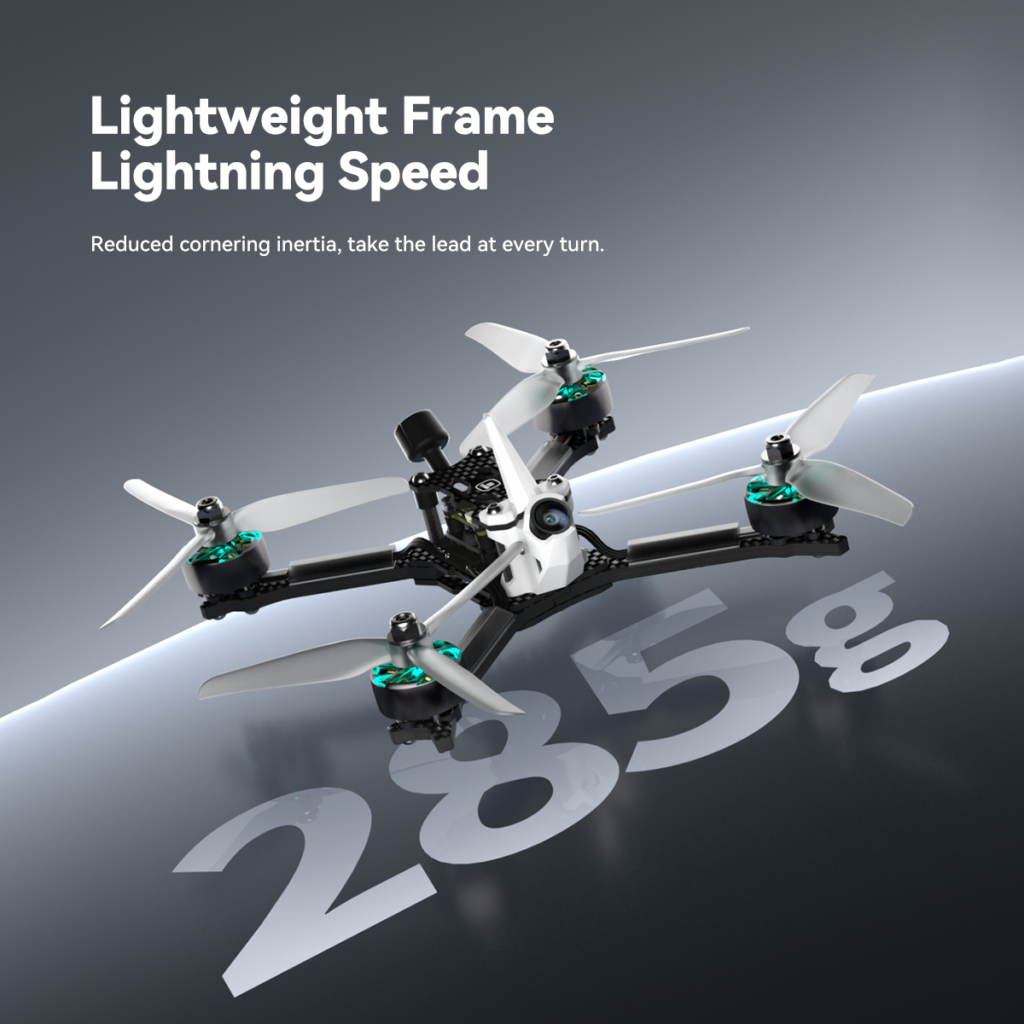

• Lightweight 285g frame for faster cornering response
• Top speed up to 245km/h for competitive racing

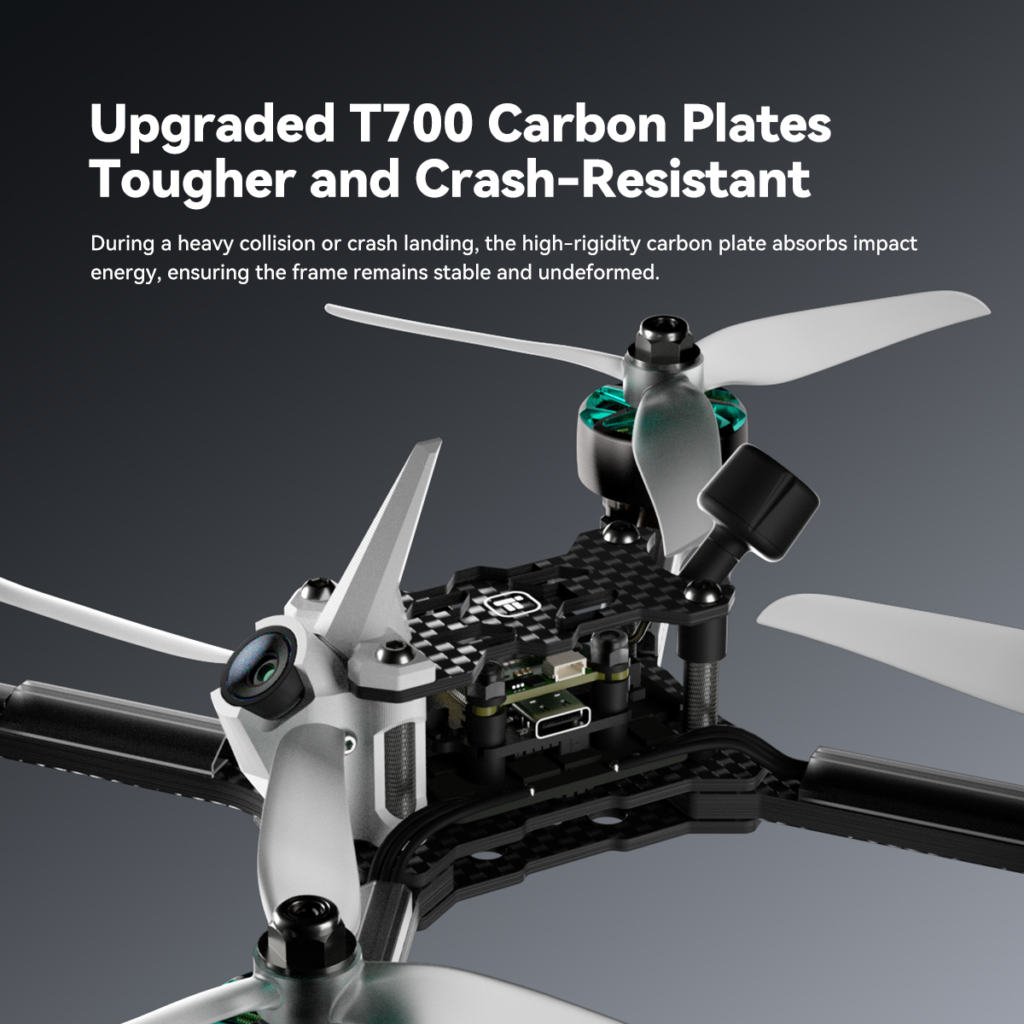

• Upgraded T700 carbon plates for enhanced durability

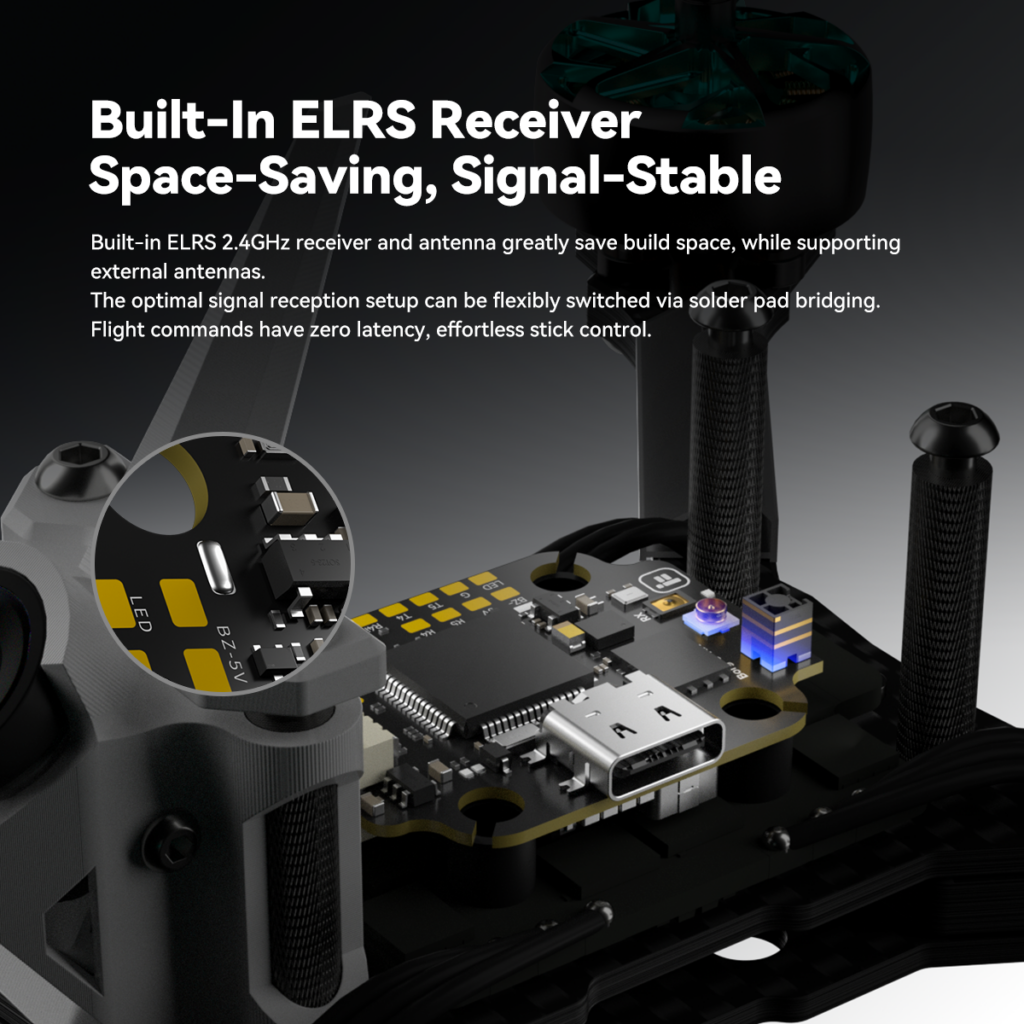

• Built-in ELRS 2.4GHz receiver with SMD antenna
• Supports external antenna configuration via solder pads
• Integrated polymer capacitor eliminates external capacitor need
• Powerful R5 2207 2100KV racing motors
• Borg 60RS ESC with up to 8S voltage support
• 65A peak redundancy for maximum power reserve

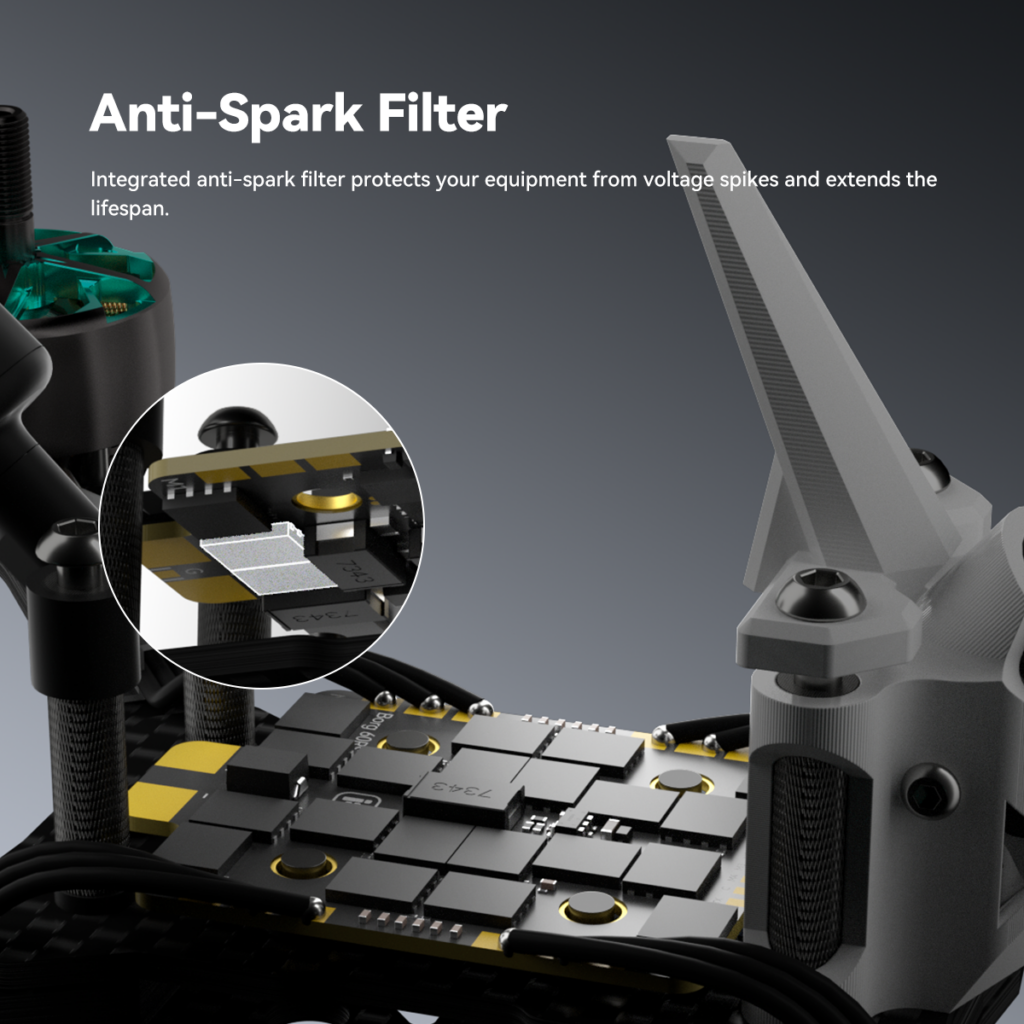

• Onboard anti-spark filter for safer power connection
• TVS transient voltage suppressor for stable circuitry
• Clean internal layout with reduced wiring clutter
• Responsive low-latency stick control performance

Specifications

• Frame Geometry: Compact H-frame
• Wheelbase: 190mm
• Flight Controller: Borg 5S RX FC
• ESC: Borg 60RS ESC
• Motor: R5 2207 2100KV motors
• Propellers: Nazgul R5 V2 propellers
• Receiver Protocol: ExpressLRS 2.4GHz
• Video Transmission Option 1: BLITZ RACE 5.8G 25mW VTX
• Video Transmission Option 2: BLITZ Mini Force 5.8G 600mW VTX
• Weight: 285±5g
• Takeoff Weight: Approx. 527±5g with 6S 1480mAh battery
• Dimensions: 169×161×34mm
• Maximum Speed: 245km/h
• Maximum Takeoff Altitude: 6000m
• Max Hover Time: Approx. 12.5 minutes
• Operating Temperature: -10°C to 40°C
• Antenna Configuration: Single antenna
• GNSS: N/A

Packing List

• 1 × Mach R5 Ultra Analog 6S BNF
• 1 × Battery strap
• 2 × R5 propeller pairs
• 1 × Battery pad
