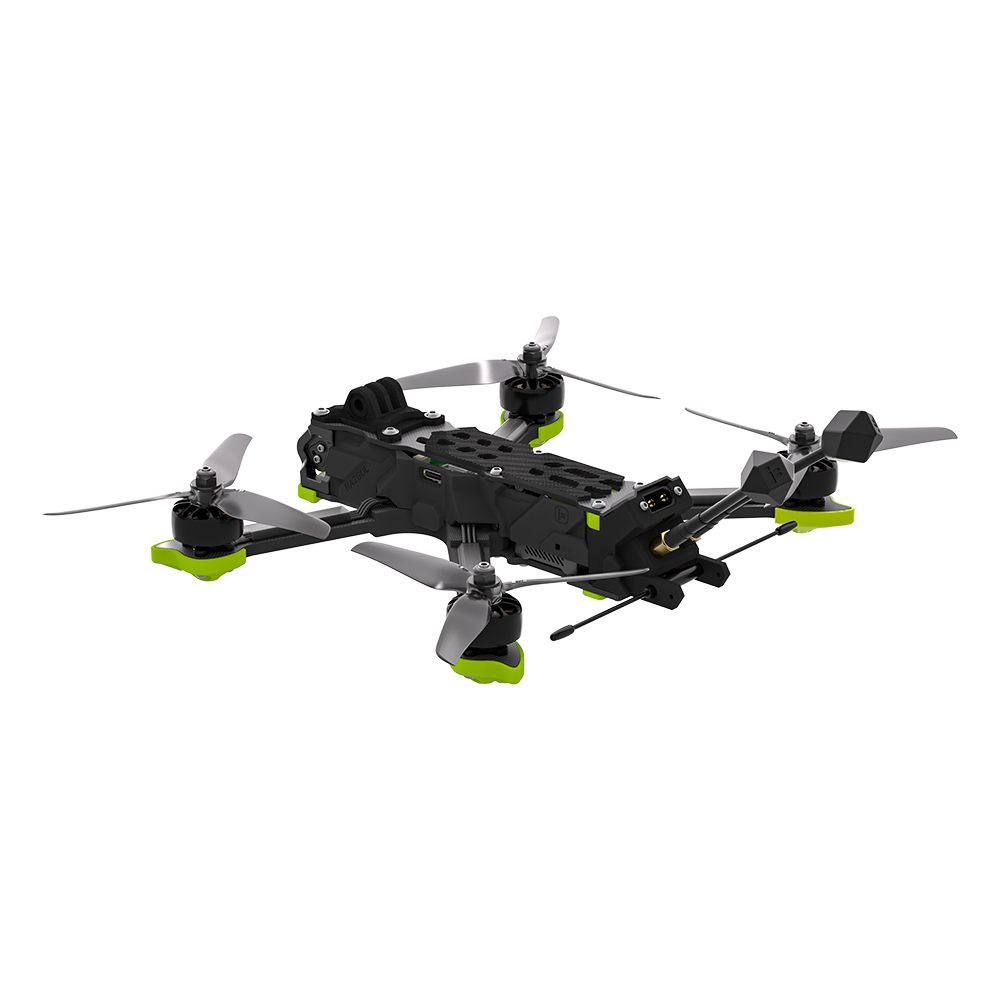

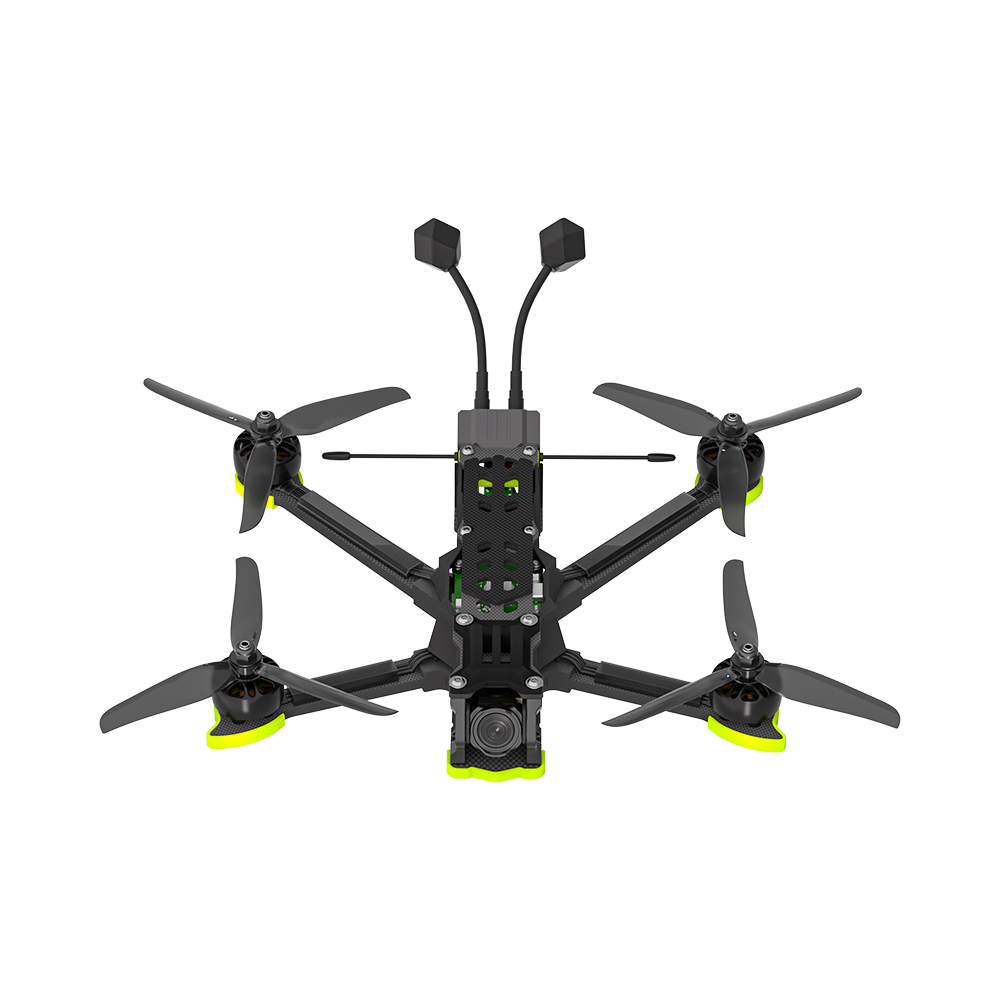

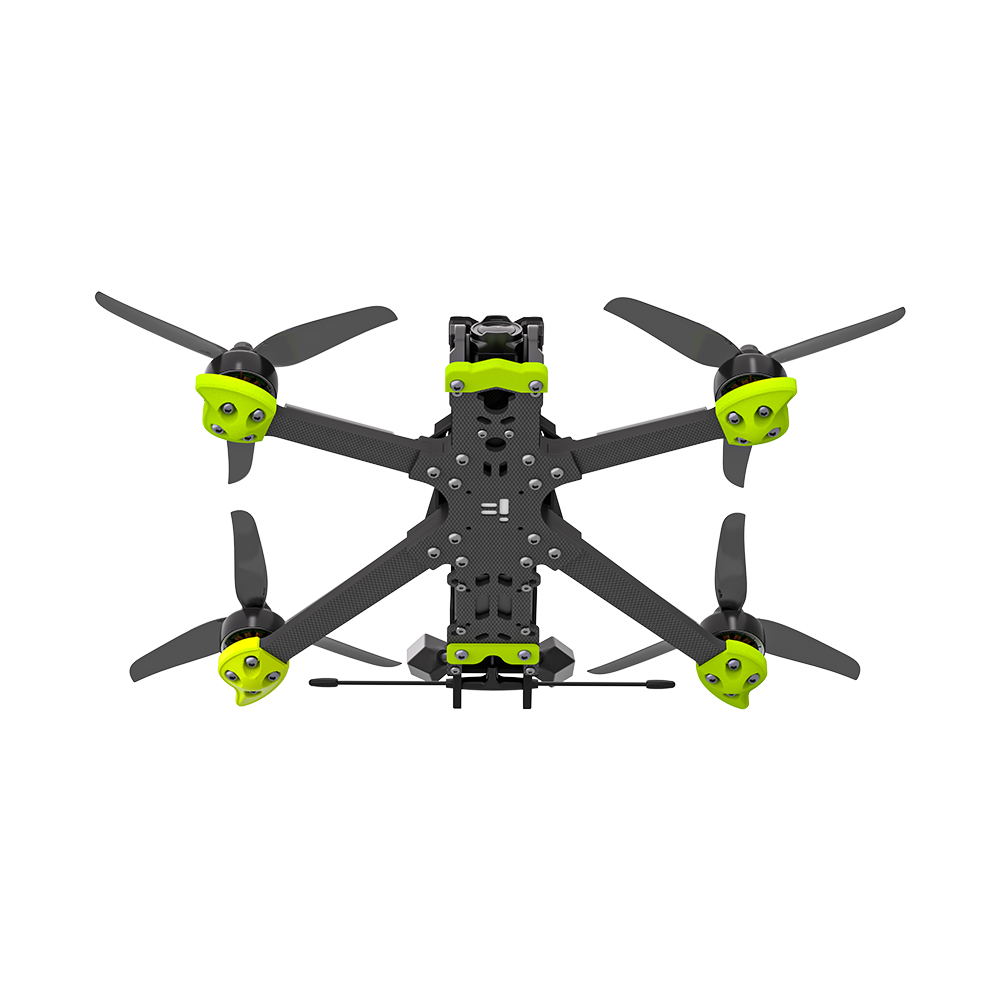

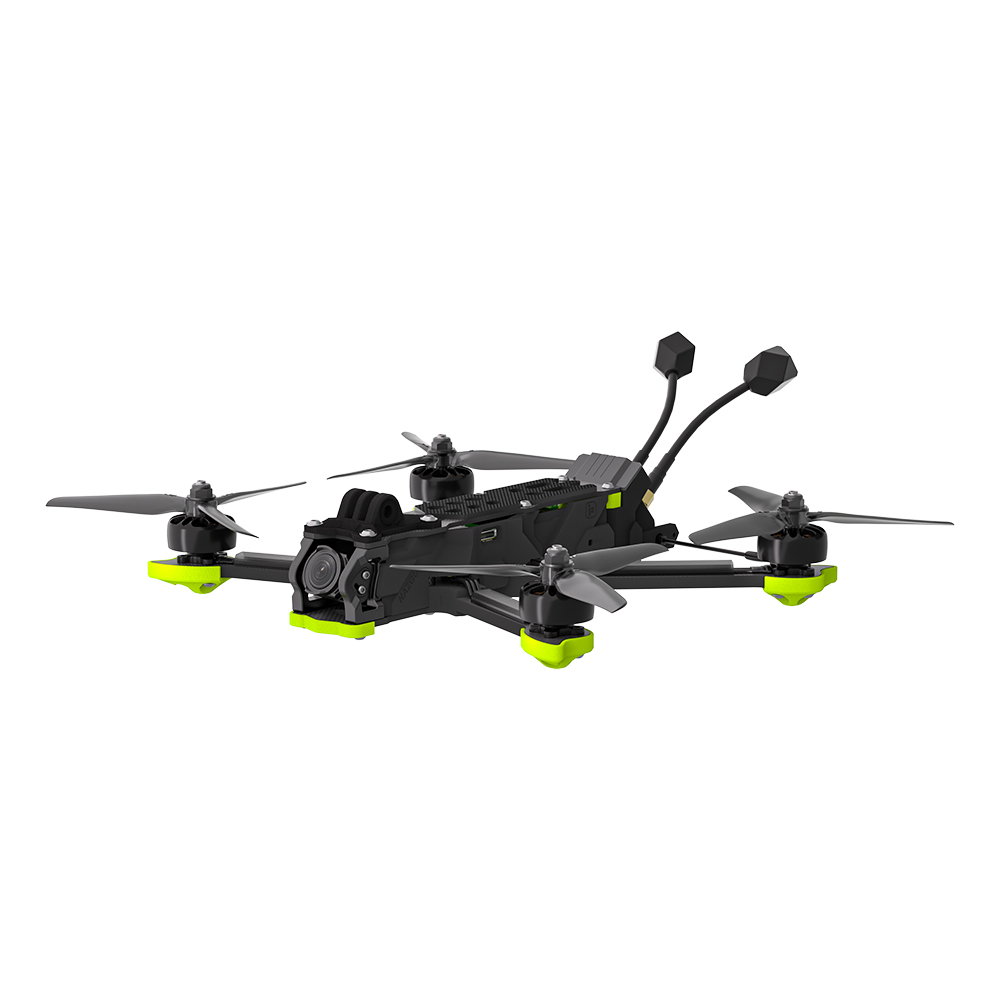

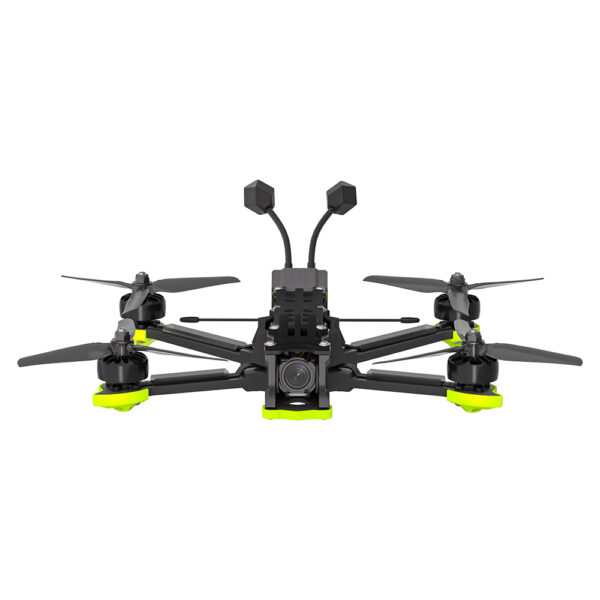

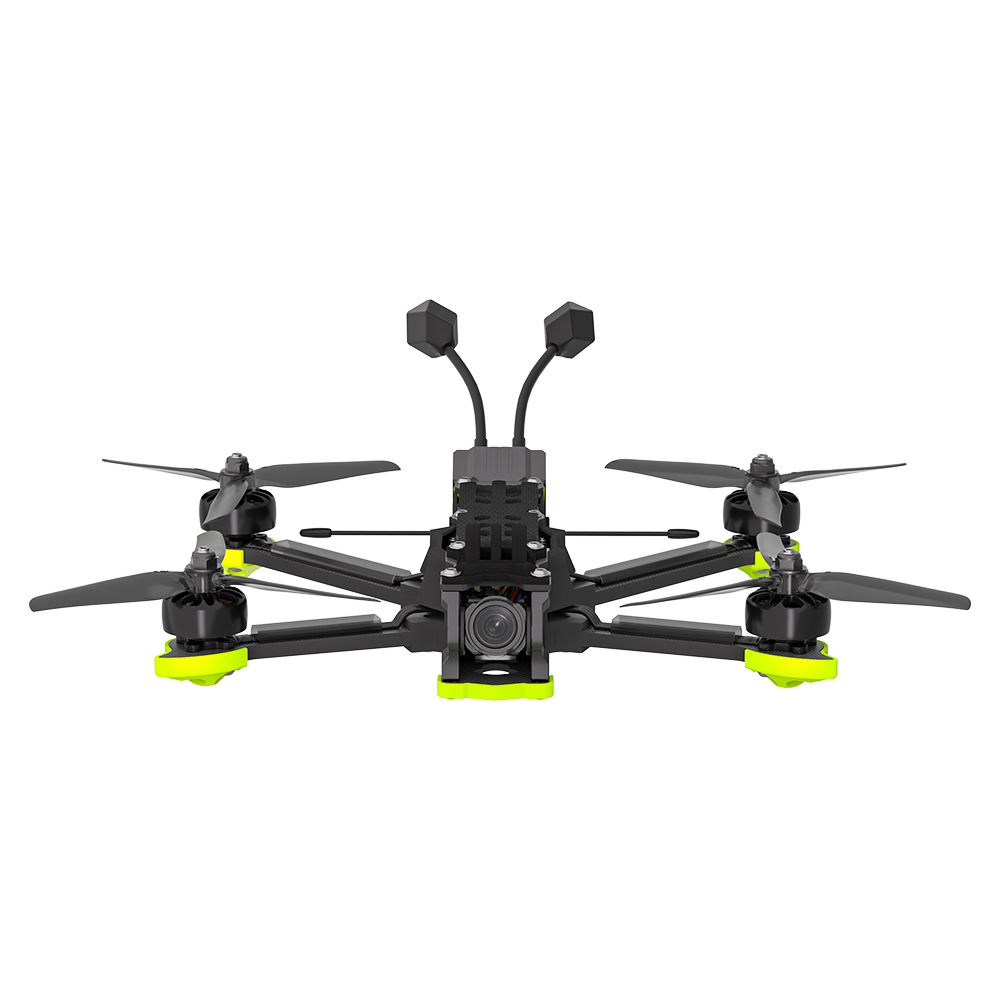

iFlight Nazgul DC5 ECO V1.1 O4 Freestyle Drone BNF DJI

Description

Pre-Order info: our stock is in transit and we are expecting it to arrive around 20th Jan.

Note this version is BNF DJI. We also have:

• BNF ExpressLRS 2.4GHz option iFlight Nazgul DC5 ECO V1.1 O4 Freestyle Drone BNF ExpressLRS
• BNF TBS Crossfire option iFlight Nazgul DC5 ECO V1.1 O4 Freestyle Drone BNF TBS Crossfire

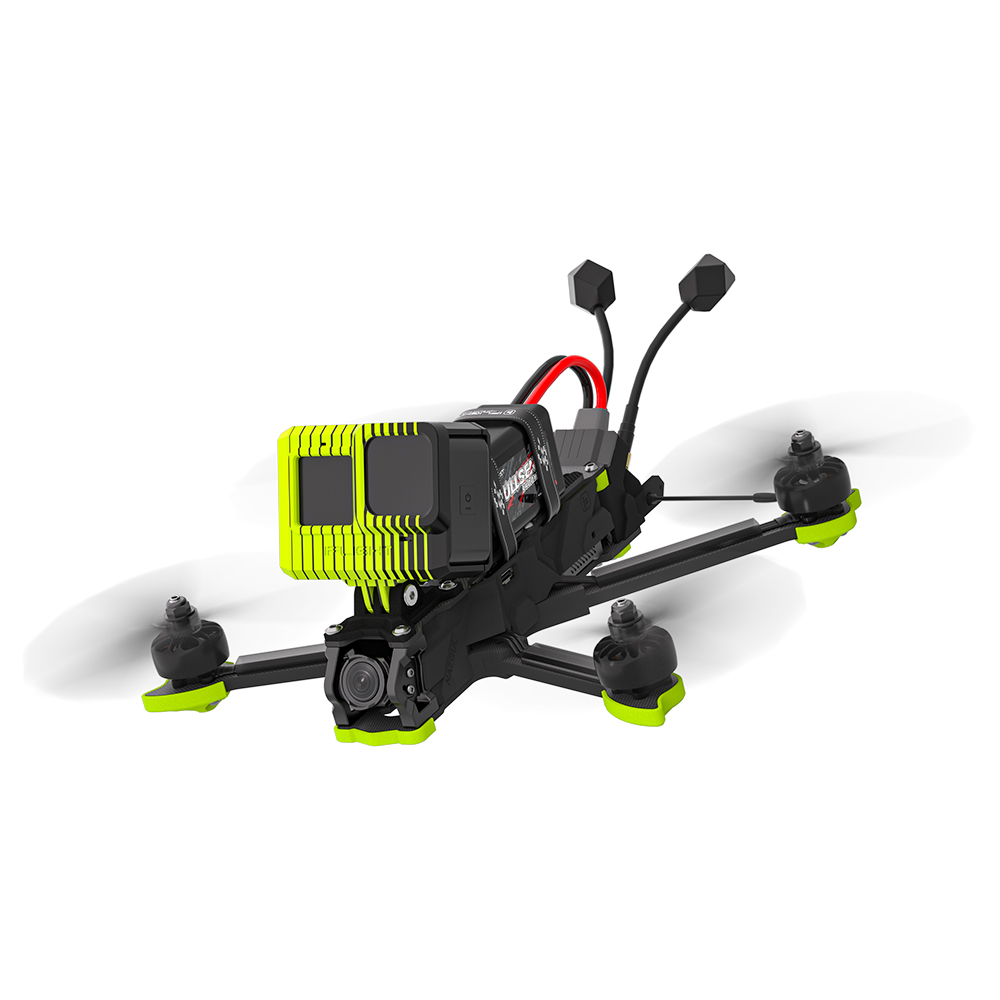

Nazgul DC5 ECO – a 5-inch freestyle drone that redefines performance and value. Equipped with DJI’s O4 Digital HD System for a clear, propeller-free video feed featuring a 1.1/1.3-inch sensor for stunning 4K stabilized video, even in low light. Its carbon fiber frame with an aluminum camera mount ensures durability while remaining lightweight, and the included GoPro mount adds versatility. Powered by the ATF435 flight controller and BLITZ E55S ESC, it delivers reliable performance.

Features:

• Lightweight and Durable: A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.
• Anti-Spark Filter: Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
• DJI O4  HD Air Unit, Enhanced Perception: DJI O4 video transmission’s enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)
• 4K Stabilized Video with 155° Ultra-Wide Angle: Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
• Enhance user experience and streamline maintenance: Equipped with a built-in buzzer and receiver mount, this feature makes it convenient maintenance and adjustments to the receiver.

Specifications:

• Product Name: Nazgul DC5 ECO 6S O4 HD
• Geometry: DC (DeadCat)
• FC: BLITZ ATF435 Flight Controller
• ESC: BLITZ E55S 4-IN-1 ESC
• Video Transmission: DJI O4 Pro Air Unit
• Frame: 240mm wheelbase
• Motor: XING-E Pro 2207 1800KV motors
• Prop: Nazgul F5 propellers
• Weight: 450g±5g
• Takeoff Weight: Approx. 675g±5g (With 6S 1480mAh battery)
• Dimensions (L×W×H): 193×144×34 mm
• Max Speed: 190 km/h
• Maximum Takeoff Altitude: 7000 m
• Max Hover Time: Approx. 7.5 mins (No Load with 6S 1480mAh)
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: Dual Antenna
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)

Video Transmission:

• Product Name: DJI O4 Pro Air Unit
• Image Sensor: 1/1.3-inch
• Lens: FOV: 155°
• ISO: 100-25600
• Video Resolution: Max 4K@120fps
• Video Format: MP4, Max Video Bitrate: 130Mbps
• Color Mode: Standard/D-Log M
• Stabilization: Super Stabilization 3.0+ (RockSteady 3.0+)/ Stabilization Function Off (Supports Gyroflow)
• Live View Quality: 1080P@100fps
• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
• Communication Bandwidth: Max 60 MHz
• Antenna: Dual antennas
• Internal Memory: 4GB
• Supported SD cards: microSD cards (max. 512GB)

Compatibility:

• DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3
• DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2
• (Or another Radio to match the RX in the Drone)

The flight control firmware needs to be configured to support the SBUS protocol so that the DJI FPV remote controller can be used.

Package includes:

• 1 x Nazgul DC5 ECO V1.1 6S O4 HD BNF
• 2 x Antennas
• 1 x Battery pads
• 2 x Prop (Pairs)

Recommended Accessories (not included)

• Original Propellor: iFlight Nazgul F5 Propellers (4 Colours)
• Propellor alternative: HQProp Ethix P3.5 RAD Berry 5.1×3.5×3 Propeller (Set of 4)
• Value Battery: CNHL Black Series 1300mAh 22.2V 6S 100C Lipo Battery
• Performance Battery: GNB Battery 22.2V 160C 1400mAh 6S
• Lightweight HV Battery: GNB Battery 22.8V 120C 1300mAh 6S HV
• Premium Battery:
  • Tattu R-Line Version 5.0 22.2V 150C 1200mAh 6S Battery
  • Tattu R-Line Version 5.0 22.2V 150C 1400mAh 6S Battery
