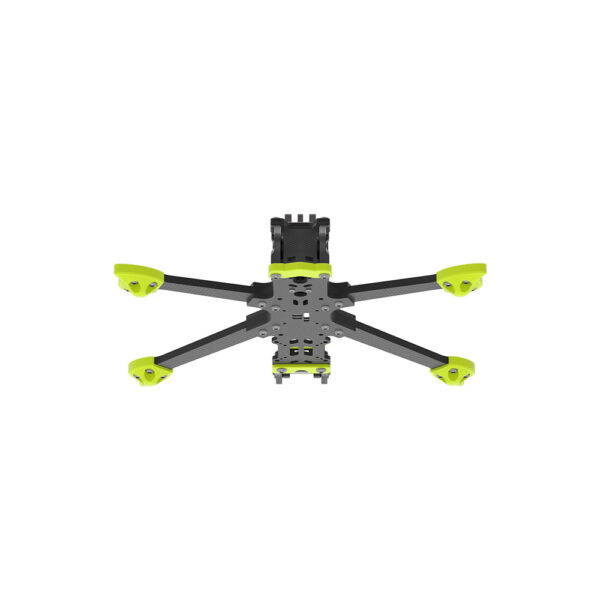

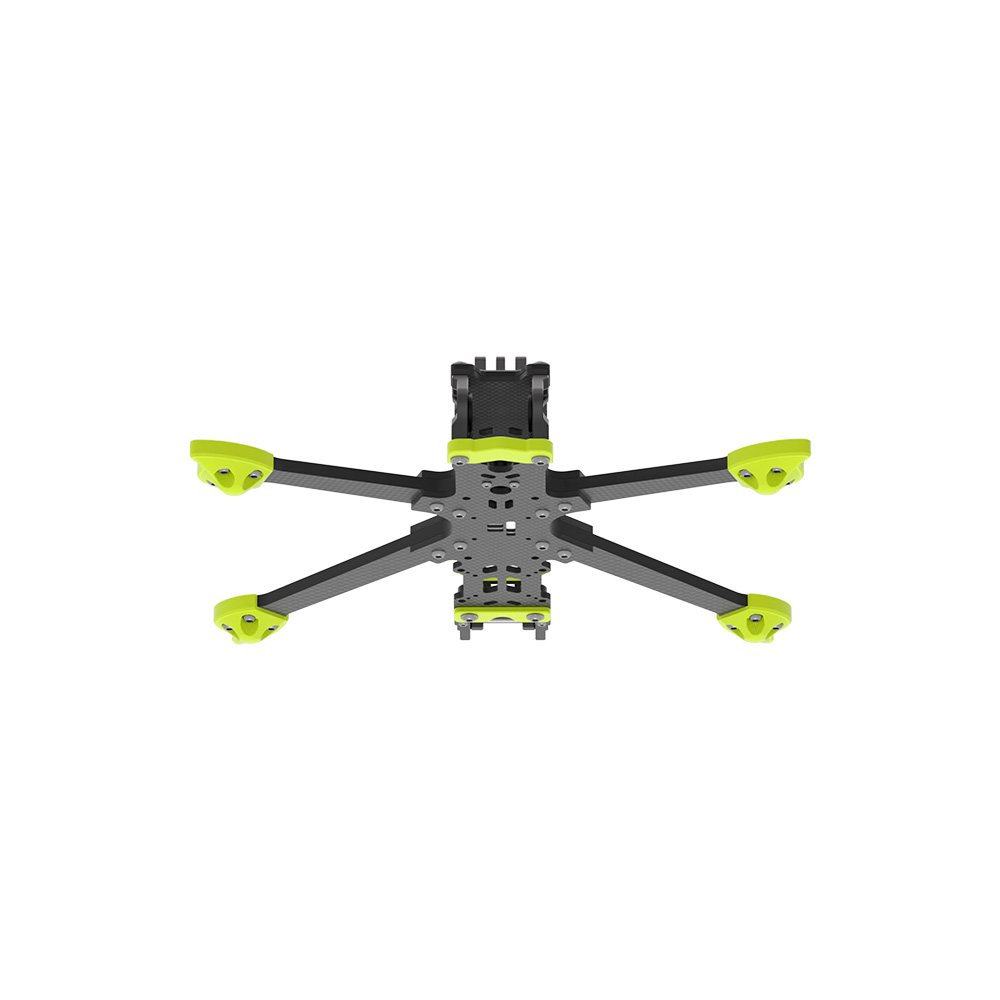

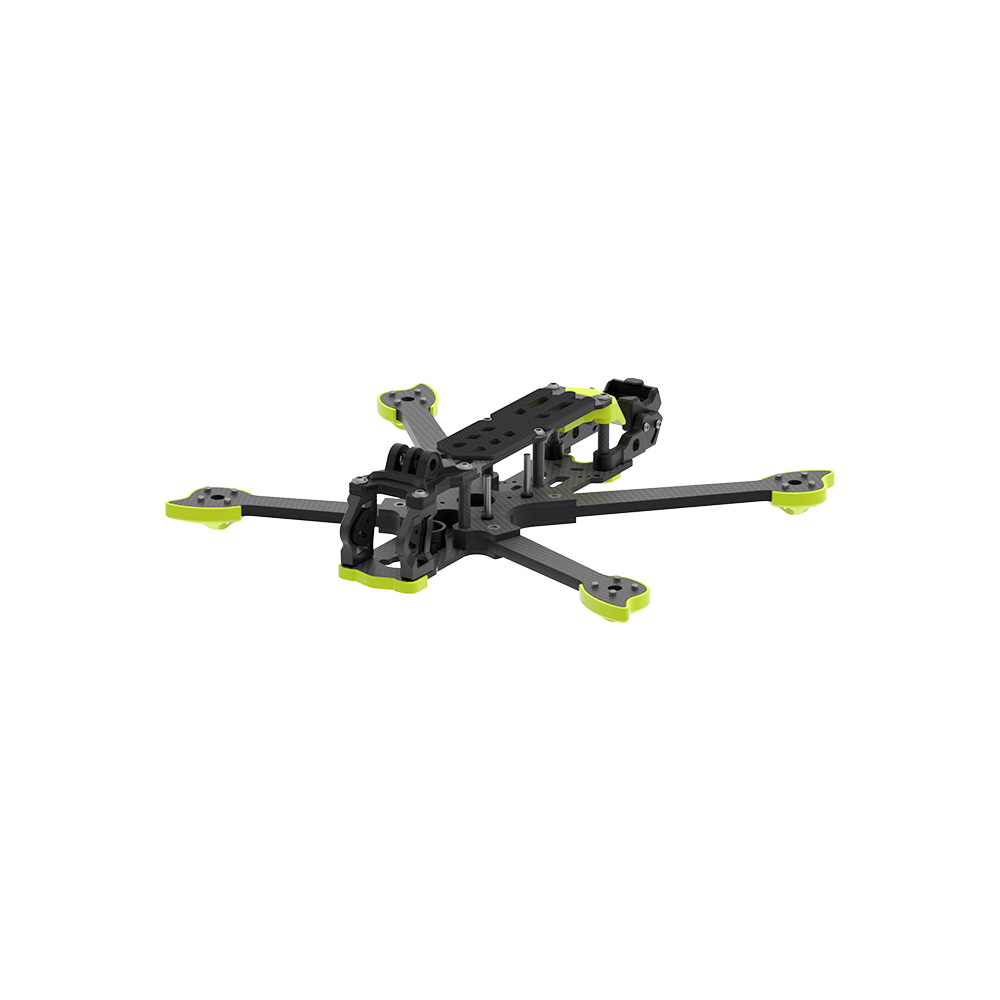

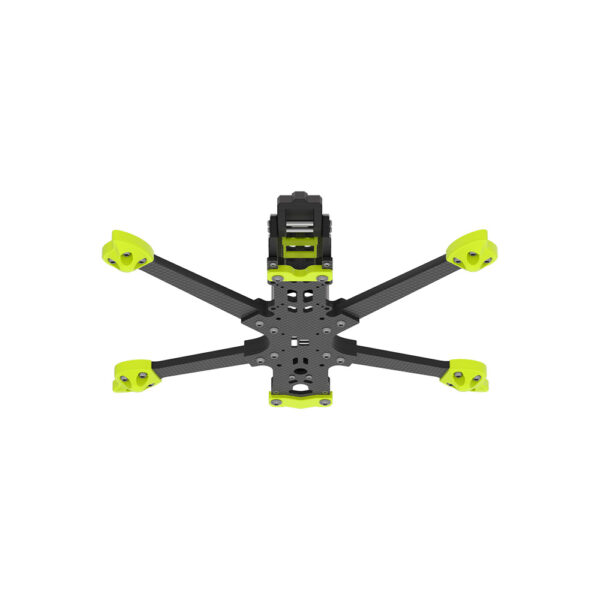

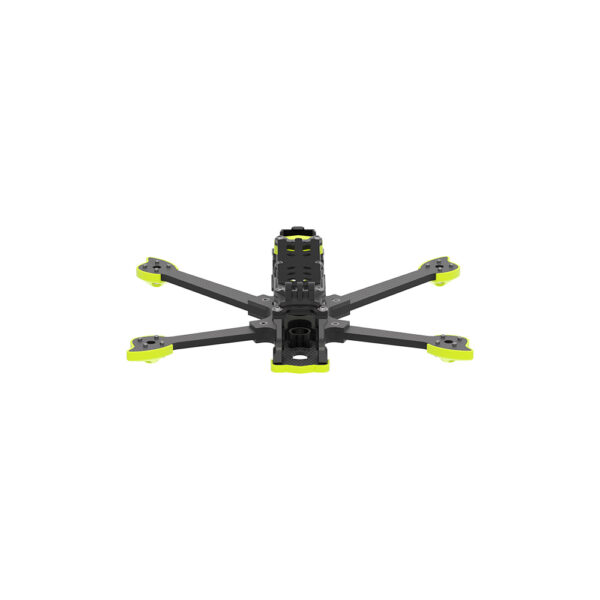

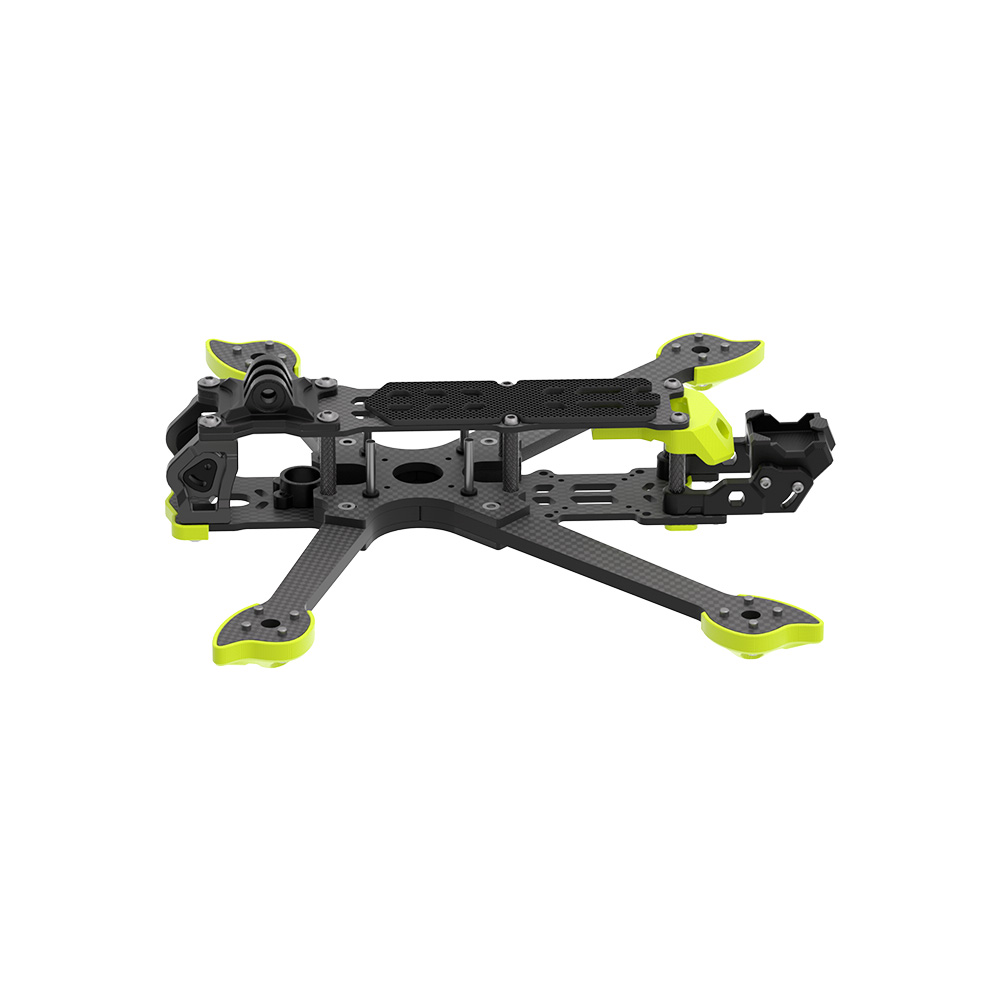

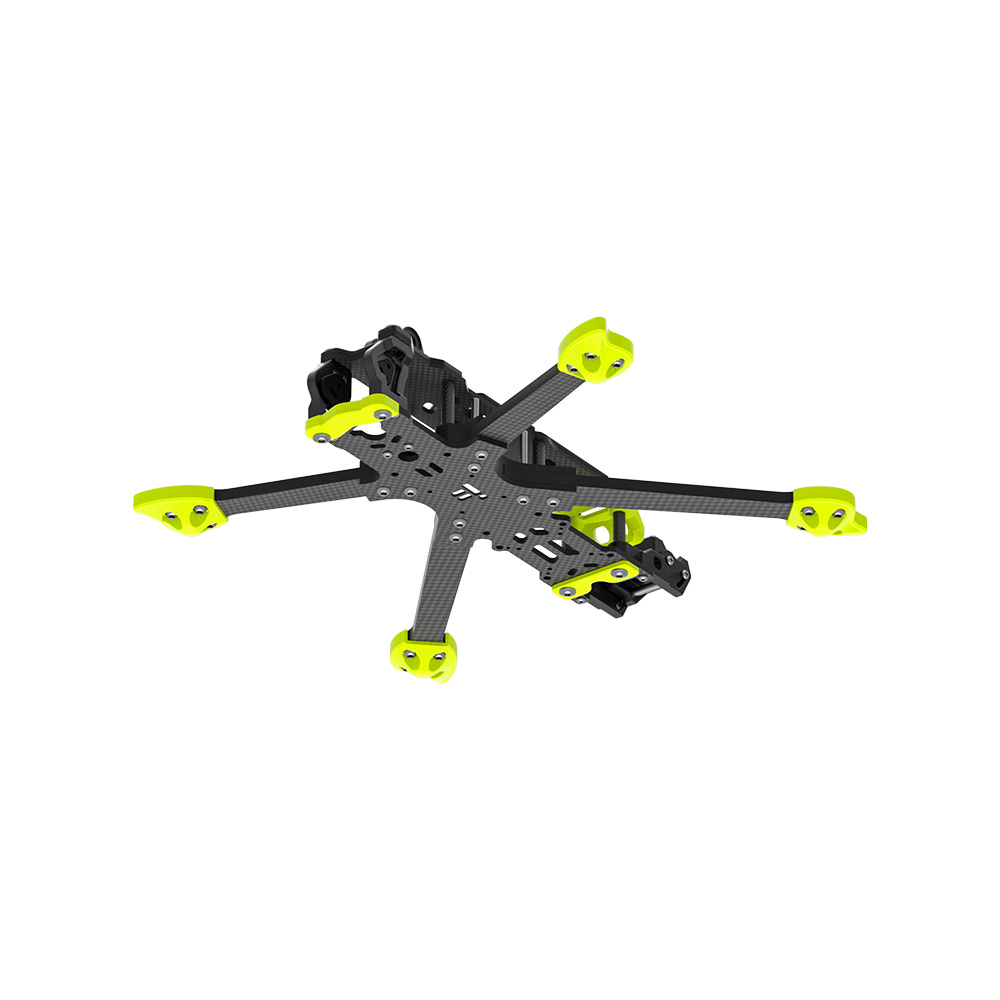

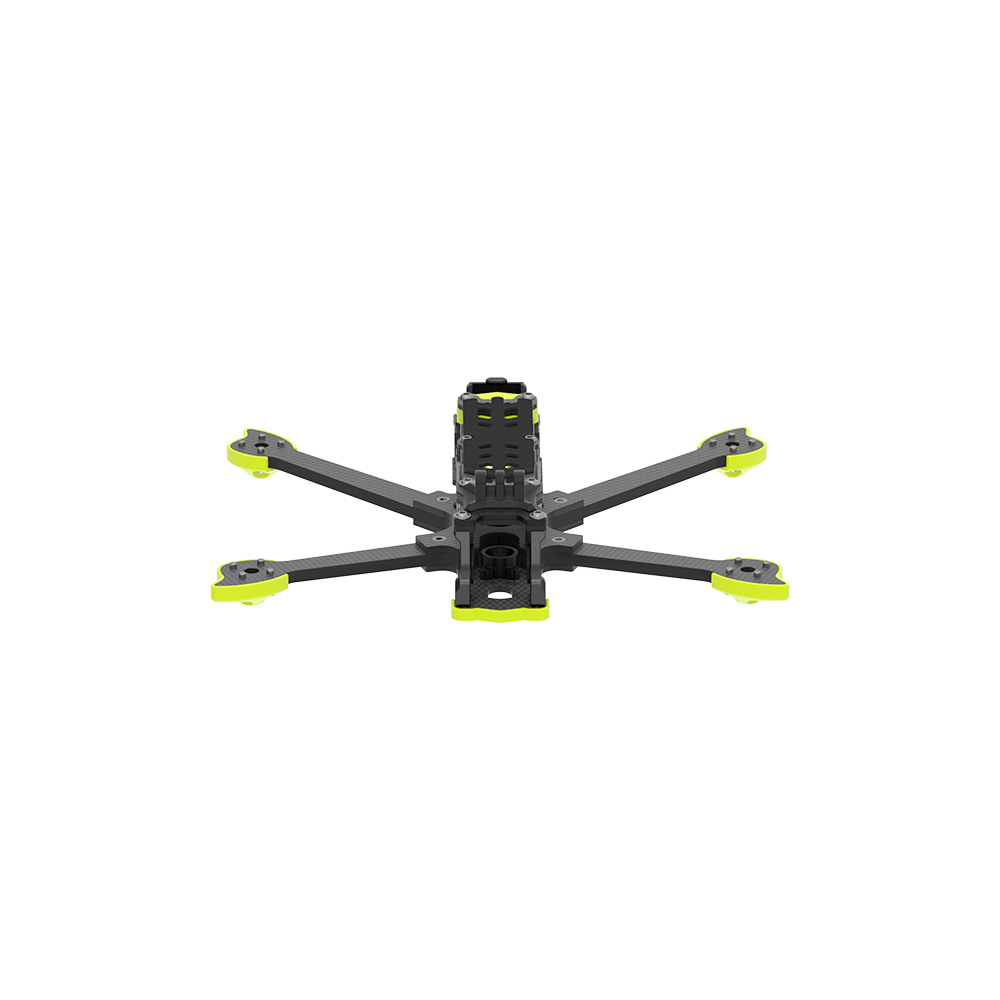

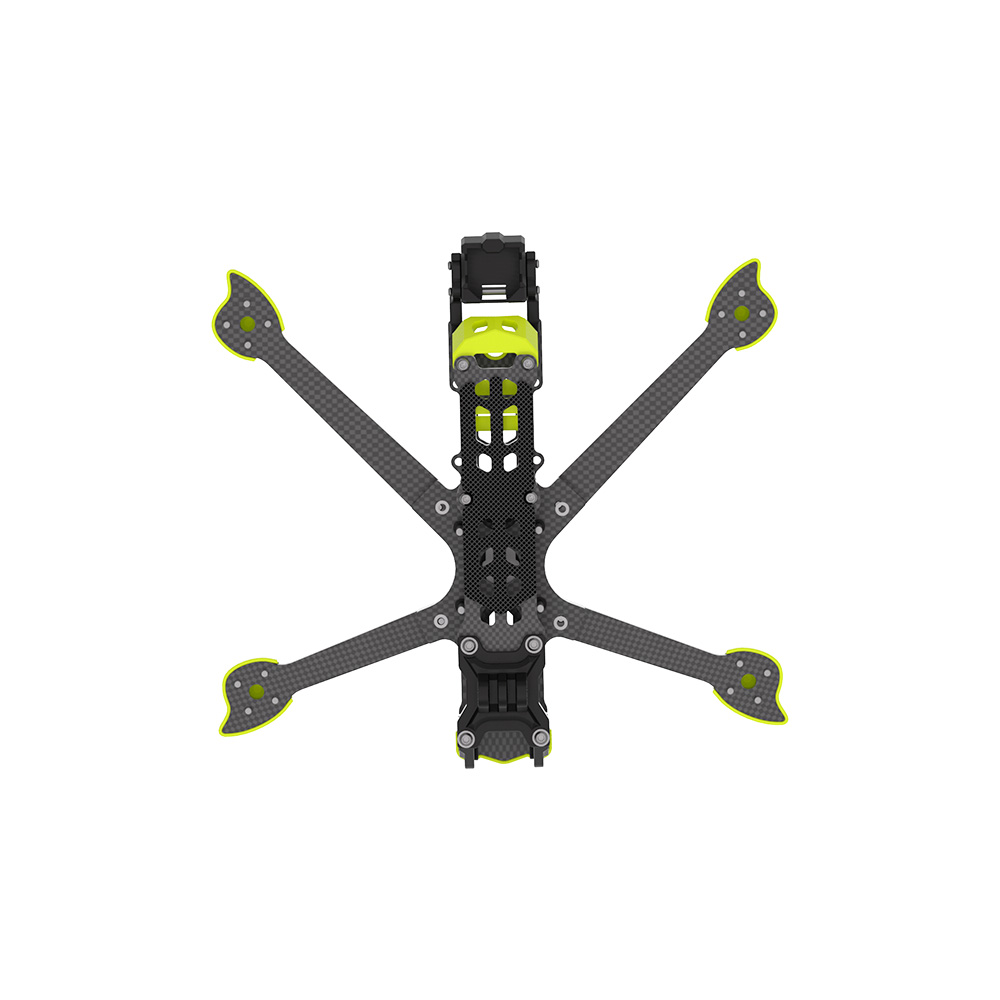

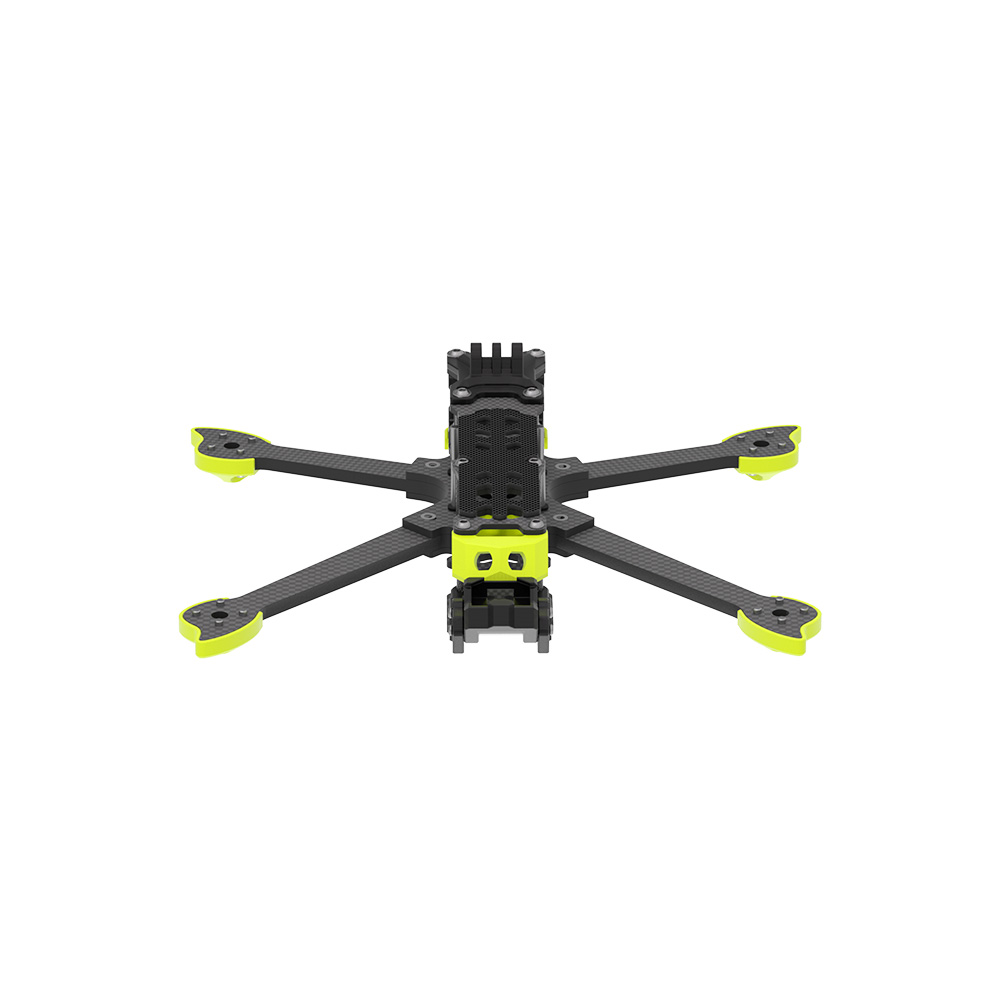

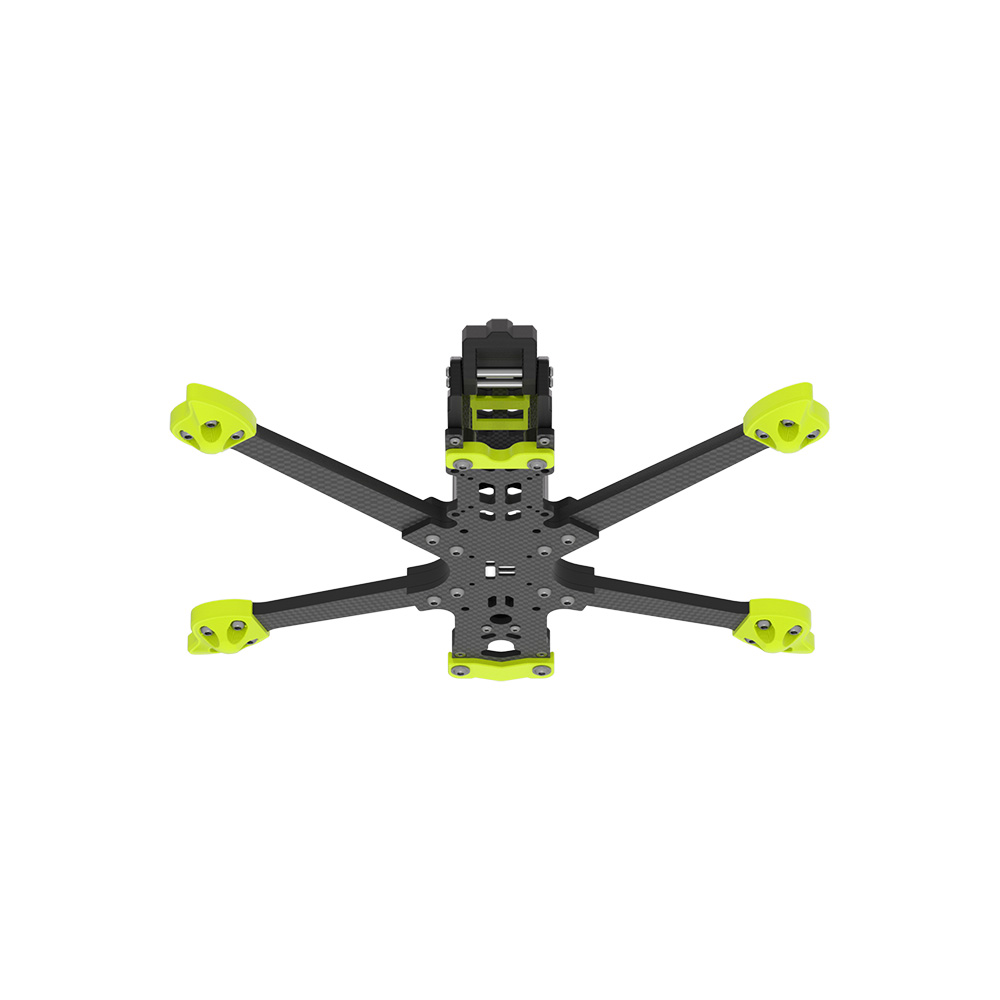

The iFlight Nazgul DC5 Frame Kit delivers stability and control, designed for ultimate freestyle performance. Made from super-stiff carbon, it minimizes resonance for a smoother flight. Recommended 2207 motors provide maximum 5″ prop control, making every flight an exhilarating experience.

Specifications

• Product Name: Nazgul DC5 Frame Kit
• Geometry: DC (DeadCat)
• Wheelbase: 240mm
• Frame Dimension: 193*144*34mm
• Arm Thickness: 5mm
• Bottom Plate Thickness: 2.5mm
• Upper Plate Thickness: 3mm
• Internal space height: 29mm
• Max Flight Stack Height: 22mm
• Max VTX Height: 29mm
• FC Mounting: 20*20/Φ2mm 30*30/Φ3mm
• Motor Mounting: 16*16/Φ3mm
• VTX Mounting：30*30 φ3mm / 25.5*25.5 φ1.6mm / 20*20 φ2mm
• Weight: 238g

Package Includes

• 1 x Nazgul DC5 Frame Kit
• 1 x TPU set (Inclu. GoPro TPU Base Mount)
• 1 x Screw Bag
• 2 x Anti-slip Battery Pad
• 4 x Motor Wire Shield Tube
• 2 x Battery Strap (20*250mm)
