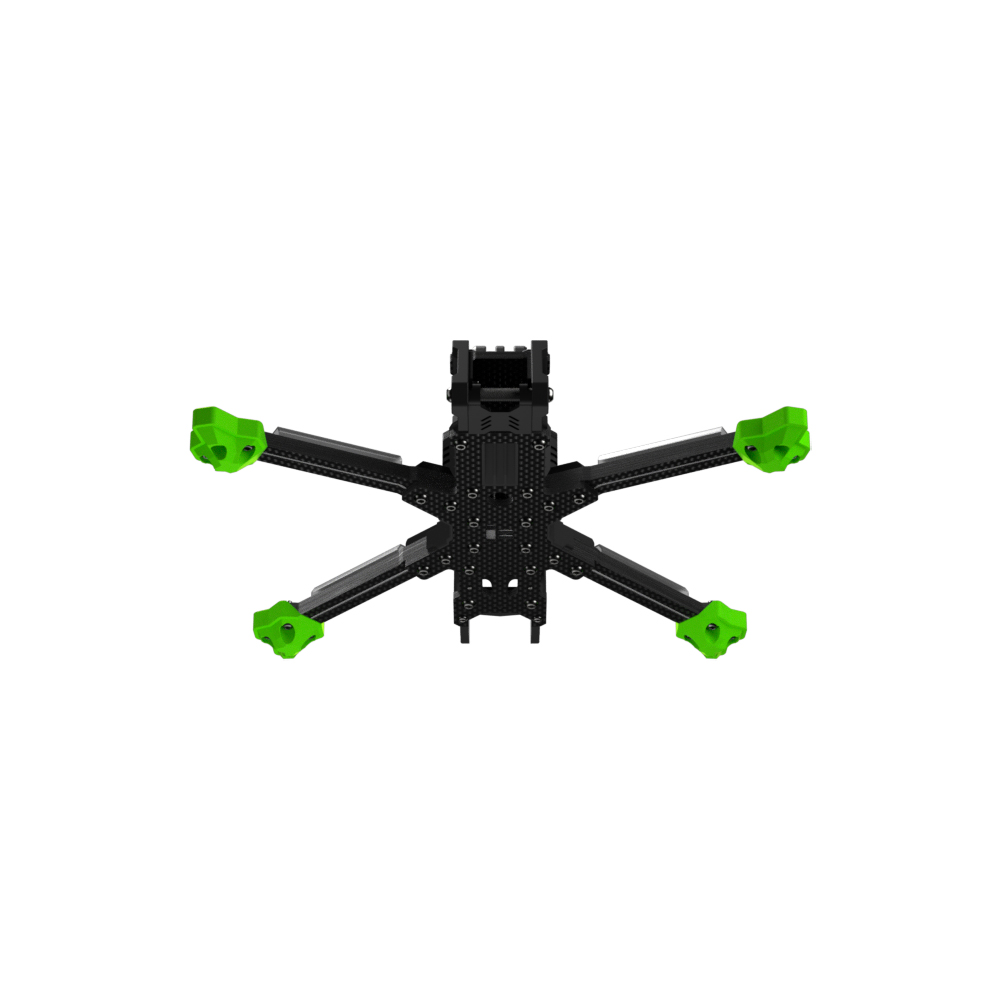

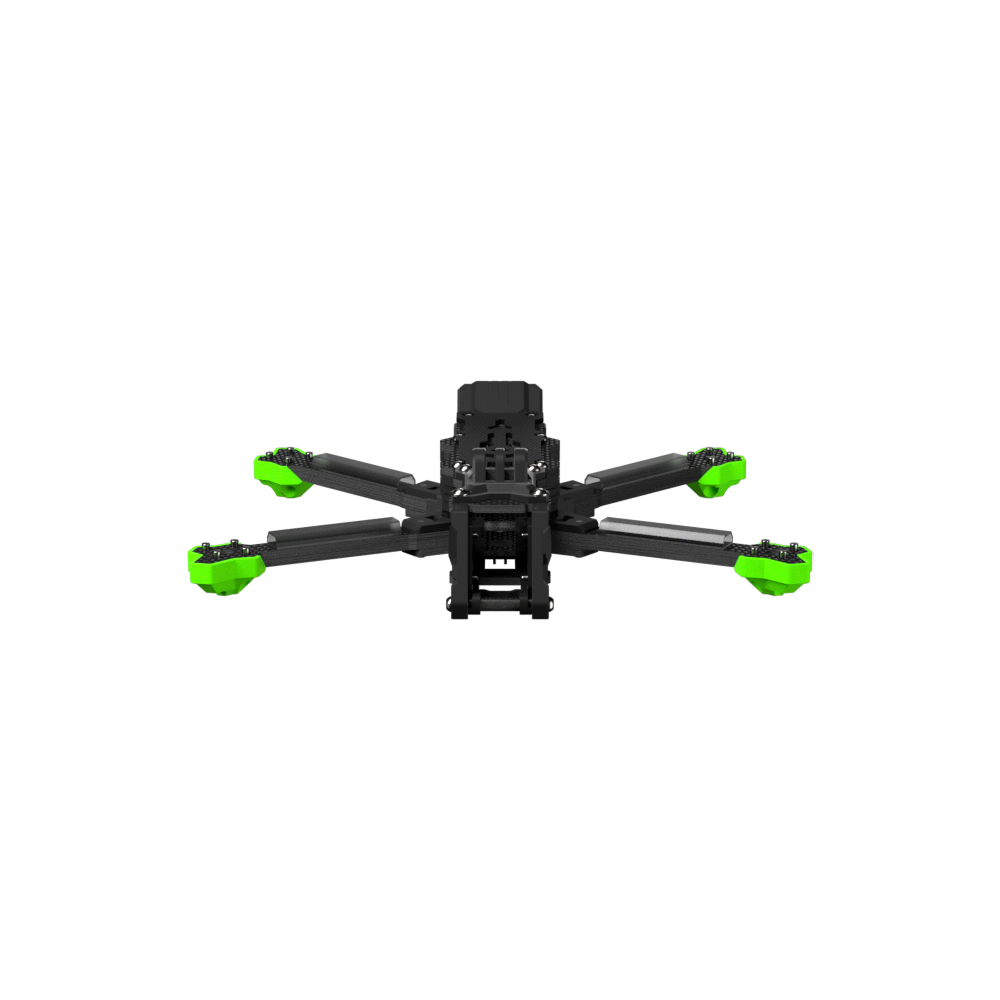

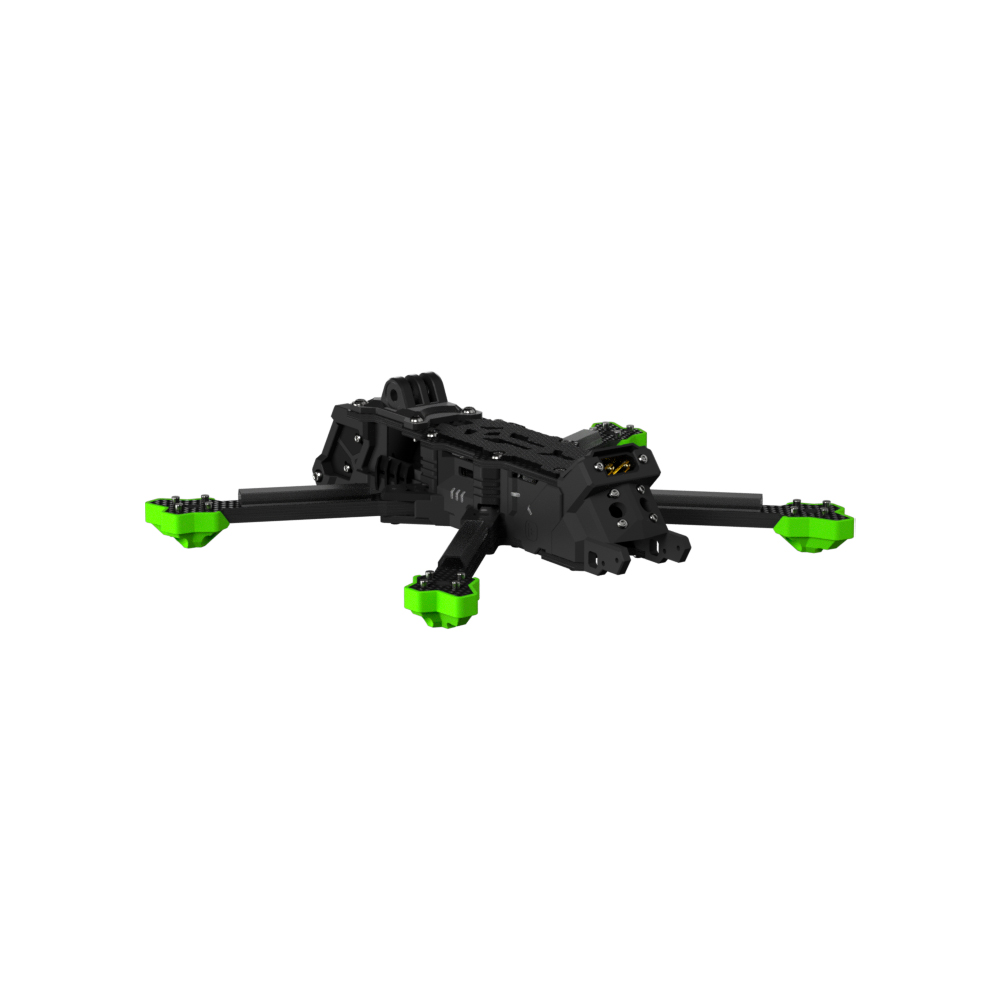

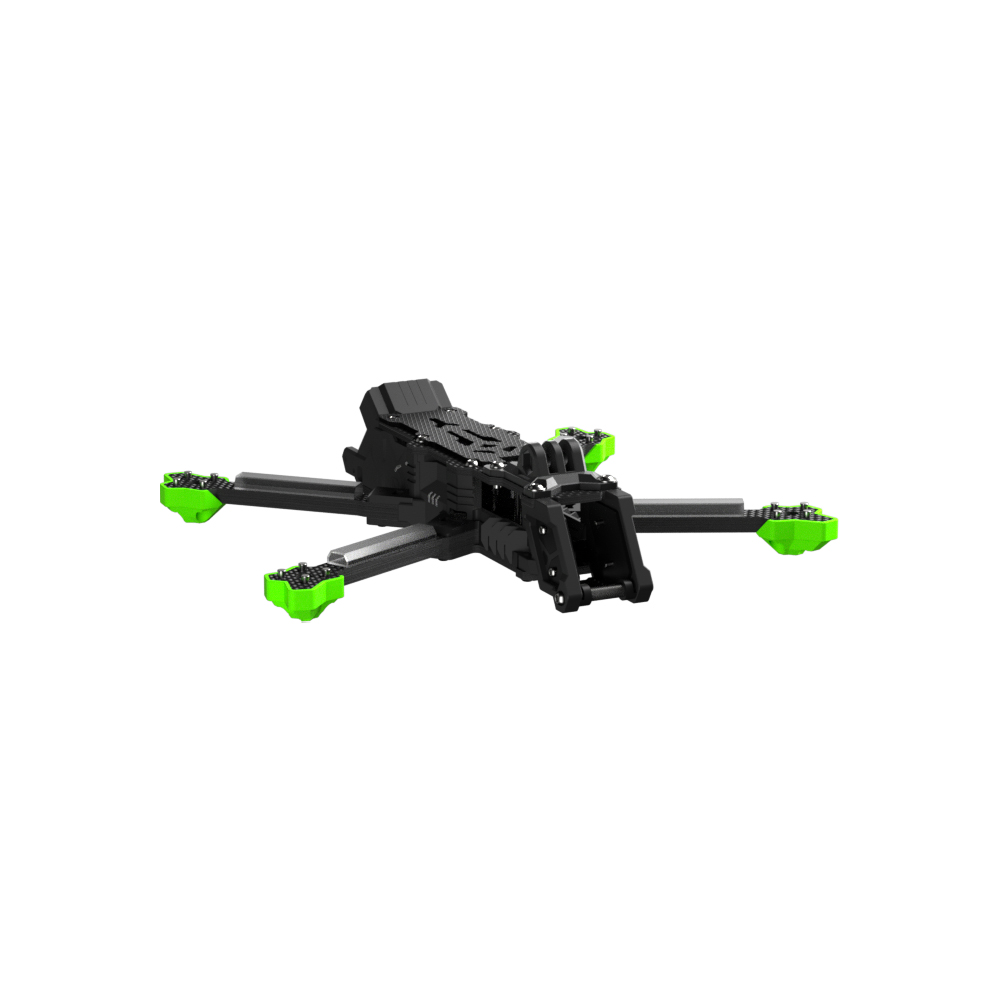

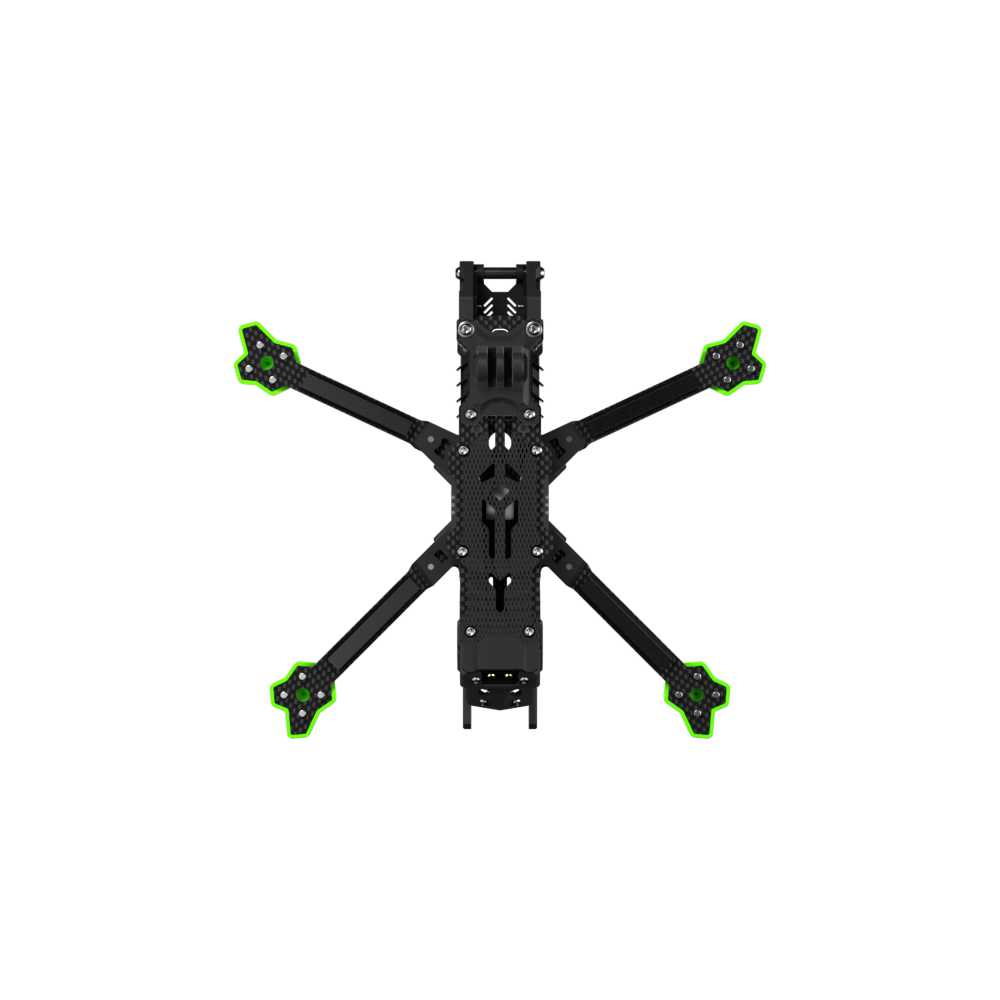

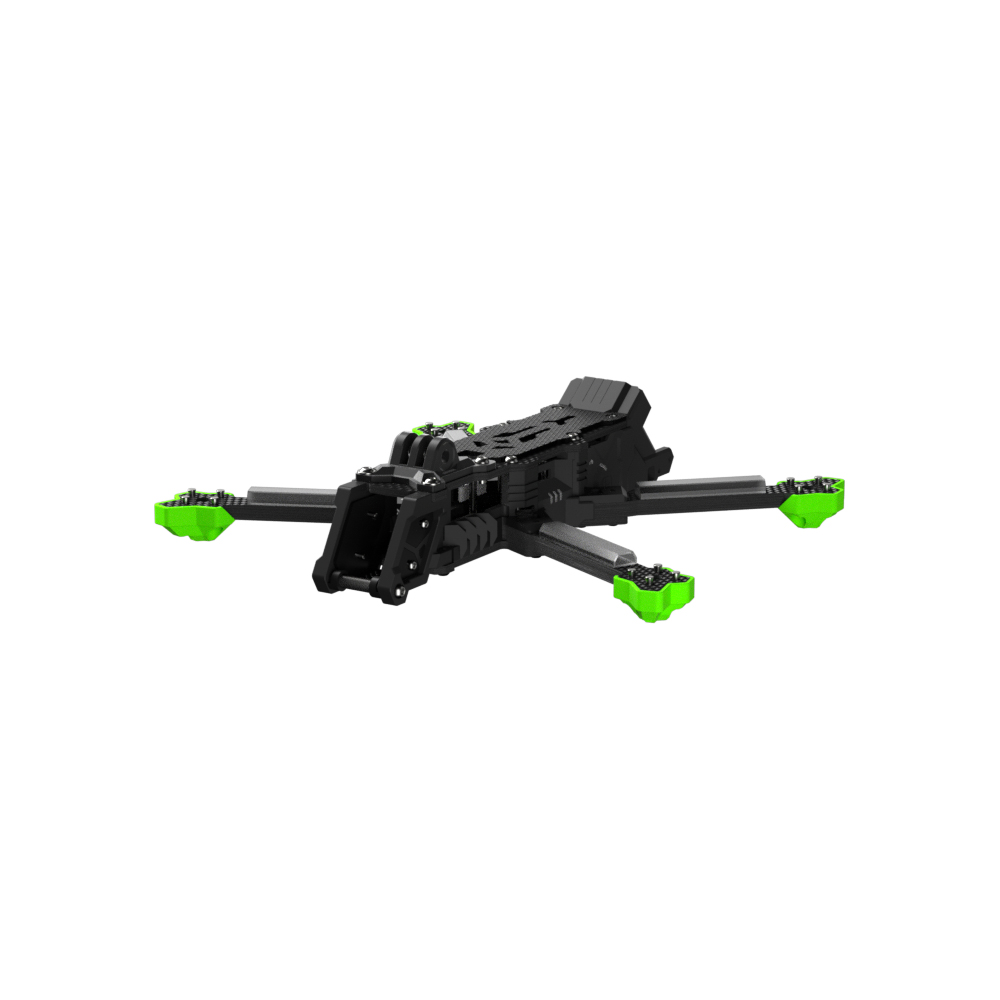

The iFlight Nazgul Evoque F5 V3 Frame Kit delivers unmatched versatility with switchable DC and X geometry for cinematic precision. Engineered for freestyle pilots and cinematic creators, this frame kit enhances airflow, durability, and adaptability through injection-molded construction and fin-shaped cooling channels. Its switchable layout supports both agile performance and clean footage, while reinforced plates and optimized mounting options ensure stable builds for demanding FPV environments and extended flight sessions.

Features

• DC / X dual geometry switchable frame design for cinematic or freestyle flying
• DeadCat configuration enables clean, prop-free footage for professional cinematic shots
• True X geometry unlocks agile, responsive freestyle performance
• Fin-shaped cooling channel improves heat dissipation for stable flight performance
• Upgraded injection-molded construction for improved durability and refined build quality
• Optimized structural design enhances airflow and overall flight efficiency
• Reinforced frame architecture supports high-impact freestyle durability
• Flexible compatibility with DJI O4 Air Unit Pro and multiple VTX systems
• Lightweight yet strong frame design for balanced performance

Specifications

• Product Name: Evoque F5 V3 Frame Kit
• Frame Wheelbase: 236mm (DeadCat default) / 239mm (True X switchable)
• Frame Dimensions: 230 × 207 × 54 mm (DeadCat) / 207 × 199 × 54 mm (True X)
• Arm Thickness: 6mm
• Bottom Plate Thickness: 3mm
• Top Plate Thickness: 3mm
• Max Flight Stack Height: 25mm
• Max VTX Height: 13mm
• Motor Mounting: 16×16mm / Φ3mm
• Flight Stack Mounting: 20×20 / Φ3mm
• VTX Mounting: 25.5×25.5 / Φ2mm
• Weight: 256g ±10g
• Compatibility: DJI O4 Air Unit Pro / BLITZ Whoop 1.6W VTX / BLITZ Mini Force 600mW VTX
• Included In Box: Frame kit, injection-molded set, screw bag, IPEX to RP-SMA pigtails, anti-slip battery pads, battery straps
