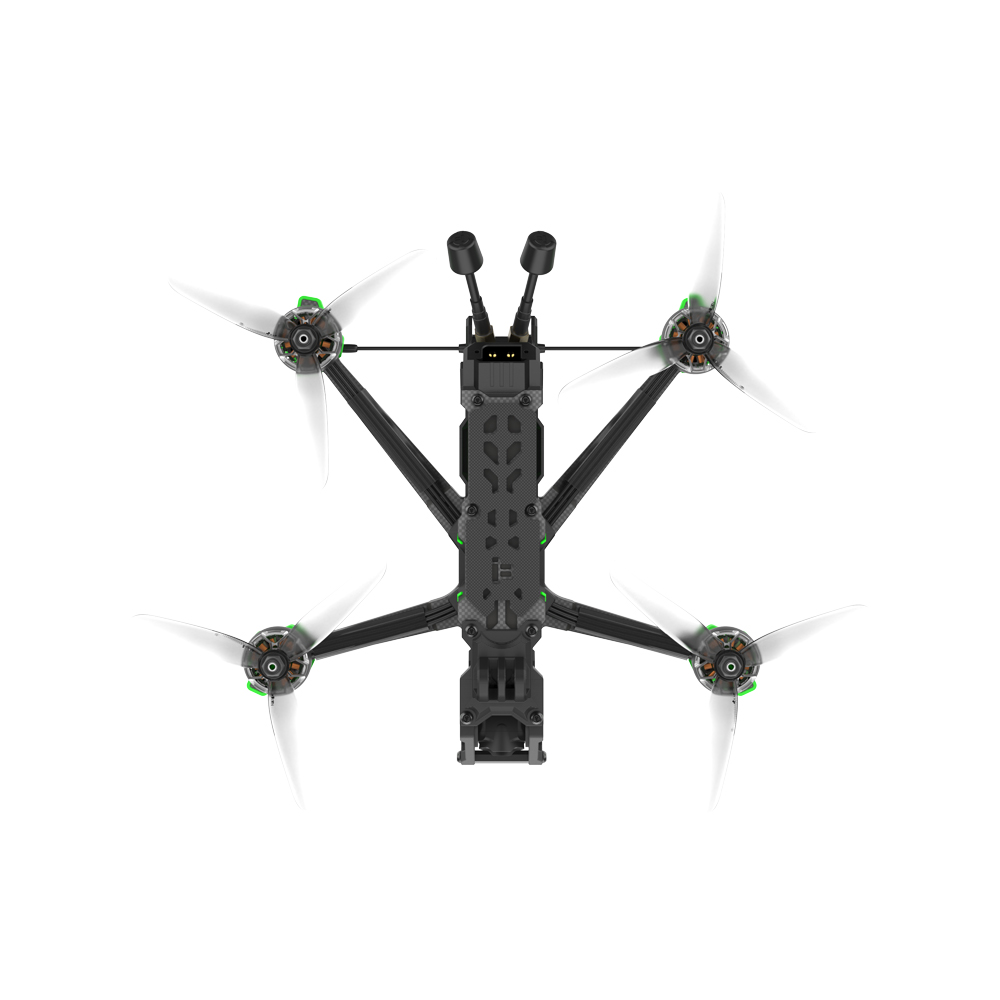

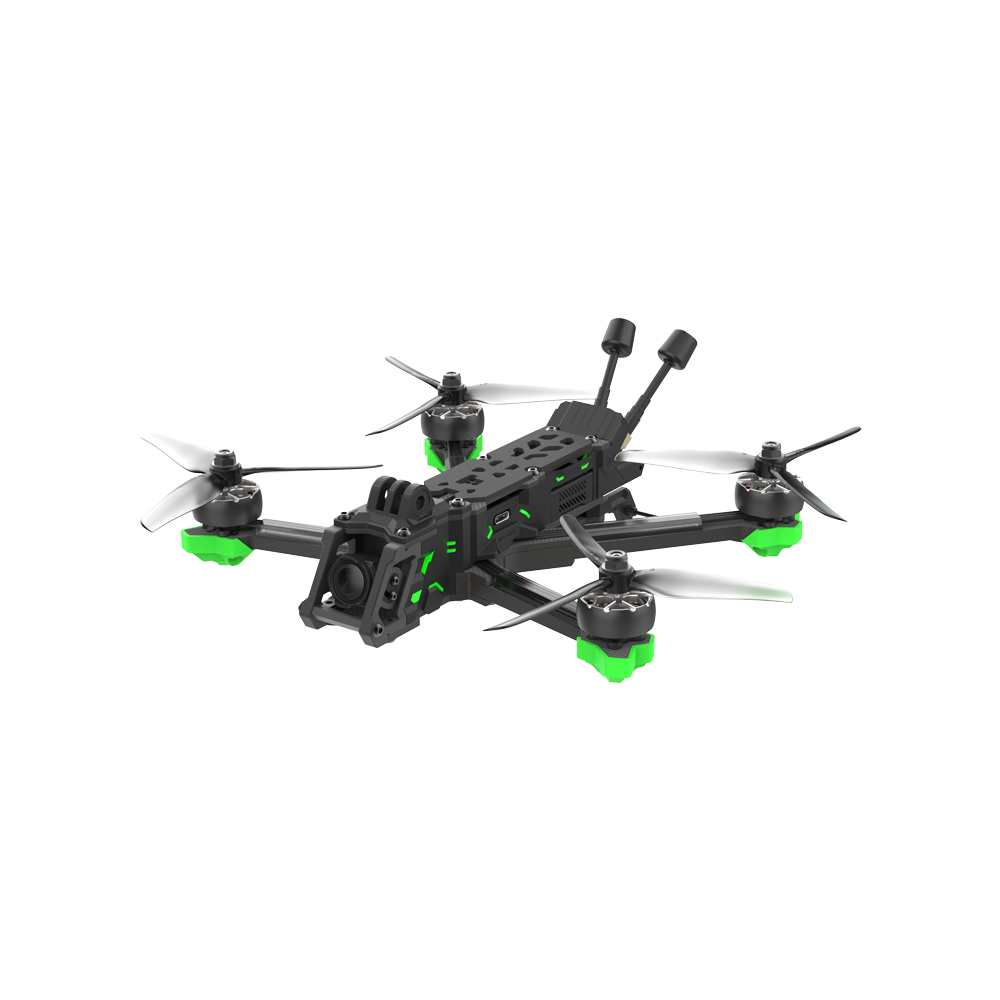

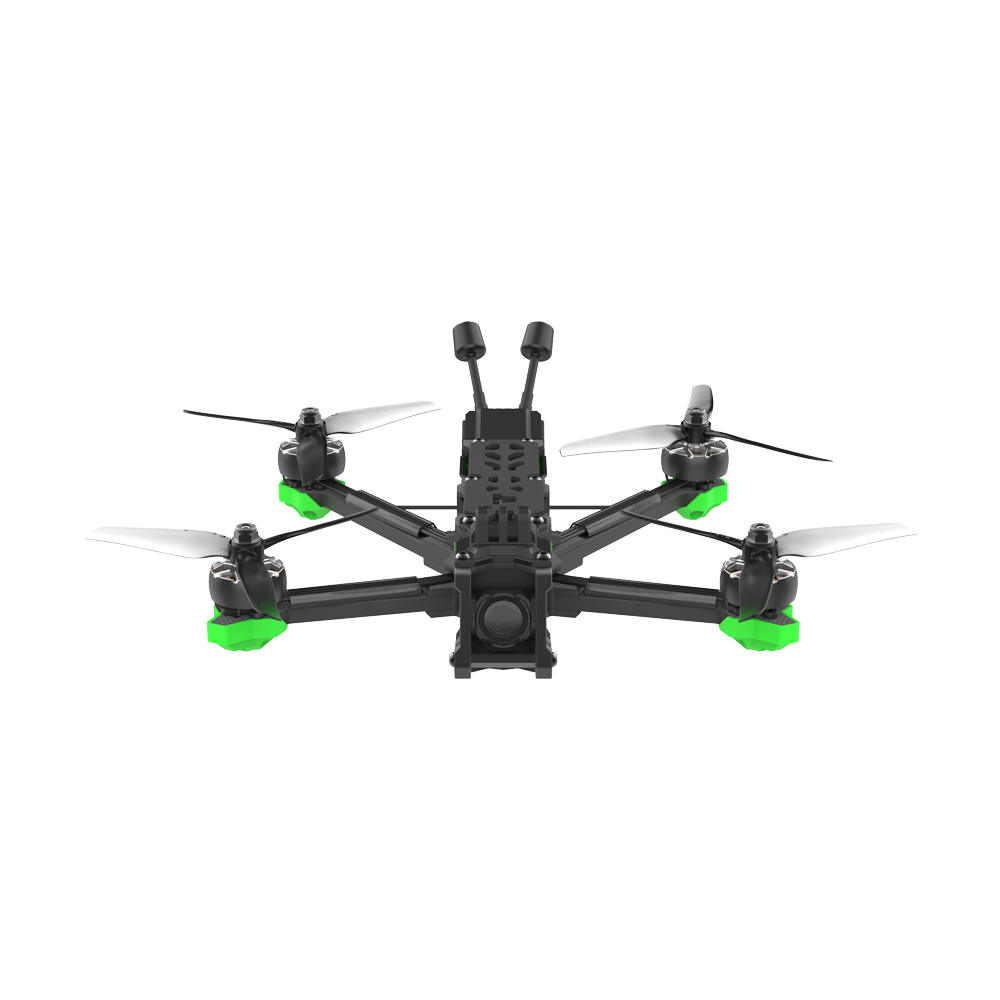

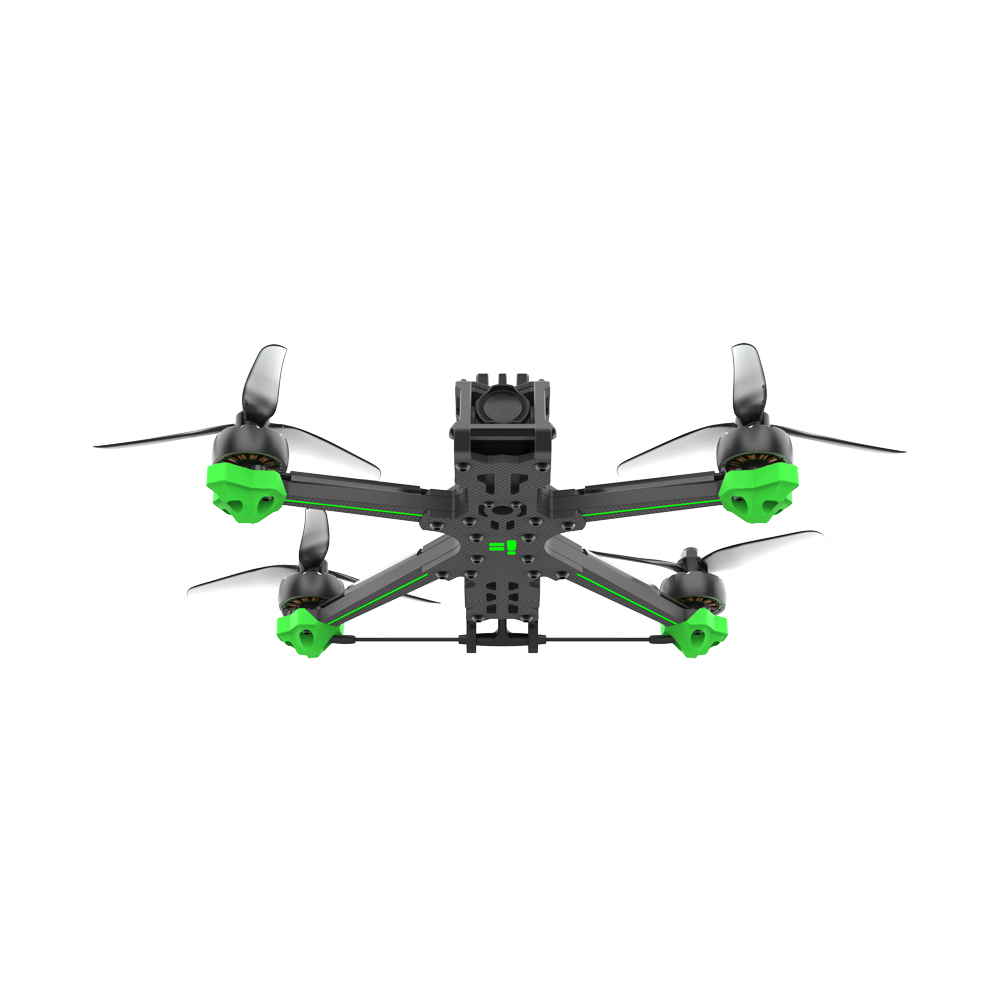

iFlight Nazgul Evoque F5D V2 O4 Freestyle Drone BNF ExpressLRS

Description

Pre-Order info: our stock is in transit and we are expecting it to arrive around 20th Jan.

Note this version is BNF ExpressLRS 2.4GHz. We also have:

• BNF DJI option
• BNF TBS Crossfire option

Experience the next generation of pre-built FPV drones with iFlight’s latest offering, setting a new standard in Bind-And-Fly simplicity and performance. This drone integrates DJI’s latest O4 Pro Air Unit, featuring an advanced 1/1.3-inch image sensor for capturing intricate details even in low-light conditions. Enjoy seamless real-time video transmission at up to 1080p/100fps, ensuring an immersive flying experience. The upgraded frame and electronics not only enhance durability but also provide enthusiasts with top-tier performance right out of the box. Welcome to the future of FPV flight with iFlight – where setup is simple, yet the thrill and capability are unmatched.

Features:

• Smooth and Powerful XING2 Motors: The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.
• Latest Nazgul Frame for Maximum Protection: The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
• O4 Video Transmission, Enhanced Perception: DJI O4 video transmission’s enhanced stability lets you fully immerse yourself in each flight and provides greater safety. It boasts up to 15 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps. (Source DJI)
• 4K Stabilized Video with 155° Ultra-Wide Angle: Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
• Secured Battery Plug with Anti-Spark Filter: Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specifications:

• Product Name: Evoque F5 V2 O4 HD BNF
• FC: BLITZ Mini F722 Flight Controller
• ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
• Video Transmission: DJI O4 Air Unit
• Frame wheelbase: 223±2mm
• Motor: XING2 2207 1750KVmotors
• Prop: Nazgul F5 propellers
• Receiver: ExpressLRS 2.4Ghz
• Weight: 436±5g
• Takeoff Weight: Approx. 712±10g (With 1480mAh Battery)
• Dimensions (L×W×H): 190*136*36±2mm
• Max Speed: 190 km/h
• Maximum Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 7.5 mins (No load With 6S 1480mAh)
• Max Flight Distance: 5 km
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: Dual Antennas
• GNSS： GPS+SBAS+Galileo+QZSS+Glonass (Optional)

Video Transmission:

• Product Name: DJI O4 Pro Air Unit
• Image Sensor: 1/1.3-inch
• Lens: FOV: 155°
• ISO: 100-25600
• Video Resolution: Max 4K@120fps
• Video Format: MP4, Max Video Bitrate: 130Mbps
• Color Mode: Standard/D-Log M
• Stabilization: Super Stabilization 3.0+ (RockSteady 3.0+)/ Stabilization Function Off (Supports Gyroflow)
• Live View Quality: 1080P@100fps
• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
• Communication Bandwidth: Max 60 MHz
• Antenna: Dual antennas
• Internal Memory: 4GB
• Supported SD cards: microSD cards (max. 512GB)

Compatibility:

• DJI Goggles 3 / DJI Goggles N3 / Goggles 2 / Goggles Integra
• ExpressLRS 2.4Ghz or Dual-Band Gemini Radio Transmitters.

Package includes:

• 1 x Evoque F5 6S O4 HD BNF ExpressLRS
• 2 x Antennas
• 1 x Battery pad
• 1 x propeller (Set)
• 1 x Battery strap

Recommended Accessories (not included)

• Original Propellor: iFlight Nazgul F5 Propellers (4 Colours)
• Propellor alternative: HQProp Ethix P3.5 RAD Berry 5.1×3.5×3 Propeller (Set of 4)
• Value Battery: CNHL Black Series 1300mAh 22.2V 6S 100C Lipo Battery
• Performance Battery: GNB Battery 22.2V 160C 1400mAh 6S
• Lightweight HV Battery: GNB Battery 22.8V 120C 1300mAh 6S HV
• Premium Battery:
  • Tattu R-Line Version 5.0 22.2V 150C 1200mAh 6S Battery
  • Tattu R-Line Version 5.0 22.2V 150C 1400mAh 6S Battery
